Micro Matic USA TT-U-12KR-11 Titan Draft Beer & Wine Dispensers
Description

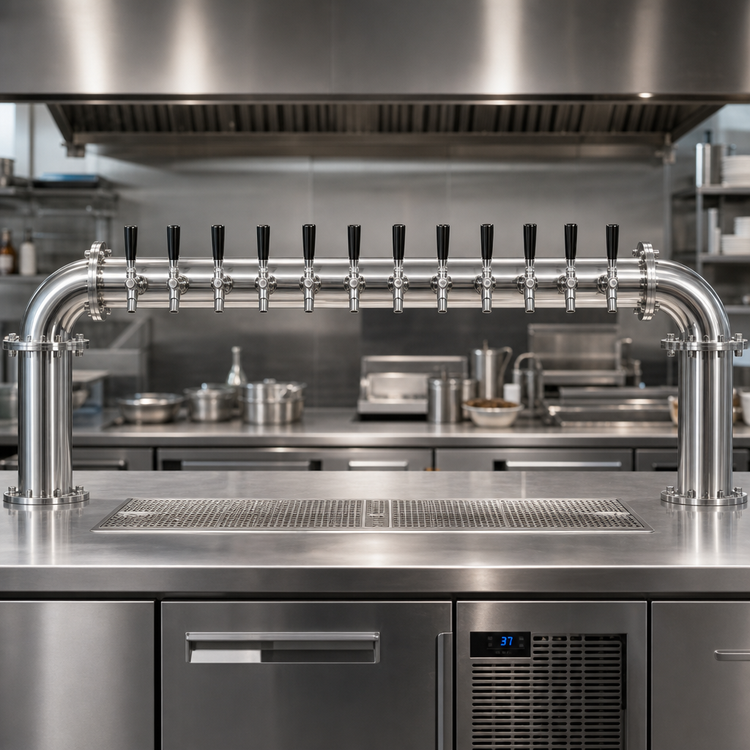

Micro Matic Titan “U” 12-Faucet Draft Beer Tower
Model TT-U-12KR | Glycol-Cooled with Kool-Rite™ Integrated ModuleEngineered for the busiest bars and taprooms, the Titan “U” tower combines oversized brewery-pipe styling with uncompromising 304 stainless steel construction. Twelve faucets, glycol recirculation, and Plug ‘n’ Pour modularity ensure frosty, flavor-pure pours—shift after shift.
Key Features
- High-capacity 4" diameter brew pipe spans 71-3/4" for an eye-catching, contemporary look.

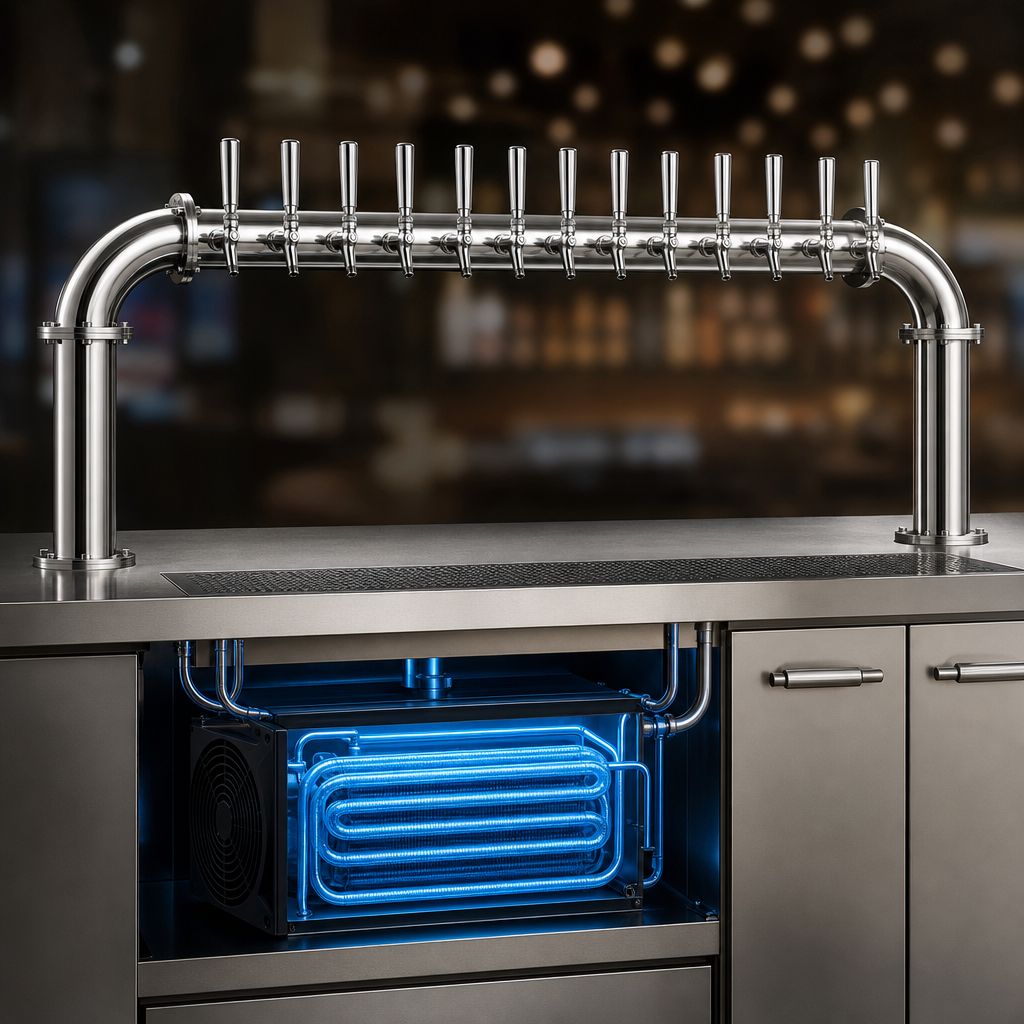

- Integrated Kool-Rite™ glycol module delivers point-of-dispense temperature control.

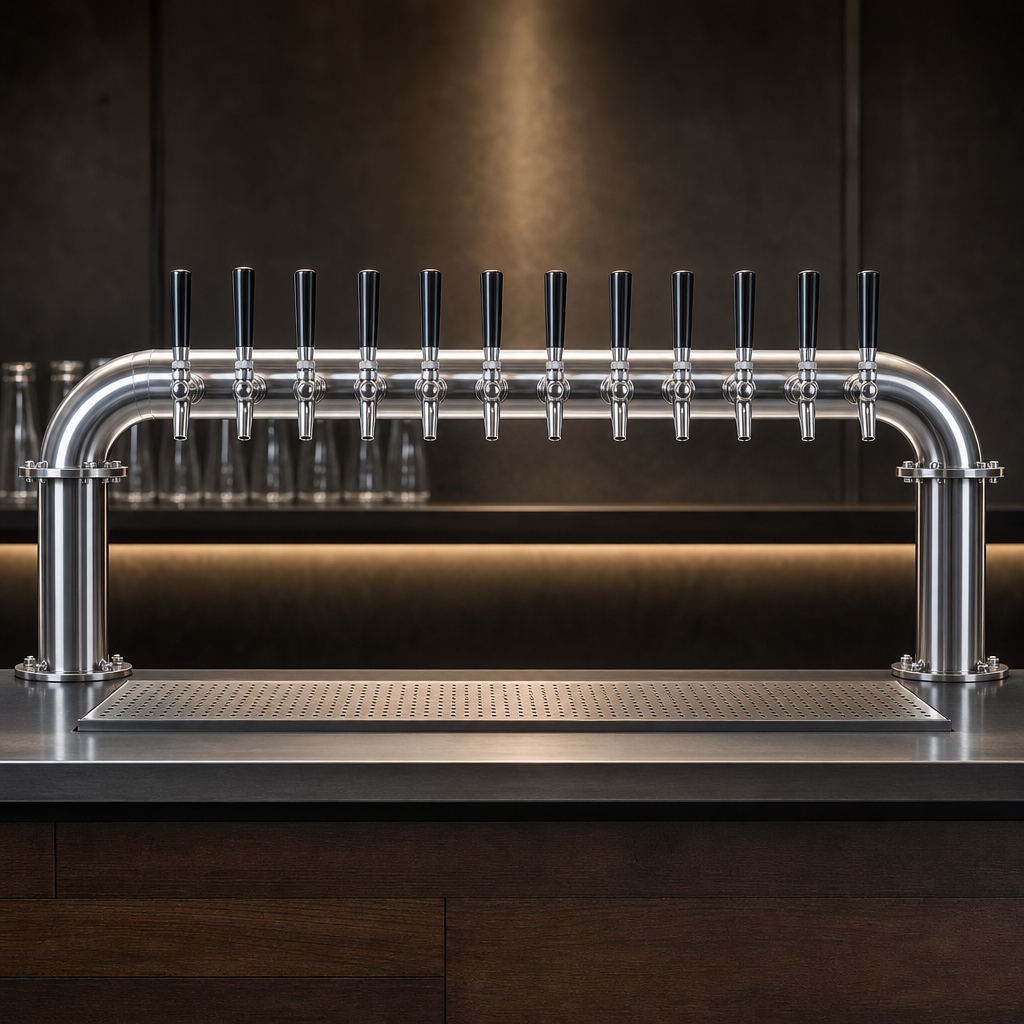

- Twelve 304 stainless steel faucets & shanks—every beer contact surface is stainless for draft purity.
- 14" faucet clearance easily accommodates growlers, pitchers, and tall glassware.
- 4" on-center faucet spacing for comfortable, spill-free service.
- 304 stainless steel product lines with leak-proof shanks and factory-installed cooling block.
- 3/8" O.D. copper glycol lines pre-plumbed for quick connection to existing chillers.
- Polished stainless steel exterior resists corrosion and wipes clean in seconds.
- NSF certified and proudly manufactured in the USA.
What’s Included
- Titan “U” draft tower with (2) 7" diameter stainless bases
- (12) 304 stainless steel faucets pre-installed
- Cooling block with copper coolant lines
- Mounting gasket & hardware
Technical Specifications
| Part Number | TT-U-12KR |
|---|---|
| Number of Faucets | 12 (304 SS) |
| Overall Width | 71-3/4" (1822 mm) |
| Overall Height | 19-7/8" (505 mm) to top of brew pipe |
| Faucet Clearance | 14" |
| Brew Pipe Diameter | 4" |
| Base Diameter | (2) × 7" |
| Faucet Spacing | 4" on center |
| Beer Lines | 1/4" O.D. 304 SS tubing with 5/16"–3/8" barbs |
| Glycol Lines | 3/8" O.D. copper with 3/8" barbs |
| Cooling Method | Kool-Rite™ glycol recirculation (Plug ‘n’ Pour module) |
| Finish | Polished stainless steel |
| Certification | NSF |
| Country of Origin | USA |
Need help sizing your glycol chiller or choosing accessories? Contact our draft specialists at 1-866-327-4159 or visit micromatic.com.
