Micro Matic USA TT-L-4KR-11 Draft Beer & Wine Dispensers
Description

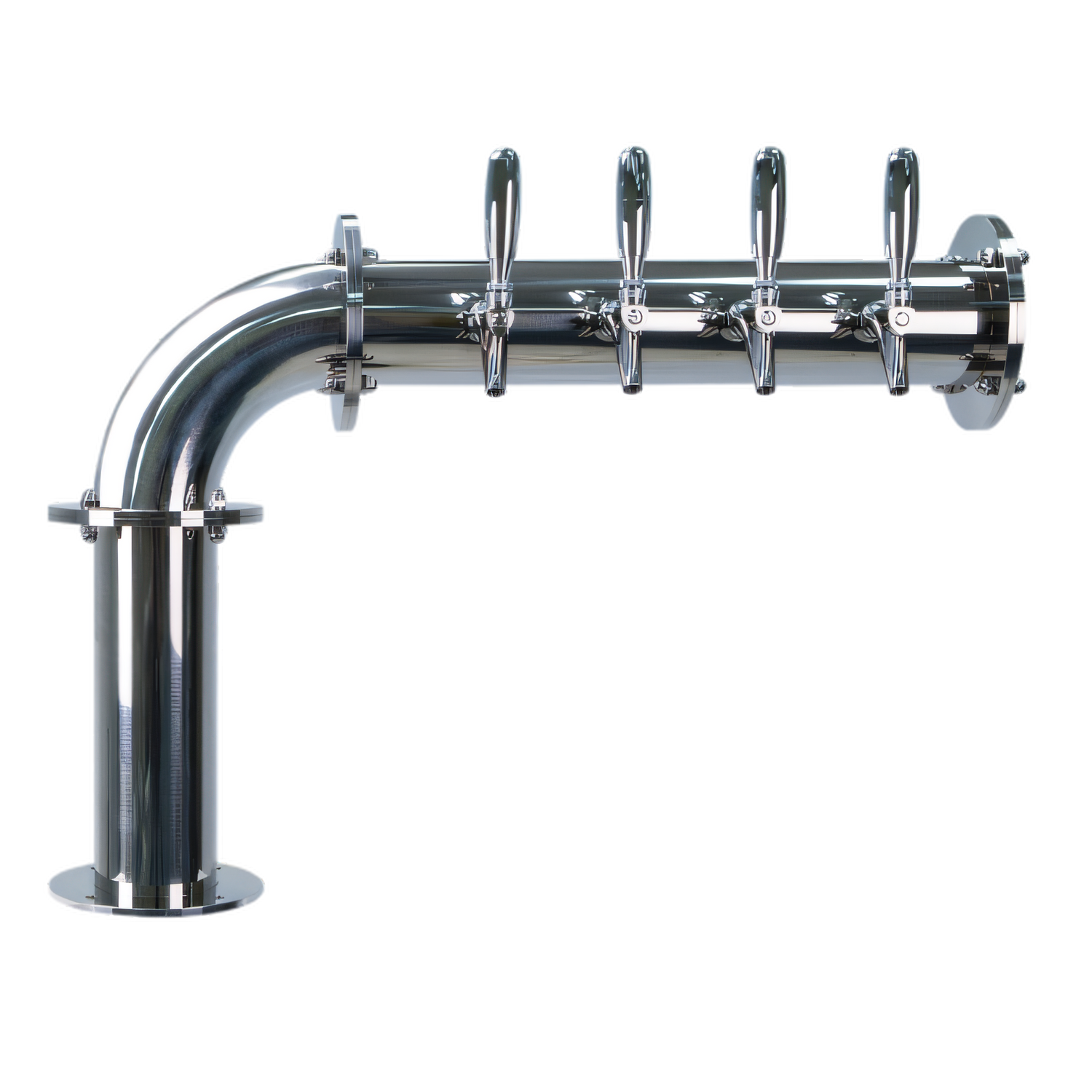

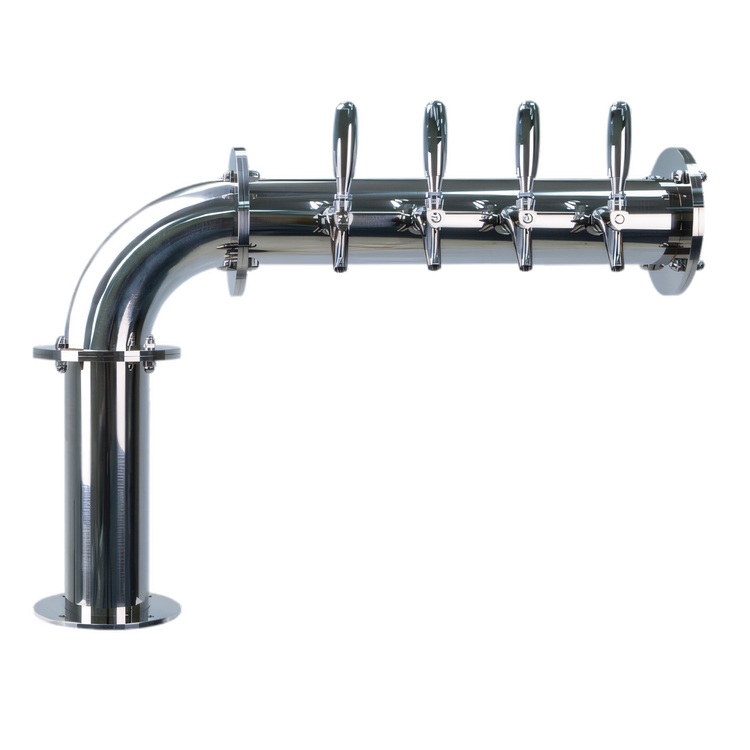

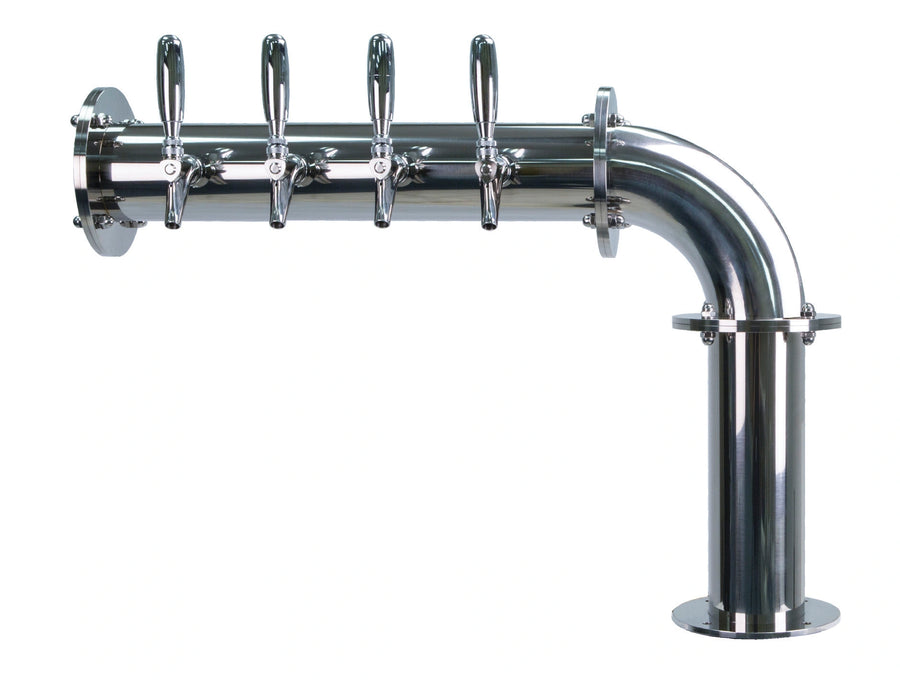

Titan “L” Draft Beer Tower – 4 Faucets
Model TT-L-4KR-11 • Polished Stainless Steel • Glycol-Cooled (Kool-Rite™)Give your bar the unmistakable look – and performance – of brewery-level dispensing. Micro Matic’s U.S-built Titan “L” Tower combines an oversized 4" brewery-pipe profile with an integrated Kool-Rite™ glycol module, delivering ice-cold, flavor-pure pints even on the longest beer runs. Just plug ’n’ pour and watch the beer sales flow.
Why you’ll love it

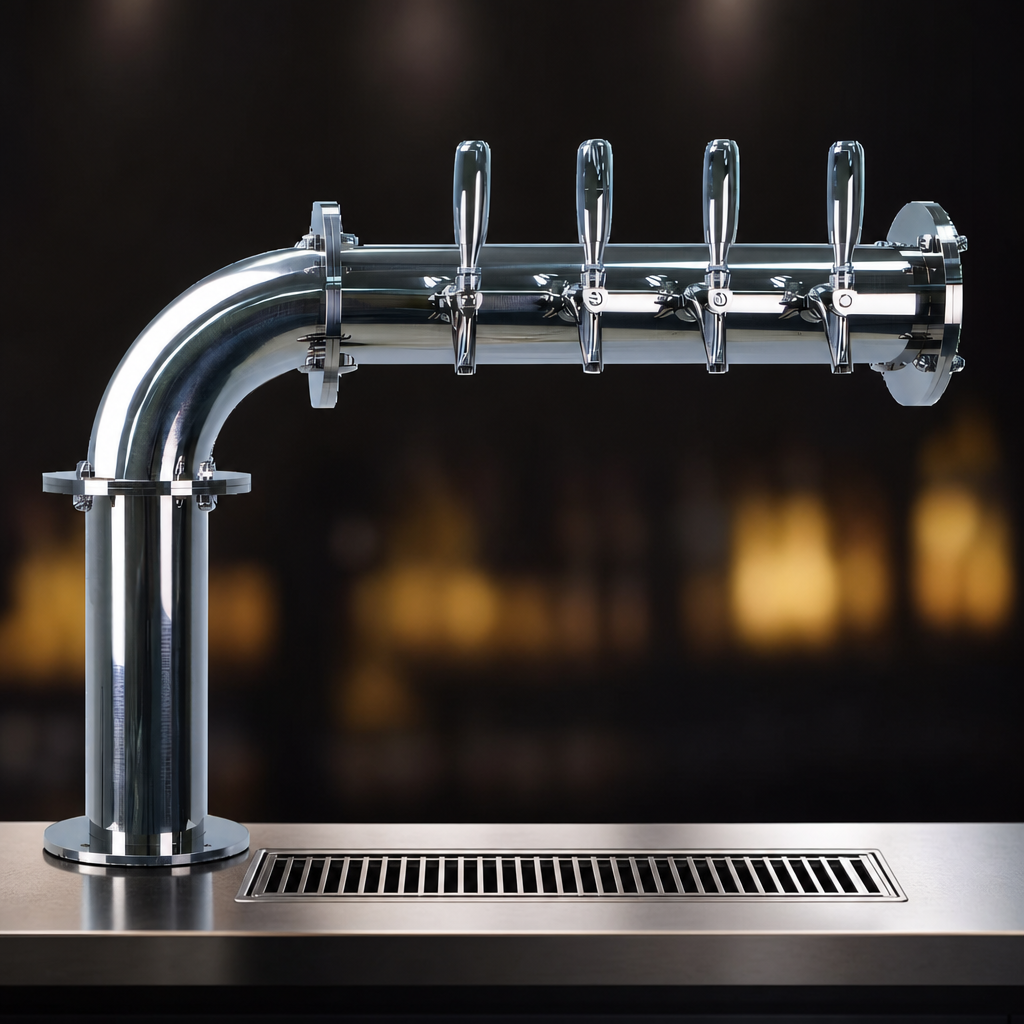

- 4 faucet “L” arm maximizes tap count without sacrificing bar top space.
- All-stainless contact from shank to faucet protects flavor & prevents corrosion.
- Brilliant polished stainless finish stands up to heavy-use environments.
- 4" (101.6 mm) diameter column creates a bold, modern brewery aesthetic.
- NSF-certified construction meets the strictest food-safety standards.

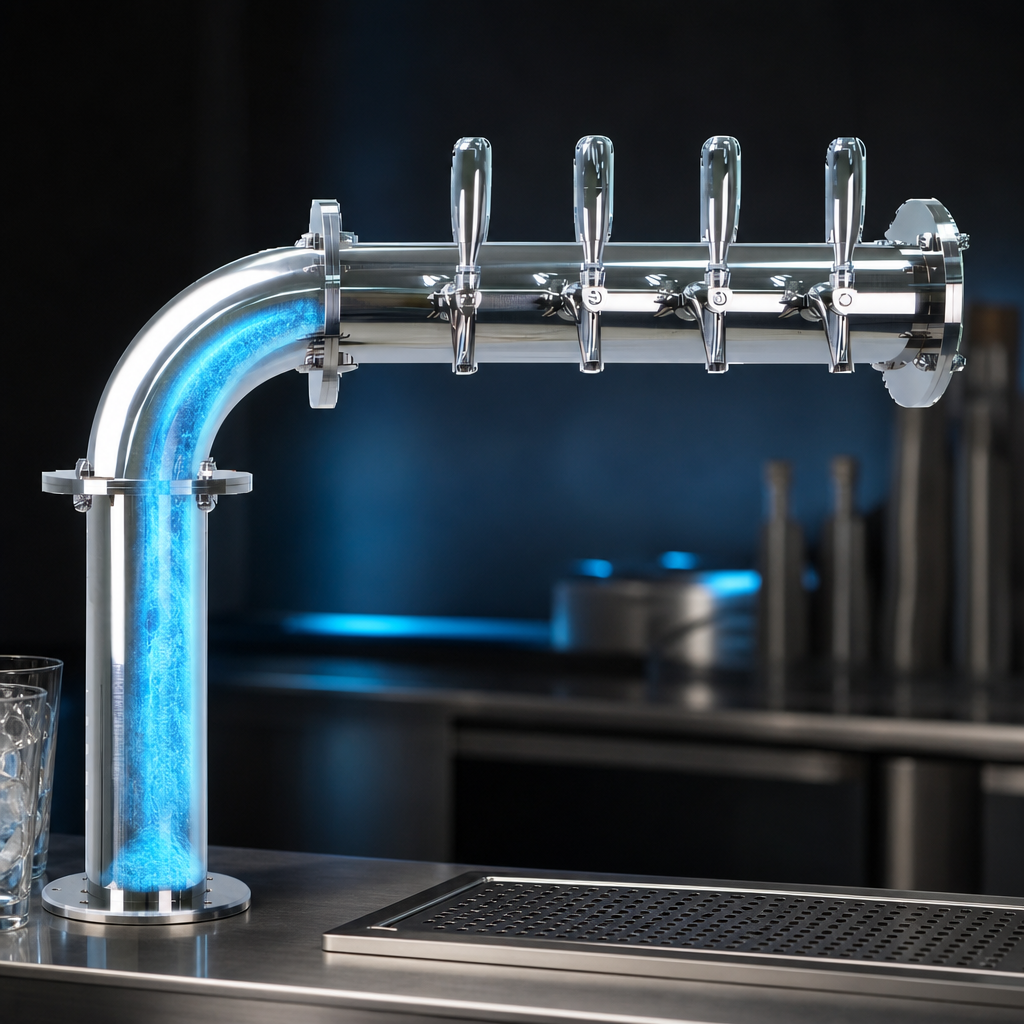

- Kool-Rite™ module recirculates 38 °F glycol right to the faucet for zero-foam first pours.
- Factory-assembled lines & module mean installation is as simple as connect – tighten – pour.
- Made in the USA and backed by Micro Matic’s industry-leading support.
What’s in the box
- (1) Titan “L” tower with 4 pre-installed stainless steel faucets
- (4) ¼" OD stainless beer lines – 54" (1.37 m) long, with ¼"–⅜" barb fittings
- (1) ⅜" OD copper glycol loop with two ⅜" barb connections
- Mounting gasket & hardware (4 × ⅜" bolts)
- Comprehensive installation & care guide
Tap handles shown are for illustration only and are not included.
Technical Specifications
| Part Number | TT-L-4KR-11 |
|---|---|
| Number of Faucets | 4 |
| Finish | Polished stainless steel |
| Column Diameter | 4" (101.6 mm) |
| Overall Height | 30.1" (764 mm) to top of tower |
| Centerline Height | 26.4" (670 mm) from bar surface |
| Arm Length (center of column → farthest shank) | 12" (305 mm) |
| Cooling Method | Kool-Rite™ glycol recirculation |
| Beer Lines | 4 × ¼" OD stainless, 54" long, ¼"–⅜" barbs |
| Glycol Lines | ⅜" OD copper loop, dual ⅜" barbs |
| Mounting Footprint | 7" (178 mm) bolt circle, 4 × ⅜" holes |
| Certification | NSF |
| Country of Origin | USA |
Micro Matic Limited Warranty
One-year parts & workmanship warranty with optional extended coverage. All warranty service must be authorized in advance by Micro Matic.
