Micro Matic USA TT-L-3KR-11 Draft Beer & Wine Dispensers
Description

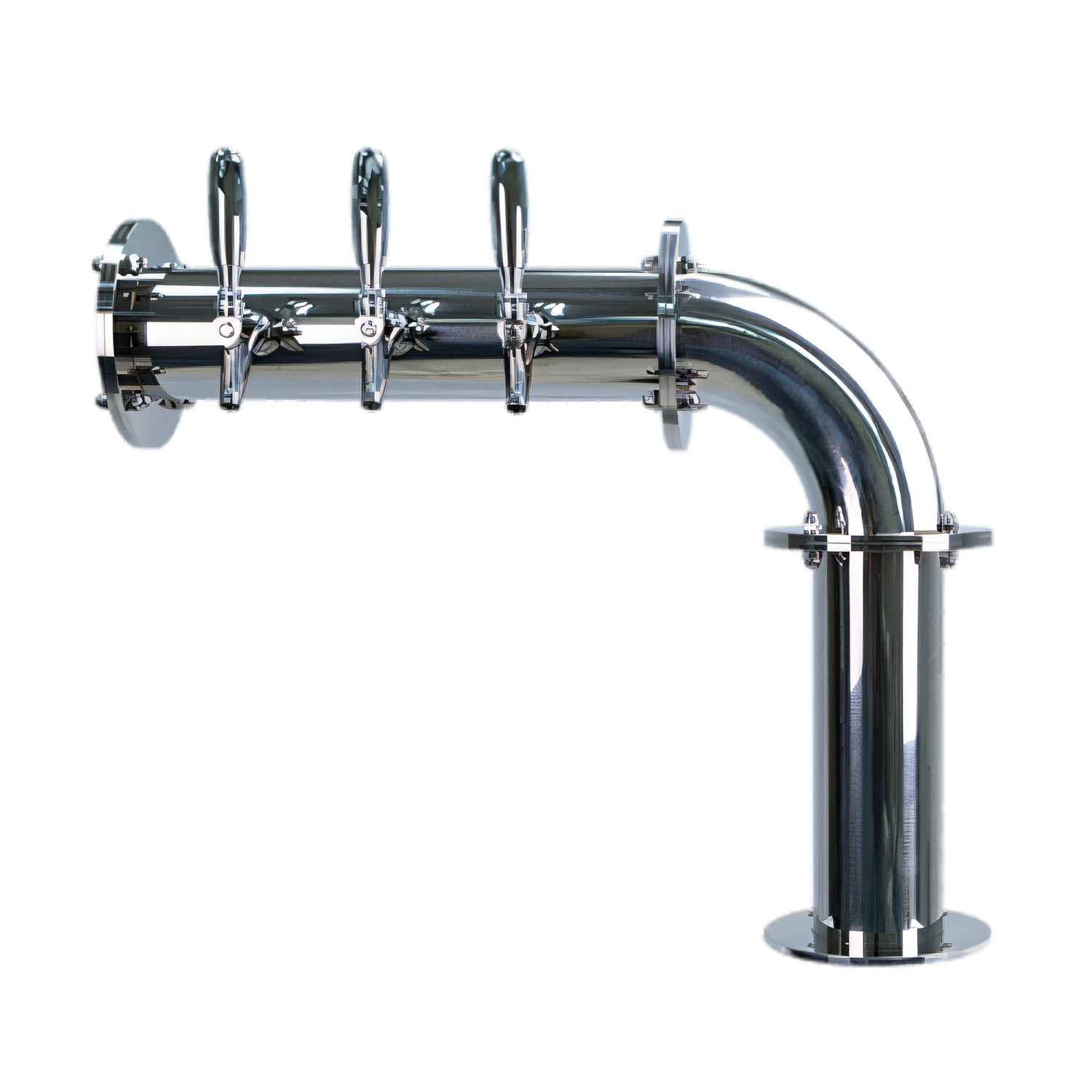

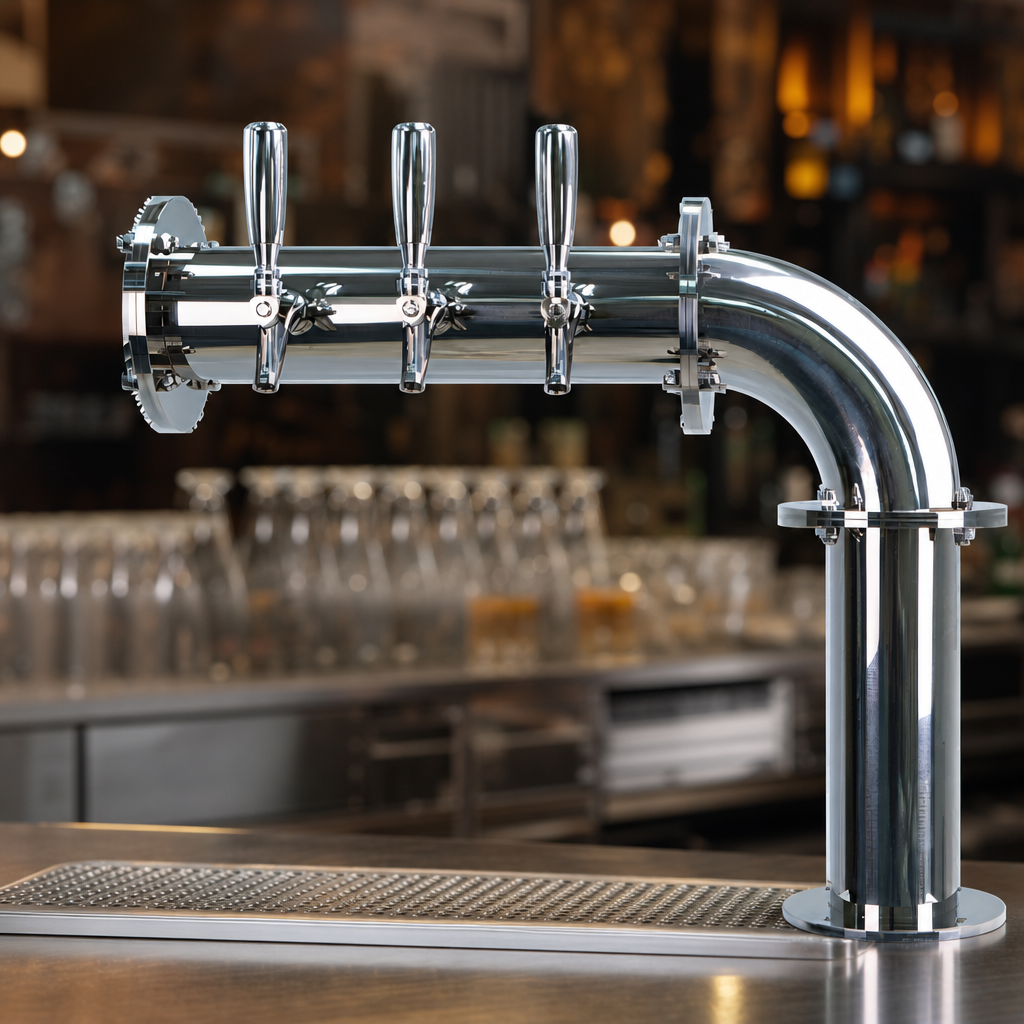

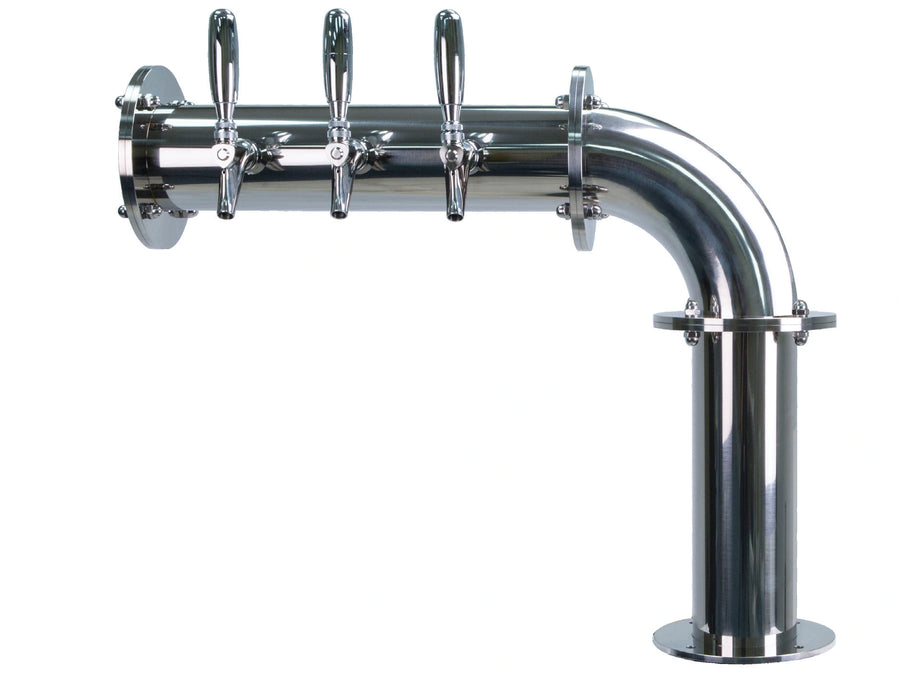

Titan “L” Draft Beer Tower – 3 Faucets, Glycol Cooled
Model TT-L-3KR-11 • Polished Stainless SteelBuilt for high-volume bars that refuse to compromise on taste or presentation, the U.S-made Titan “L” tower delivers ice-cold beer with head-turning style. An oversized 4" brewery-pipe profile, mirror-polished stainless exterior, and 100 % stainless contact surfaces ensure purity, durability, and a serious wow-factor on your bar top.
Key Features
- Oversized 4" diameter pipe recreates authentic brewery aesthetics.

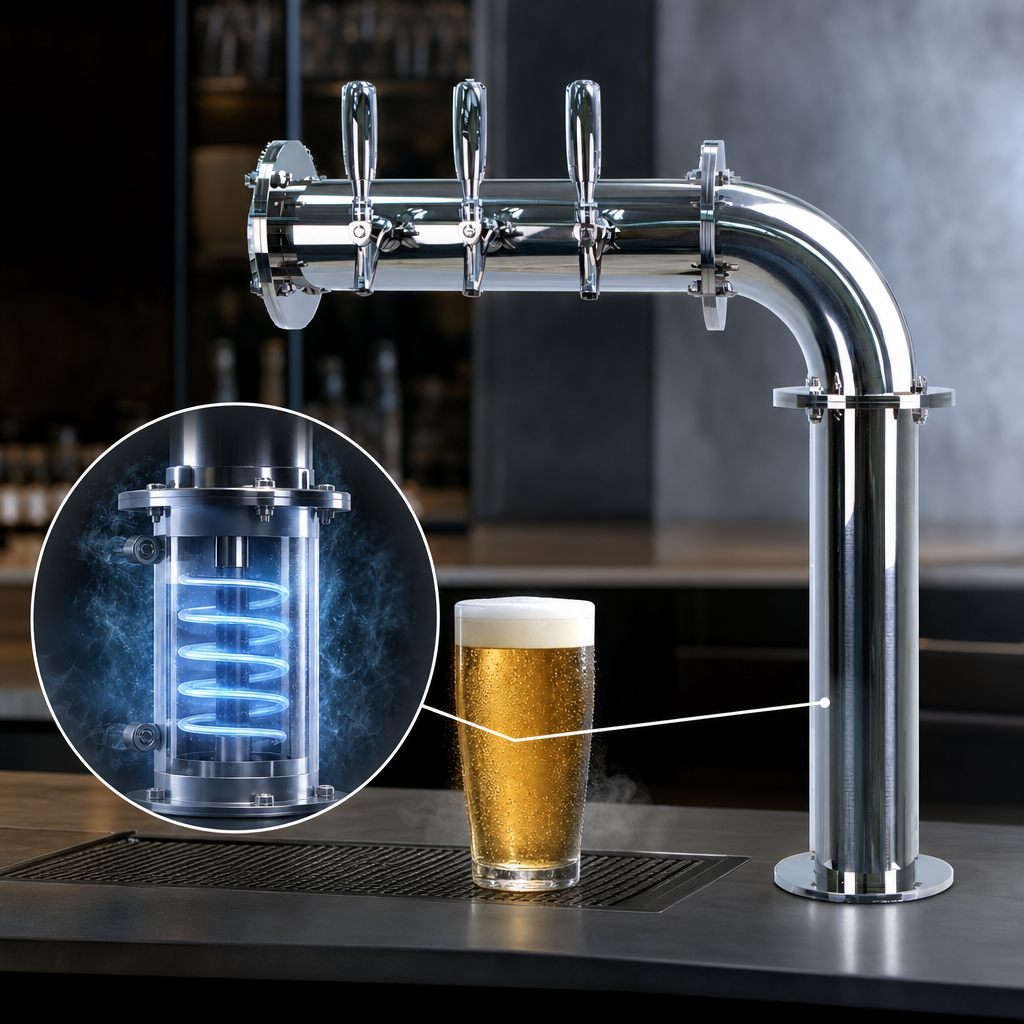

- Integrated Kool-Rite glycol cooling module keeps every pour frosty right to the faucet.
- All beer-contact components (shanks, lines, faucets) are stainless steel for ultimate flavor protection.
- Factory-installed 54" product lines & glycol loop – simply Plug ‘N’ Pour.
- NSF certified, U.S. manufactured by Micro Matic.
What’s Included
- (1) Titan “L” tower with polished stainless finish
- (3) Stainless steel beer faucets
- (3) 6 mm (¼") O.D. stainless product lines, 54" long, with ¼"–⅜" barb fittings
- (1) 9.5 mm (⅜") O.D. copper glycol loop with two ⅜" barb fittings
- Hardware/mounting gasket
Technical Specifications
| Part Number | TT-L-3KR-11 |
|---|---|
| Number of Faucets | 3 |
| Tower Style / Diameter | “L” Brewery Pipe • 4" (102 mm) O.D. |
| Finish | Polished 304 Stainless Steel |
| Cooling Method | Glycol – Kool-Rite® integrated module |
| Overall Height | 26.1" (663 mm) |
| Faucet Center Height | 19.9" (505 mm) above bar |
| Pedestal Height | 14.1" (357 mm) |
| Mounting Flange | 5-9/16" Ø with (4) × 3/8" bolt holes + 4" product pass-through |
| Beer Lines | (3) × 6 mm (¼") O.D. stainless, 54" long, ¼"–⅜" barbs |
| Glycol Lines | (2) × 9.5 mm (⅜") O.D. copper loop, ⅜" barbs |
| Certifications | NSF |
| Warranty | 1-year limited parts & labor (see Warranty tab for details) |
Installation Notes
- Requires remote glycol chiller (sold separately) with ⅜" hose connections.
- Secure tower with four 3/8" bolts through the bar top; allow 4" clearance for product & glycol lines.
- Flush and sanitize lines prior to first use to maintain draft purity.
Need a different finish or faucet count? Browse the full Titan series or contact our draft specialists via the Micro Matic help desk.
