Description

Kool-Rite™ 10-Faucet Under-Bar Draft Beer Dispenser

Micro Matic USA • Model SB1038-KR • NSF Certified

Free up valuable bar-top real estate without sacrificing pour quality. The SB1038-KR mounts under the counter, pairing ten stainless steel faucets with a full-width drip tray and an integrated Kool-Rite™ glycol module — all in a rugged brushed-stainless package that arrives ready to Plug ’N’ Pour.

Why You’ll Love It
  • Space-saving under-bar installation keeps the bar top open for guests.
  • All-in-one assembly combines tower, drip tray and cooling module.
  • Ten stainless steel faucets on 3" centers with 14" glass clearance.
  • 100 % stainless steel beer lines for absolute flavor purity.
  • 3/8" O.D. copper glycol lines maintain keg temperature right to the faucet.
  • Removable perforated drip-tray insert and front panel for quick clean-up.
  • Durable brushed stainless steel exterior resists corrosion and cleans easily.
  • NSF certified for sanitation; built and pressure-tested in the USA.
Technical Specifications

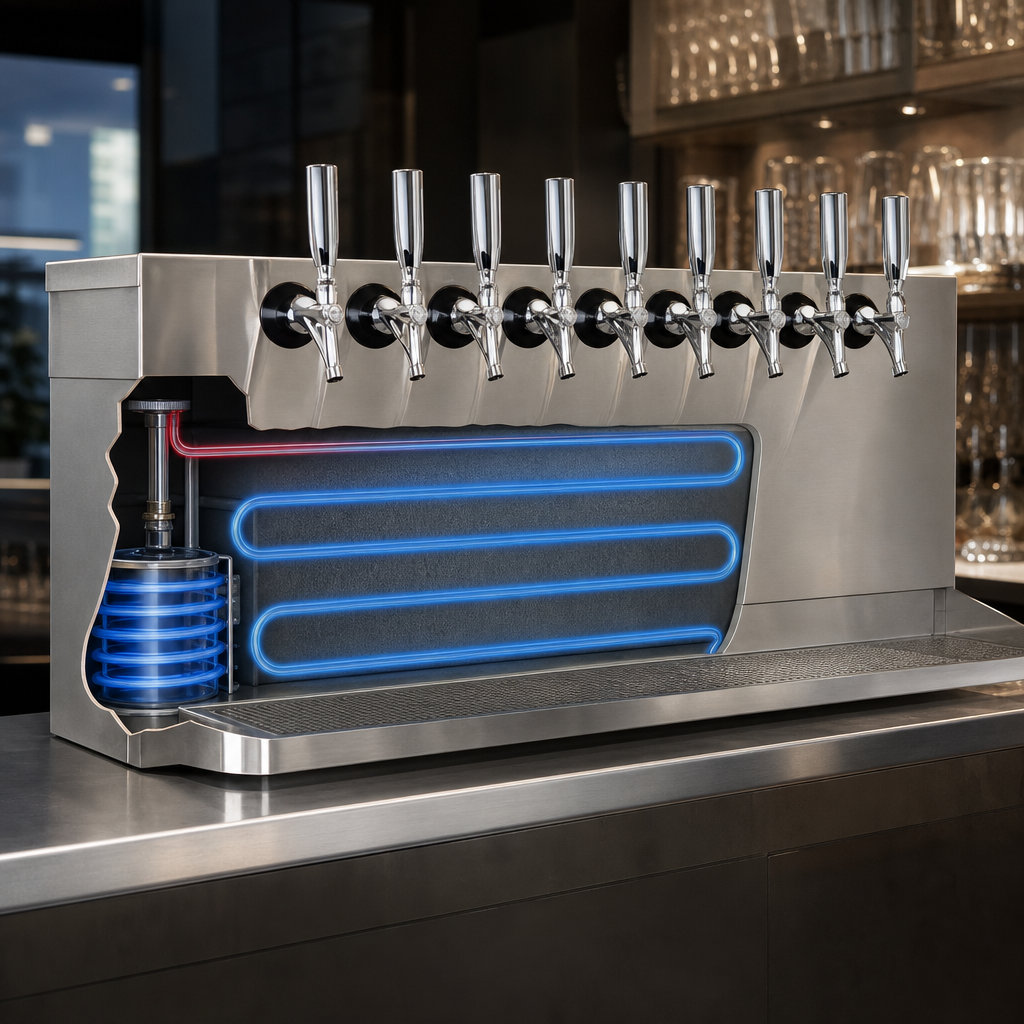

Dispense system Kool-Rite™ integrated glycol module
Number of faucets 10 stainless steel (handles/knobs sold separately)
Faucet spacing 3" on center
Faucet clearance 14" (356 mm) to drip tray
Unit width 40" (1,016 mm)
Unit height 16" (406 mm)
Overall depth 7 ½" (191 mm)  •  5 ½" (140 mm) above bar top
Beer lines 6 mm (¼") O.D. stainless steel with 5⁄16"–3⁄8" barbs
Coolant lines 9.5 mm (⅜") O.D. copper with ⅜" barbs
Drain ½" NPT threaded • 4" drop
Exterior finish Brushed stainless steel
Shipping weight ≈ 185 lb (84 kg)
Shipping carton 44" L × 44" W × 22" H
Certification NSF
Heads-up: Faucet handles/knobs are not included and must be ordered separately.

Looking for a different tap count or finish? Contact us to configure an under-bar dispenser that perfectly suits your draft program.

Features & Specs

Manufacturer

Micro Matic USA

Certifications

NSF

Column Qty

no columns

Column Finish

stainless steel

Faucet Capacity

10 faucets

Mounting

underbar

Cooling Type

glycol cooled

Specifications

Draft Beer Dispenser, underbar with drip tray, 40"W x 16"H, glycol-cooled (Kool-Rite™ integrated module), (10) stainless steel faucets, 3" OC, 14" faucet clearance, stainless steel product line & copper coolant lines, removable front panel, integral drip tray with removable perforated insert, brushed stainless steel finish, NSF
