Micro Matic USA PT4A-10PVDKR Draft Beer & Wine Dispensers
Description

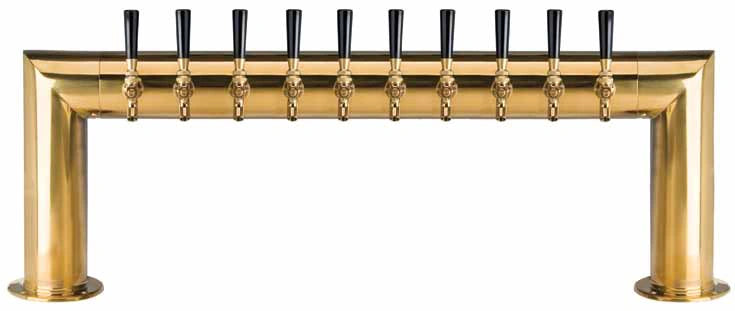

Pass-Thru 10-Faucet Draft Beer Tower – PVD Brass
Micro Matic USA • Model PT4A-10PVDKRGive your bar the eye-catching focal point it deserves while serving perfectly chilled pints from start to finish. The PT4A-10PVDKR Pass-Thru tower combines a gleaming, tarnish-free PVD brass exterior with the proven performance of Micro Matic’s Kool-Rite™ glycol cooling module—so every pour is brewery-fresh, no matter how busy the rush.
Key Features

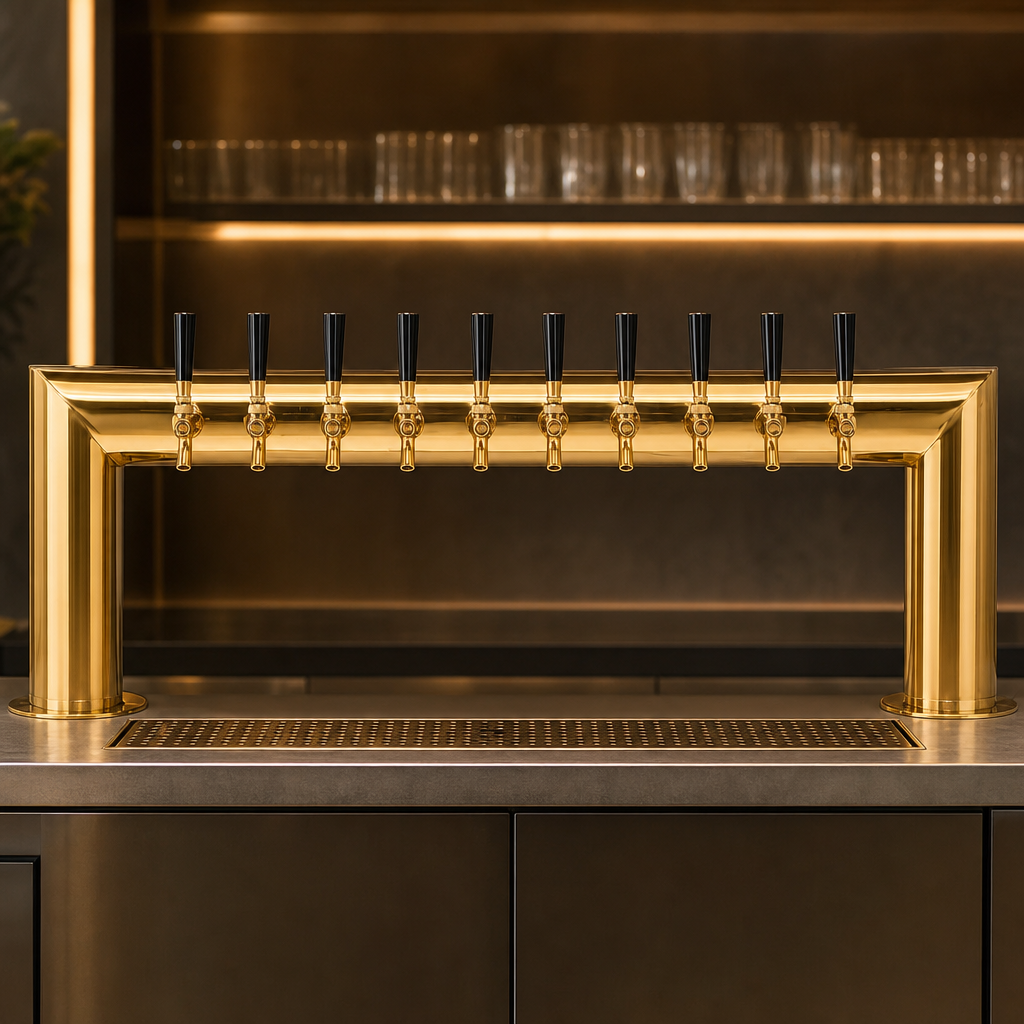

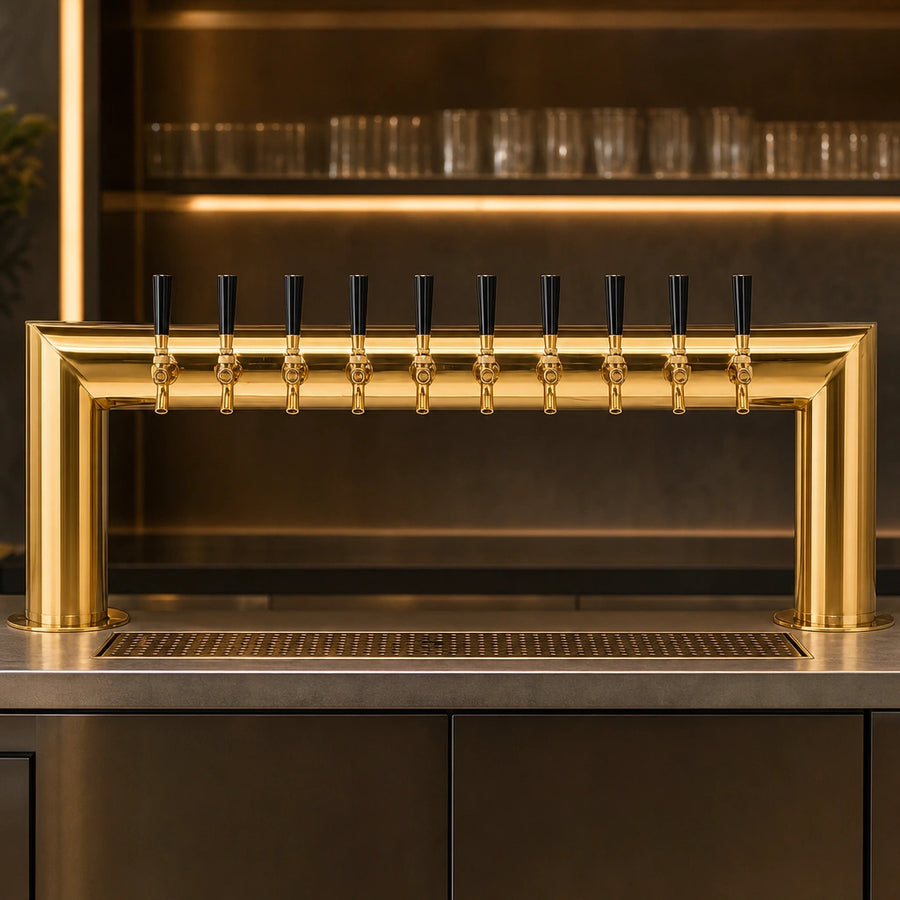

- Ten PVD brass-plated stainless steel faucets spread across a bold 41" crossbar.

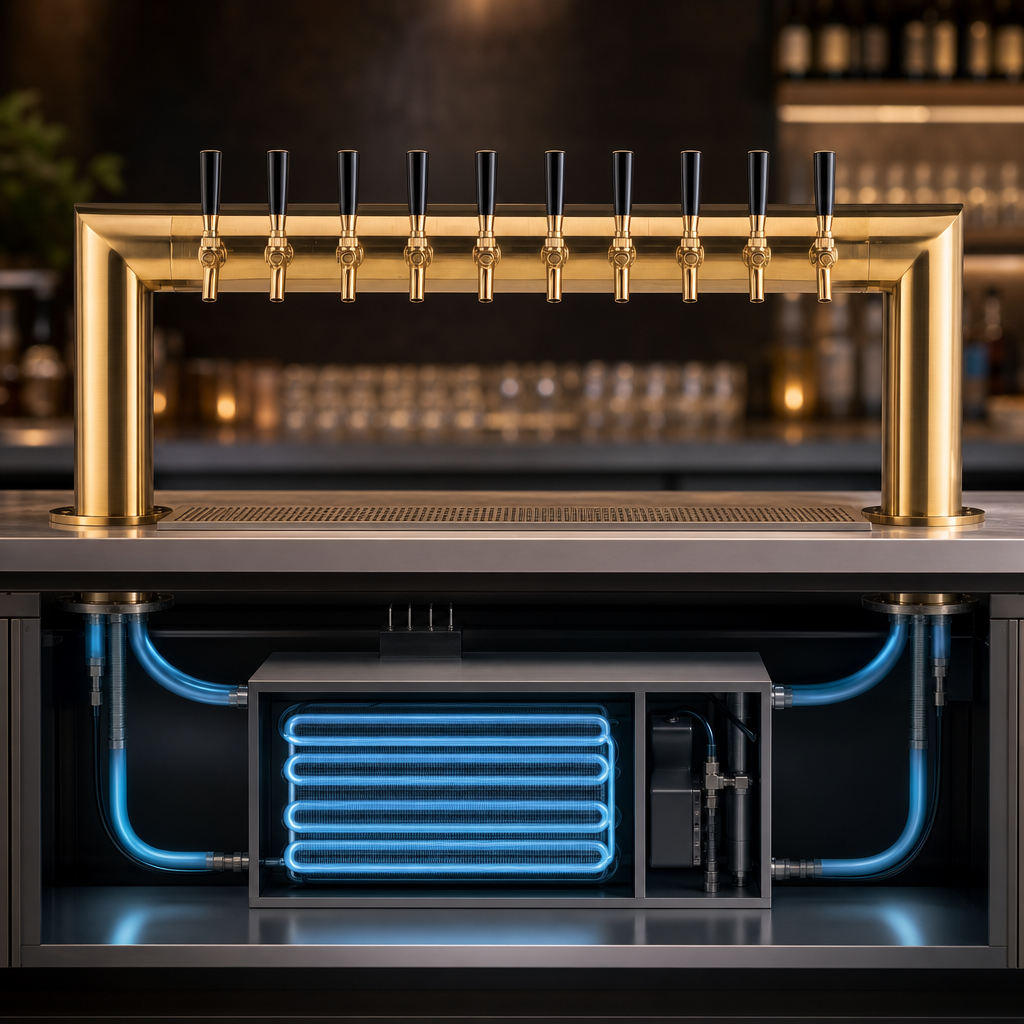

- Kool-Rite™ integrated glycol module keeps beer at serving temperature all the way to the faucet (“Plug ‘N’ Pour” installation).
- All beer-contact components are 304 stainless steel for uncompromised flavor purity.
- 10-1/2" faucet clearance—plenty of room for growlers, steins, and flight glasses.
- Dual 4" diameter columns with 6" bases deliver rock-solid countertop stability.
- Tarnish-free PVD brass finish offers the classic look of gold with the durability of stainless.
- Leak-proof shanks, stainless steel product lines (1/4" O.D.) & copper glycol lines (3/8" O.D.) factory-installed.
- Mounting gaskets, hardware, and cooling block included—no hidden extras.
Technical Specifications
| Part Number | PT4A-10PVDKR |
|---|---|
| Finish | PVD Brass (tarnish-free) |
| Faucets | 10 PVD brass-plated stainless steel (handles sold separately) |
| Cooling Method | Kool-Rite™ glycol, copper coolant lines |
| Tower Width | 41" / 1041 mm |
| Column Height | 14-1/4" / 361 mm |
| Faucet Clearance | 10-1/2" / 268 mm |
| Faucet Spacing | 3" on center |
| Columns / Bases | (2) 4" Ø columns with 6" Ø bases |
| Beer Lines | (10) 1/4" O.D. stainless steel w/ 5/16"–3/8" barbs |
| Glycol Lines | (2) 3/8" O.D. copper w/ 3/8" barbs |
| Shipping Weight | 50 lb / 23 kg |
| Shipping Carton | 55" L × 36" W × 16" H |
| Warranty | 1-year limited parts & labor |
What’s Included
- Pass-Thru tower with 10 faucets pre-installed
- Factory-sealed Kool-Rite™ cooling module & stainless product lines
- Copper glycol supply / return lines & cooling block
- Mounting gaskets, washers, and hardware
- Comprehensive installation guide
Perfect For
- High-volume bars & taprooms showcasing multiple brands
- Beer gardens or island bars requiring service from both sides of the counter
- Upscale venues seeking a premium gold finish without the upkeep
Micro Matic reserves the right to change specifications without notice.
