Micro Matic USA MTM-3PSSKR Draft Beer & Wine Dispensers
Description

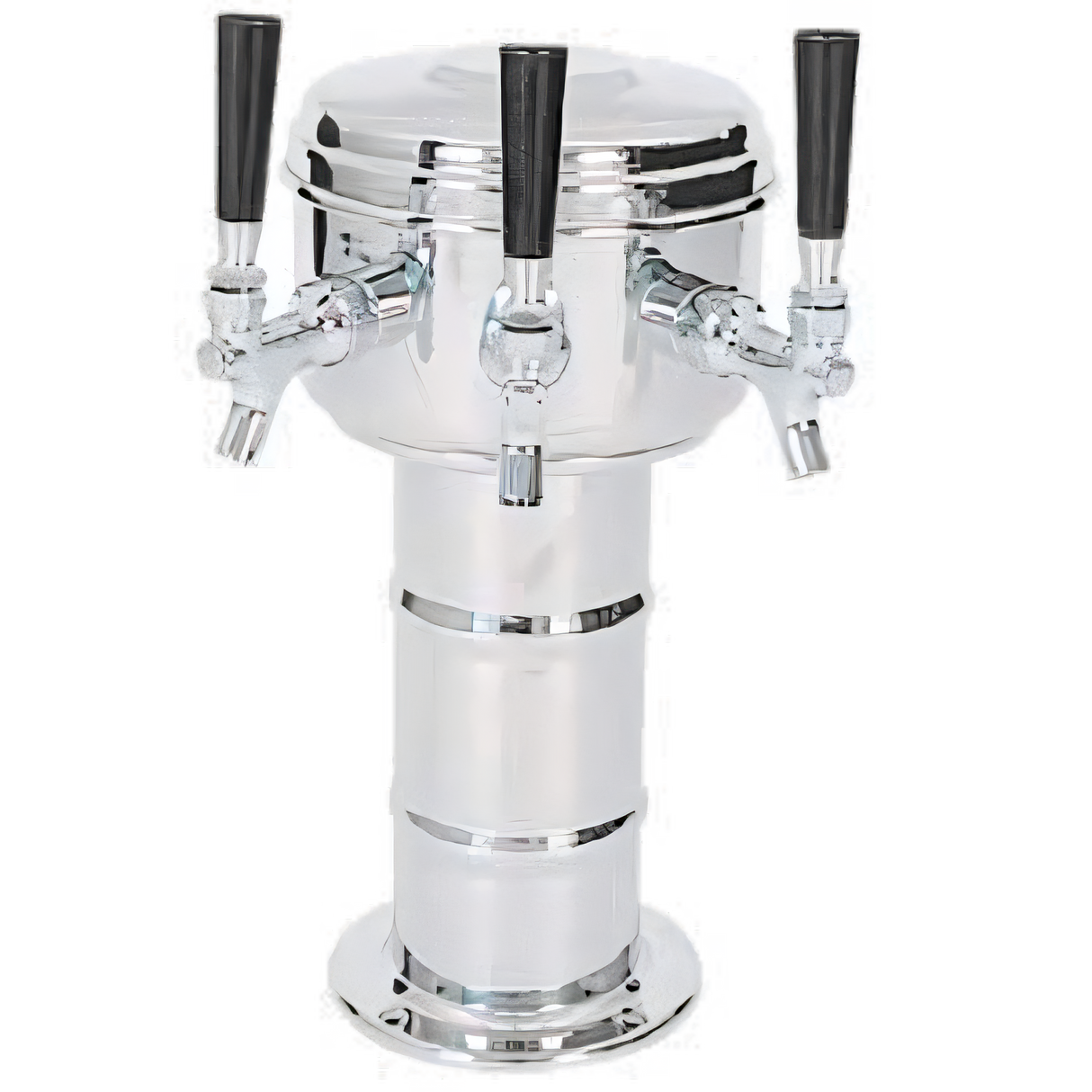

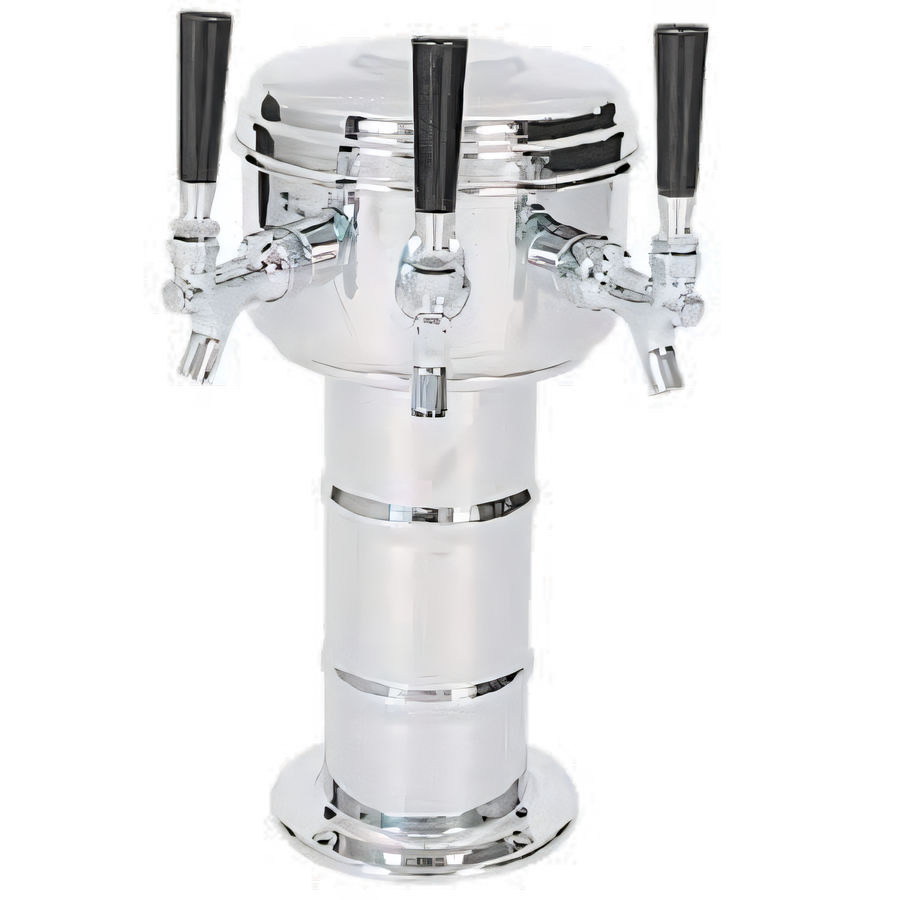

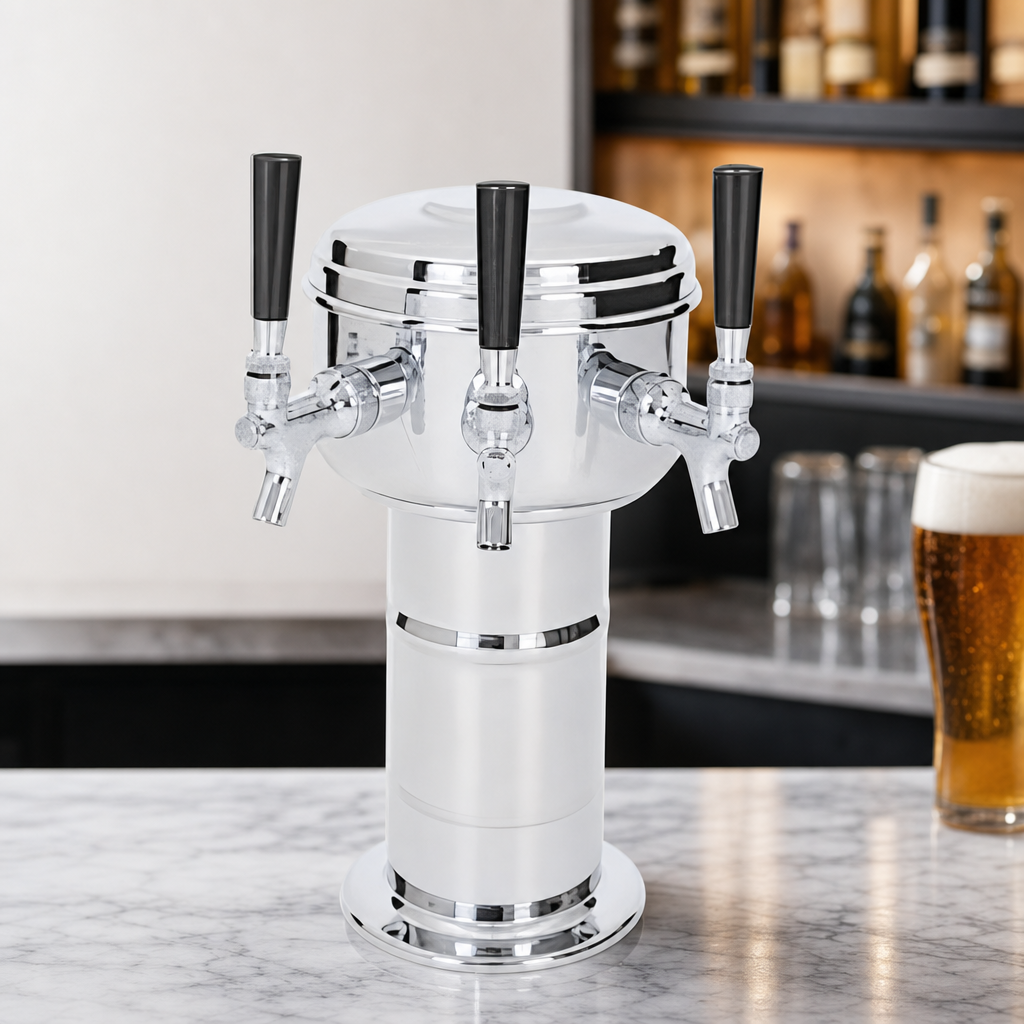

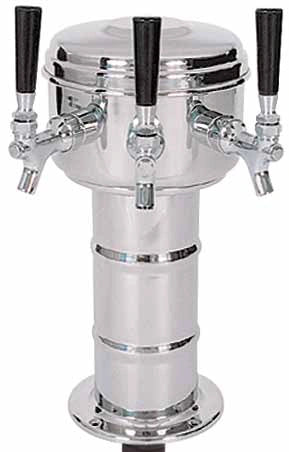

Mini-Mushroom™ Draft Beer Tower – 3 Faucets
Model MTM-3PSSKR • Polished Stainless Steel • Glycol-Cooled Kool-Rite™ • NSF CertifiedBring eye-catching style and uncompromising performance to your bar top with Micro Matic’s stainless-steel Mini-Mushroom draft tower. At just 7 ⅜" wide, this compact tower fits almost anywhere while its distinctive beaded column turns every pour into a focal point. Inside, the factory-installed Kool-Rite™ module bathes all three stainless-steel product lines in glycol, delivering ice-cold, flavor-pure beer right to the glass.
Why you’ll love it
- Marketing power – polished “mushroom” head commands attention at the point of sale.
- Three 304 stainless-steel faucets with stainless shanks and product lines keep beer 100 % in stainless contact for unmatched purity.

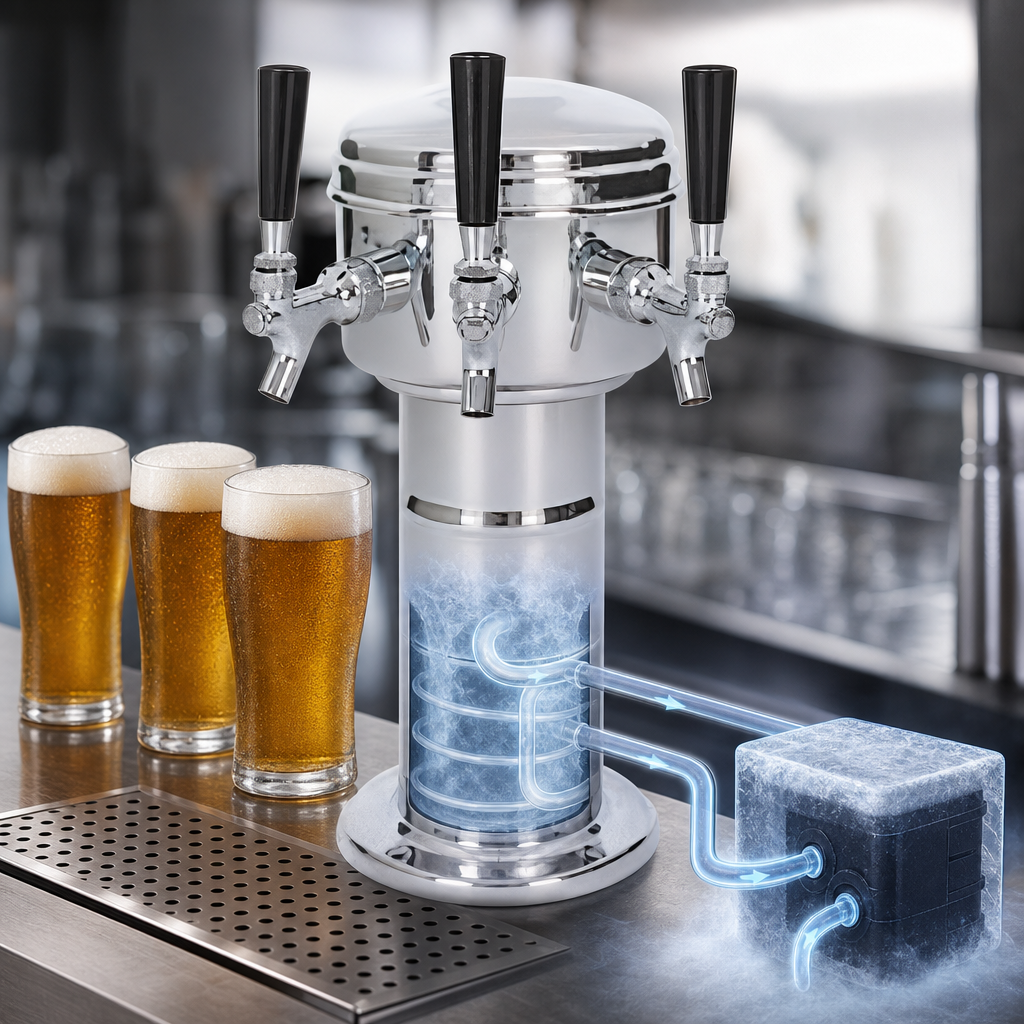

- Kool-Rite™ integrated glycol module arrives pre-assembled – simply connect, plug & pour.
- Generous 10 ¼" faucet clearance accommodates tall pint glasses and growlers.
- Copper coolant lines (3⁄8" O.D.) maximize thermal transfer and resist corrosion.
- Compact 6" diameter base and included mounting template make installation fast on virtually any countertop.
- NSF listed for commercial food-service compliance.
Technical Specifications
| Micro Matic part # | MTM-3PSSKR |
|---|---|
| Number of faucets | 3 (stainless steel) |
| Finish | Polished stainless steel |
| Cooling method | Kool-Rite™ glycol-recirculation (remote chiller required) |
| Column Ø | 7 5⁄16" (186 mm) |
| Overall height | 14" (356 mm) |
| Faucet center spacing | 5" on center |
| Faucet clearance | 10 ¼" (263 mm) above countertop |
| Base Ø | 6" (152 mm) |
| Beer lines | (3) × ¼" O.D. stainless tubing, 6" long, 5⁄16"–3⁄8" barbs |
| Coolant lines | (2) × 3⁄8" O.D. copper, 3⁄8" barbs |
| Shipping weight | 23 lb (10 kg) |
| Certification | NSF |
Installation & Set-Up
- Use the supplied 6" mounting template to drill through bar top.
- Connect beer lines to keg room trunk with 5⁄16"–3⁄8" barrier tubing or equivalent.
- Plumb glycol lines to remote chiller; maintain bath at 28 °F–30 °F (-2 °C to -1 °C) for optimum results.
- Secure tower with the included hardware, level, then attach faucet handles and tap handles of choice.
Need help sizing a glycol chiller? Contact our draft specialists at 1-866-327-4159.
What’s Included
- Mini-Mushroom tower with integrated Kool-Rite™ cold block
- (3) Stainless-steel faucets & shanks (handles not included)
- Pre-installed stainless beer lines & copper glycol lines
- Mounting gasket, hardware, and drilling template
- NSF certification label & product manual
