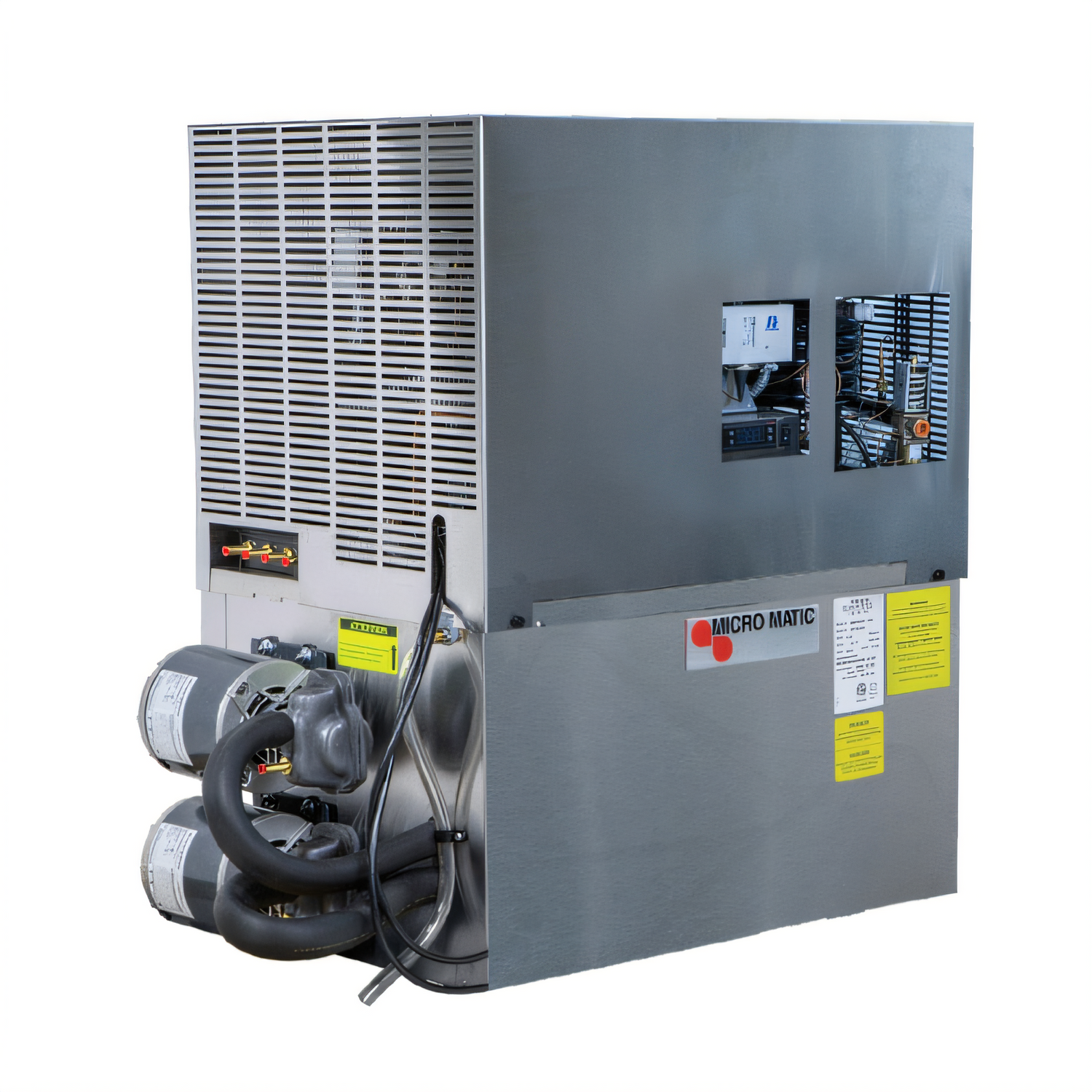

Pro-Line Water-Cooled Draft Beer System Power Pack with 11.5-Gallon Glycol Bath and 1-1/2 HP Compressor

Dual Circulating Pumps, Digital Thermostat, 208/230V, 1-Phase

Keep draft beer lines consistently chilled with a water-cooled power pack that combines dual circulating pumps, a large glycol bath, and a 1-1/2 HP compressor.

  • Water-cooled draft beer system power pack designed for reliable remote cooling.
  • Includes two vane circulating pumps with 1/3 HP motors for dependable glycol circulation.
  • 11.5-gallon glycol bath with exterior sight glass makes fluid checks quick and easy.
  • Digital thermostat and insulated cabinet with cover help maintain stable operating temperatures.
  • 1-1/2 HP compressor delivers 11,500 BTU of cooling capacity using R404A refrigerant.
  • 208/230V single-phase power with NEMA 6-20P plug; 30-amp service required.

Overall Dimensions:

37.13"W x 18.75"D x 31.5"H

Product Weight:

295.0 lb

Water-Cooled Design

Water-cooled operation supports consistent cooling performance in draft beer applications.

Dual Circulating Pumps

Two vane circulating pumps with 1/3 HP motors help keep glycol moving evenly through the system.

11.5-Gallon Glycol Bath

Large glycol bath capacity helps support stable coolant supply, and the exterior sight glass simplifies level checks.

Digital Thermostat

Digital temperature control helps maintain steady operating temperatures.

Insulated Cabinet with Cover

Insulation and a cabinet cover help retain cold and improve overall efficiency.

High-Capacity Compressor

A 1-1/2 HP compressor with R404A refrigerant provides 11,500 BTU of cooling capacity.

Electrical Requirements

Operates on 208/230V, single-phase power and includes a NEMA 6-20P plug; 30-amp service is required.

Standard Connection Size

Features a 3/8 inch female NPT connection for installation.

Type Draft Beer System Power Pack
Style Water-Cooled
Reservoir Capacity 11.5 Gallons
Controls Digital
BTU 11,500 BTU
Compressor Horsepower 1-1/2 HP
Pump Count 2
Pump Motor Horsepower 1/3 HP Each
Voltage 208/230 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Amps 30 Amps
Refrigerant Type R404A
Connection Size 3/8 Inch Female NPT
Shipping Width 38 Inches
Shipping Depth 19 Inches
Shipping Height 32 Inches
Shipping Weight 295 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year limited product warranty.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is water-cooled.
It includes two vane circulating pumps with 1/3 HP motors.
It requires 208/230V, 60 Hz, single-phase power with a NEMA 6-20P plug, and 30-amp service is required.
It uses R404A refrigerant.
The glycol bath holds 11.5 gallons and includes an exterior sight glass.
