Micro Matic USA MMPP4307-PKG-R Pro-Line Back Bar Coolers
Description

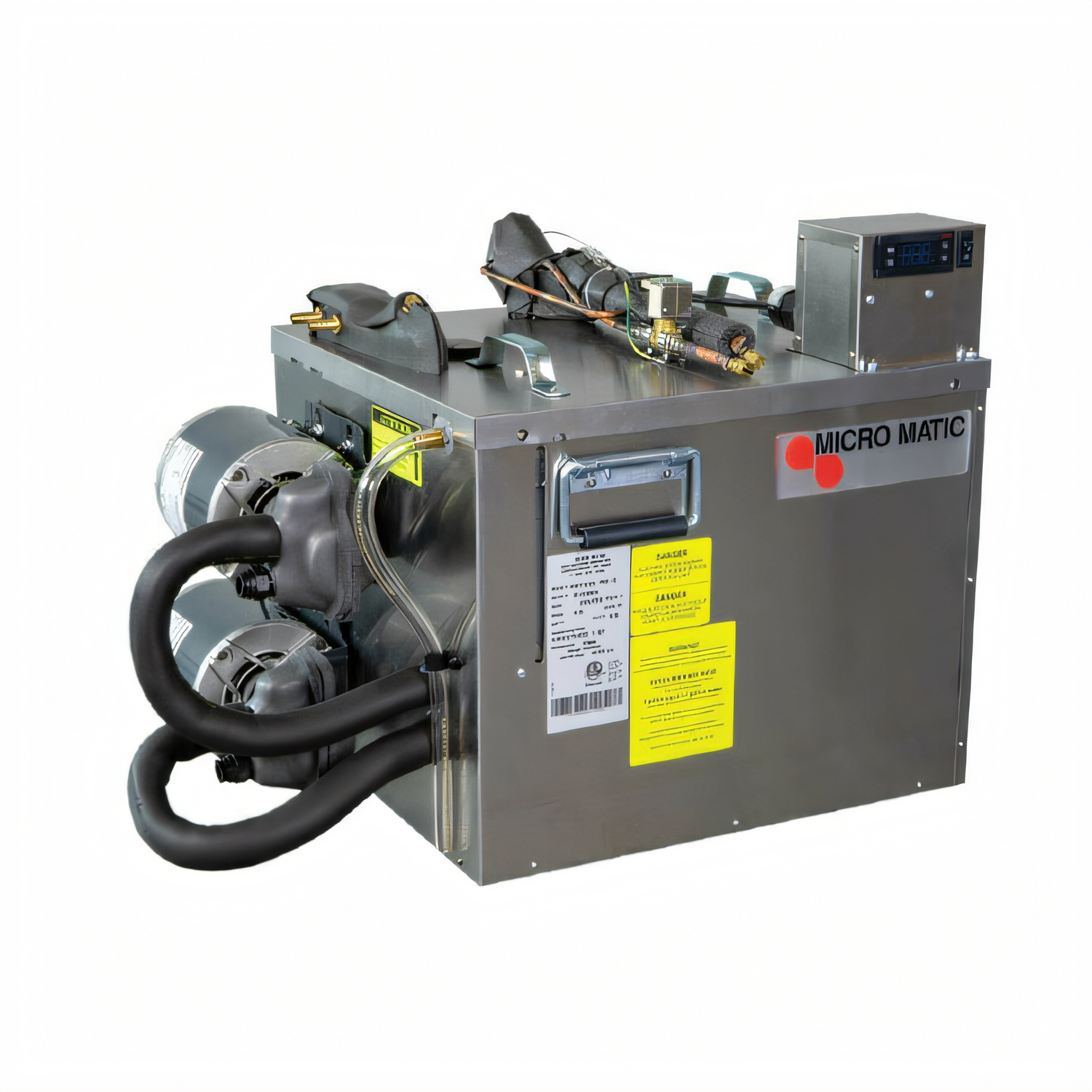

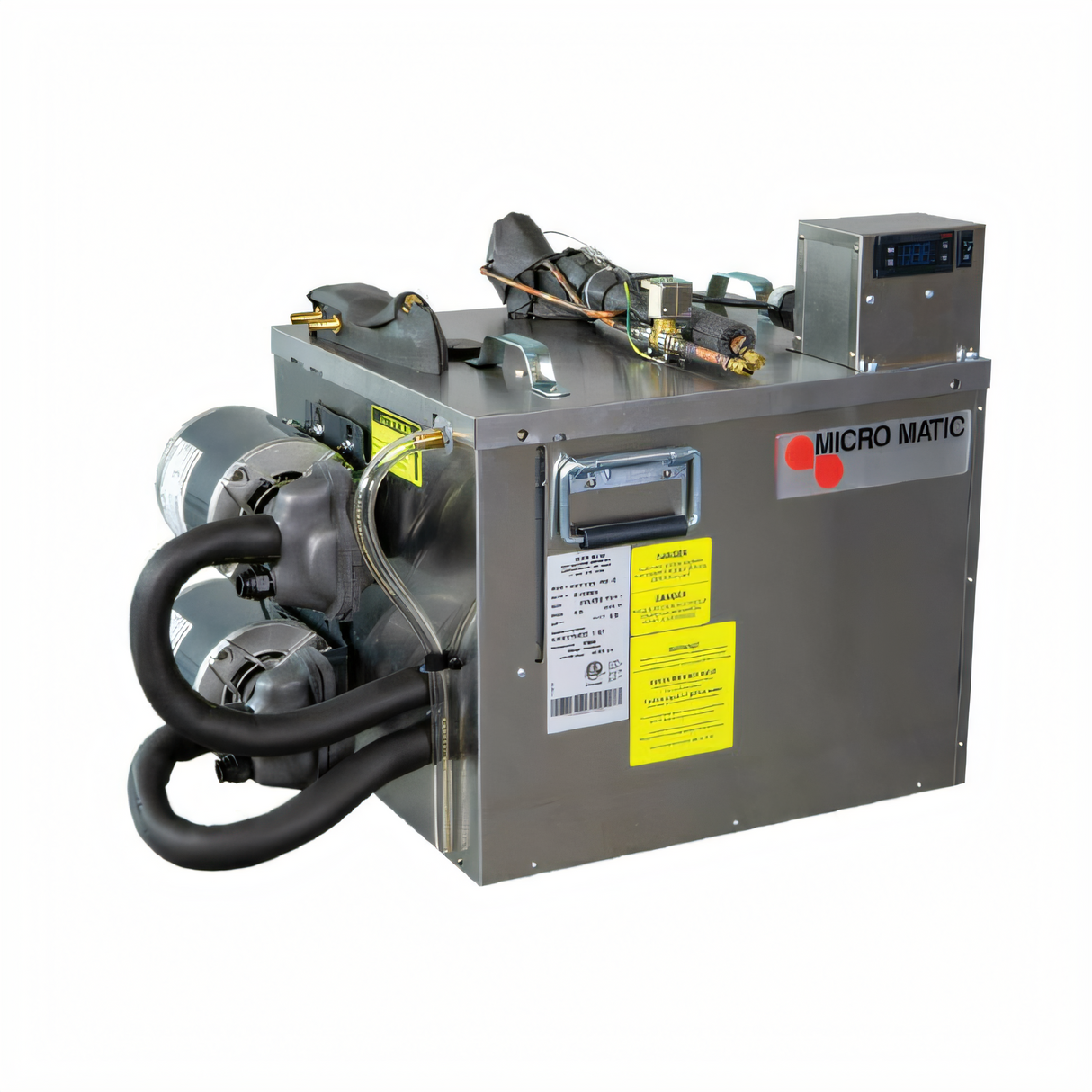

Pro-Line™ Remote Glycol Power Pack – 1.5 HP, Dual Pump
Model MMPP4307-PKG-R | 11,500 BTU/hr | Air-CooledKeep every pint perfectly chilled on the longest of beer runs. Engineered by the draft-beer specialists at Micro Matic, the Pro-Line™ 1½ HP power pack delivers rock-solid glycol temperatures while relocating heat and noise outside the bar area with its remote condenser. Ideal for high-volume venues that refuse to compromise on pour quality.
Why You’ll Love It
- Dual rotary-vane pumps supply consistent flow to multi-tower or multi-zone draft systems.
- Digital thermostat (factory set to 29 °F) provides precise temperature control at a glance.
- 11.5-gallon glycol bath surrounded by expanded urethane foam for maximum thermal retention.
- External sight glass makes checking glycol level fast and mess-free.
- Remote air-cooled condenser (cover included) removes heat and compressor noise from service areas.
- Anti-vibration pump mounts keep operation whisper-quiet.
- Fan-cycle switch, crank-case heater and pump-down refrigeration safeguard against low-ambient starts.
- ETL listed and backed by Micro Matic’s limited one-year warranty.
Technical Specifications
| Part Number | MMPP4307-PKG-R |
|---|---|
| Compressor | 1 ½ HP, remote air-cooled |
| Cooling Capacity | 11,500 BTU/hr |
| Number of Pumps | 2 × Rotary Vane |
| Bath Capacity | 43.5 L (11.5 gal) propylene-glycol/water mix |
| Voltage | 208/230 V, single-phase |
| Plug Type | NEMA 6-20P (8′ cord) |
| Amperage | 3 A (body) / 8.5 A (unit) |
| Refrigerant | R-404A – 55 psi (low) / 260 psi (high) |
| Push-In Connector | ½″ O.D. (12.7 mm) |
| Shipping Weight | 175 lb (80 kg) |
| Dimensions – Condensing Unit | 29.75″ L × 24.25″ W × 18.5″ H |
| Dimensions – Glycol Bath Assembly | 36.75″ L × 26.75″ W × 17.75″ H |
- Remote condenser must be hard-wired to an electrical disconnect.
- Copper line set, drier, sight glass and refrigerant charge to be supplied/installed by a licensed refrigeration contractor.
- Maximum distance between glycol bath and condenser: 50 ft.
Limited 1-year parts & labor warranty included. For full details, visit micromatic.com.
