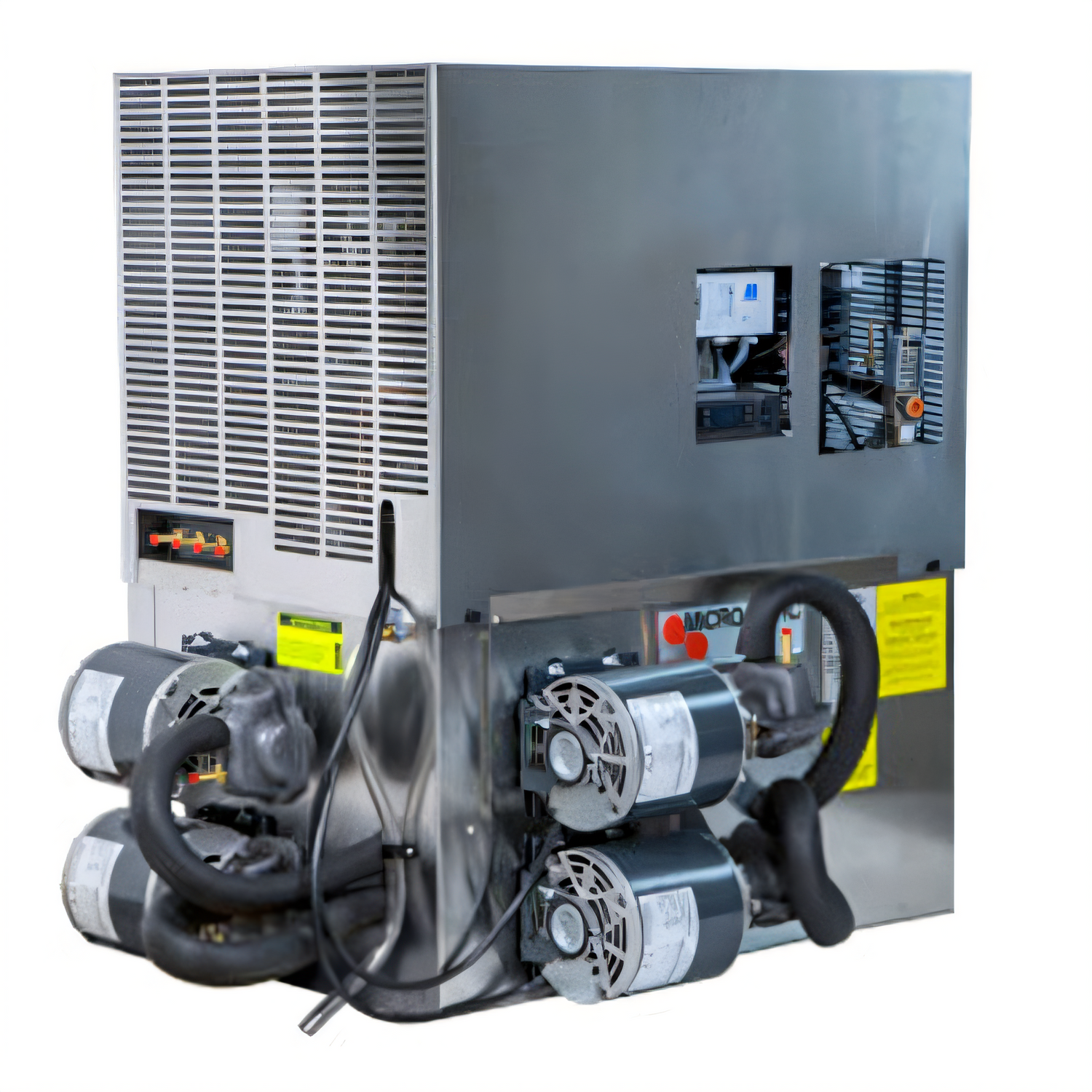

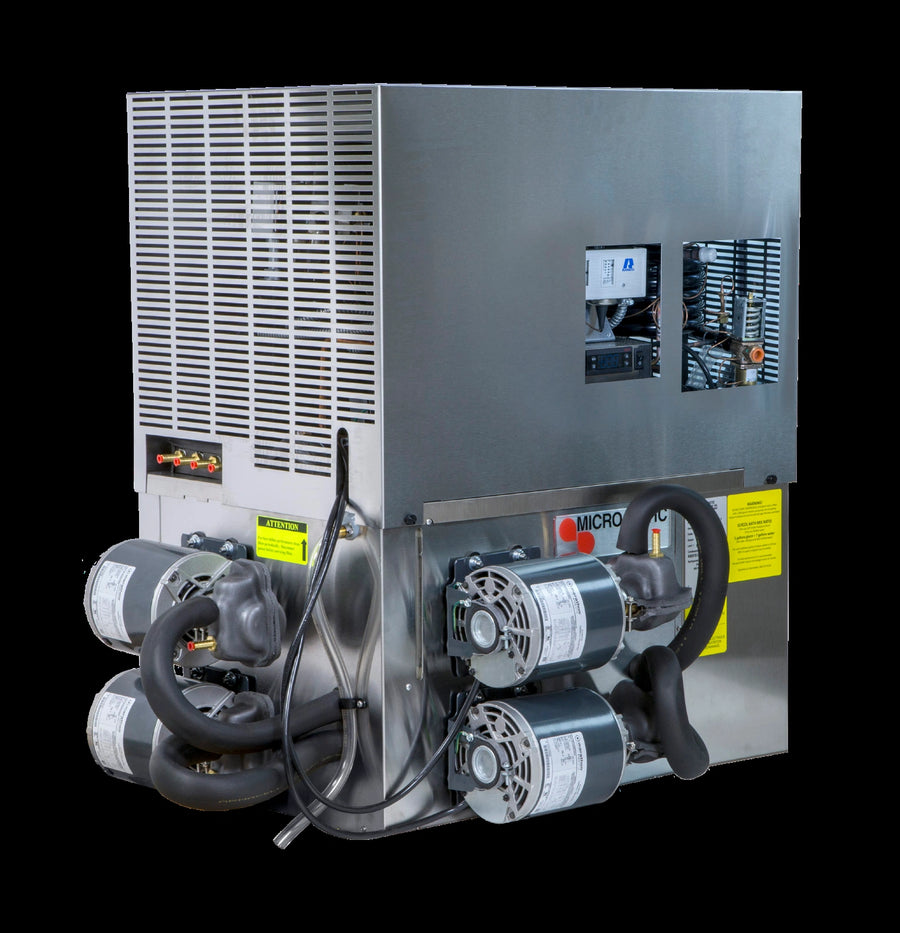

Pro-Line Water-Cooled 4-Pump Draft Beer System Power Pack, 11,500 BTU

SKU: MMPP4307-PKG-4-WC
$8,389.39
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Beverage Dispenser Parts & Accessories Micro Matic USA New Arrivals Restaurant Equipment Restaurant Equipment Parts

Pro-Line Water-Cooled 4-Pump Draft Beer System Power Pack, 11,500 BTU

11.5-Gallon Glycol Bath, 208/230V, Single Phase

Built for draft beer systems that need reliable cooling in tight or warm spaces, this water-cooled power pack combines four circulating pumps, a digital thermostat, and a rugged insulated stainless steel cabinet.

  • Water-cooled design is ideal for limited air circulation or high ambient temperature environments.
  • Four vane circulating pumps with 1/3 HP motors each support dependable glycol circulation.
  • 11.5-gallon glycol bath and exterior sight glass make level checks quick and easy.
  • Digital thermostat helps maintain accurate glycol bath temperature.
  • Expanded urethane foam insulation helps retain cold temperatures and minimize condensation.
  • Rugged stainless steel cabinet with anti-vibration pads is built for durability and quieter operation.
  • 208/230V, 60 Hz, single-phase power with NEMA 6-20P plug; 30-amp service required.

Overall Dimensions:

37.13"W x 28.75"D x 31.5"H

Product Weight:

295.0 lb

Water-Cooled Design

Helps the unit perform reliably in spaces with limited air circulation or high ambient temperatures.

Four Circulating Pumps

Includes four vane circulating pumps with 1/3 HP motors each for consistent glycol movement.

11.5-Gallon Glycol Bath

Provides glycol bath capacity for draft beer cooling, with an exterior sight glass for easy level checks.

Digital Thermostat

Supports accurate control of glycol bath temperature.

Insulated Cabinet And Cover

Expanded urethane foam insulation helps maintain temperature and reduce condensation.

Stainless Steel Cabinet

Rugged stainless steel construction offers long-lasting durability.

Anti-Vibration Pads

Designed to reduce motor noise during operation.

1-1/2 HP Compressor

Provides the cooling power for the system and uses R404A refrigerant.

Type Draft Beer System Power Pack
Style Water-Cooled
Refrigeration Type Glycol Bath
Capacity 11.5 Gallons
Pump Count 4
Compressor Horsepower 1-1/2 HP
Pump Motor Horsepower 1/3 HP Each
BTU 11,500 BTU
Refrigerant Type R404A
Voltage 208/230 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Amps 30 Amps
Material Stainless Steel
Connection Size 3/8 Inch Female NPT
Selling Unit Each
Units Per Case 1
Shipping Width 38 Inches
Shipping Depth 29 Inches
Shipping Height 32 Inches
Shipping Weight 295 Pounds

Certifications & Compliance

Warranty & Protection

1-year limited product warranty

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses a water-cooled design, which is well suited for spaces with limited air circulation or high ambient temperatures.
It includes four vane circulating pumps, each with a 1/3 HP motor.
This unit uses R404A refrigerant.
The unit operates on 208/230V, 60 Hz, single-phase power and uses a NEMA 6-20P plug. A 30-amp service is required.
The unit includes an exterior sight glass for verifying the glycol bath level.
