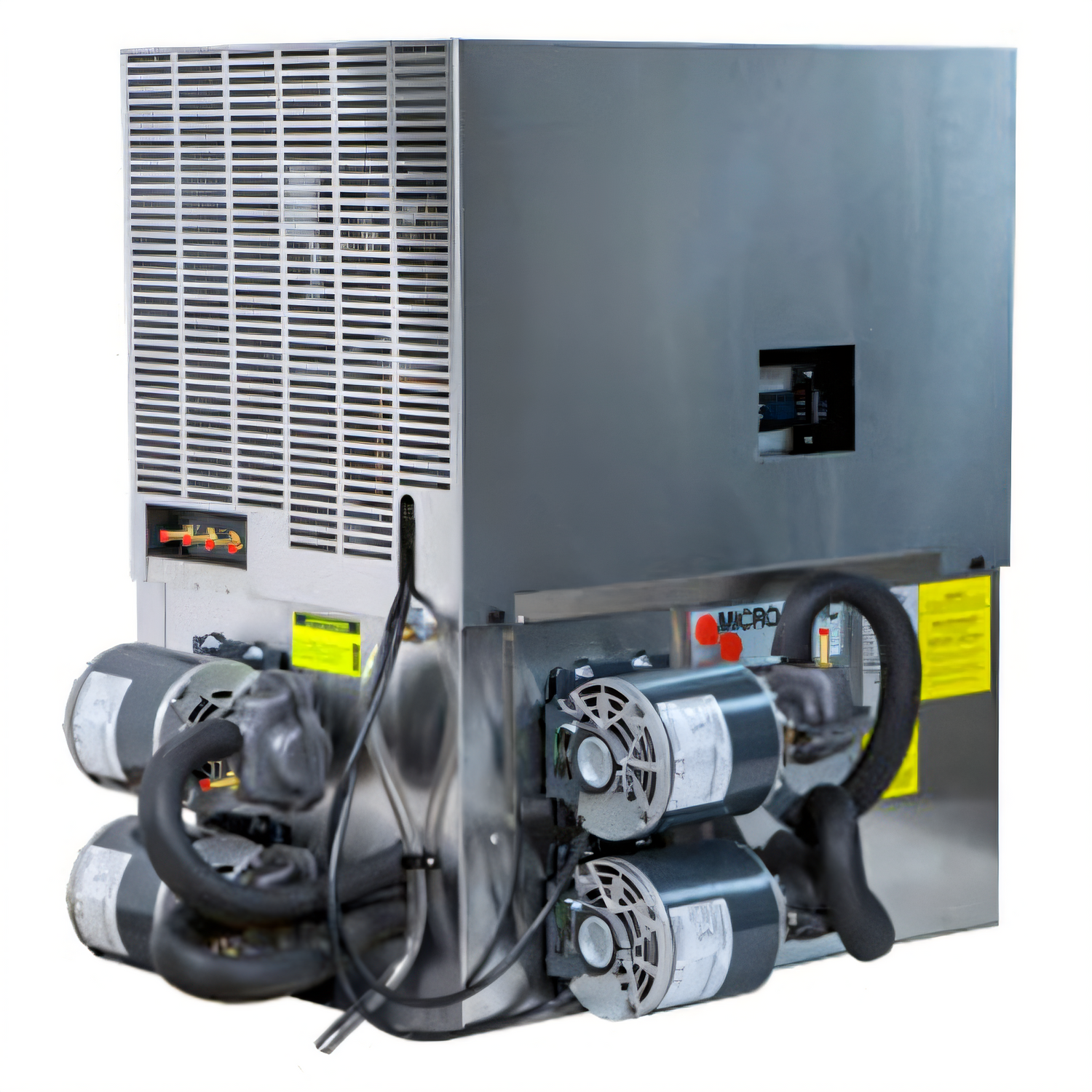

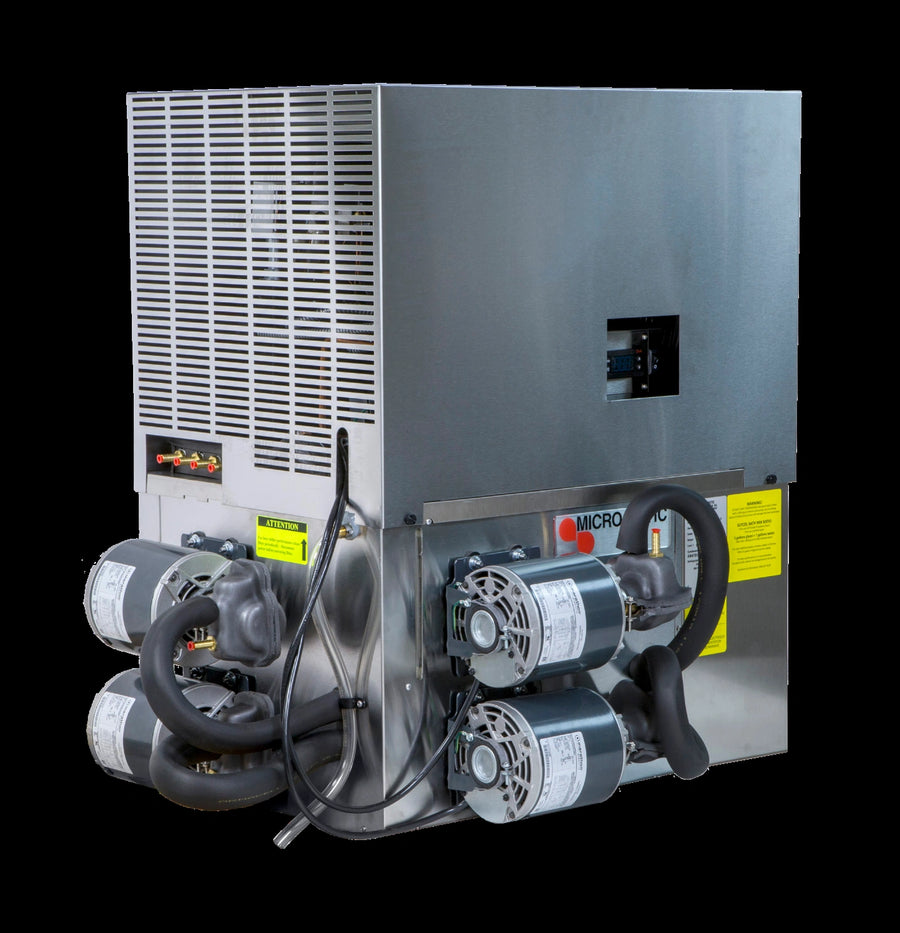

Pro-Line Premium Air-Cooled 4-Pump Glycol Draft Beer System Power Pack, 11,500 BTU, 208/230V

11.5-Gallon Glycol Bath, Stainless Steel Cabinet

Keep draft beer lines cold and consistent with an air-cooled glycol power pack built for reliable multi-line dispensing.

  • 11,500 BTU air-cooled cooling capacity helps maintain consistent draft beer temperatures.
  • Four rotary vane circulating pumps with 1/3 HP motors each support multi-line systems.
  • Digital thermostat provides accurate glycol bath temperature control.
  • Expanded urethane foam insulation and a stainless steel cabinet help retain temperature and reduce condensation.
  • Exterior sight glass makes glycol level checks quick and easy.
  • 208/230V, 60Hz, 1-phase electrical connection with NEMA 6-20P plug.

Overall Dimensions:

38.0"W x 30.0"D x 36.0"H

Product Weight:

295.0 lb

Four-Pump Circulating System

Includes four 80 gallons per hour vane circulating pumps for glycol circulation in multi-line draft beer applications.

Digital Thermostat

Provides accurate control of the glycol bath temperature.

Insulated Stainless Steel Cabinet

Expanded urethane foam insulation helps maintain glycol temperature and minimize condensation inside a rugged stainless steel cabinet.

Exterior Sight Glass

Allows quick visual checks of the glycol bath level.

Anti-Vibration Pads

Helps reduce motor noise during operation.

Air-Cooled Design

Designed for air-cooled draft beer system performance.

High-Capacity Cooling

11,500 BTU output is supported by a 1-1/2 HP compressor for dependable cooling performance.

Type Draft Beer System Power Pack
Style Air Cooled
Material Stainless Steel
Capacity 11.5 Gallons
BTU 11,500 BTU
Compressor Horsepower 1-1/2 HP
Pump Count 4
Pump Type Rotary Vane
Pump Capacity 80 Gallons Per Hour Each
Pump Motor Horsepower 1/3 HP Each
Voltage 208/230 Volts
Amps 14.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Refrigerant Type R-404A
Controls Digital Thermostat
Selling Unit Each
Units Per Case 1
Shipping Width 38 Inches
Shipping Depth 30 Inches
Shipping Height 36 Inches
Shipping Weight 295 lbs.

Certifications & Compliance

Warranty & Protection

1-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It refers to the glycol bath capacity.
This power pack includes four rotary vane circulating pumps, each with a 1/3 HP motor.
It requires 208/230V, 60Hz, 1-phase power and uses a NEMA 6-20P plug.
It uses R-404A refrigerant.
Yes. It includes a digital thermostat for accurate glycol bath temperature control.
It has an expanded urethane foam insulated cabinet, a stainless steel exterior, and anti-vibration pads to help reduce motor noise.
