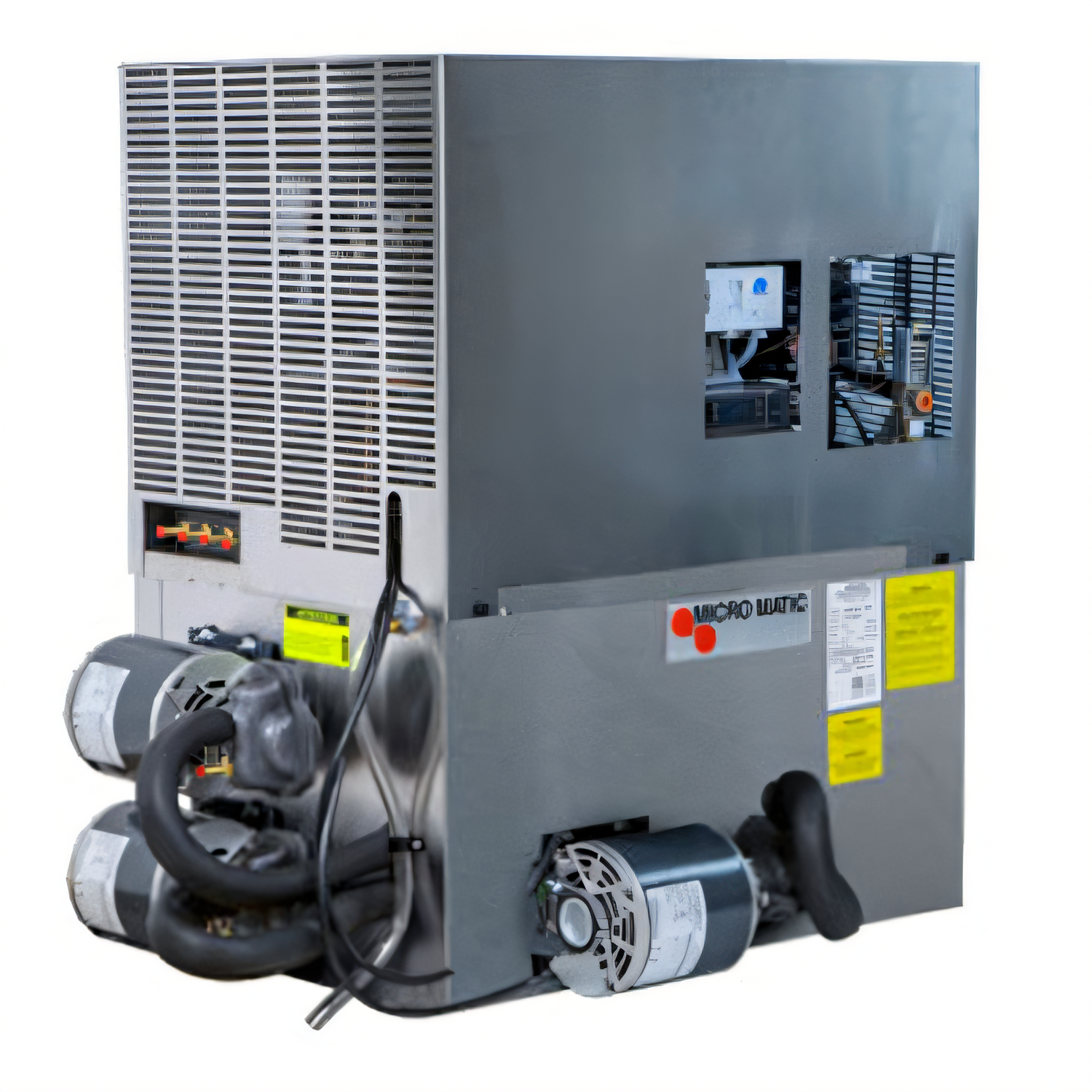

Pro-Line Water-Cooled Draft Beer System Power Pack with 11.5-Gallon Glycol Bath and 3 Pumps

SKU: MMPP4307-PKG-3-WC
$7,882.01
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Beverage Dispenser Parts & Accessories Micro Matic USA New Arrivals Restaurant Equipment Restaurant Equipment Parts

Pro-Line Water-Cooled Draft Beer System Power Pack with 11.5-Gallon Glycol Bath and 3 Pumps

208/230V, 1-1/2 HP Compressor, R404A, NEMA 6-20P

Keep draft beer lines cold and consistent with a water-cooled power pack built around a 1-1/2 HP compressor and three circulating pumps.

  • Water-cooled draft beer system power pack designed for reliable line chilling.
  • 11.5-gallon glycol bath with exterior sight glass for easy level monitoring.
  • Three vane circulating pumps with 1/3 HP motors help maintain steady glycol flow.
  • Digital thermostat provides simple temperature control.
  • Insulated cabinet with cover helps retain cooling efficiency.
  • 208/230V single-phase operation with NEMA 6-20P plug and 30A service requirement.

Overall Dimensions:

37.13"W x 28.75"D x 31.5"H

Product Weight:

295.0 lb

Water-Cooled Design

Uses water-cooled operation to support efficient heat removal in draft beer applications.

Three Circulating Pumps

Includes (3) vane circulating pumps with 1/3 HP motors each for glycol circulation.

Glycol Bath Reservoir

11.5-gallon bath includes an exterior sight glass for easier fluid level checks.

Digital Thermostat

Digital temperature control helps maintain consistent operating conditions.

Insulated Cabinet with Cover

Insulated construction helps improve cooling retention and overall efficiency.

1-1/2 HP Compressor

Built with a 1-1/2 HP compressor for dependable cooling performance.

R404A Refrigerant

Uses R404A refrigerant in the cooling system.

Electrical Requirements

Operates on 208/230V, 60 Hz, single-phase power and uses a NEMA 6-20P plug; 30 amp service required.

3/8 Inch Female Inlet

Equipped with a 3/8 inch female inlet connection.

Type Draft Beer System Power Pack
Style Water-Cooled
Reservoir Capacity 11.5 Gallons
Pumps 3
Pump Motor HP 1/3 HP Each
Compressor HP 1-1/2 HP
BTU 11,500 BTU
Refrigerant Type R404A
Voltage 208/230 Volts
Amps 30 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Water Inlet Size 3/8 Inch Female
Selling Unit Each
Units Per Case 1
Shipping Width 38 Inches
Shipping Depth 29 Inches
Shipping Height 32 Inches
Shipping Weight 295 lb.

Certifications & Compliance

Warranty & Protection

1-year limited warranty from date of sale.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses a water-cooled design.
It includes three vane circulating pumps with 1/3 HP motors each.
The glycol bath capacity is 11.5 gallons.
This unit uses R404A refrigerant.
It operates on 208/230V, 60 Hz, single-phase power and requires a NEMA 6-20P plug with 30 amp service.
The product is covered by a 1-year limited warranty from the date of sale, unless otherwise specified.
