Micro Matic USA MMPP4307-PKG-3-R Pro-Line Back Bar Coolers
Description

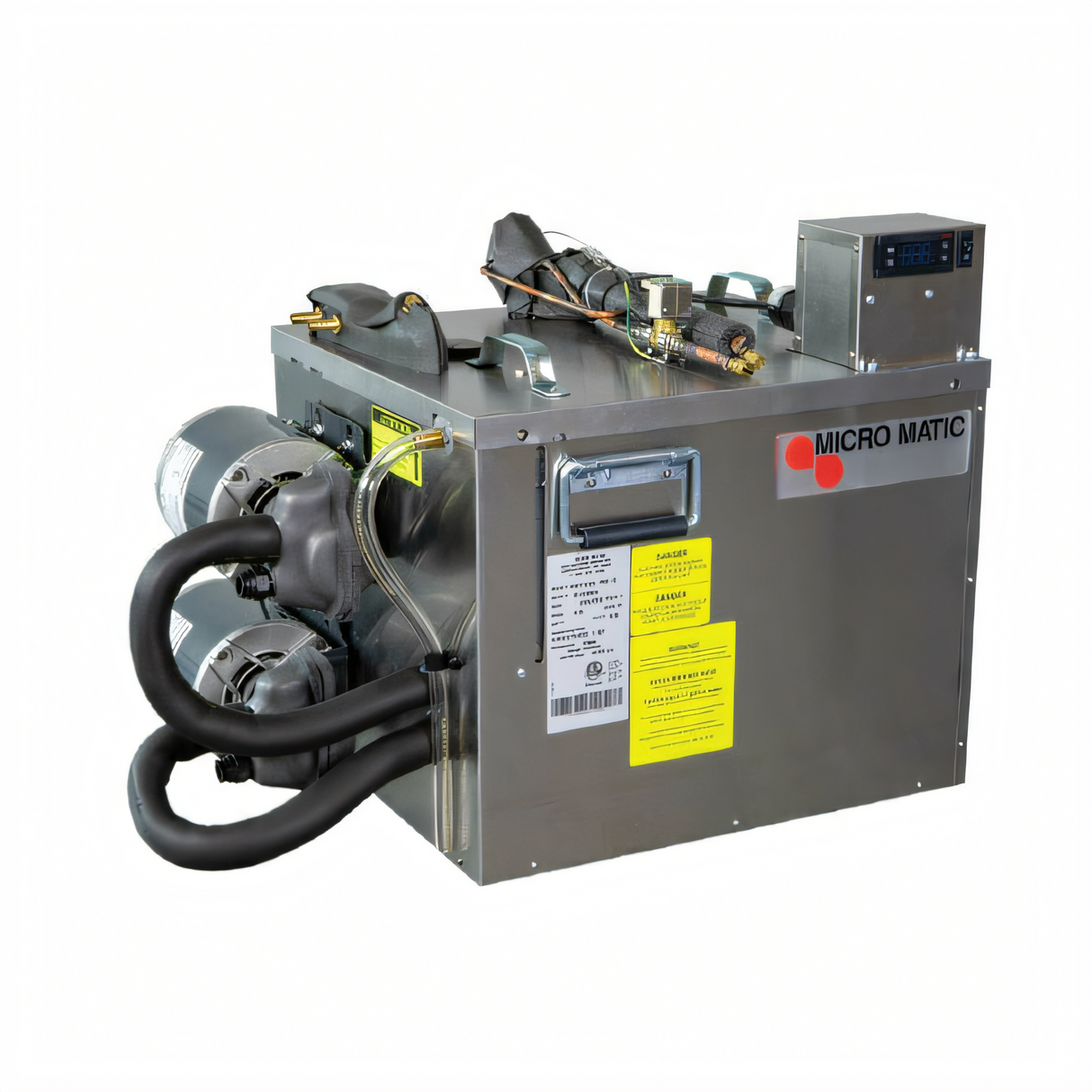

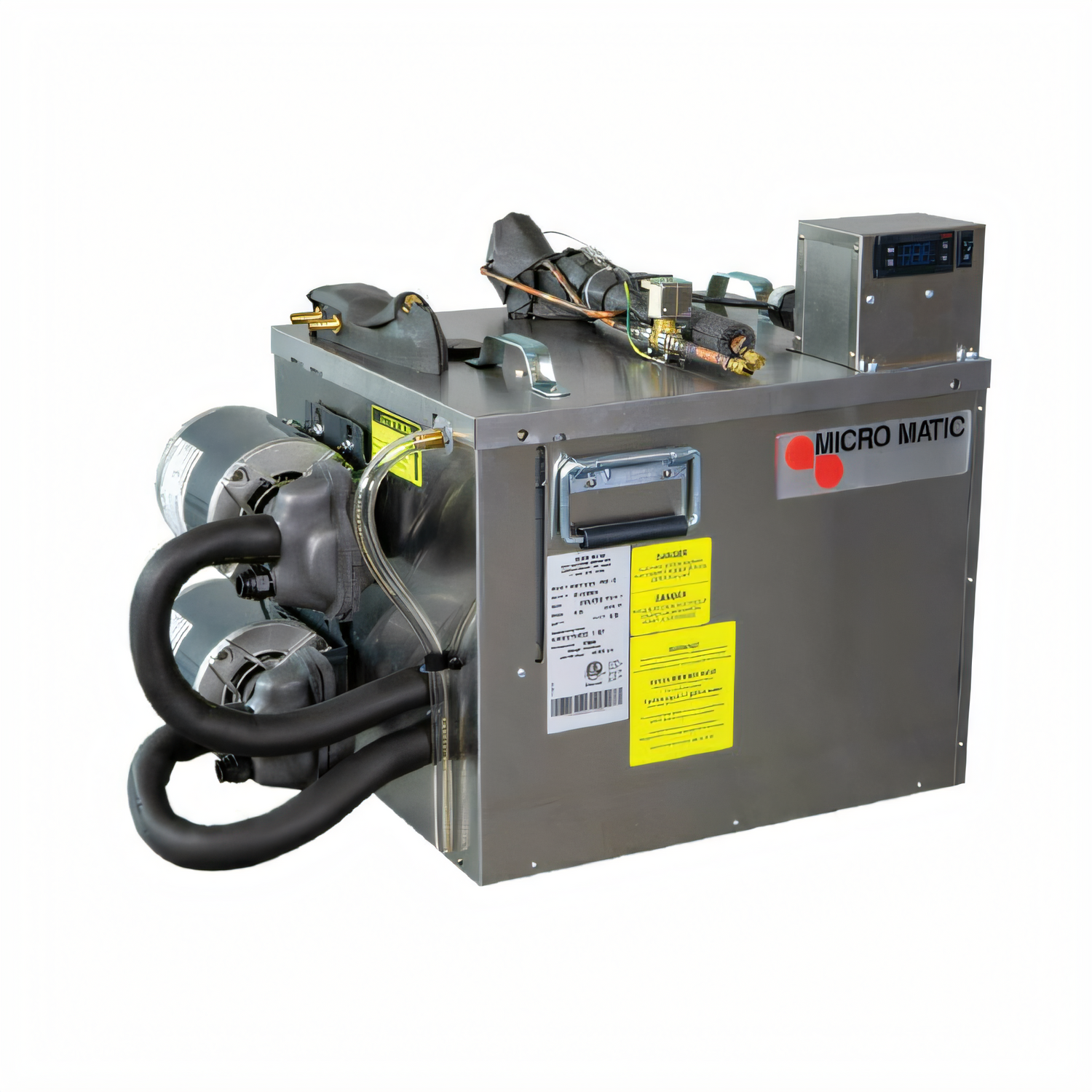

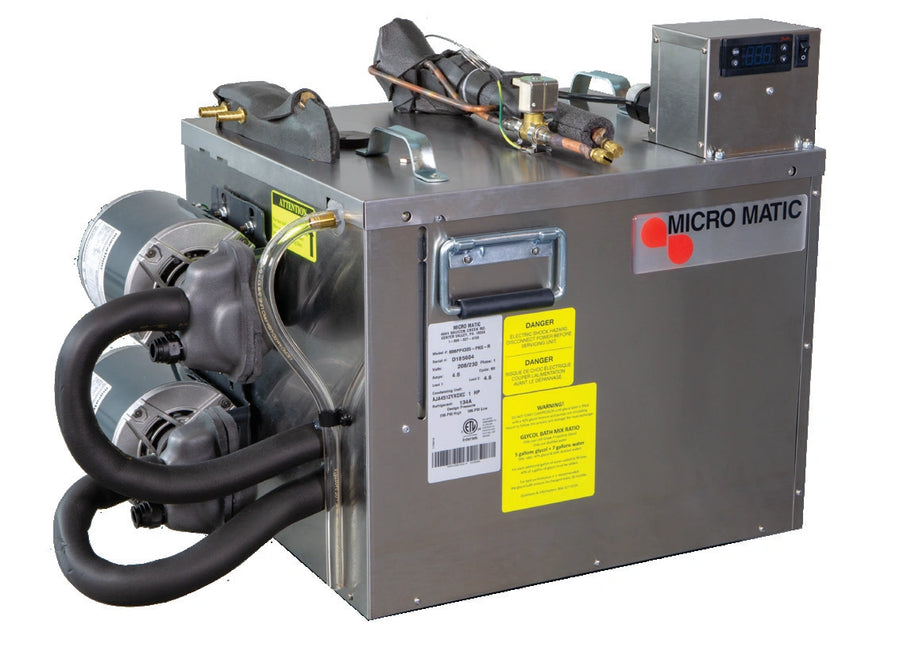

Micro Matic Pro-Line™ Remote Glycol Power Pack – 1 ½ HP / Triple Pump
Model MMPP4307-PKG-3-R • 11,500 BTU/h cooling capacityBuilt for long-draw draft beer systems that demand rock-solid temperature control, the Pro-Line™ 1 ½ HP remote glycol power pack combines high efficiency, quiet operation and service-friendly design. Three independent pumps keep multiple beverage lines flowing at the perfect pour temperature—even on the busiest nights.
Key Benefits

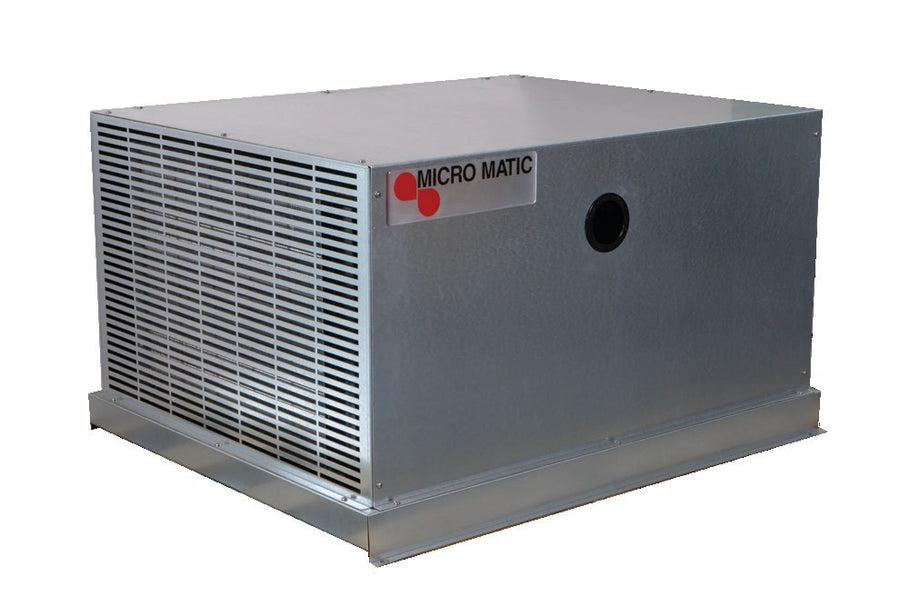

- Remote, air-cooled condenser delivers 11,500 BTU/h of cooling power.
- (3) rotary-vane circulation pumps for multi-zone or redundant system layouts.
- Digital thermostat maintains consistent bath temperature for optimum beer quality.
- 43.5 L (11.5 gal) insulated glycol bath minimizes temperature swing & condensation.
- Exterior sight glass lets you verify glycol level in seconds.
- Factory-installed anti-vibration pads reduce noise in back-of-house locations.
- Fan-control switch & crank-case heater protect the compressor in low ambient conditions.
- Built-in pump-down refrigeration system simplifies maintenance and enhances safety.
Technical Specifications
| Cooling Capacity | 11,500 BTU/h |
|---|---|
| Compressor | 1 ½ HP, air-cooled, remote condenser |
| Pumps | Three rotary-vane circulation pumps |
| Bath Capacity | 43.5 L / 11.5 gal propylene-glycol mix |
| Voltage / Phase | 208–230 V / 1-phase |
| Full-Load Amps | 8.5 A (4.5 A body) |
| Power – Bath Module | NEMA 6-20P, 8 ft cord |
| Power – Condenser | Field hard-wired (installer supplied) |
| Refrigerant | R-404A (55 psi low / 260 psi high) |
| Fluid Connections | ½″ OD push-in fittings |
| Max Bath-to-Condenser Run | 50 ft (15.2 m) |
| Condenser Dimensions (L × W × H) | 29.75″ × 24.25″ × 18.5″ |
Ideal For
- Bars & restaurants with long-draw draft systems
- High-volume venues: arenas, stadiums, banquet halls
- Multi-tap towers or remote beer walls needing separate pump zones
• Must be installed by a qualified refrigeration technician.
• Copper line set, drier, sight glass & refrigerant charge supplied by installer.
• Condensing unit is hard-wired; bath module includes cord & plug.
• Compressor may be located up to 50 ft from the glycol bath.
• All refrigerant tubes and connections are the responsibility of the refrigeration contractor.
Covered by Micro Matic’s 1-year limited parts & labor warranty. See full warranty details for terms and exclusions.
