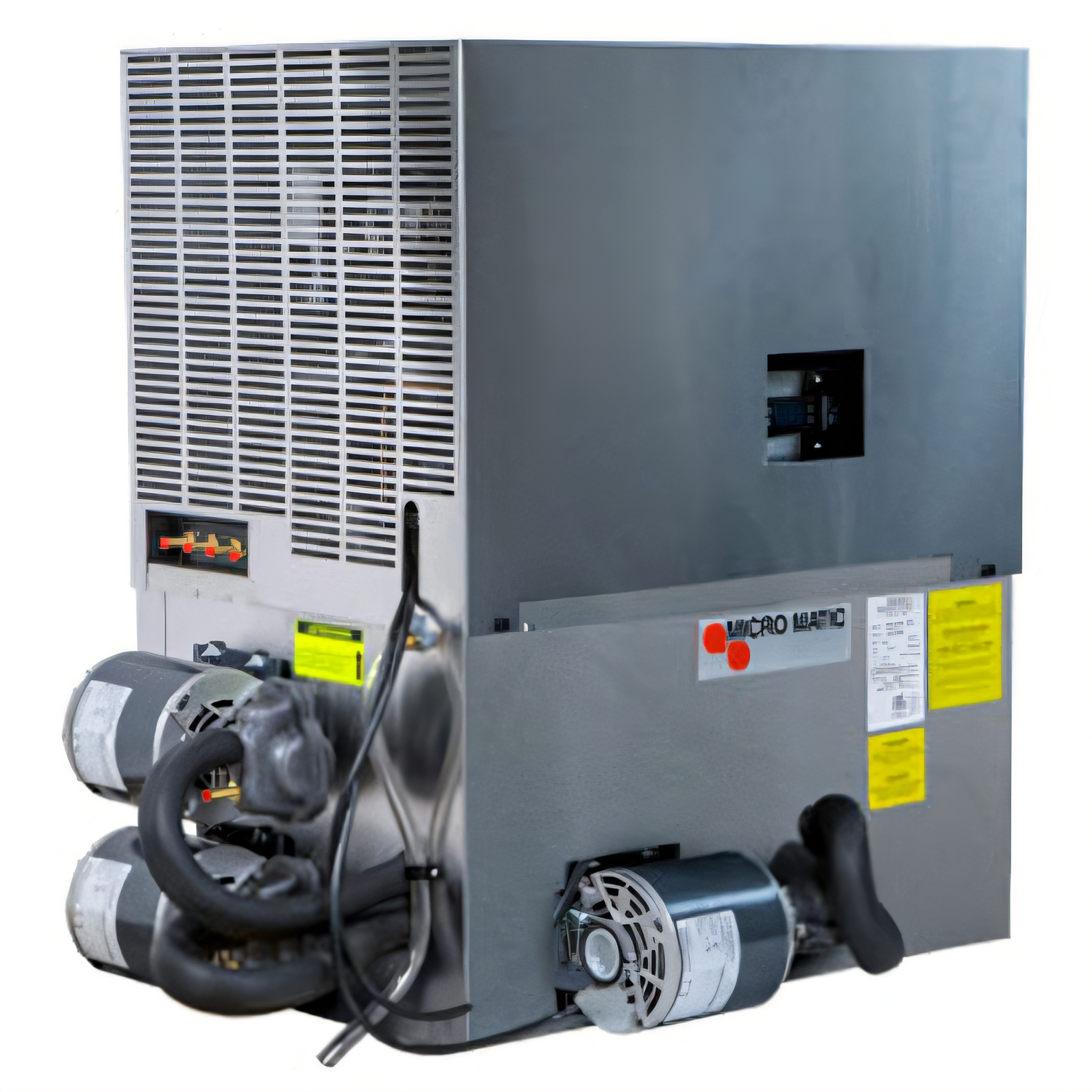

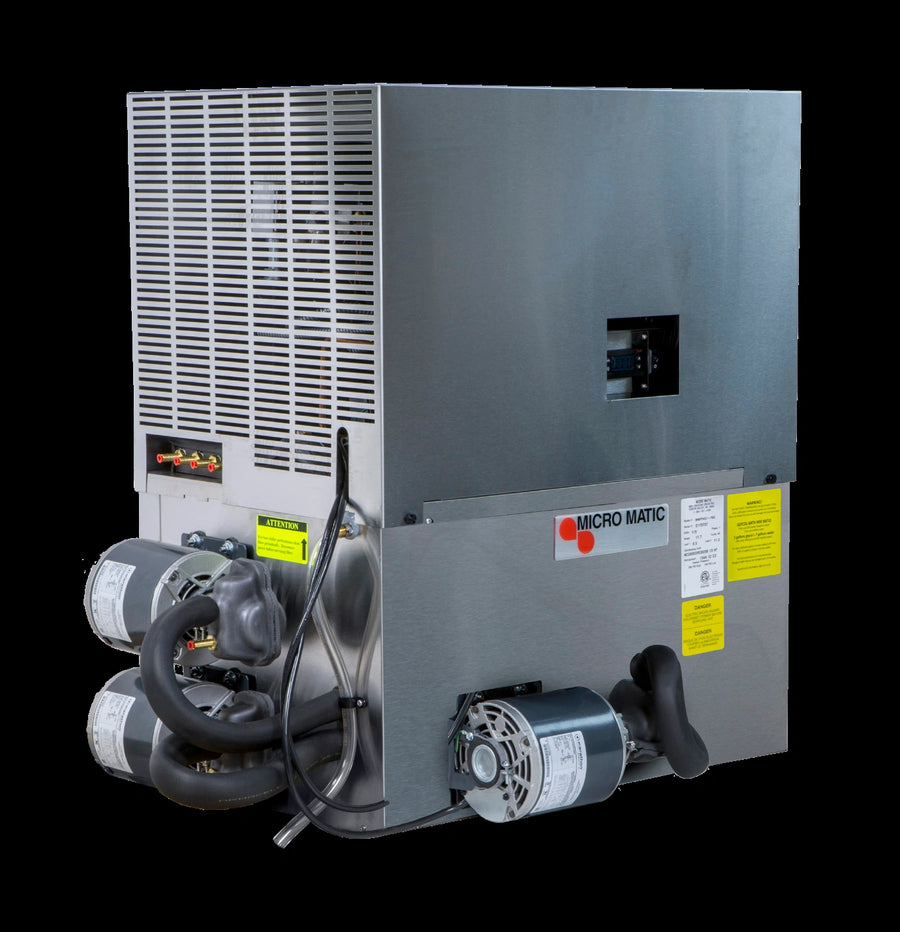

Pro-Line Air-Cooled Draft Beer System Power Pack with 11.5-Gallon Glycol Bath

208/230V, 1-Phase, 11,500 BTU

A reliable air-cooled glycol power pack built to keep draft beer lines cold and consistent in commercial dispensing setups.

  • Air-cooled draft beer system power pack for dependable beverage line chilling.
  • 11.5-gallon glycol bath helps maintain consistent cooling performance.
  • Three 80 gph vane circulating pumps with 1/3 HP motors each support efficient glycol circulation.
  • 11,500 BTU refrigeration system with a 1-1/2 HP compressor and R404A refrigerant.
  • Digital thermostat and insulated cabinet with cover support stable operation.
  • 208/230V, 60 Hz, single-phase power with a NEMA 6-20P plug.

Overall Dimensions:

38.0"W x 30.0"D x 36.0"H

Product Weight:

295.0 lb

Air-Cooled Design

Uses air cooling to support draft beer system temperature control without a water-cooled setup.

11.5-Gallon Glycol Bath

Provides thermal mass for cooling performance and includes an exterior sight glass for easy level monitoring.

Three Circulating Pumps

Equipped with three 80 gph vane circulating pumps, each powered by a 1/3 HP motor.

Digital Thermostat

Digital temperature control helps simplify operation and maintain consistent cooling.

Insulated Cabinet with Cover

Helps retain cold and protect internal components during operation.

11,500 BTU Refrigeration System

Features a 1-1/2 HP compressor and R404A refrigerant for dependable cooling capacity.

Single-Phase Electrical Setup

Operates on 208/230V, 60 Hz, single-phase power and uses a NEMA 6-20P plug.

Type Draft Beer System Power Pack
Style Air-Cooled
Refrigeration Type Glycol Bath
Capacity 11.5 Gallons
BTU 11,500 BTU
Refrigerant Type R404A
Controls Digital
Voltage 208/230 Volts
Amps 13.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Pump Quantity 3
Pump Motor Horsepower 1/3 HP Each
Compressor Horsepower 1-1/2 HP
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

1-year limited product warranty

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. The product is described as an air-cooled draft beer system power pack.
It includes three 80 gph vane circulating pumps, each with a 1/3 HP motor.
The unit has an 11.5-gallon glycol bath with an exterior sight glass.
It requires 208/230V, 60 Hz, single-phase power and uses a NEMA 6-20P plug.
The system uses R404A refrigerant, an 11,500 BTU refrigeration system, and a 1-1/2 HP compressor.
Micro Matic's limited product warranty is one year from the date of sale unless otherwise specified.
