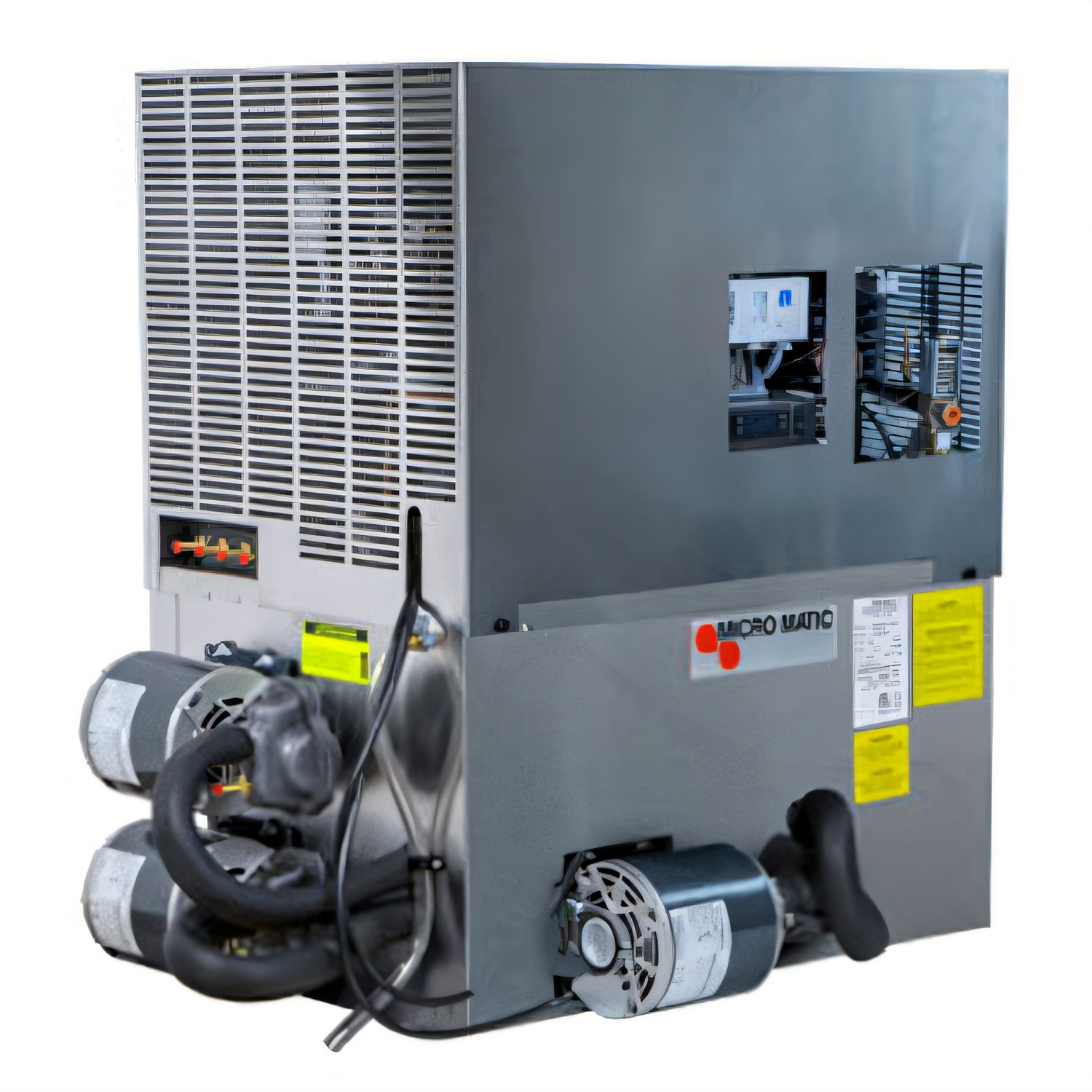

Pro-Line Premium 3-Pump Water-Cooled Draft Beer System Power Pack, 7,250 BTU

SKU: MMPP4305-PKG-3-WC
$7,284.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Beverage Dispenser Parts & Accessories Micro Matic USA New Arrivals Restaurant Equipment Restaurant Equipment Parts

Pro-Line Premium 3-Pump Water-Cooled Draft Beer System Power Pack, 7,250 BTU

11.5-Gallon Glycol Bath, 208/230V, 1-Phase

Water-cooled and built for demanding draft installations, this power pack delivers 7,250 BTU of cooling with three circulating pumps and precise digital temperature control.

  • Water-cooled design is ideal for spaces with limited air circulation or high ambient temperatures.
  • Three 80 GPH rotary vane pumps support reliable glycol circulation.
  • 11.5-gallon glycol bath with exterior sight glass makes level checks easy.
  • Digital thermostat helps maintain accurate glycol bath temperature.
  • Stainless steel cabinet with expanded urethane foam insulation helps reduce condensation.
  • 1 HP compressor delivers 7,250 BTU of cooling with R134a refrigerant.
  • 208/230V, 60 Hz, single-phase power with NEMA 6-15P plug.

Overall Dimensions:

37.13"W x 28.75"D x 31.5"H

Product Weight:

215.0 lb

Water-Cooled Design

Designed for spaces with limited air circulation or high ambient temperatures.

Three Circulating Pumps

Includes three 80 GPH vane circulating pumps for glycol circulation.

Digital Thermostat

Provides accurate control of glycol bath temperature.

11.5-Gallon Glycol Bath

Generous bath capacity with an exterior sight glass for easy level monitoring.

Insulated Stainless Steel Cabinet

Expanded urethane foam insulation helps maintain glycol temperature and minimize condensation.

Anti-Vibration Pads

Helps reduce motor noise during operation.

1 HP Compressor

Supports 7,250 BTU cooling performance with R134a refrigerant.

Type Draft Beer System Power Pack
Style Premium
Refrigeration Type Water Cooled
Pumps 3
Pump Type Rotary Vane
Horsepower 1 HP
Capacity 11.5 Gallons
BTU 7,250 BTU
Voltage 208/230 Volts
Amps 11.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Refrigerant Type R134a
Connection Size 3/8 Inch Female NPT
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 38 Inches
Shipping Depth 29 Inches
Shipping Height 32 Inches

Certifications & Compliance

Warranty & Protection

1-year limited product warranty

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses a water-cooled design and is intended for spaces with limited air circulation or high ambient temperatures.
It includes three 80 GPH vane circulating pumps.
The glycol bath capacity is 11.5 gallons.
It requires 208/230V, 60 Hz, single-phase power and uses a NEMA 6-15P plug.
The unit uses R134a refrigerant and a 1 HP compressor.
Micro Matic offers a limited product warranty for one year from the date of sale unless otherwise specified.
