Micro Matic USA MMPP4305-PKG-R Pro-Line Back Bar Coolers
Description

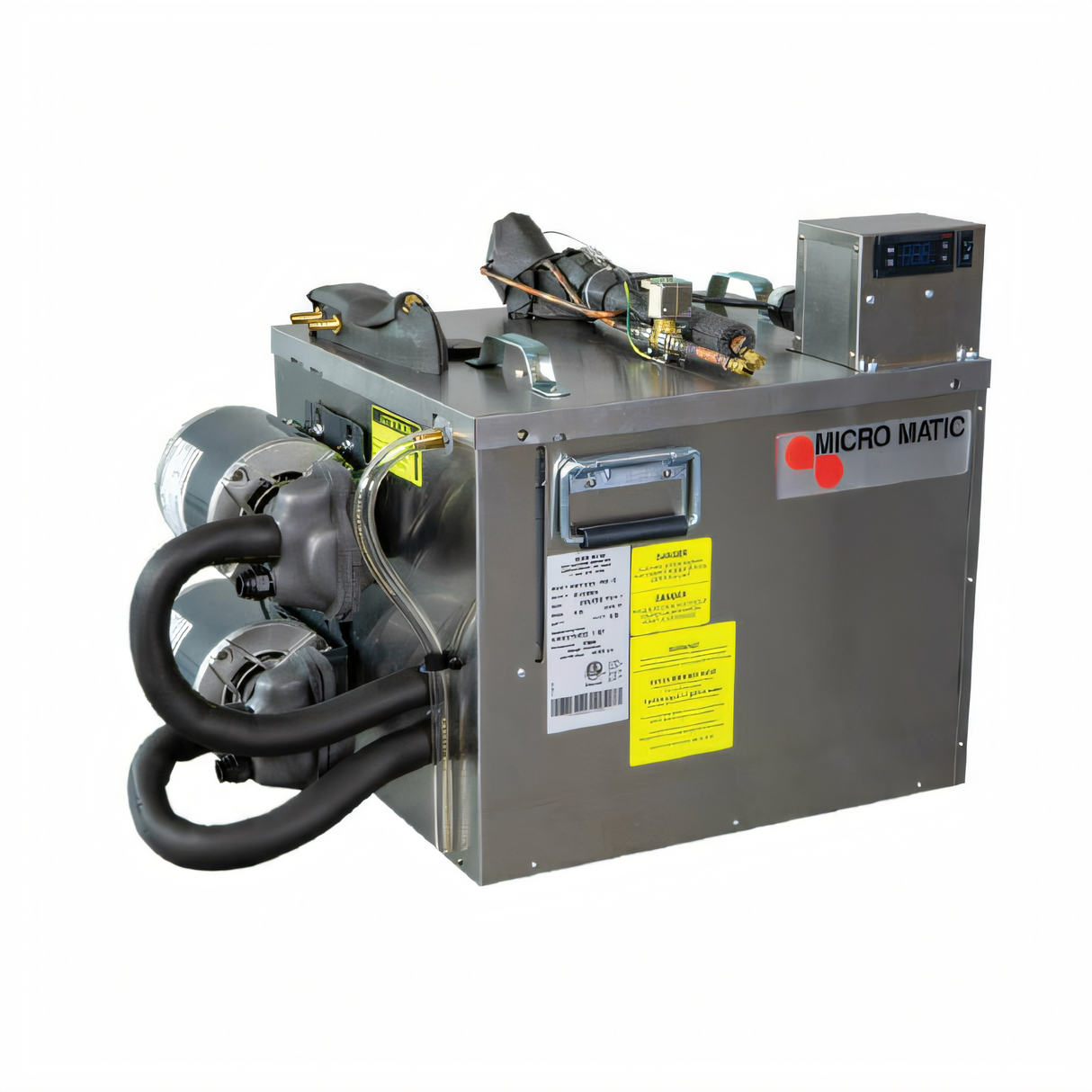

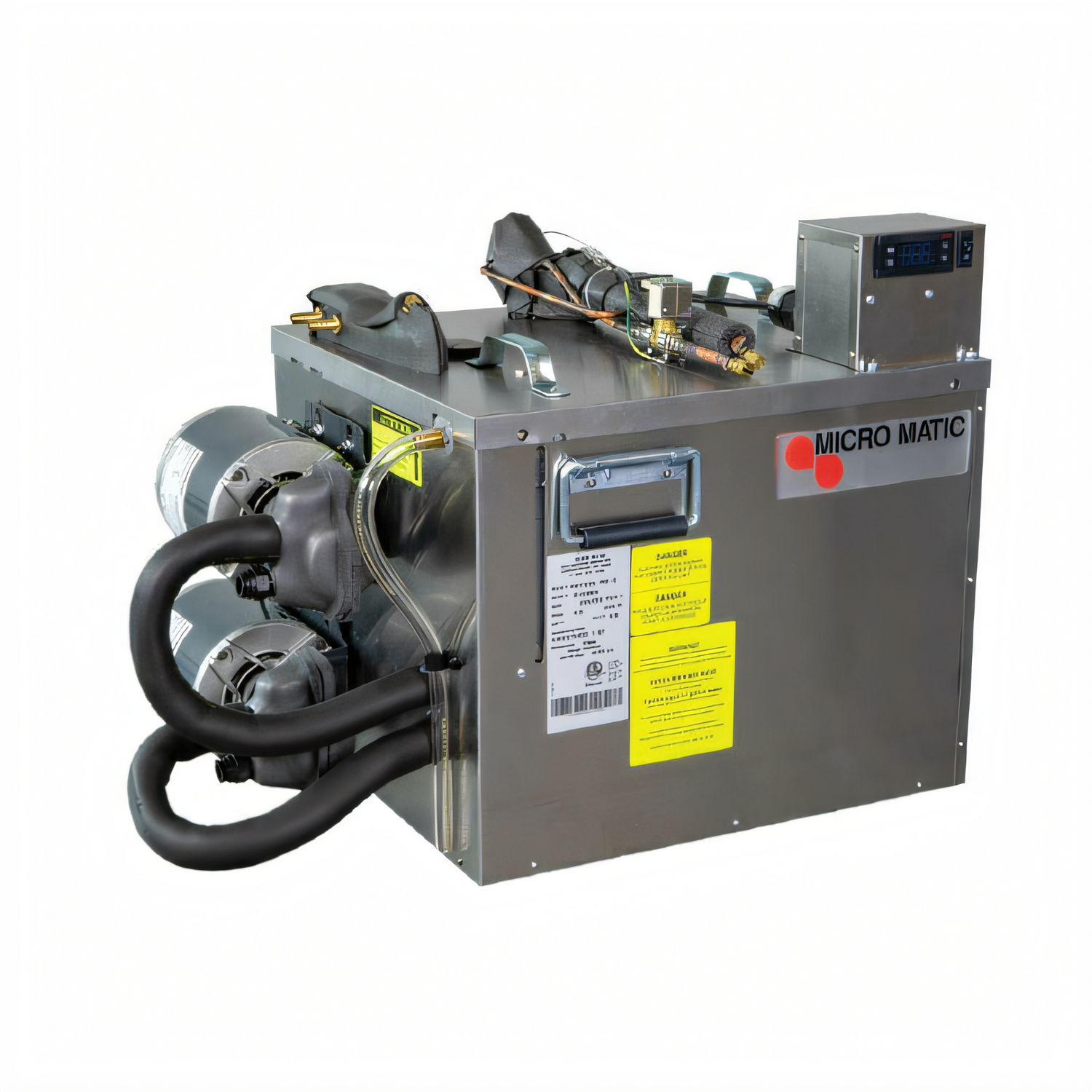

Pro-Line™ Remote Glycol Power Pack – 1 HP, Dual Pump
Model MMPP4305-PKG-R | 7,250 BTU Air-Cooled Remote CondenserKeep every pint brewery-fresh—no matter how far the bar is from the cooler. The Micro Matic Pro-Line™ 1 HP glycol power pack delivers professional, long-draw draft performance with the quiet convenience of a remote condenser. Purpose-built for beer professionals, it combines a high-capacity glycol bath, twin rotary-vane circulation pumps and rock-solid digital temperature control in a space-saving package rated for trunk lines up to 50 ft.
Key Features
- 7,250 BTU/hr cooling capacity driven by a heavy-duty 1 HP compressor
- Dual rotary-vane pumps for redundant reliability or split-zone service
- Remote air-cooled condenser (cover included) keeps noise & heat outside the bar area
- Digital thermostat with LED read-out for precise bath temperature control
- 11.5 gal (43.5 L) glycol reservoir insulated with expanded urethane foam
- Exterior sight glass simplifies glycol level checks
- Anti-vibration motor mounts reduce operating noise
- Fan-control switch, crank-case heater & pump-down refrigeration circuitry factory-installed
Technical Specifications
| Part number | MMPP4305-PKG-R |
|---|---|
| Cooling capacity | 7,250 BTU/hr |
| Compressor | 1 HP, air-cooled, remote condenser |
| Pumps | (2) × Rotary-vane, continuous-duty |
| Glycol bath capacity | 11.5 gal / 43.5 L |
| Voltage | 208/230 V, 1-phase |
| Current draw | Body 3 A / Total 8 A |
| Electrical connection – bath | NEMA 6-20P, 8 ft cord* |
| Electrical connection – condenser | Hard-wired (no plug) |
| Refrigerant | R-134a (charge by installer) |
| Max distance: bath ↔ condenser | 50 ft |
| Dimensions – condenser (L × W × H) | 29.75 in × 24.25 in × 18.5 in |
| Dimensions – bath (L × W × H) | 36.75 in × 26.75 in × 17.75 in |
| Shipping weight | 175 lb / 80 kg |
*Units produced before 02/01/2022 ship with a NEMA 6-15P plug.
Ideal Applications
- Beer towers & tap walls up to 50 ft from the walk-in cooler
- High-volume bars, restaurants, taprooms & stadium concourses
- Dual-zone trunk lines where independent pump control is desired
• Condensing unit must be hard-wired by a licensed electrician.
• Copper refrigerant line set, drier, sight glass & final refrigerant charge are supplied/installed by a qualified refrigeration contractor.
• Locate the condenser within 50 ft of the glycol bath for optimal performance.
• Always use a 35-40 % glycol solution (by volume) and follow Micro Matic start-up procedures.
Warranty
Every Pro-Line™ power pack is backed by Micro Matic’s one-year limited parts & labor warranty. For complete details and return authorization, visit micromatic.com.
