Micro Matic USA MMPP4305-PKG-3-R Pro-Line Back Bar Coolers
Description

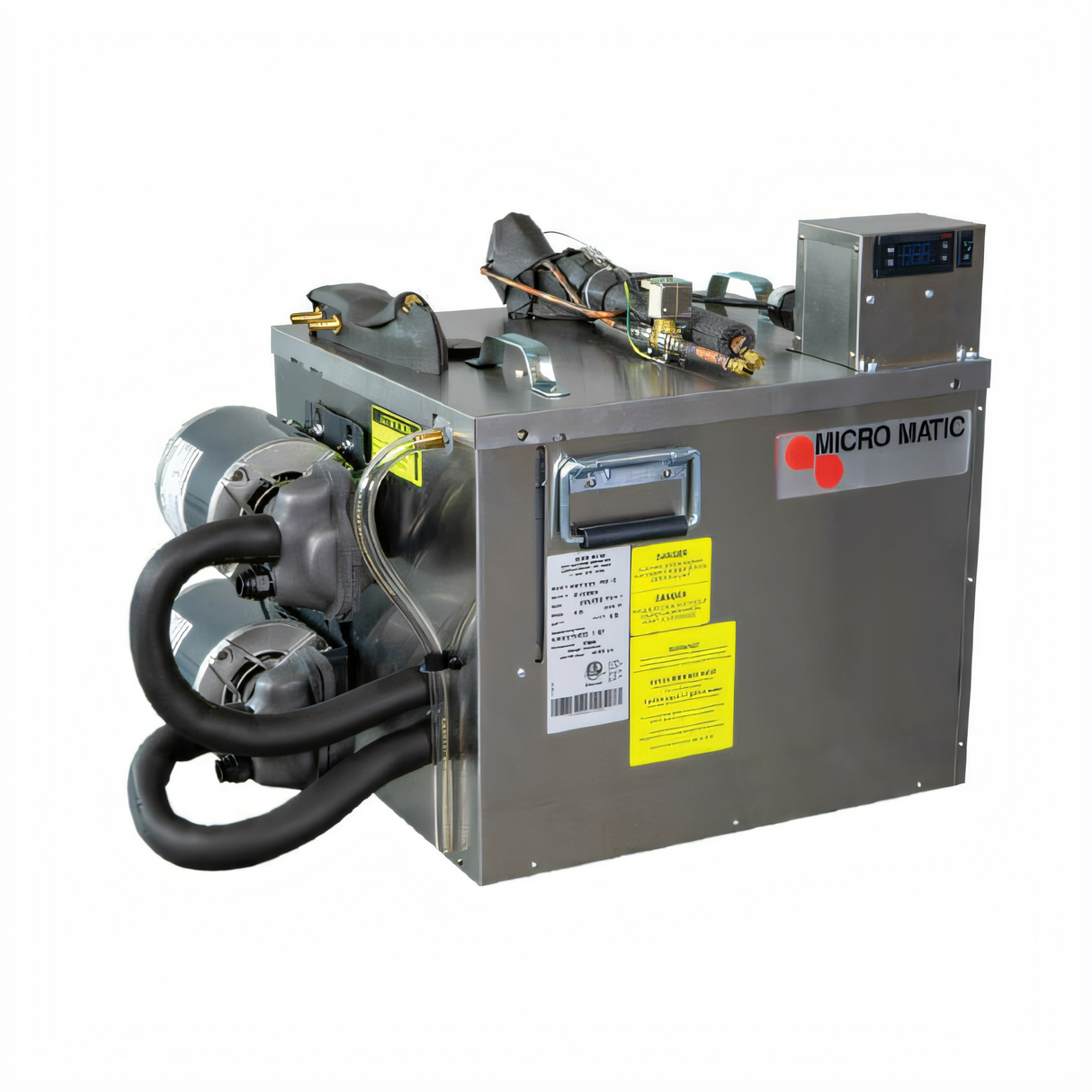

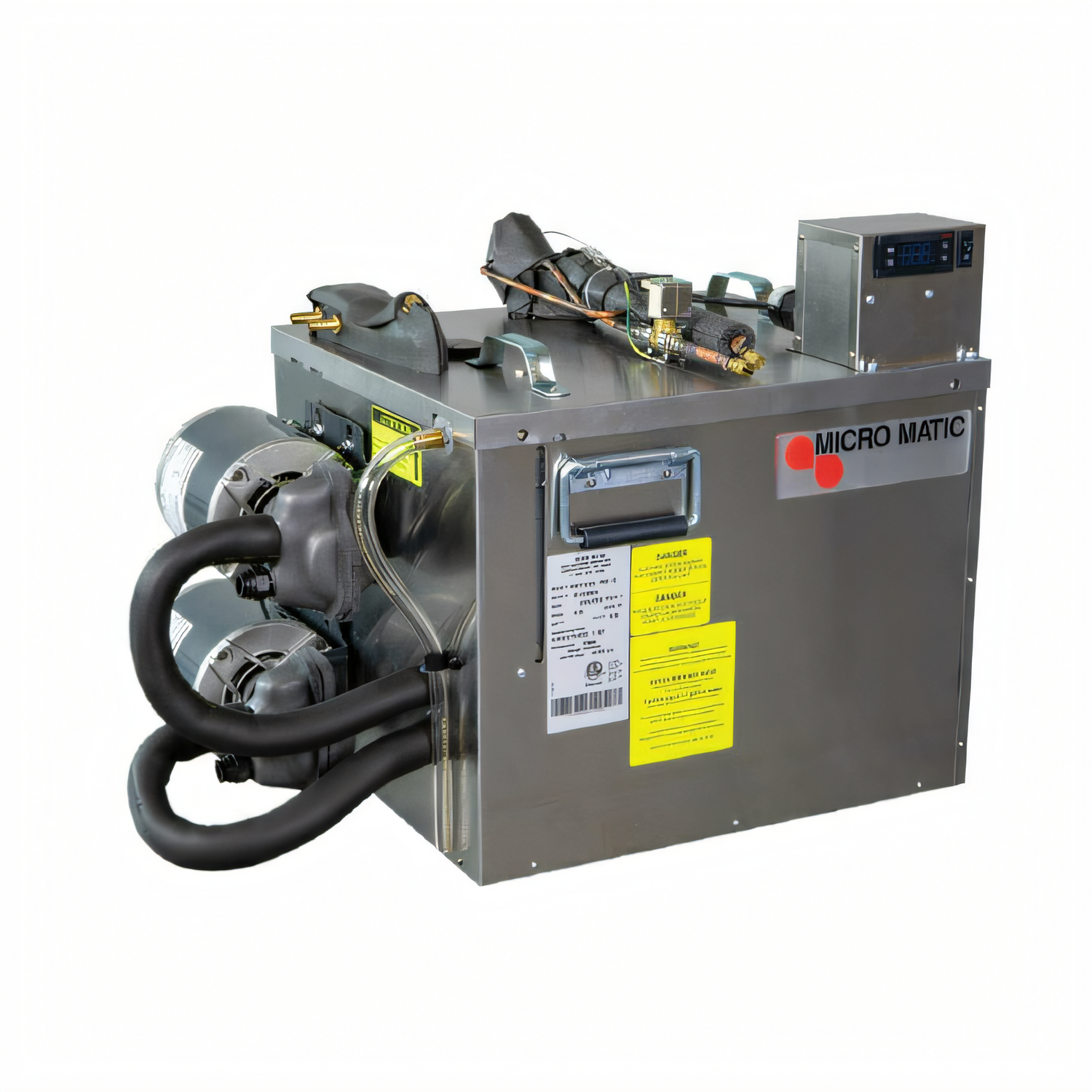

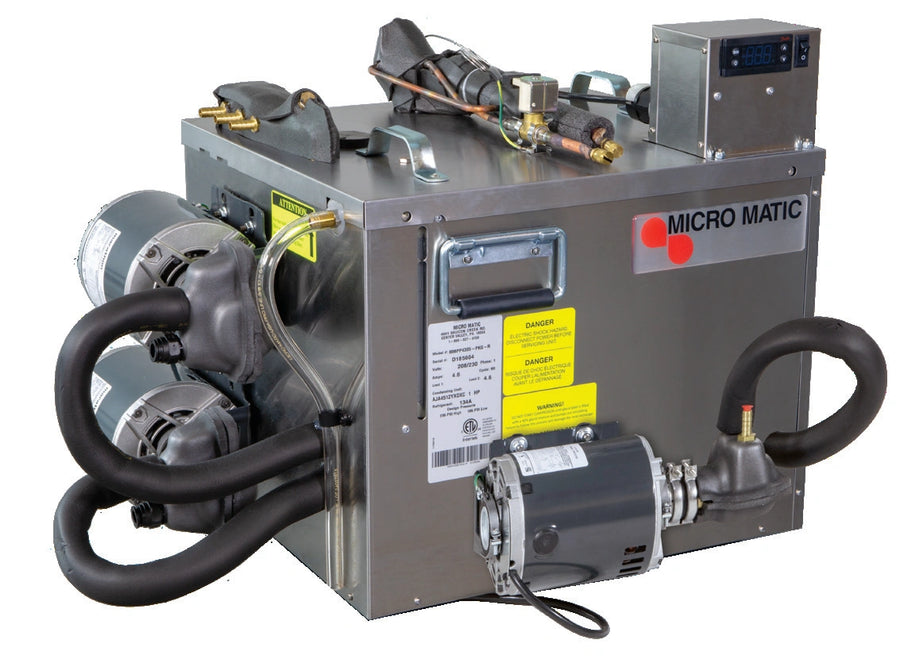

Pro-Line™ Remote Glycol Power Pack – 1 HP / Triple Pump
Model MMPP4305-PKG-3-R · Micro Matic USAKeep long-draw draft lines ice-cold and profits flowing with the Pro-Line™ remote glycol chiller. Engineered by Micro Matic’s draft-beer experts, this 1 HP, three-pump powerhouse quietly circulates 29 °F (-1.7 °C) glycol up to 50 feet, guaranteeing perfect pours from the first pint to the last.
Key Features
- 7,250 BTU/hr cooling capacity delivers rock-solid temperature stability
- Triple rotary-vane pumps supply independent glycol circuits for multi-tower systems

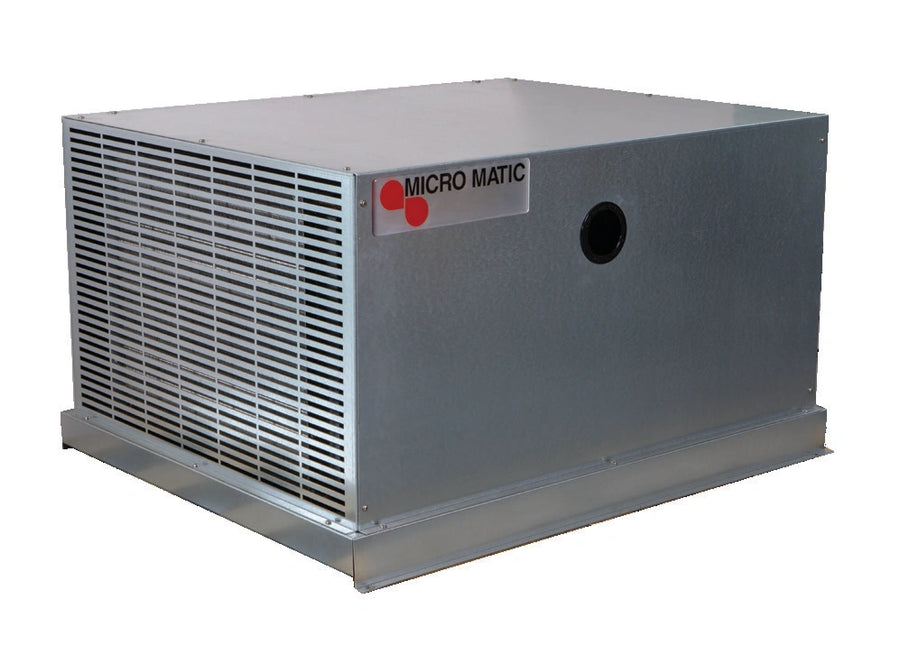

- Remote air-cooled condenser keeps heat & noise out of the bar area
- Digital thermostat with easy-read display for precise bath control
- 43.5 L (11.5 gal) insulated glycol bath with exterior sight glass to monitor fluid level
- Factory-installed anti-vibration pads and crank-case heater for quiet, dependable performance
- Fan-control switch plus pump-down refrigeration protects critical components
- ETL listed and backed by Micro Matic’s limited 1-year warranty
Technical Specifications
| Cooling capacity | 7,250 BTU/hr |
|---|---|
| Compressor | 1 HP, air-cooled (remote) |
| Pumps | 3 × rotary vane |
| Bath capacity | 43.5 L / 11.5 gal |
| Refrigerant | R-134a |
| Voltage / phase | 208–230 V, 1 Ø |
| Full-load amps | 8 A (unit) / 4.5 A (compressor body) |
| Power connection | NEMA 6-20P, 8 ft cord (units built before 2/1/22: 6-15P) |
| Push-in connector | ½ in O.D. (12.7 mm) |
| Max bath ↔ condenser run | 50 ft |
| Shipping weight | 175 lb (80 kg) |
| Remote condenser (L × W × H) | 29.75″ × 24.25″ × 18.5″ |
| Bath / pump module (L × W × H) | 36.75″ × 26.75″ × 23.25″ |
Ideal Applications
- Craft-beer bars & brewpubs with multiple towers
- Restaurants or taprooms running long-draw trunk lines
- Event venues needing the condenser located outside the service area
- Condensing unit must be hard-wired by a licensed electrician.
- Copper line set, drier, sight glass and refrigerant charge provided & installed by a qualified refrigeration contractor.
- Bath module ships with a cord & NEMA 6-20P plug—dedicated 208/230 V outlet required.
- Maintain a maximum of 50 ft between bath module and remote condenser for optimal performance.
Have questions or need help sizing your chiller? Call our draft specialists at 1-866-327-4159 or contact us online.
