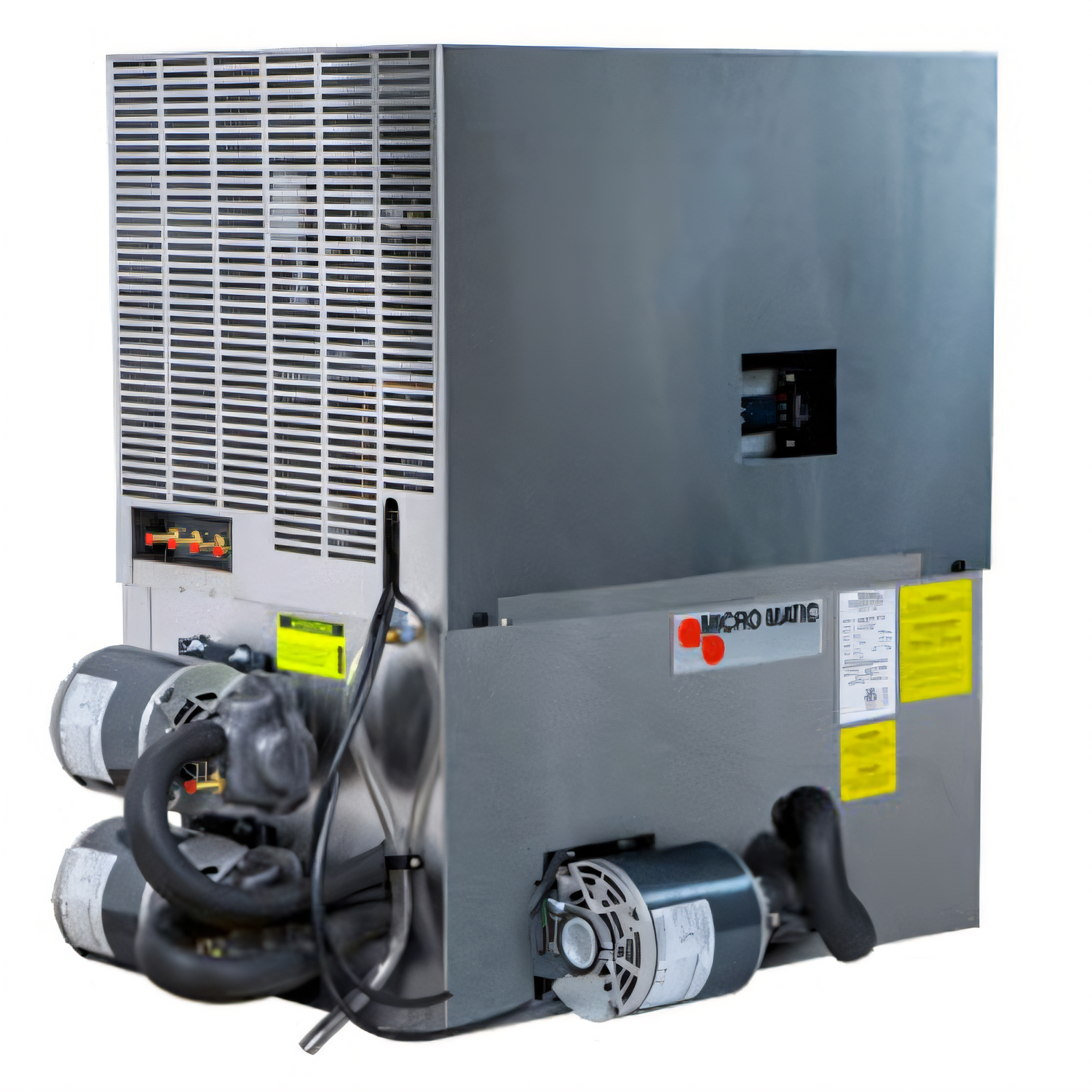

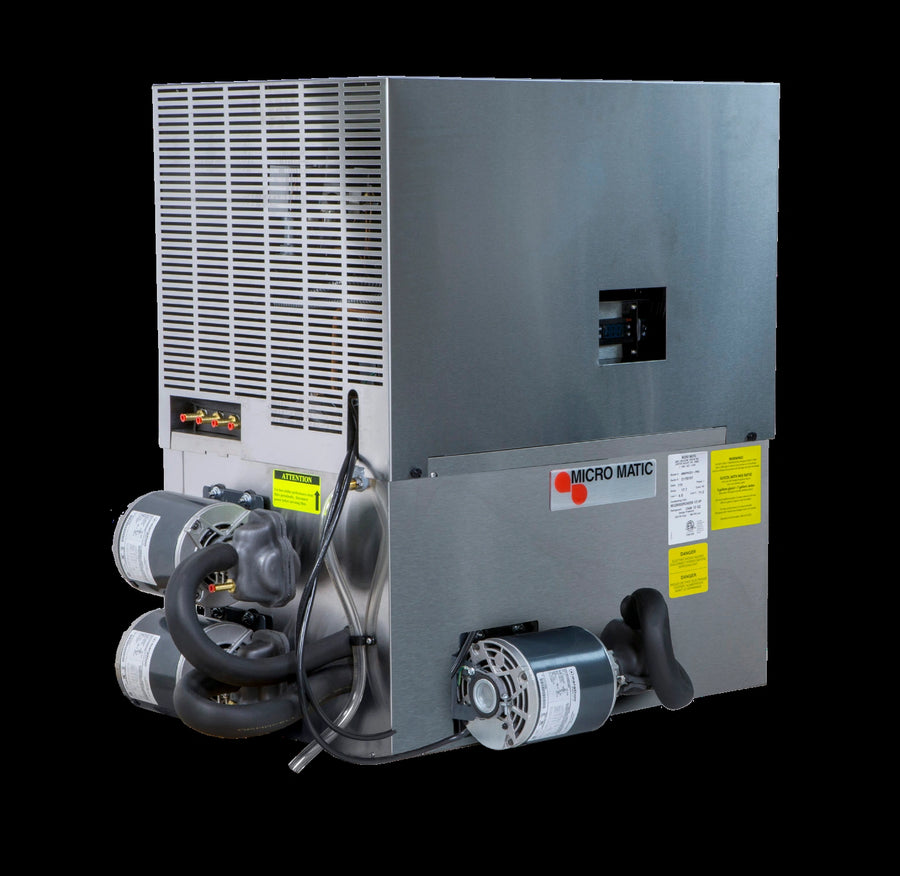

Pro-Line Air-Cooled Draft Beer System Glycol Power Pack, 3-Pump, 1 HP, 208/230V

11.5-Gallon Glycol Bath, R-134a, NEMA 6-20P

Designed for multi-line draft beer systems, this air-cooled power pack delivers stable glycol cooling with three circulation pumps, a 1 HP compressor, and a digital thermostat.

  • Air-cooled draft beer power pack built for glycol-based beer dispensing systems.
  • Three 80 gph vane circulating pumps support consistent circulation across multiple lines.
  • 11.5-gallon glycol bath includes an exterior sight glass for easy level checks.
  • Digital thermostat and insulated stainless steel cabinet help maintain bath temperature and reduce condensation.
  • 1 HP compressor uses R-134a refrigerant for dependable cooling performance.
  • NEMA 6-20P plug and 208/230V, single-phase power simplify electrical setup.

Overall Dimensions:

37.13"W x 28.75"D x 31.5"H

Product Weight:

290.0 lb

Air-Cooled System

Uses air cooling to help maintain glycol bath temperature for draft beer service.

Three Circulating Pumps

Includes three 80 gph vane pumps to circulate glycol through the system.

Exterior Sight Glass

Lets operators quickly verify glycol bath level without opening the cabinet.

Digital Thermostat

Provides accurate control of glycol bath temperature.

Insulated Stainless Steel Cabinet

Expanded urethane foam insulation helps retain temperature and the stainless steel cabinet improves durability.

Anti-Vibration Pads

Helps reduce motor noise during operation.

1 HP Compressor

Supports cooling performance for the glycol bath.

Electrical Connection

Operates on 208/230V, 60Hz, single-phase power with a NEMA 6-20P plug.

Type Draft Beer System Power Pack
Style Air Cooled
Capacity 11.5 Gallons
Horsepower 1 HP
Pump Count 3
BTU 7,250 BTU/hr
Voltage 208/230 Volts
Amps 12.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Controls Digital
Refrigerant Type R-134a
Material Stainless Steel
Shipping Width 38 Inches
Shipping Depth 29 Inches
Shipping Height 32 Inches
Shipping Weight 290 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

1-year limited product warranty.

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes three 80 gph vane circulating pumps.
The glycol bath capacity is 11.5 gallons.
It runs on 208/230V, 60Hz, single-phase power and uses a NEMA 6-20P plug.
It uses R-134a refrigerant.
Yes, it includes a digital thermostat for accurate glycol bath temperature control.
