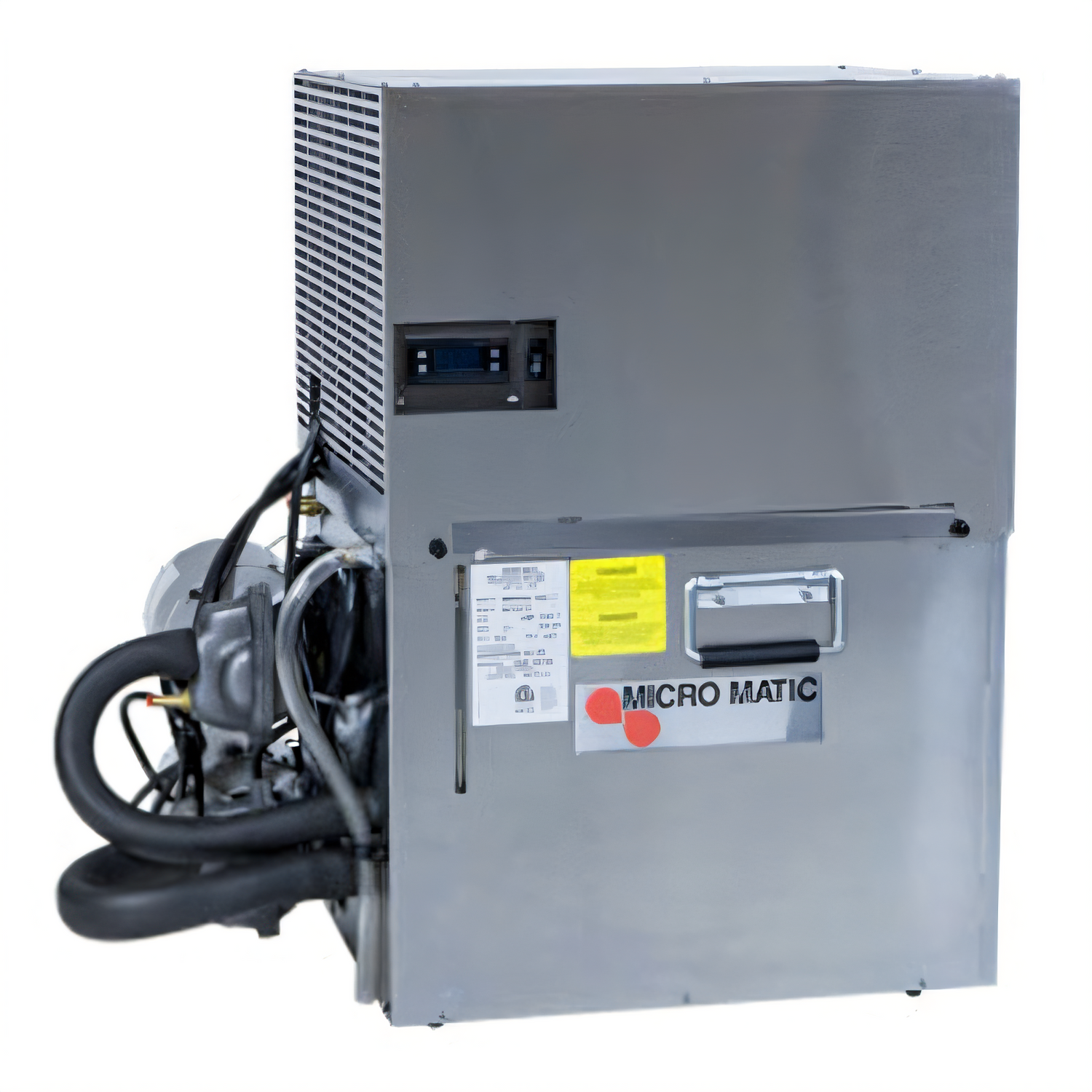

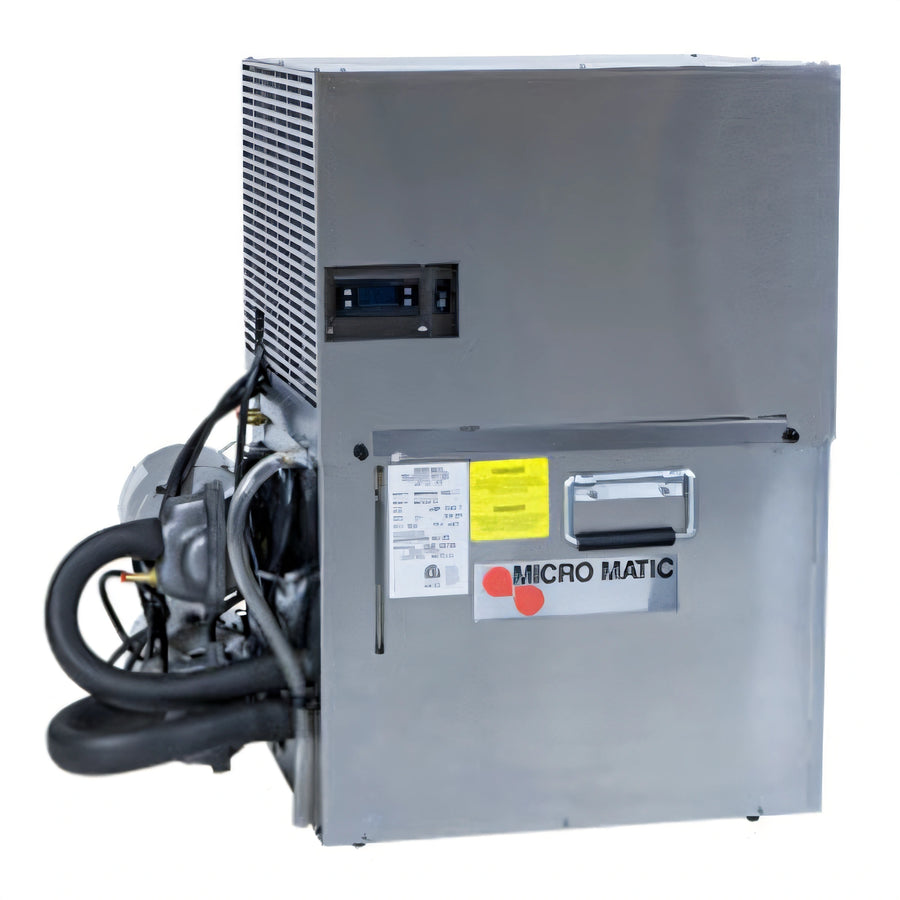

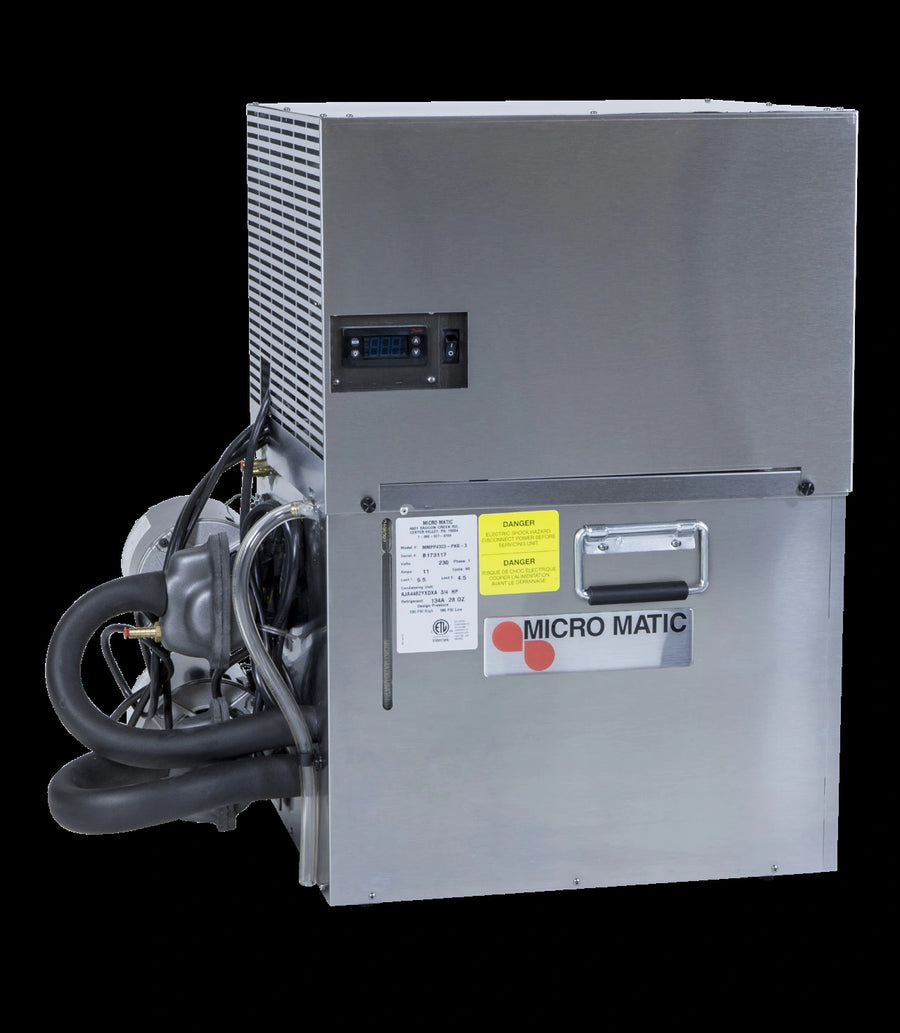

Pro-Line Water-Cooled Draft Beer System Power Pack, 2-Pump, 5,100 BTU

SKU: MMPP4303-PKG-WC
$5,683.12
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Beverage Dispenser Parts & Accessories Micro Matic USA New Arrivals Restaurant Equipment Restaurant Equipment Parts

Pro-Line Water-Cooled Draft Beer System Power Pack, 2-Pump, 5,100 BTU

11.5-Gallon Bath, 208/230V, Single-Phase

Built for demanding draft beer installs, this water-cooled power pack delivers stable glycol cooling, dual circulation pumps, and 5,100 BTU/hr performance in a durable stainless steel cabinet.

  • Water-cooled design is ideal for spaces with limited air circulation or high ambient temperatures.
  • Includes two 80 GPH rotary vane circulating pumps with 1/3 HP motors each.
  • 11.5-gallon glycol bath with exterior sight glass helps simplify level checks and maintenance.
  • Digital thermostat provides accurate glycol bath temperature control.
  • Rugged stainless steel cabinet with urethane foam insulation helps reduce condensation and retain temperature.
  • 3/4 HP compressor, R-134a refrigerant, and 208/230V single-phase power support dependable operation.

Overall Dimensions:

30.0"W x 18.0"D x 28.75"H

Product Weight:

175.0 lb

Water-Cooled Design

Designed for spaces with limited air circulation or high ambient temperature conditions.

Dual Circulating Pumps

Includes two 80 GPH rotary vane circulating pumps with 1/3 HP motors each for glycol circulation.

Digital Thermostat

Provides accurate control of the glycol bath temperature.

Insulated Stainless Steel Cabinet

Expanded urethane foam insulation and a stainless steel cabinet help maintain glycol temperature and minimize condensation.

Exterior Sight Glass

Lets operators verify the glycol bath level at a glance.

High-Capacity Cooling Package

Uses a 3/4 HP compressor with R-134a refrigerant and delivers 5,100 BTU/hr.

Electrical Setup

Configured for 208/230V, 60 Hz, single-phase power with an 8-foot cord and NEMA 6-20P plug.

Water Connections

Uses 3/8" female NPT water inlet and outlet fittings, with a minimum 3/8" water pipe size.

Type Draft Beer System Power Pack
Style Water Cooled
Capacity 11.5 Gallons
Material Stainless Steel
Controls Digital
BTU 5,100 BTU/hr
Compressor Horsepower 3/4 HP
Pumps 2
Pump Motor Horsepower 1/3 HP Each
Refrigerant Type R-134a
Voltage 208/230 Volts
Amps 8.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Cord Length 8 Feet
Water Connection Required
Water Inlet Size 3/8 Inch
Shipping Width 30 Inches
Shipping Depth 18 Inches
Shipping Height 29 Inches
Shipping Weight 175 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

1-year limited product warranty

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is water-cooled and is designed for spaces with limited air circulation or high ambient temperature.
It includes two 80 GPH rotary vane circulating pumps with 1/3 HP motors each.
The glycol bath capacity is 11.5 gallons.
It operates on 208/230V, 60 Hz, single-phase power and draws 8.4 amps. The unit uses a NEMA 6-20P plug and an 8-foot cord.
It uses R-134a refrigerant and a 3/4 HP compressor.
The unit uses 3/8" female NPT water inlet and outlet fittings, and the minimum water pipe size is 3/8".
