Micro Matic USA MMPP4303-PKG-R Pro-Line Back Bar Coolers
Description

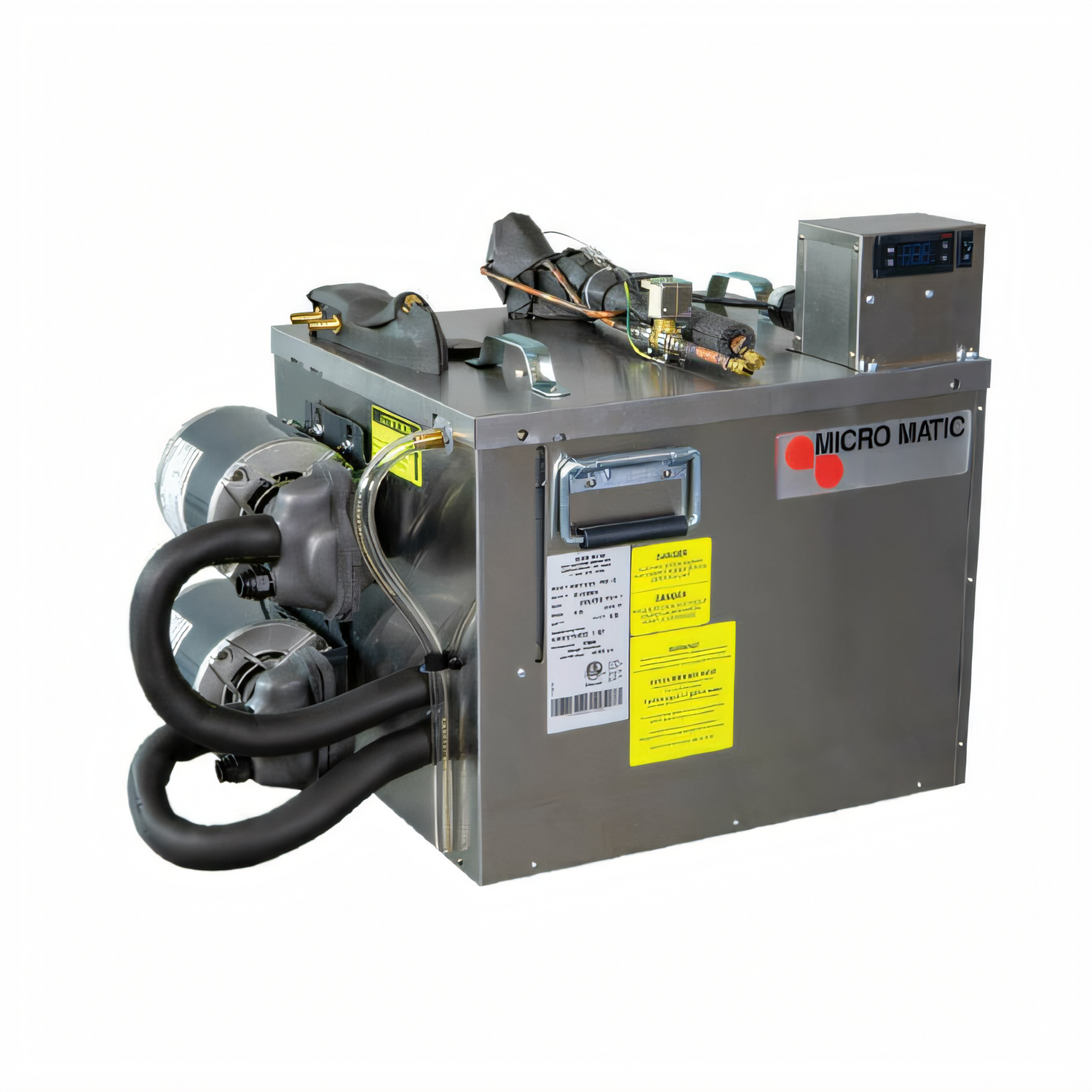

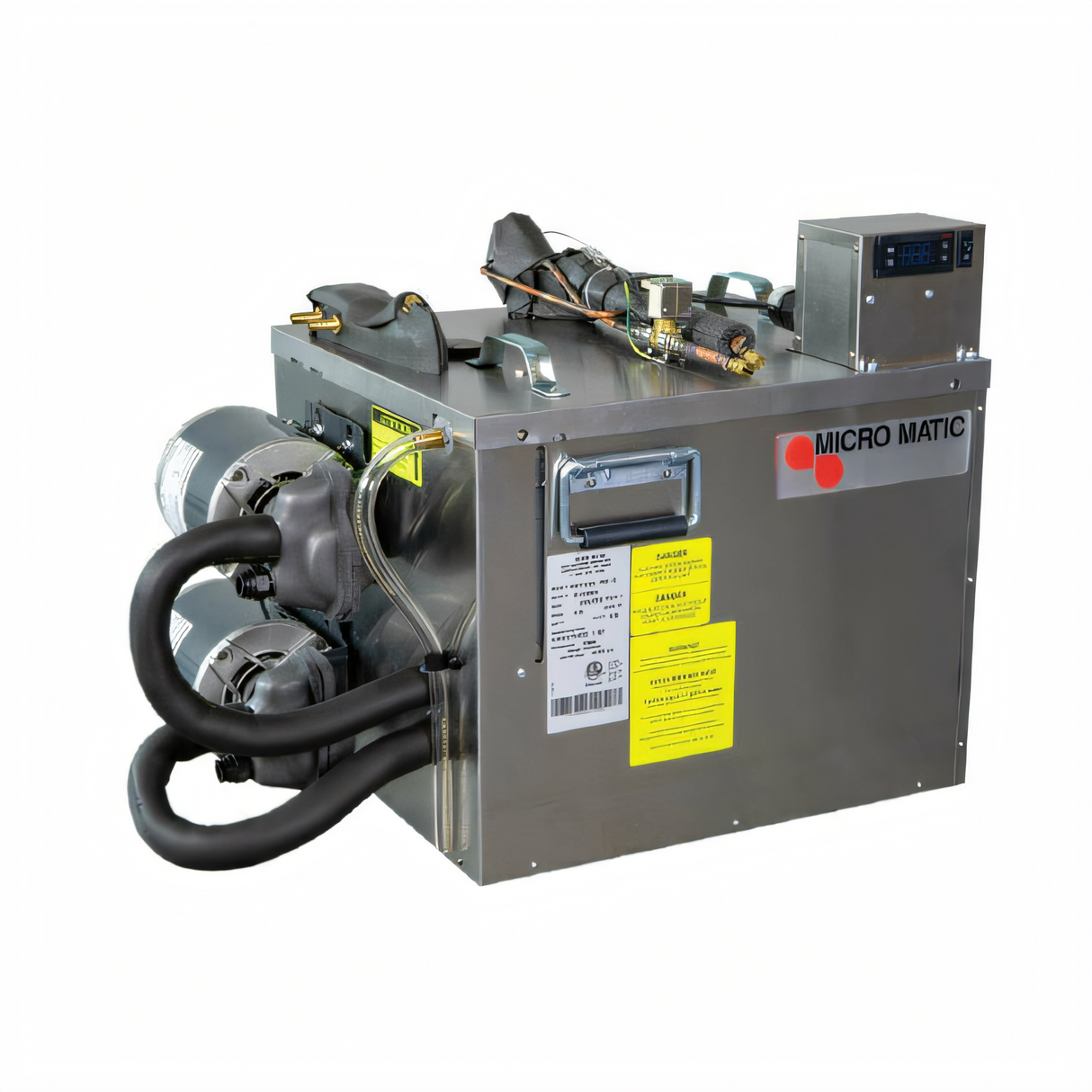

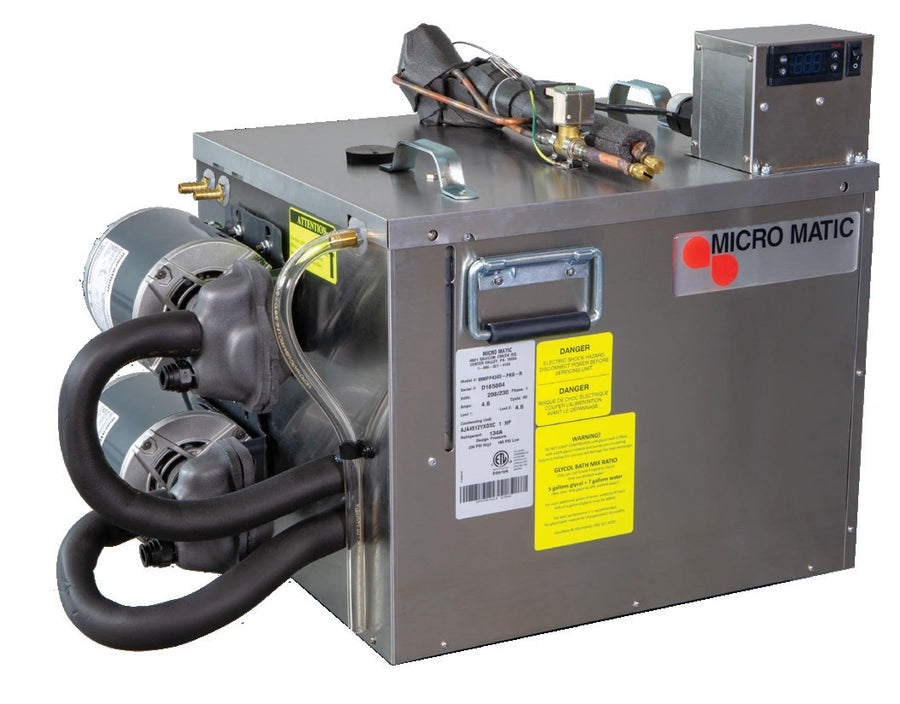

Pro-Line™ Glycol Power Pack – Remote 3/4 HP Dual-Pump System
Micro Matic Model MMPP4303-PKG-R | Premium Remote Draft Beer Cooling – 5,100 BTUDesigned by draft-beer specialists, the Pro-Line™ remote glycol power pack keeps long-draw systems pouring at perfect temperature—even when your tower is up to 50 ft from the compressor. Dual pumps safeguard uptime while a digital thermostat delivers rock-solid temperature control for every pint.
Key Features
- 3/4 HP air-cooled compressor delivers 5,100 BTU/hr of refrigeration capacity
- Dual rotary-vane pumps & motors for redundant, high-flow glycol circulation
- Digital thermostat for pinpoint bath temperature control
- 43.5 L (11.5 gal) insulated glycol reservoir with exterior sight glass
- Expanded urethane foam cabinet minimizes condensation
- Anti-vibration pads reduce operational noise
- Fan-control switch, crank-case heater & pump-down refrigeration system included

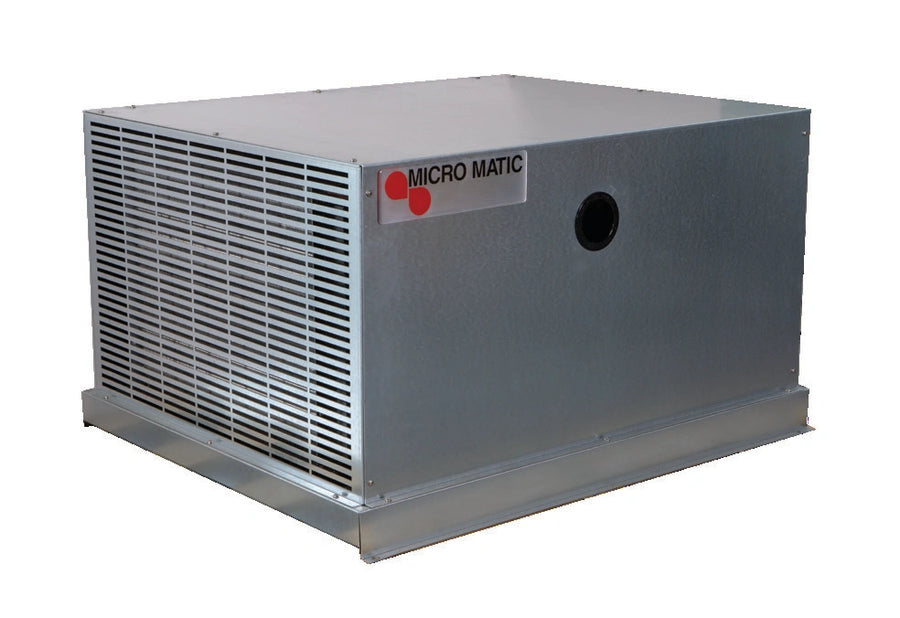

- Remote condenser with protective cover for flexible installation
Performance Specifications
| Refrigeration Capacity | 5,100 BTU/hr |
|---|---|
| Compressor | 3/4 HP, air-cooled |
| Pumps / Motors | 2 × rotary-vane |
| Glycol Bath Volume | 43.5 L (11.5 gal) |
| Voltage / Phase | 208–230 V, 1 Φ |
| Amperage | Bath: 3 A | Condenser: 6.5 A |
| Refrigerant | R-134a |
| Operating Pressure | 18 psi (low) / 140 psi (high) |
| Bath Power Connection | NEMA 6-20P, 8 ft cord* |
| Process Connections | 1/2" O.D. push-in |
| Max. Bath-to-Condenser Distance | 50 ft |
| Condenser Dimensions | 23.75" L × 17.25" W × 18.5" H |
| Glycol Bath Dimensions | 36.75" L × 26.75" W × 17.75" H |
Ideal Applications
- Bars & restaurants with long-draw draft beer systems (up to 50 ft runs)
- Remote walk-in coolers serving multiple towers
- Stadiums, event centers & hospitality venues needing dependable, low-maintenance cooling
• Remote condenser must be installed by a qualified refrigeration technician.
• Copper line set, drier, sight glass & refrigerant charge are field-supplied.
• Condensing unit must be hard-wired; glycol bath ships with cord & plug.
Warranty
Backed by Micro Matic’s 1-year limited parts & labor warranty. See full policy for details.
