Micro Matic USA MMPP4303-PKG-3-R Pro-Line Back Bar Coolers
Description

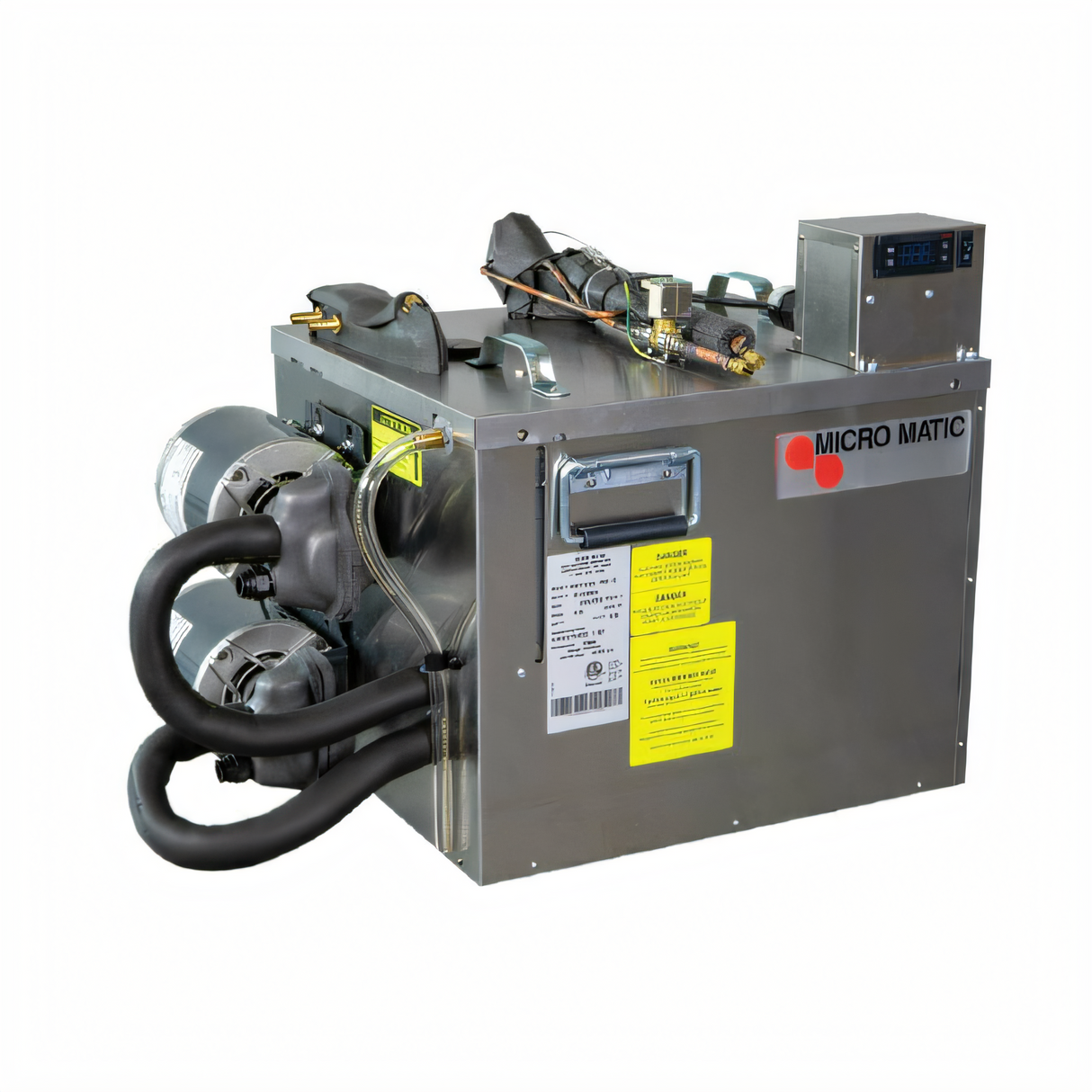

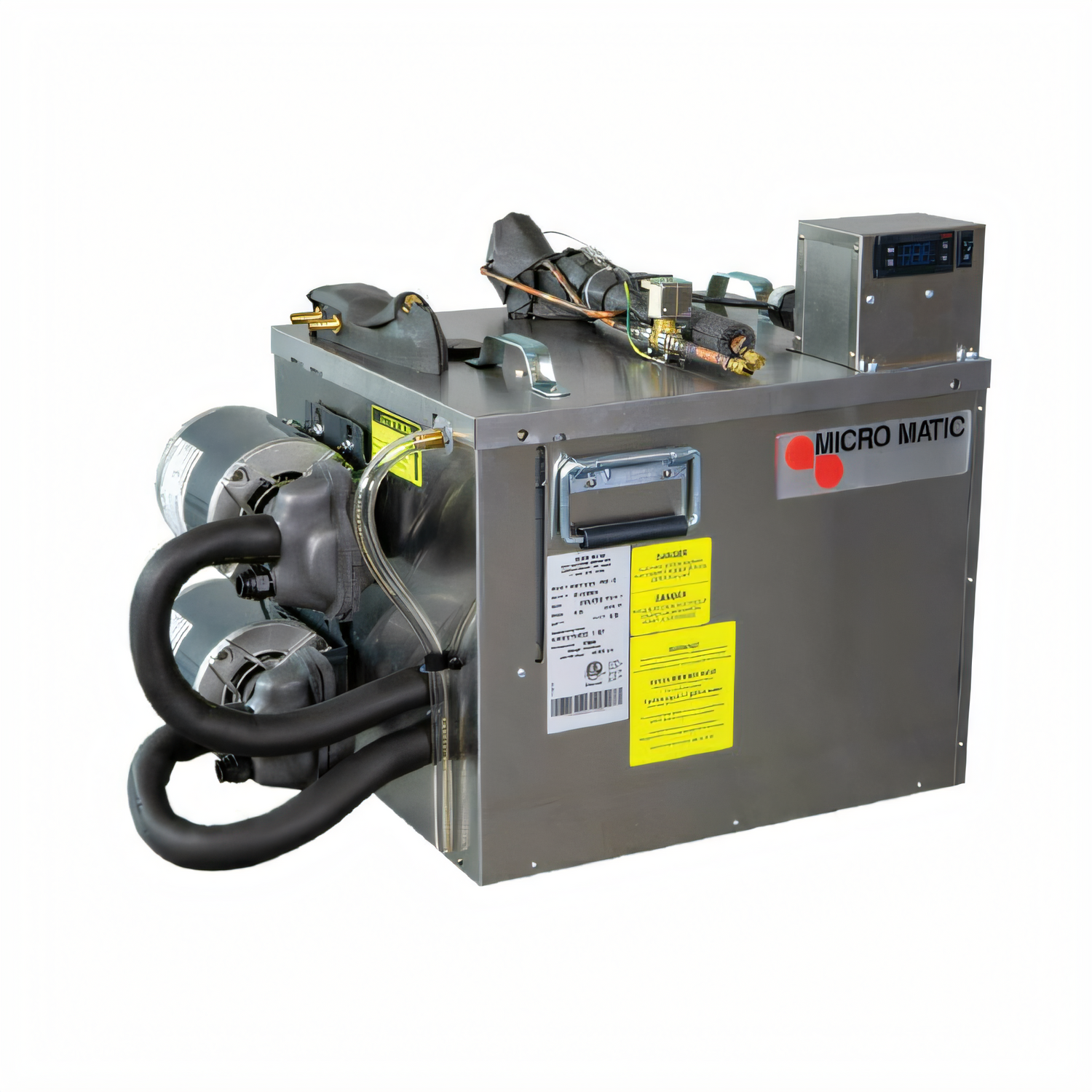

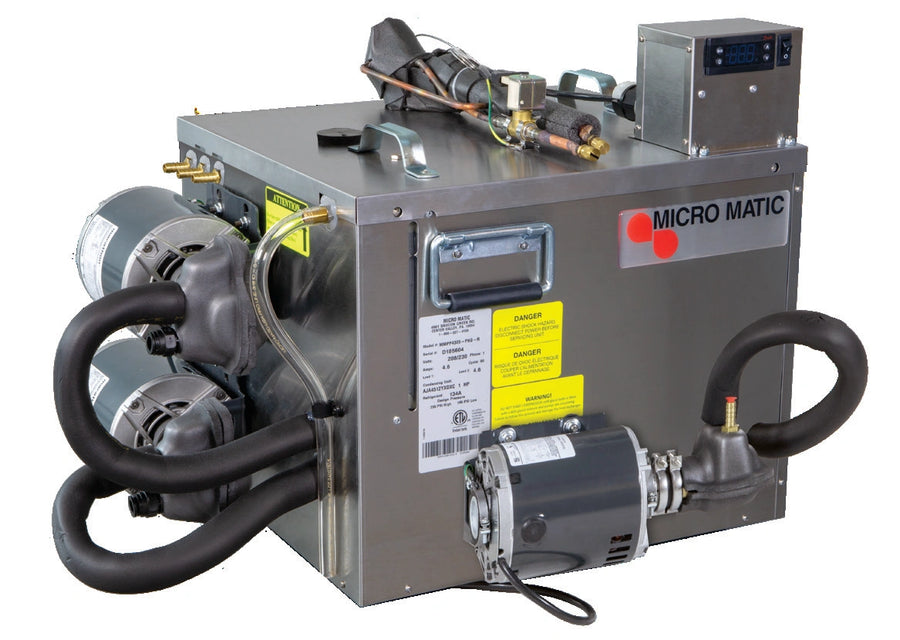

Pro-Line™ Remote Glycol Power Pack – 3/4 HP, Triple Pump
Micro Matic USA | Model MMPP4303-PKG-3-RKeep long-draw draft beer lines ice-cold and pouring perfectly with the Pro-Line™ 3-pump remote glycol chiller. Engineered by Micro Matic’s draft-system experts, this 5,100 BTU/h power pack delivers rock-solid temperature control for high-volume bars, taprooms, stadiums and banquet venues.
Why choose the Pro-Line™ 3-Pump Power Pack?
- 5,100 BTU/h cooling capacity driven by a durable 3/4 HP compressor
- Triple rotary-vane pumps for independent trunk line circulation (ideal for multi-zone systems)
- Digital thermostat holds bath temperature precisely for consistent beer quality
- 43.5 L (11.5 gal) glycol bath insulated with expanded urethane foam to minimize condensation
- Exterior sight glass for quick fluid-level checks
- Anti-vibration motor mounts reduce operational noise

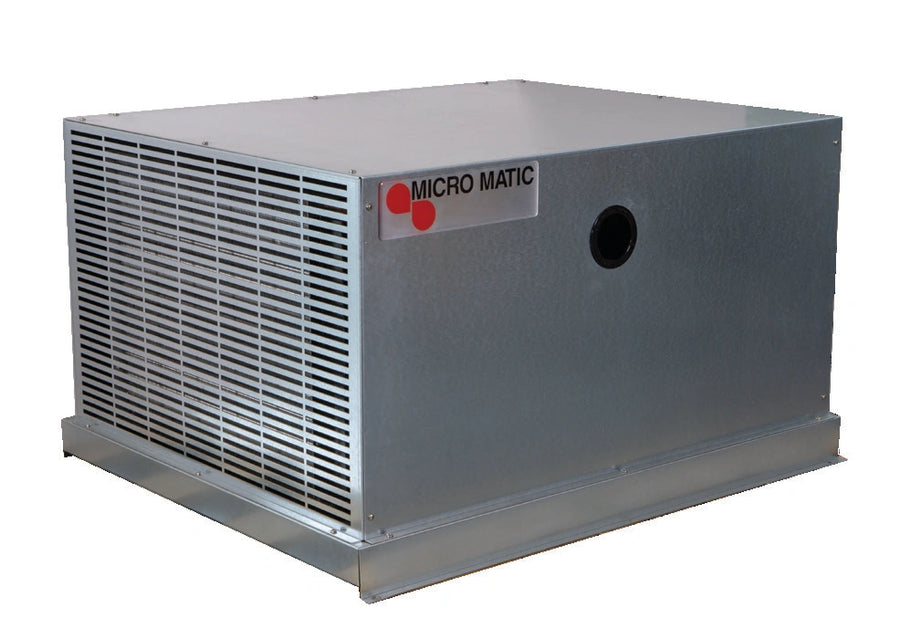

- Remote air-cooled condenser (cover included) increases installation flexibility
- Fan-control switch, crank-case heater & pump-down refrigeration safeguard compressor life
- ETL-listed & backed by a 1-year limited parts & labor warranty
Technical Specifications
| Cooling Capacity | 5,100 BTU/h |
|---|---|
| Compressor | 3/4 HP, air-cooled, R-134a |
| Pumps / Type | 3 × rotary vane, 1/2" O.D. push-in outlet |
| Bath Capacity | 43.5 L / 11.5 gal |
| Voltage | 208/230 V, 1 φ, 60 Hz |
| Full-Load Amps | 6.5 A (unit) / 3 A (body) |
| Power Connection (bath section) |
NEMA 6-20P, 8 ft cord (units built before 2/1/22 use 6-15P) |
| Remote Condenser Wiring | Hard-wired by licensed electrician |
| Maximum Line Distance | 50 ft between condenser & bath |
| Refrigerant Running Pressure | 18 psi (low) / 140 psi (high) |
| Overall Weight | 175 lb / 80 kg (ship) |
| Bath Cabinet (L × W × H) | 36.75" × 26.75" × 17.75" |
| Condenser (L × W × H) | 23.75" × 17.25" × 18.5" |
Installation Requirements
- Remote condenser must be hard-wired; bath section plugs into a NEMA 6-20R outlet.
- Copper line set, drier, sight glass and refrigerant charging are supplied & billed by the installing contractor.
- Maximum distance from glycol bath to condenser: 50 ft.
- Mount condenser in a well-ventilated area free of grease, dust and heat sources.
- Maintain proper glycol/water ratio (recommended 35 – 40%).
1-year limited parts & labor warranty. See microfiber.com/warranty for complete terms.
