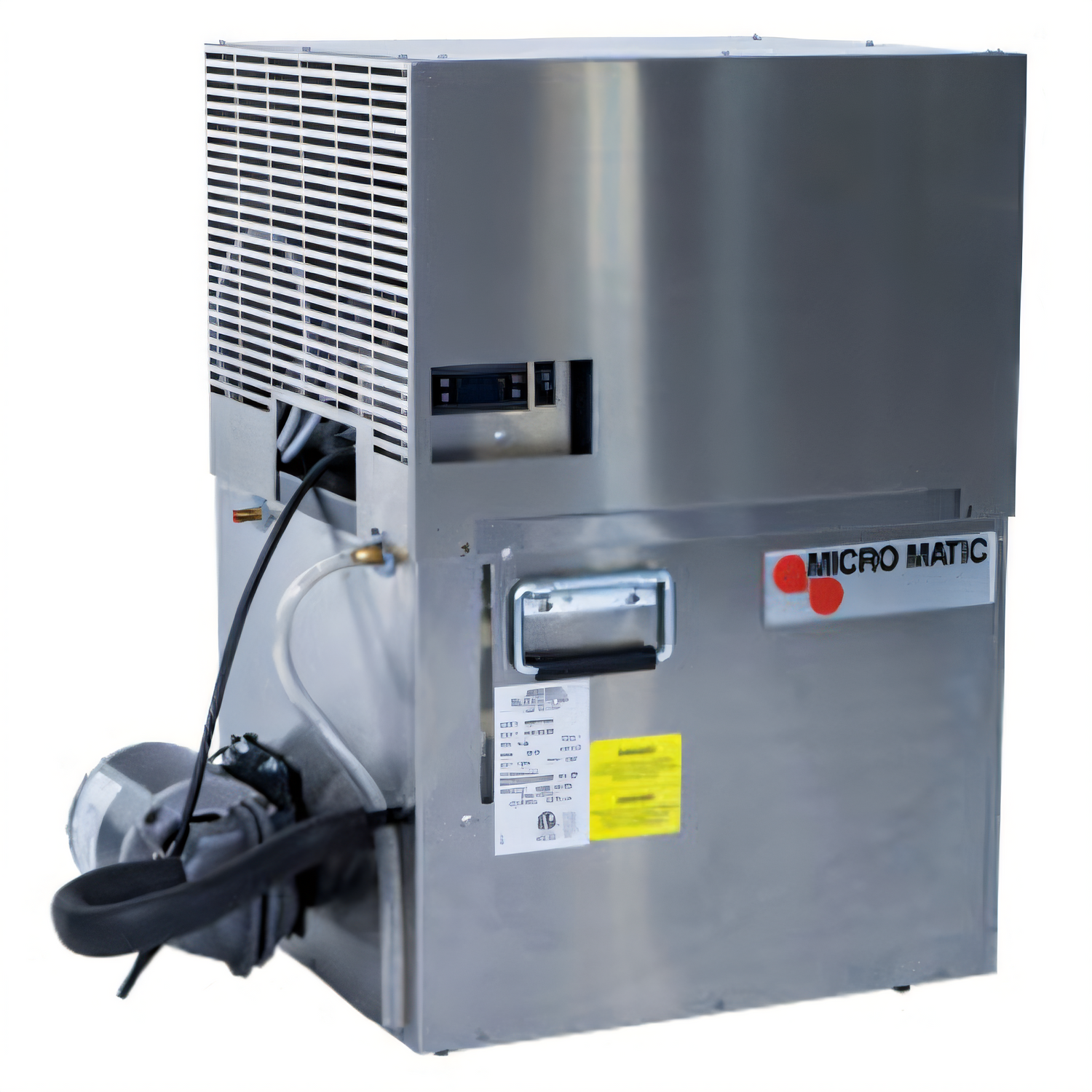

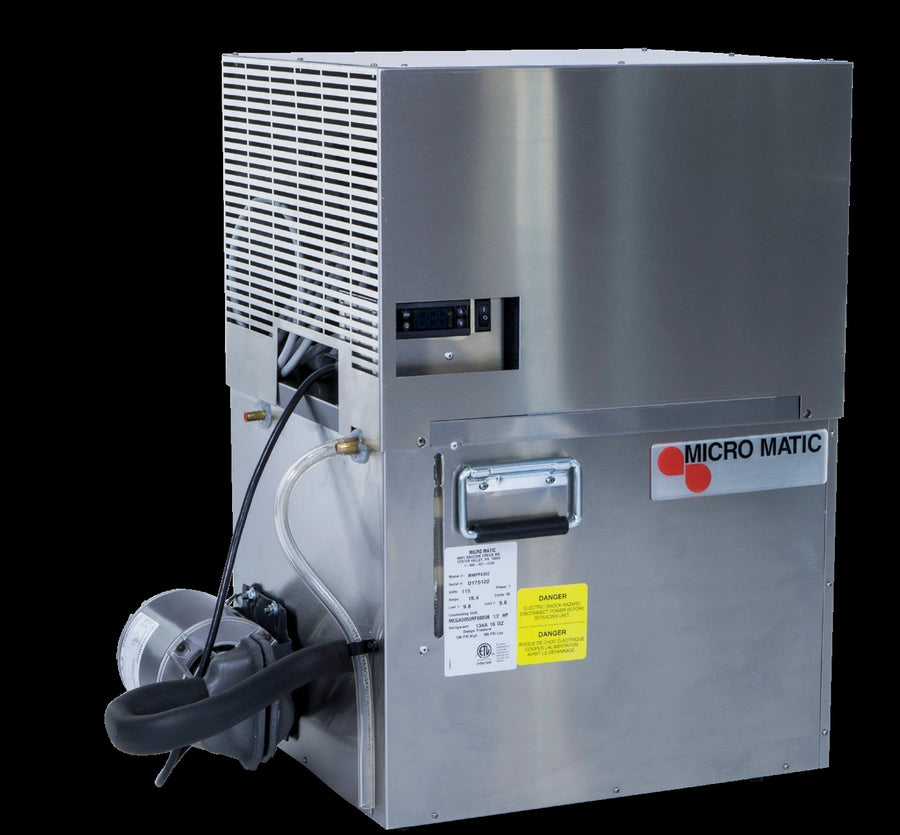

Pro-Line Water-Cooled Draft Beer System Power Pack with 1/2 HP Compressor and 11.5-Gallon Glycol Bath

30" W x 18" D x 28-3/4" H, 115V/60/1-Ph, 14.9 Amps, NEMA 5-20P

A compact, water-cooled glycol power pack that helps keep draft beer lines cold and consistent with reliable 115V operation and digital temperature control.

  • Water-cooled draft beer system power pack for glycol-based line cooling.
  • 1/2 HP compressor delivers 3,600 BTU of cooling capacity.
  • Includes one 80 gph vane circulating pump with a 1/3 HP motor.
  • 11.5-gallon glycol bath with exterior sight glass for easy level monitoring.
  • Digital thermostat and insulated cabinet help maintain stable performance.
  • Runs on 115V, single-phase power with a NEMA 5-20P plug.

Overall Dimensions:

30.0"W x 18.0"D x 28.75"H

Product Weight:

175.0 lb

Water-Cooled Design

Built for water-cooled operation in draft beer applications where glycol line cooling is required.

1/2 HP Compressor

Provides dependable cooling power with a 3,600 BTU capacity.

Circulating Pump Included

Supplied with one 80 gph vane circulating pump featuring a 1/3 HP motor.

11.5-Gallon Glycol Bath

Large glycol bath capacity supports stable cooling performance for draft beer lines.

Exterior Sight Glass

Allows quick visual monitoring of the glycol bath level.

Digital Thermostat

Provides simple, accurate temperature control.

Insulated Cabinet with Cover

Helps retain cooling performance and protects internal components.

Electrical Requirements

Operates on 115V, 60 Hz, single-phase power and draws 14.9 amps.

Type Draft Beer System Power Pack
Style Water Cooled
Refrigeration Type Glycol Bath
Capacity 11.5 Gallons
Controls Digital
BTU 3,600 BTU
Refrigerant Type R134a
Voltage 115 Volts
Amps 14.9 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Connection Size 3/8 Inch Female NPT
Pumps 1
Shipping Width 30 Inches
Shipping Depth 18 Inches
Shipping Height 29 Inches
Shipping Weight 175 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

1-year limited product warranty.

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is water-cooled.
It operates on 115V, 60 Hz, single-phase power and draws 14.9 amps with a NEMA 5-20P plug.
Yes. It includes one 80 gph vane circulating pump with a 1/3 HP motor.
It uses R134a refrigerant.
Unless otherwise specified, Micro Matic provides a one-year limited product warranty from the date of sale.
