Micro Matic USA MMPP4302-R Pro-Line Back Bar Coolers
Description

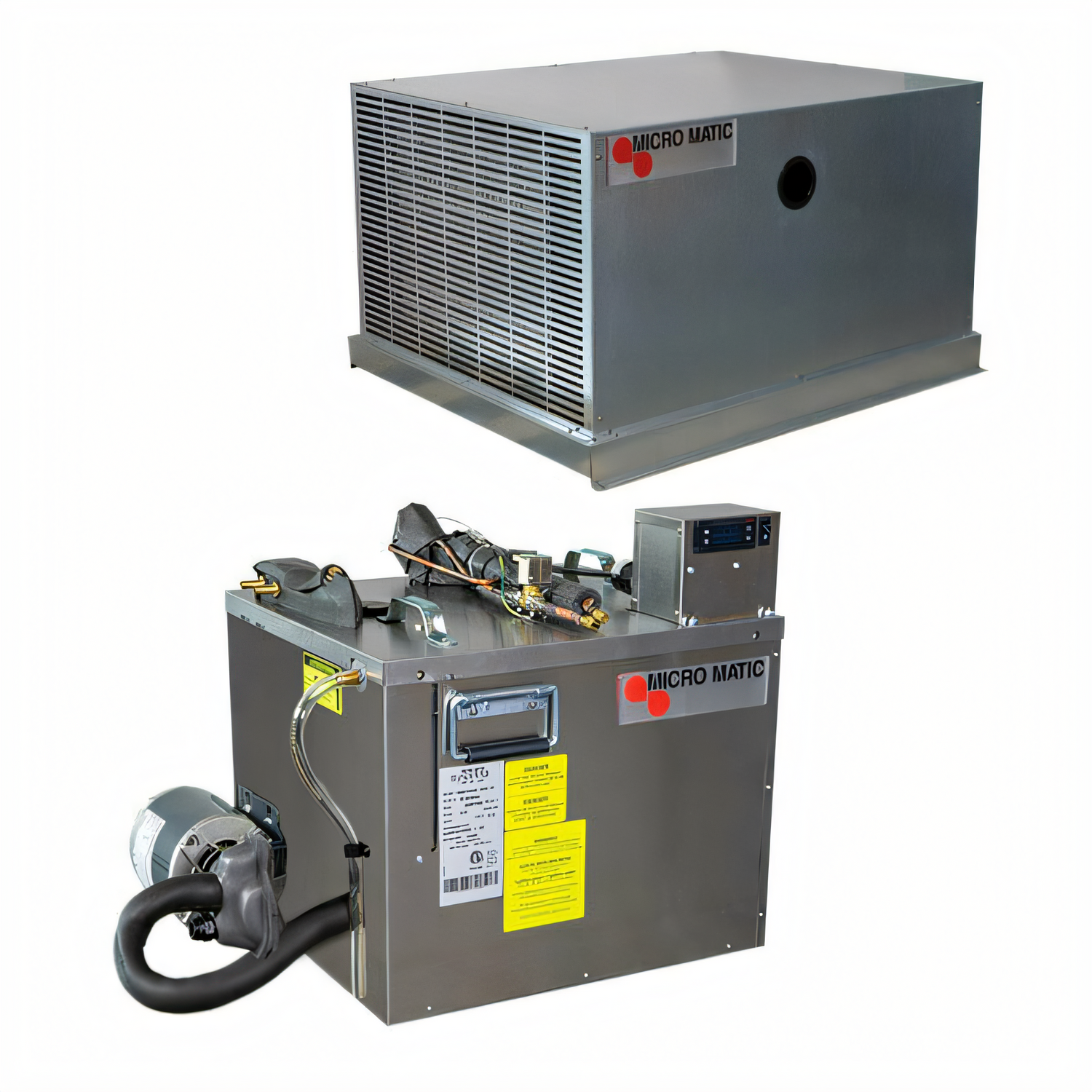

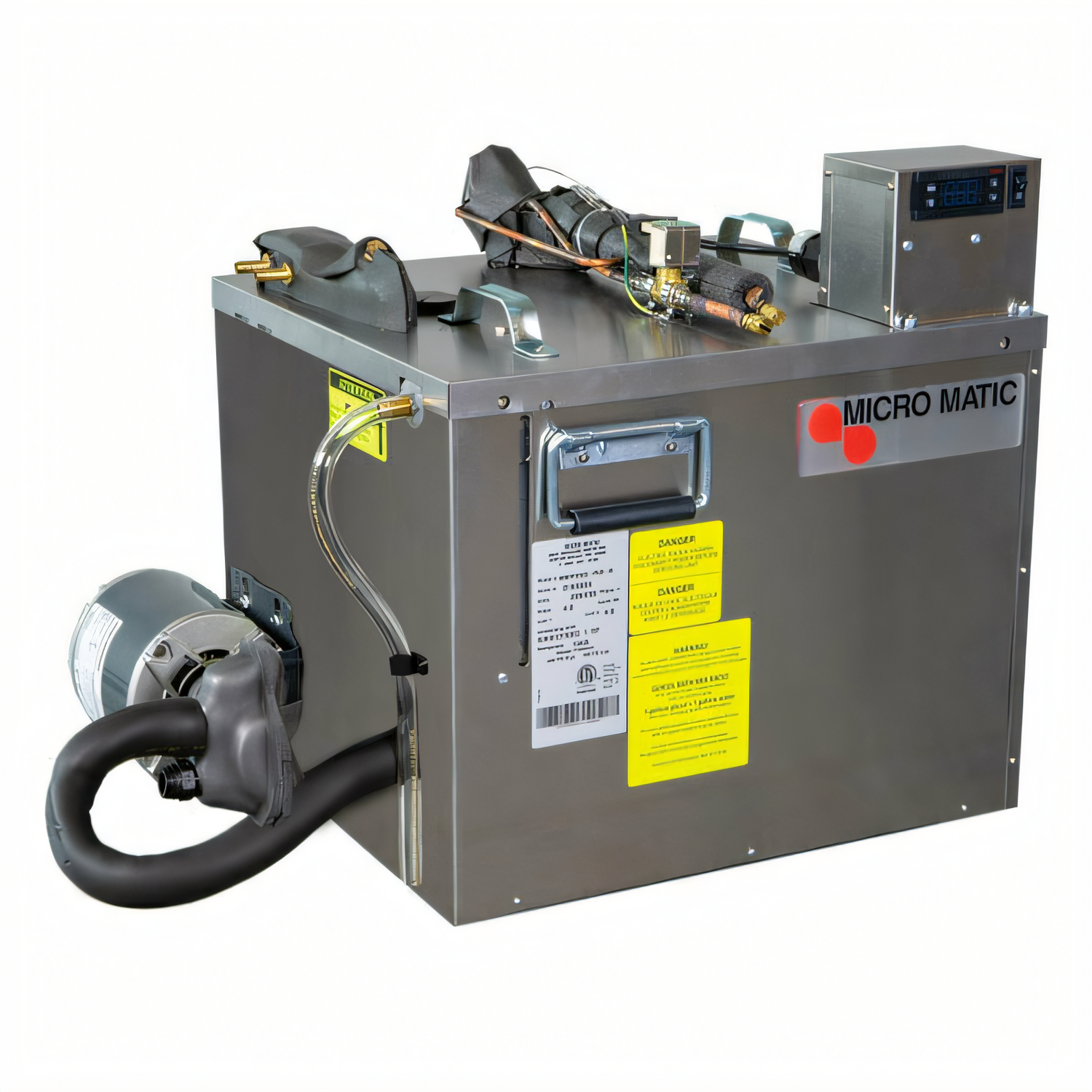

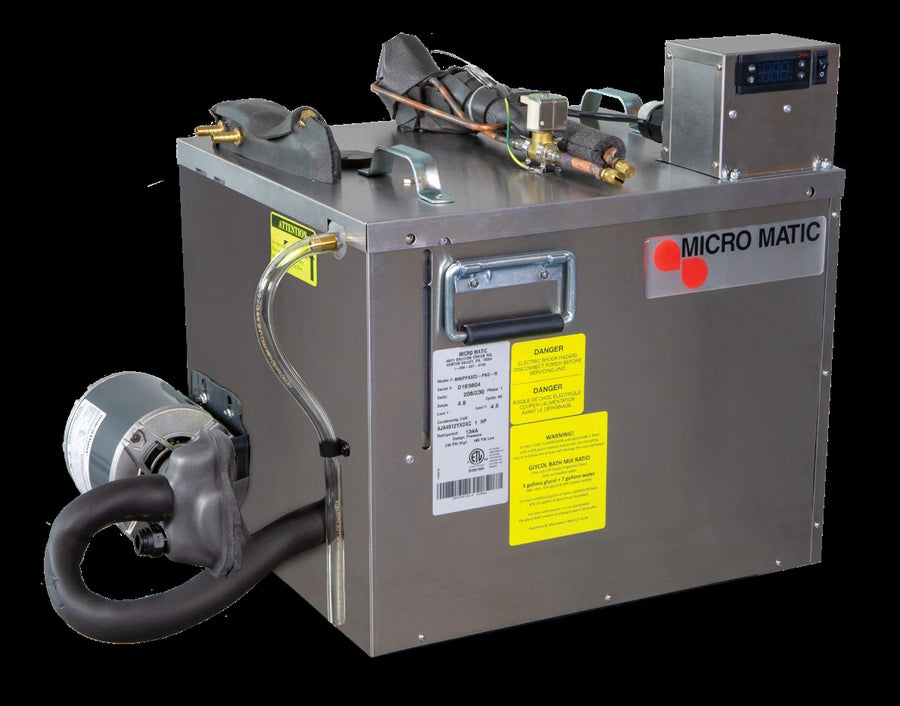

Pro-Line™ Remote Glycol Power Pack – 1/2 HP (3,600 BTU)
Model MMPP4302-R | for Micro Matic Pro-Line™ long-draw draft beer systemsDeliver brewery-fresh pours—tap after tap—by keeping your trunk lines at the perfect temperature. Engineered by Micro Matic’s draft-beer experts, this remote glycol power pack pairs a compact condensing unit with an 11.5-gallon insulated bath and a high-flow rotary-vane pump, providing rock-solid cooling for runs up to 450 ft.*
Why you’ll love it
- 3,600 BTU/h cooling capacity driven by a reliable ½ HP compressor
- Remote condenser allows flexible placement and reduced heat/noise in the bar area
- Digital thermostat holds glycol bath precisely at set point
- Expanded urethane foam insulation minimizes temperature swing & condensation
- Exterior sight glass for at-a-glance glycol level checks
- Anti-vibration pads for quieter operation
- Fan-cycling switch & crank-case heater protect the compressor in all seasons
- Built-in pump-down refrigeration circuit for service safety
- Tool-free ½" push-in supply/return fittings speed up installation
Technical specifications
| Cooling capacity | 3,600 BTU/h |
|---|---|
| Compressor | ½ HP, air-cooled, R-134a refrigerant |
| Pump configuration | 1 × Rotary vane, factory-mounted |
| Bath capacity | 43.5 L (11.5 gal) propylene-glycol solution |
| Voltage | 115 V / 60 Hz – two separate circuits |
| Electrical | Condensing unit: hard-wired Bath/pump: 5-15P cord & plug |
| Total running amps* | 15.4 A |
| Operating pressures | 18 psi low / 140 psi high |
| Max condenser–bath distance | 50 ft (15 m) |
| Fluid connections | ½" O.D. push-in (supply & return) |
| Dimensions – Bath | 36.75" L × 26.75" W × 17.75" H |
| Dimensions – Condenser | 24.0" L × 19.4" W × 16.2" H |
| Shipping weight | 175 lb (80 kg) |
*Total line length assumes 3⁄8" copper supply/return trunk lines properly insulated.
• Keep condenser within 50 ft of the glycol bath.
• Condensing unit must be hard-wired.
• Refrigerant tubing and related materials are not included.
Backed by Micro Matic’s 1-year parts & labor warranty. See full policy for details.
