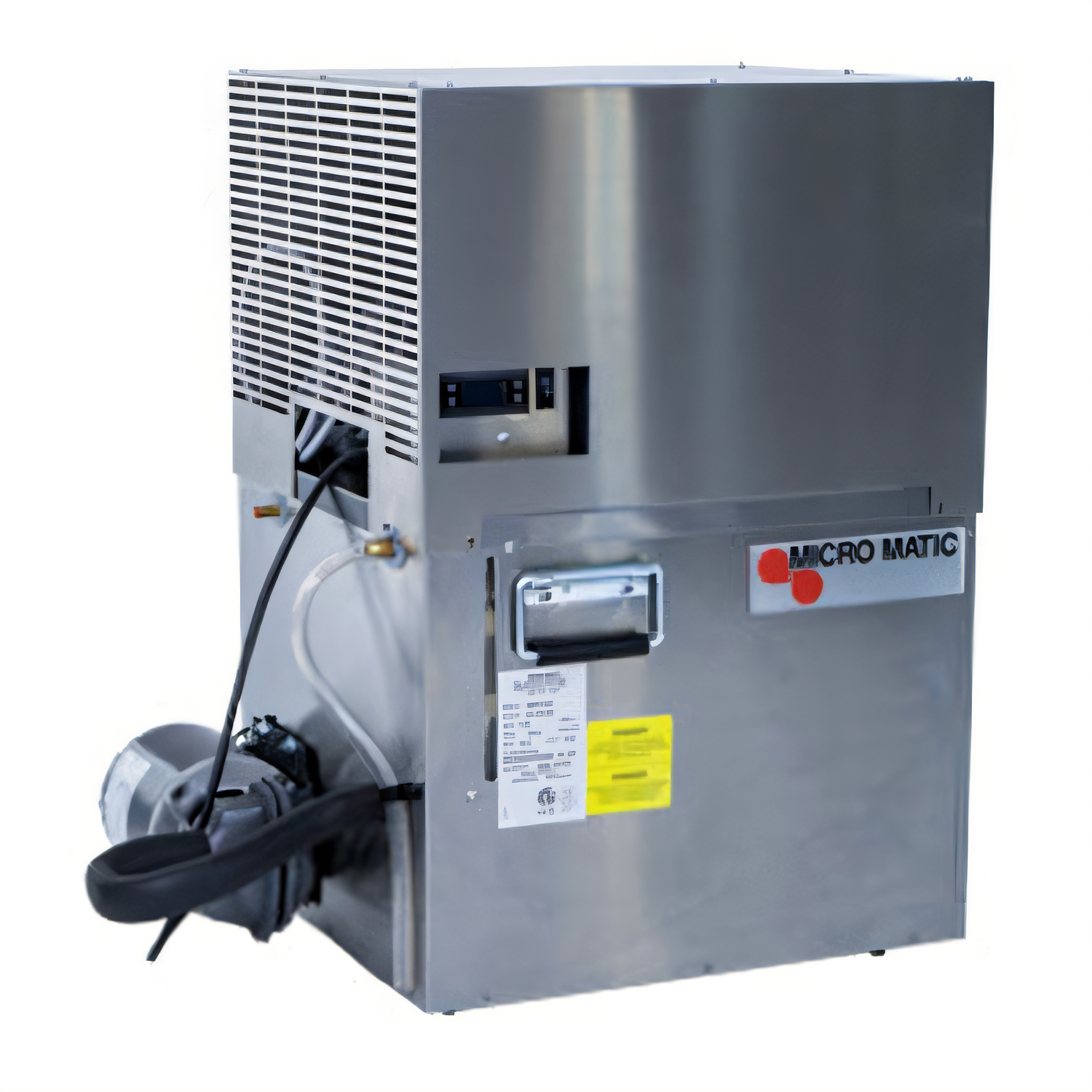

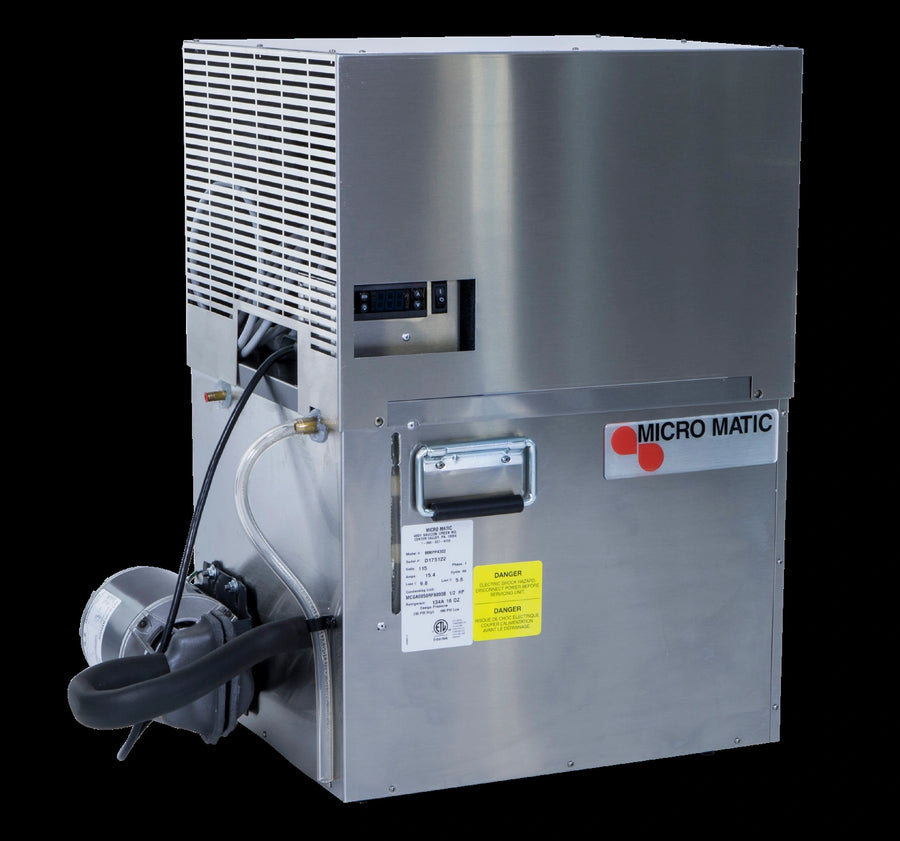

Pro-Line Air-Cooled Draft Beer System Power Pack with 1 Pump, 11.5-Gallon Glycol Bath, 115V

3,600 BTU, Digital Thermostat, Stainless Steel Cabinet

A compact, air-cooled glycol power pack built to keep draft beer lines chilled and temperature control simple and reliable.

  • Air-cooled design helps simplify installation for draft beer system applications.
  • Includes one 80 gph rotary vane circulating pump with a 1/3 HP motor.
  • 11.5-gallon glycol bath with exterior sight glass makes level checks easy.
  • Digital thermostat provides accurate glycol bath temperature control.
  • Stainless steel cabinet with insulation helps maintain temperature and reduce condensation.
  • 1/2 HP compressor delivers 3,600 BTU of cooling performance.

Overall Dimensions:

30.0"W x 18.0"D x 29.75"H

Product Weight:

157.0 lb

Air-Cooled Design

Uses air cooling for the refrigeration system, eliminating the need for a water-cooled setup.

Digital Thermostat

Provides accurate control of glycol bath temperature.

Exterior Sight Glass

Allows quick visual verification of glycol bath level.

11.5-Gallon Glycol Bath

Provides glycol storage capacity for the cooling system.

Rotary Vane Circulating Pump

Includes one 80 gph circulating pump with a 1/3 HP motor for glycol circulation.

Stainless Steel Insulated Cabinet

Rugged stainless steel cabinet with expanded urethane foam insulation helps maintain temperature and minimize condensation.

1/2 HP Compressor

Delivers 3,600 BTU of cooling capacity using R-134a refrigerant.

Anti-Vibration Pads

Helps reduce motor noise during operation.

Type Draft Beer System Power Pack
Refrigeration Type Air Cooled
Reservoir Capacity 11.5 Gallons
BTU 3,600 BTU
Compressor Horsepower 1/2 HP
Pump Quantity 1
Pump Type Rotary Vane
Pump Motor Horsepower 1/3 HP
Material Stainless Steel
Controls Digital
Voltage 115 Volts
Amps 15.4 Amps
Phase 1-Phase
Plug Type NEMA 5-20P
Refrigerant Type R-134a
Shipping Width 30 Inches
Shipping Depth 18 Inches
Shipping Height 30 Inches
Shipping Weight 157 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

1-year limited product warranty

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. This model uses an air-cooled refrigeration design.
It includes one 80 gph rotary vane circulating pump.
The glycol bath capacity is 11.5 gallons.
It operates on 115V, 60 Hz, 1-phase power and draws 15.4 amps with a NEMA 5-20P plug.
This power pack uses R-134a refrigerant.
Unless otherwise specified, Micro Matic’s limited product warranty is one year from the date of sale and covers defects in material and workmanship under normal use.
