Micro Matic USA MMPP4302-PKG-R Pro-Line Back Bar Coolers
$4,809.02
Unit price
/
Unavailable
Description

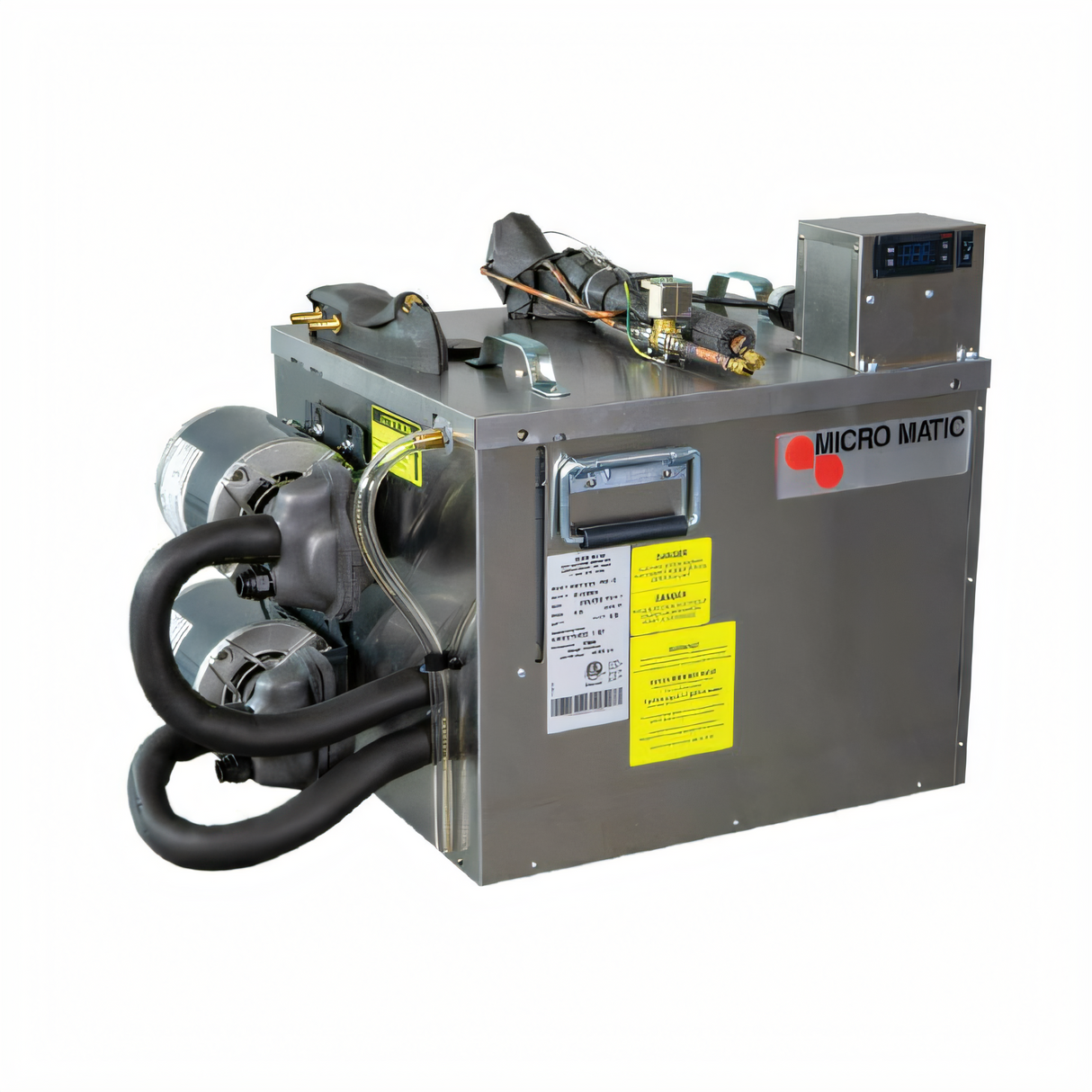

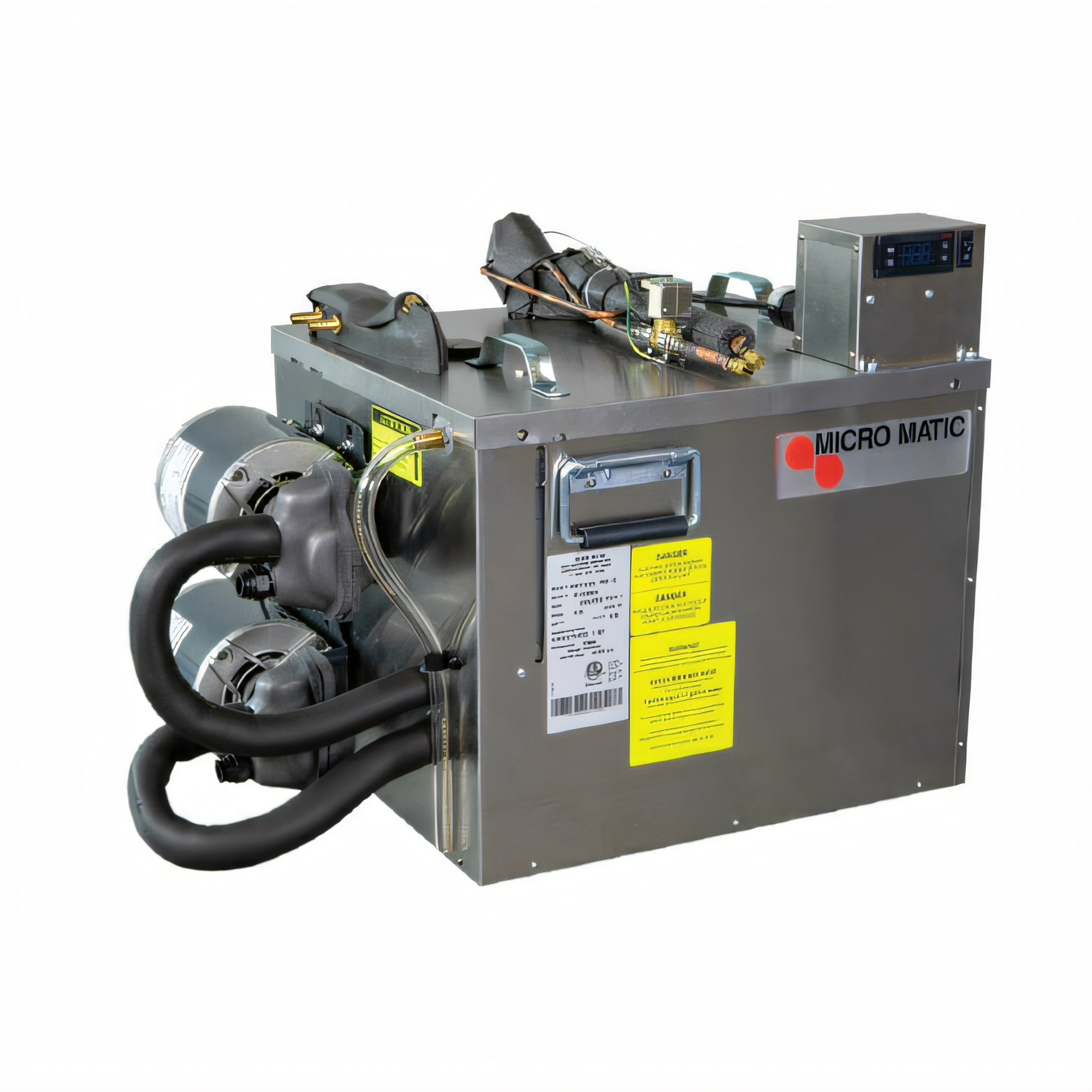

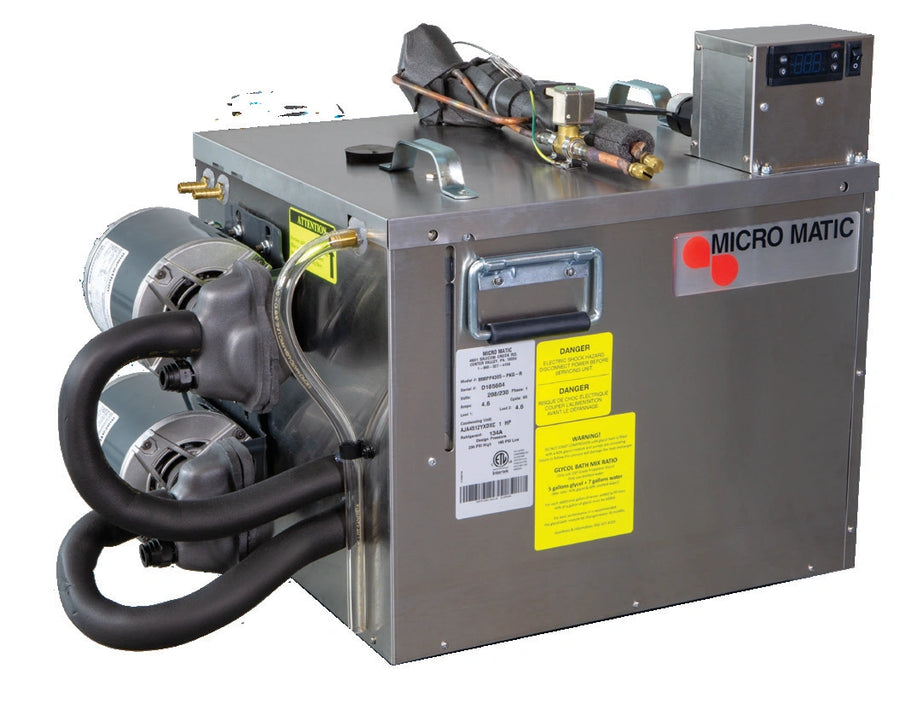

Pro-Line™ Remote Glycol Power Pack – 1/2 HP, Dual Pump
Micro Matic Model MMPP4302-PKG-R • 3,600 BTU/hPurpose-built for long-draw draft beer systems, the Pro-Line™ power pack maintains an icy 29 °F glycol bath while relocating heat and compressor noise up to 50 ft away from your walk-in cooler. The result—consistent, brewery-fresh pours from the first pint to the last.
Key Advantages
- Remote air-cooled condenser removes heat & noise from the keg room (mount up to 50 ft away*)
- Heavy-duty 1/2 HP compressor delivers 3,600 BTU/h of cooling power
- Dual rotary-vane circulation pumps support two trunk lines or provide built-in redundancy
- 11.5 gal (43.5 L) insulated glycol reservoir with exterior sight glass & digital thermostat
- Expanded-urethane foam cabinet prevents energy loss and condensation
- Anti-vibration pads, fan-cycling switch & crank-case heater for quiet, reliable operation
- Pump-down refrigeration system protects the compressor during off cycles
- ETL-listed and backed by Micro Matic’s 1-year limited warranty
Specifications
| Part Number | MMPP4302-PKG-R |
|---|---|
| Cooling Capacity | 3,600 BTU/h |
| Compressor | 1/2 HP, air-cooled |
| Pumps | 2 × Rotary Vane (approx. 100 GPH each) |
| Glycol Bath Volume | 11.5 gal / 43.5 L |
| Refrigerant | R-134a |
| Electrical – Bath Unit | 115 V, 9.8 A, 60 Hz, NEMA 5-15P, 8 ft cord |
| Electrical – Condenser | 115 V, 11.2 A, hard-wired (no plug) |
| Fluid Connections | ½" O.D. push-in (⅜" barbs included) |
| Bath Unit (L × W × H) | 36.75" × 26.75" × 17.75" |
| Condenser (L × W × H) | 23.75" × 17.25" × 18.5" |
| Shipping Weight | 175 lb / 80 kg (combined) |
Installation Notice
• Must be installed by a qualified refrigeration technician.
• Copper line set, drier, sight glass & refrigerant charge supplied by installer.
• Condensing unit requires hard-wiring to a dedicated 115 V circuit.
• Maximum distance between bath assembly and condenser: 50 ft.
• Follow all local electrical & plumbing codes.
• Must be installed by a qualified refrigeration technician.
• Copper line set, drier, sight glass & refrigerant charge supplied by installer.
• Condensing unit requires hard-wiring to a dedicated 115 V circuit.
• Maximum distance between bath assembly and condenser: 50 ft.
• Follow all local electrical & plumbing codes.
Perfect For
- Bars & restaurants running towers up to 500 ft from the cooler
- Stadium suites, hotels & large event venues
- Brewpubs seeking redundant pump capacity
- Any application where cooler heat and noise need to be relocated
*Distance measured from bath outlet to condenser suction inlet.
Features & Specs
Features & Specs
Manufacturer
Micro Matic USA
Brand_name
Pro-Line
Pumps
2
Cooling
glycol cooled
HP
1/2
Specifications
Pro-Line™ Draft Beer System Glycol Power Pack, remote, 1/2 HP compressor, dual pump & motor, remote compressor to bath must be no further than 50 feet, freon tube and connection cost by refrigeration contractor, condensing unit must be hardwired for electric
