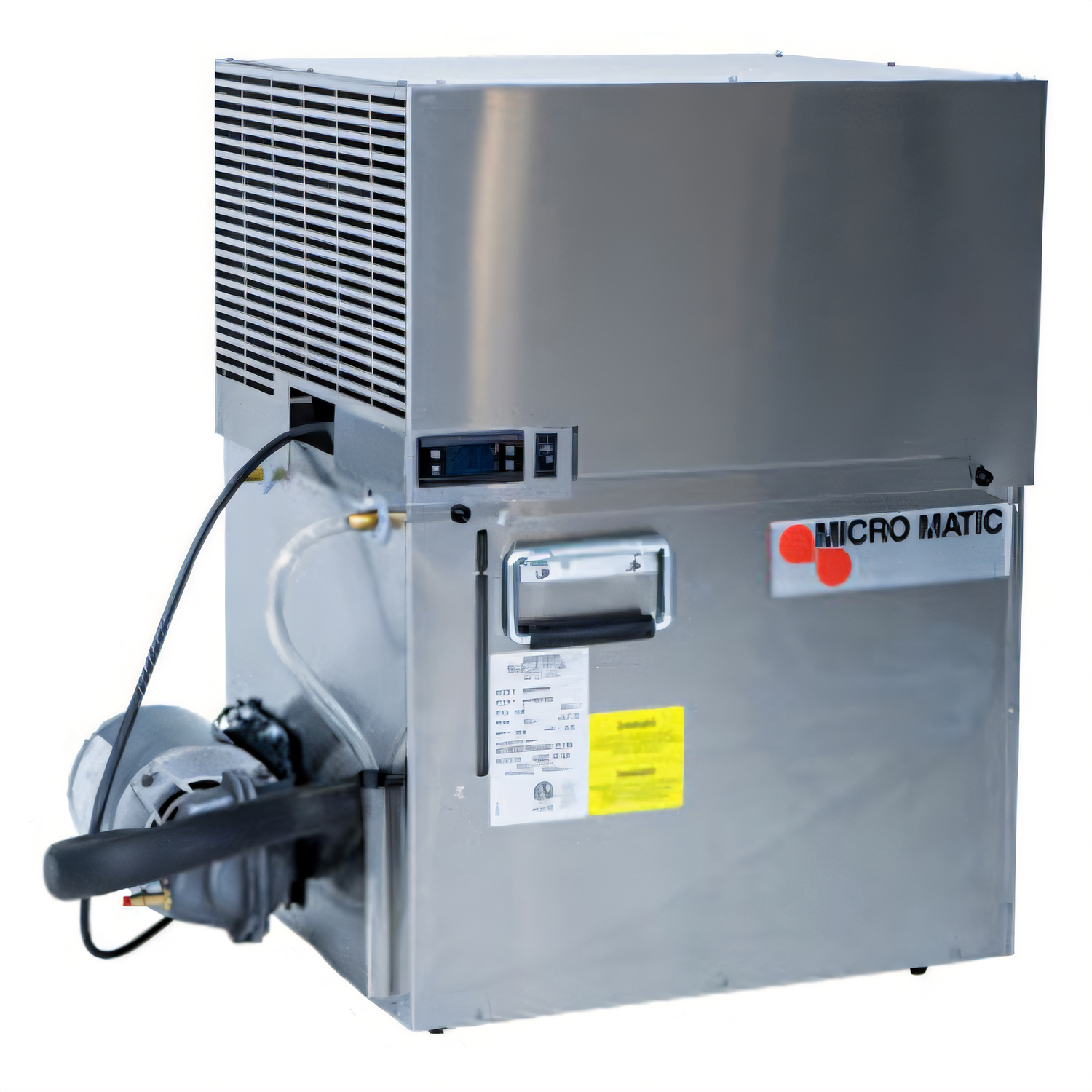

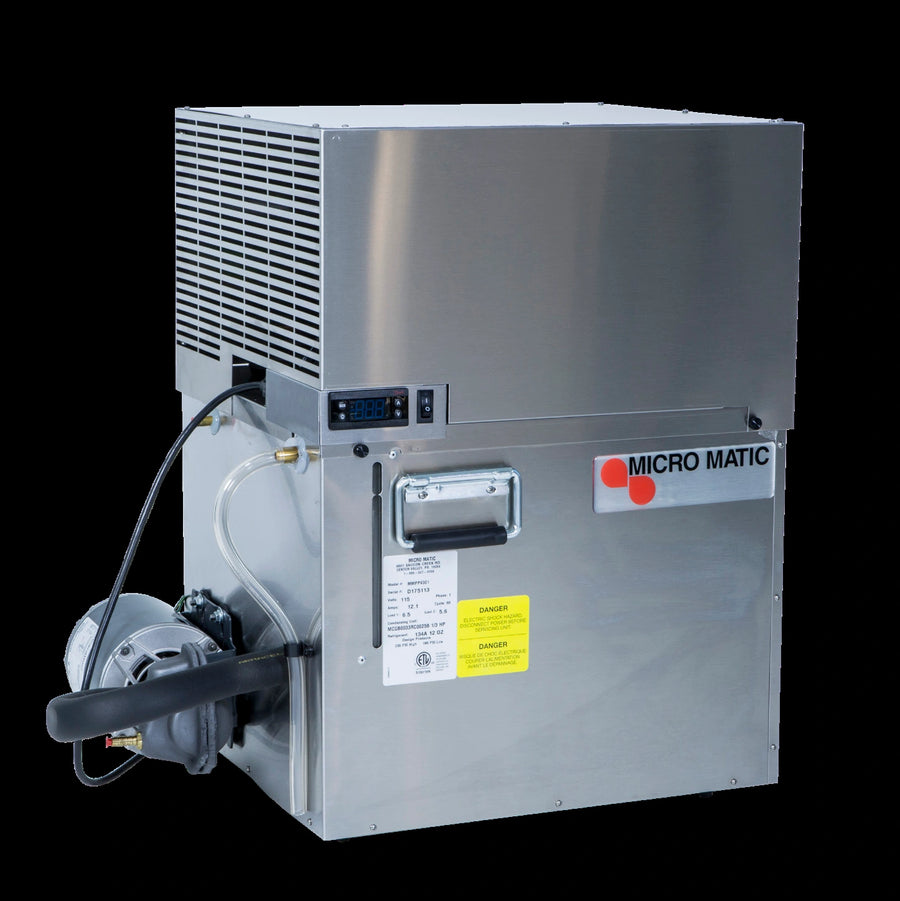

Pro-Line Water-Cooled Draft Beer System Power Pack with 1 Pump, 11.5-Gallon Glycol Bath, 115V

2,300 BTU Cooling Capacity, Stainless Steel Cabinet

Built for hot or low-ventilation spaces, this water-cooled power pack delivers dependable draft beer cooling with a 1-pump system and 11.5-gallon glycol bath.

  • Water-cooled design is ideal for spaces with limited air circulation or high ambient temperatures.
  • One 80 gph rotary vane circulating pump and 1/3 HP compressor support steady system performance.
  • 11.5-gallon glycol bath helps maintain consistent cooling for draft beer lines.
  • Digital thermostat provides accurate glycol bath temperature control.
  • Exterior sight glass makes it easy to verify glycol bath level at a glance.
  • Insulated stainless steel cabinet helps hold temperature and reduce condensation.
  • Anti-vibration pads help reduce operating noise and vibration.

Overall Dimensions:

30.0"W x 18.0"D x 28.75"H

Product Weight:

120.0 lb

Water-Cooled Design

Designed for installations where air circulation is limited or ambient temperatures are high.

Digital Thermostat

Provides accurate control of glycol bath temperature for more consistent cooling performance.

11.5-Gallon Glycol Bath

Offers a substantial bath capacity to support draft beer cooling applications.

Exterior Sight Glass

Allows operators to quickly check glycol bath level without opening the cabinet.

Insulated Stainless Steel Cabinet

Expanded urethane foam insulation helps maintain temperature, while the stainless steel cabinet adds durability.

Anti-Vibration Pads

Helps reduce motor noise and vibration during operation.

Rotary Vane Circulating Pump

Includes one circulating pump with an 80 gph rating and 1/3 HP motor.

1/3 HP Compressor

Delivers 2,300 BTU of cooling capacity for reliable system performance.

3/8 Inch Female NPT Water Connections

Water inlet and outlet fittings are sized for 3/8 inch female NPT connections.

Type Draft Beer System Power Pack
Style Water Cooled
Material Stainless Steel
Capacity 11.5 Gallons
BTU 2,300 BTU
Voltage 115 Volts
Amps 11.6 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Refrigerant Type R-134a
Water Connection Required
Water Inlet Size 3/8 Inch Female NPT
Pump Count 1
Pump Type Rotary Vane
Compressor Horsepower 1/3 HP
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 18 Inches
Shipping Height 29 Inches
Shipping Weight 120 Pounds

Certifications & Compliance

Warranty & Protection

1-year limited product warranty

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It is designed as a water-cooled unit for spaces with limited air circulation or high ambient temperature.
It has an 11.5-gallon glycol bath capacity.
It operates on 115 volts, 60 Hz, single-phase power and draws 11.6 amps with a NEMA 5-15P plug.
It uses R-134a refrigerant.
It has female 3/8 inch NPT water inlet and outlet fittings.
It includes a one-year limited product warranty from the date of sale unless otherwise specified.
