Micro Matic USA MMPP4301 Pro-Line Back Bar Coolers
Description

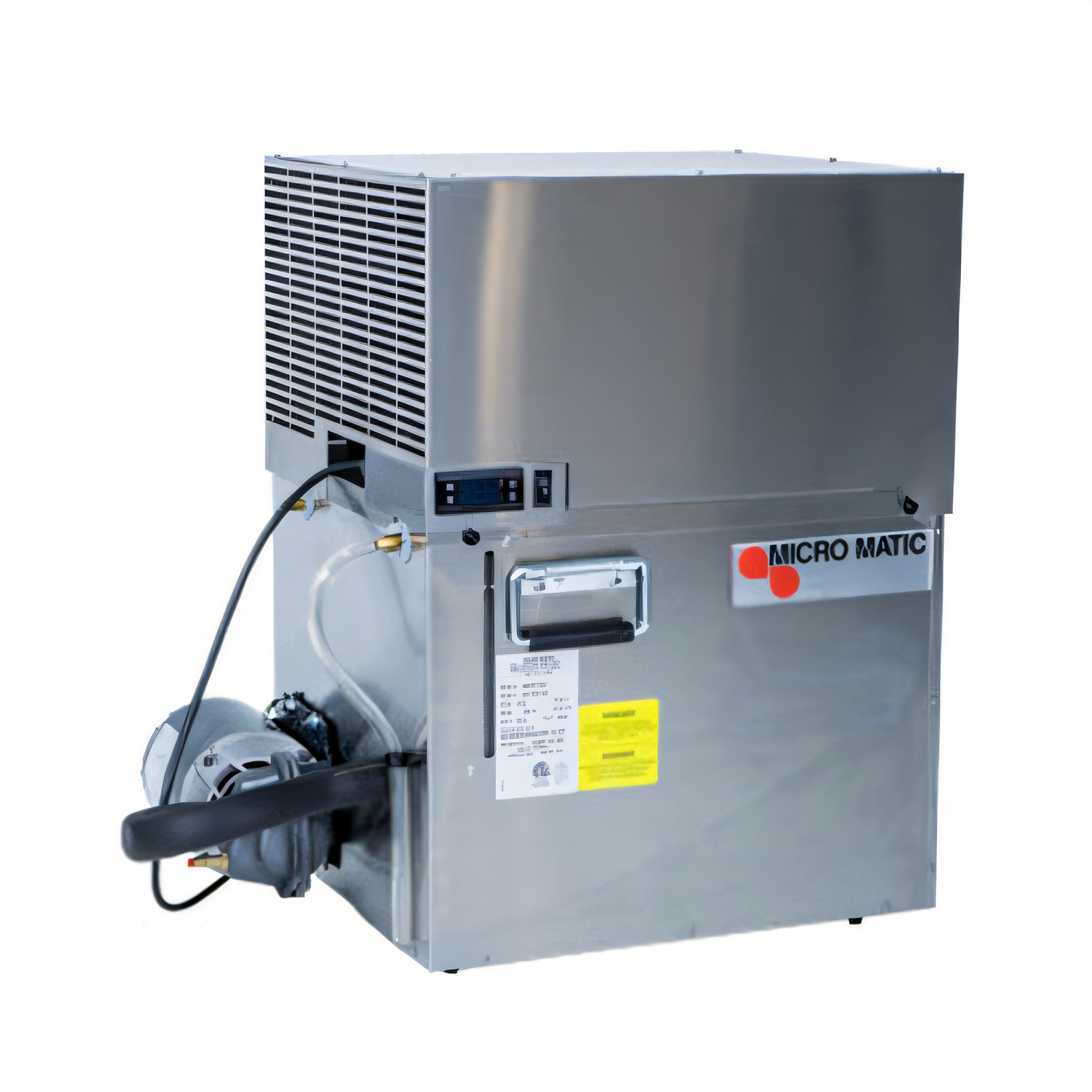

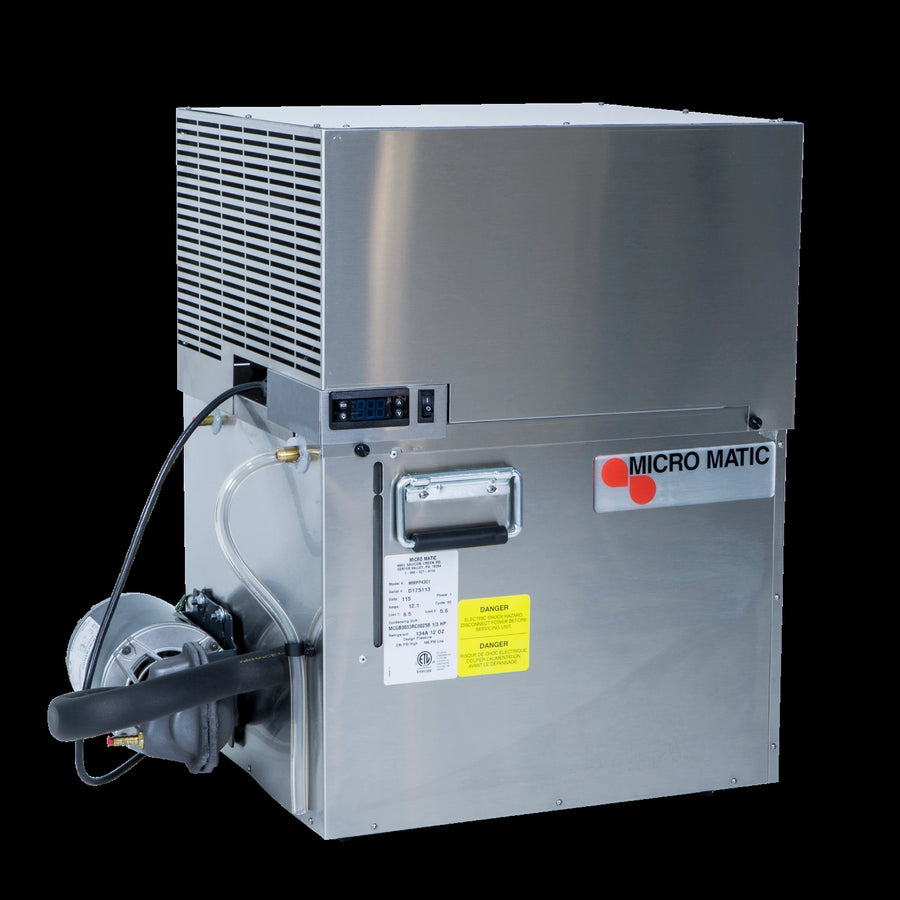

Pro-Line™ Air-Cooled Glycol Power Pack – 2,300 BTU
Model MMPP4301 | Micro Matic USABuilt for serious draft beer professionals, the Pro-Line™ power pack provides the stable, ice-cold glycol circulation you need to keep every pint tasting brewery-fresh—no matter how far the run from cooler to tap.
Why You’ll Love It
- Air-cooled 1/3 HP refrigeration system delivers a full 2,300 BTU/h of cooling capacity without a water hookup.
- 11.5 gal (43.5 L) glycol bath is foam-insulated and features an exterior sight glass for easy level checks.
- User-programmable digital thermostat maintains rock-solid bath temperature.
- 80 gph rotary-vane circulation pump (1/3 HP motor) guarantees consistent flow through long trunklines.
- Rugged stainless-steel cabinet with expanded urethane insulation and anti-vibration pads.
- Plug-and-play NEMA 5-15P power cord and compact 30" W footprint simplify installation.
- Charged with eco-friendly R-134a refrigerant and certified cETLus for safety.
Technical Specifications
| Cooling capacity | 2,300 BTU/h |
|---|---|
| Compressor | 1/3 HP, air-cooled |
| Pump | Rotary vane, 80 gph (1 pump / 1/3 HP motor) |
| Glycol bath volume | 11.5 gal (43.5 L) |
| Temperature control | Digital thermostat |
| Refrigerant | R-134a – 12 oz (0.34 kg) charge |
| Electrical | 115 V / 60 Hz / 1-ph, 12.1 A, NEMA 5-15P |
| Connections | ½" O.D. push-in (12.7 mm) – ⅜" O.D. barb included |
| Dimensions (W × D × H) | 30" × 18" × 27 ¾" (762 × 457 × 705 mm) |
| Shipping weight | 120 lb (55 kg) |
| Certification | cETLus |
Perfect For
- Brewpubs & taprooms
- High-volume bars & restaurants with long-draw systems
- Stadiums, arenas & event venues
- Remote dispense of wine, cocktails or cold-brew coffee
Backed by Micro Matic’s one-year limited parts & labor warranty. Routine maintenance of glycol mixture and condenser coil is required for optimal performance and warranty compliance.
