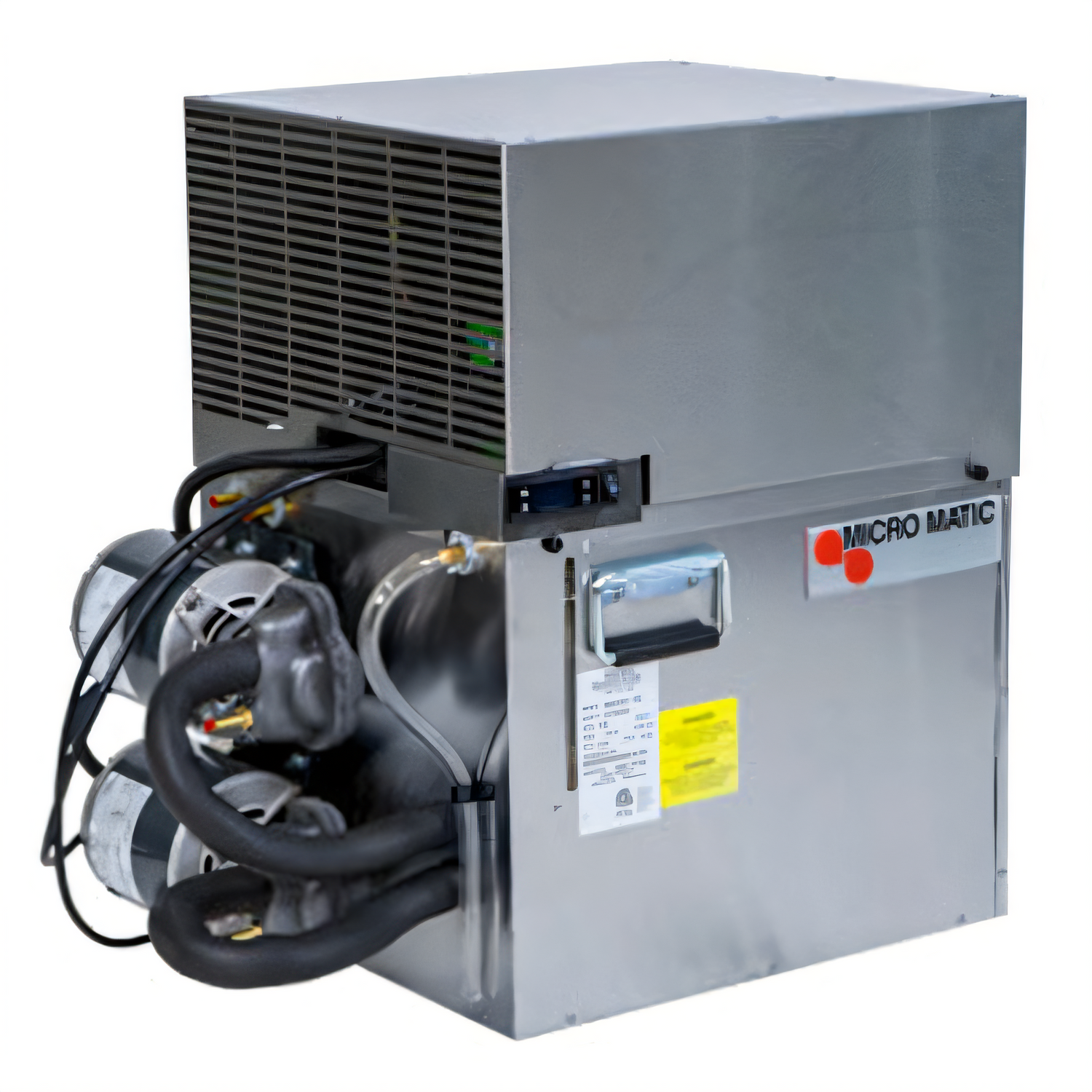

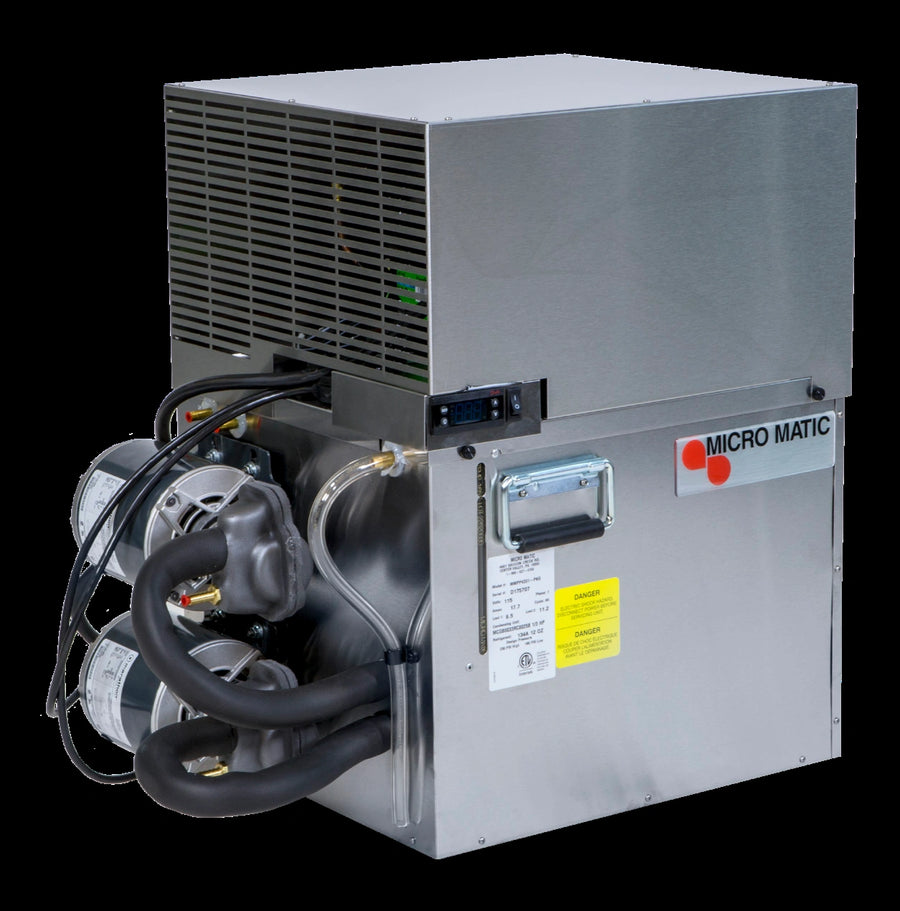

Pro-Line Water-Cooled Draft Beer System Power Pack, 2-Pump, 2,300 BTU, 115V

11.5-Gallon Glycol Bath, Stainless Steel Cabinet

Built for draft beer systems in tight or high-heat environments, this water-cooled power pack delivers dual-pump glycol circulation and precise digital temperature control.

  • Water-cooled design is ideal for spaces with limited air circulation or higher ambient temperatures.
  • Includes two 80 gph rotary vane circulating pumps with 1/3 HP motors.
  • Digital thermostat helps maintain accurate glycol bath temperature.
  • 11.5-gallon glycol bath with exterior sight glass makes level checks easy.
  • 2,300 BTU/hr cooling output with an R-134a system and 1/3 HP compressor.
  • Stainless steel cabinet, insulation, and anti-vibration pads support durability and quieter operation.

Overall Dimensions:

30.0"W x 18.0"D x 28.75"H

Product Weight:

128.0 lb

Water-Cooled Design

Designed for spaces with limited air circulation or high ambient temperature.

Dual Rotary Vane Pumps

Includes two 80 gph circulating pumps with a 1/3 HP motor each for glycol circulation.

Digital Thermostat

Provides accurate control of glycol bath temperature.

Insulated Cabinet with Cover

Expanded urethane foam insulation helps maintain glycol temperature and minimize condensation.

Exterior Sight Glass

Lets operators verify glycol bath level at a glance.

Stainless Steel Cabinet

Rugged stainless steel cabinet construction for long-lasting durability.

Anti-Vibration Pads

Helps reduce motor noise and vibration during operation.

1/3 HP Compressor

Supports 2,300 BTU/hr cooling performance using R-134a refrigerant.

3/8-Inch Female NPT Water Connections

Water inlet and outlet fittings use 3/8-inch female NPT connections; minimum water pipe size is 3/8 inch.

Type Draft Beer System Power Pack
Style Premium
Capacity 11.5 Gallons
BTU 2,300 BTU Per Hour
Refrigeration Type Water Cooled
Refrigerant Type R-134a
Pumps 2
Pump Type Rotary Vane
Compressor Horsepower 1/3 HP
Controls Digital
Voltage 115 Volts
Amps 17.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA L5-30P
Material Stainless Steel
Water Connection Required
Connection Size 3/8 Inch Female NPT
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 18 Inches
Shipping Height 29 Inches
Shipping Weight 128 Pounds

Certifications & Compliance

Warranty & Protection

1-year limited product warranty

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for spaces with limited air circulation or high ambient temperatures.
It includes two 80 gph rotary vane circulating pumps with 1/3 HP motors.
The glycol bath capacity is 11.5 gallons (43.5 liters).
It operates on 115V, 60Hz, 1-phase power and draws 17.2 amps with a NEMA L5-30P plug.
It uses 3/8-inch female NPT water inlet and outlet fittings and requires a 3/8-inch minimum water pipe size.
