Pro-Line Air-Cooled Draft Beer System Power Pack with 2 Circulating Pumps and 11.5-Gallon Glycol Bath

SKU: MMPP4301-PKG
$3,365.01
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Beverage Dispenser Parts & Accessories Micro Matic USA New Arrivals Restaurant Equipment Restaurant Equipment Parts

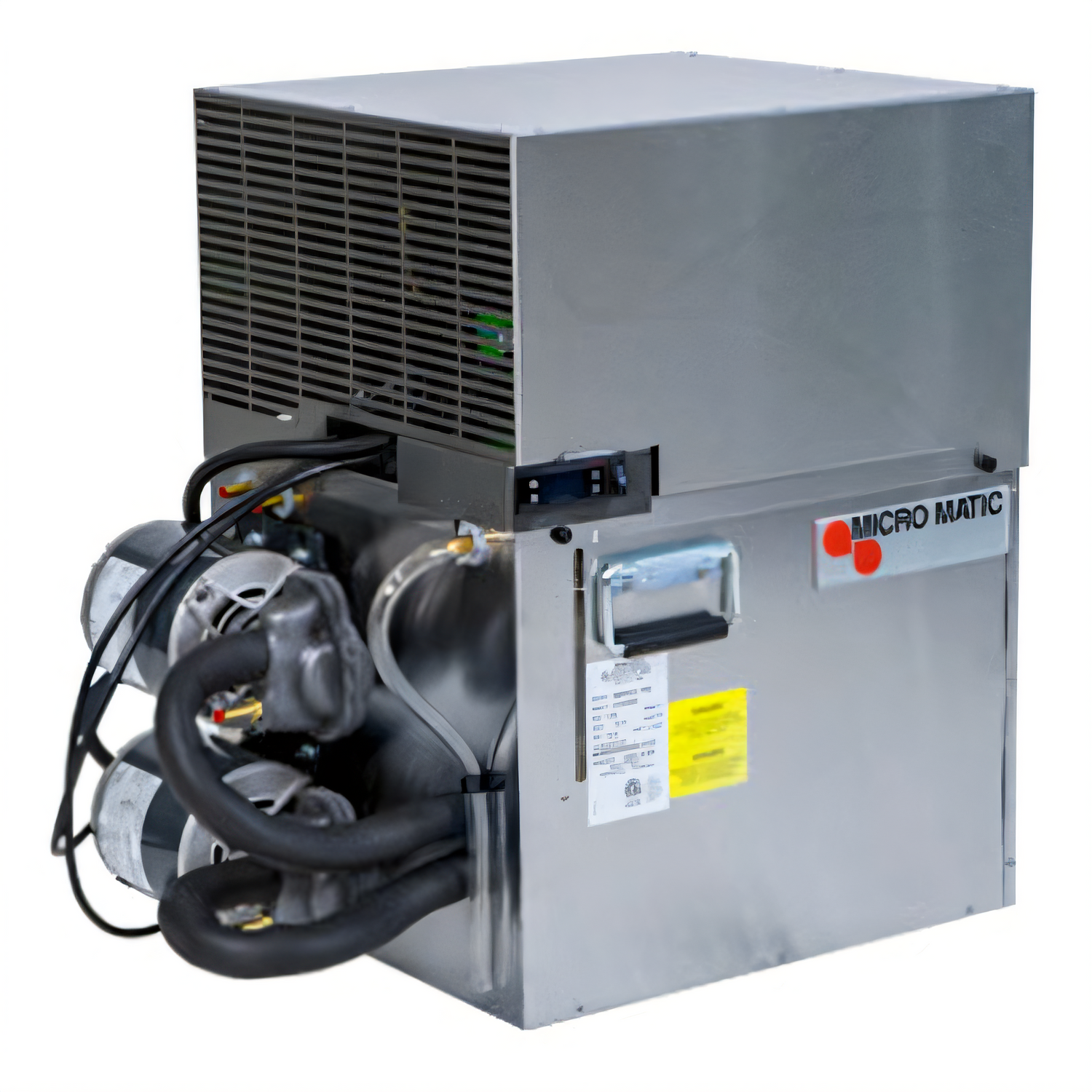

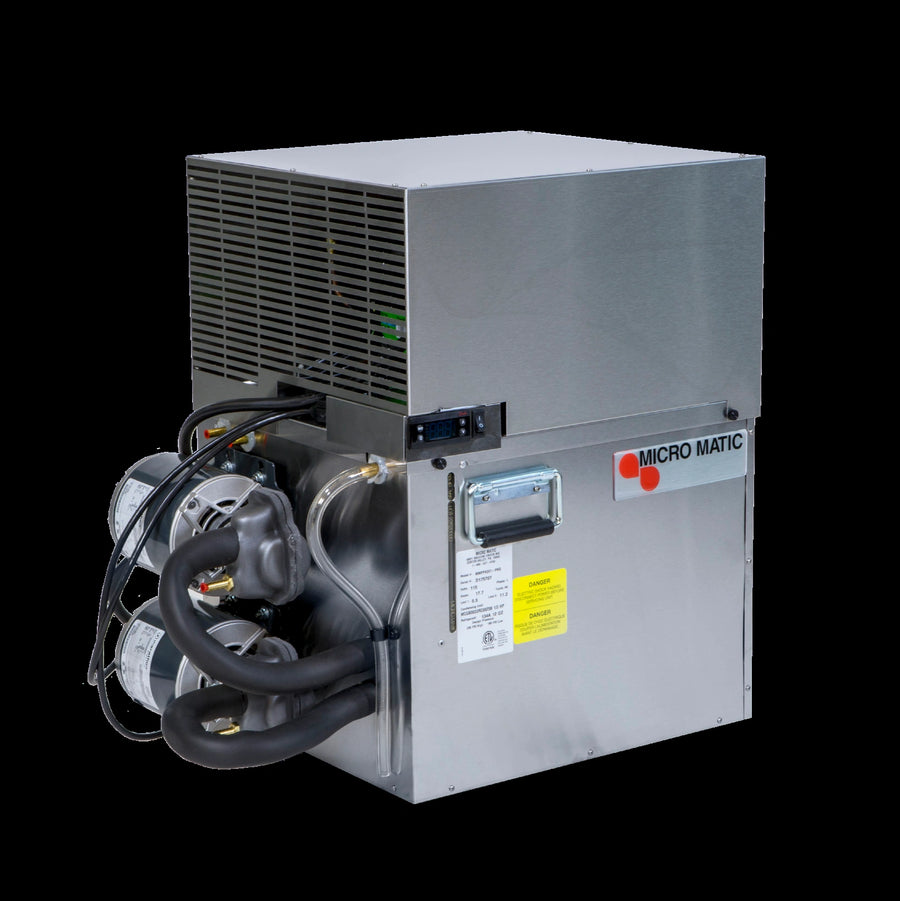

Pro-Line Air-Cooled Draft Beer System Power Pack with 2 Circulating Pumps and 11.5-Gallon Glycol Bath

115V, 1/3 HP Compressor, Digital Thermostat

Keep draft beer lines cold and stable with a self-contained, air-cooled glycol power pack built for reliable circulation and temperature control.

  • Air-cooled draft beer system power pack designed for glycol line cooling.
  • Includes two 80 gph vane circulating pumps with 1/3 HP motors each.
  • 11.5-gallon glycol bath with exterior sight glass for easy level monitoring.
  • Digital thermostat and insulated cabinet help maintain consistent cooling.
  • R134a refrigeration system with 2,300 BTU cooling capacity.
  • 115V, 60 Hz, single-phase electrical connection with NEMA L5-30P plug.

Overall Dimensions:

30.0"W x 18.0"D x 27.75"H

Product Weight:

128.0 lb

Air-Cooled Design

Self-contained air-cooled system helps maintain the glycol bath temperature without a water-cooled setup.

Dual Circulating Pumps

Includes (2) 80 gph vane circulating pumps to move glycol through the draft beer system, each with a 1/3 HP motor.

11.5-Gallon Glycol Bath

Provides glycol capacity for line chilling and includes an exterior sight glass for convenient fluid level checks.

Digital Thermostat

Digital controls support straightforward temperature management.

Insulated Cabinet with Cover

Helps retain cold and protect internal components during operation.

R134a Refrigeration System

Uses R134a refrigerant and delivers 2,300 BTU of cooling capacity.

1/3 HP Compressor

Compressor power supports the unit's refrigeration performance.

NEMA L5-30P Plug

Ready for a compatible 115V electrical connection.

Type Draft Beer System Power Pack
Style Air-Cooled
Capacity 11.5 Gallons
Pumps 2
Controls Digital
Voltage 115 Volts
Amps 17.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA L5-30P
BTU 2,300 BTU
Refrigerant Type R134a
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 18 Inches
Shipping Height 28 Inches
Shipping Weight 128 lb.

Certifications & Compliance

Warranty & Protection

1-year limited product warranty

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a Pro-Line air-cooled draft beer system power pack used to circulate glycol and help keep draft beer lines cold.
It includes two 80 gph vane circulating pumps, each with a 1/3 HP motor.
The unit runs on 115V, 60 Hz, single-phase power and uses a NEMA L5-30P plug.
This unit uses R134a refrigerant and has a 2,300 BTU cooling capacity.
Unless otherwise specified, Micro Matic's limited product warranty is one year from the date of sale.
