Description
Metropolis “M” 20-Faucet Draft Beer Tower – PVD Brass
Model METRO-M-20PVDKR | Micro Matic USATurn every pour into a show-stopping centerpiece. Inspired by Art Deco architecture, the Metropolis “M” tower combines eye-catching design with Micro Matic’s Kool-Rite™ glycol technology to deliver ice-cold, brewery-fresh beer—no matter how busy the bar gets.
Key Features
- Distinctive Art Deco profile creates an instant focal point on any bar.
- Tarnish-free PVD brass finish—durable, scratch-resistant and NSF certified.
- 20 × PVD brass-plated stainless steel faucets spaced 3" OC with 12" clearance for growlers & tall glassware.

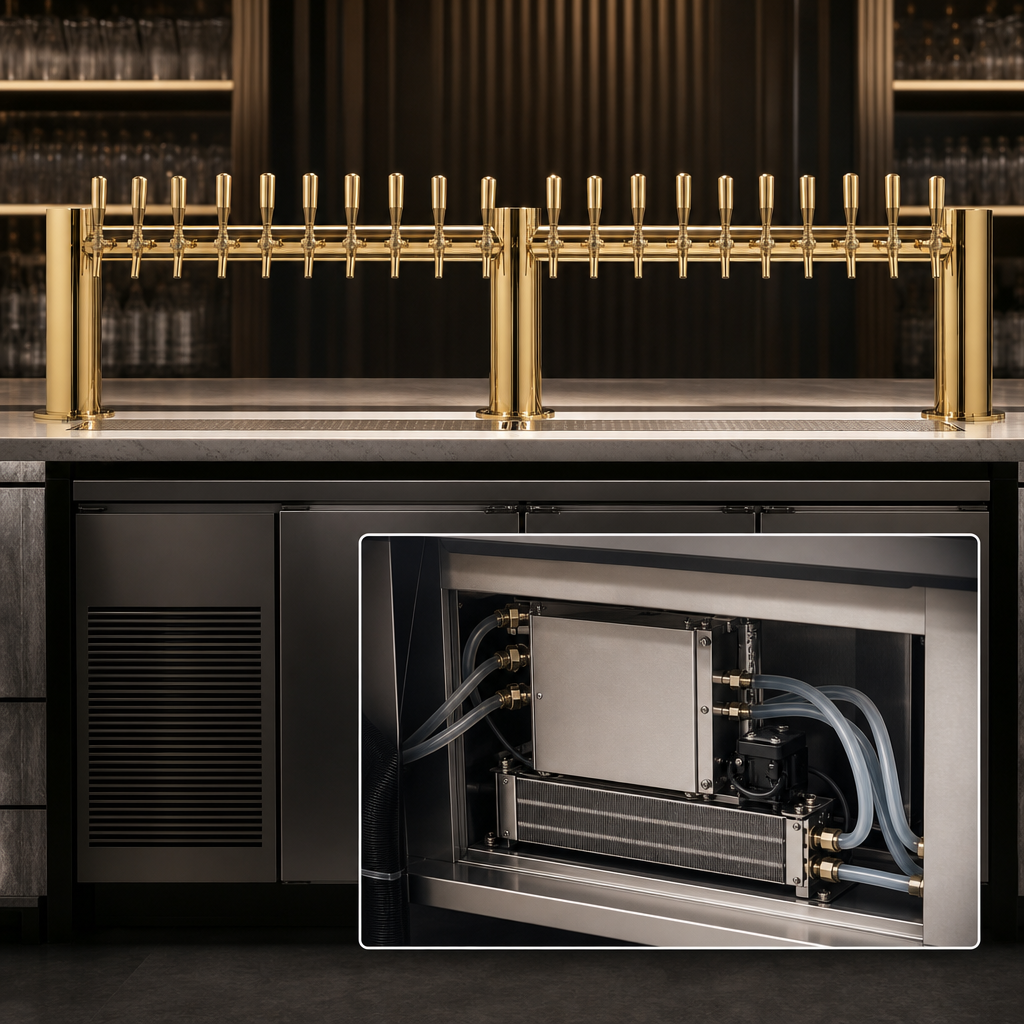

- Integrated Kool-Rite™ module keeps product temperature consistent right to the point of dispense.
- All beer contact surfaces are 304 stainless steel with leak-proof stainless shanks for pure, fresh flavor.
- “Plug ‘N’ Pour” modular construction speeds up installation and future service.
- Includes cooling block, ⅜" OD copper glycol lines, mounting gaskets & hardware—everything you need to drop in and pour.
Specifications
| Overall width | 72" (1829 mm) |
|---|---|
| Height | 16" (406 mm) to top of faucet |
| Dispense system | Glycol-cooled, Kool-Rite™ integrated module |
| Number of faucets | 20 (handles sold separately) |
| Faucet spacing | 3" on center |
| Faucet clearance | 12" from column to spout |

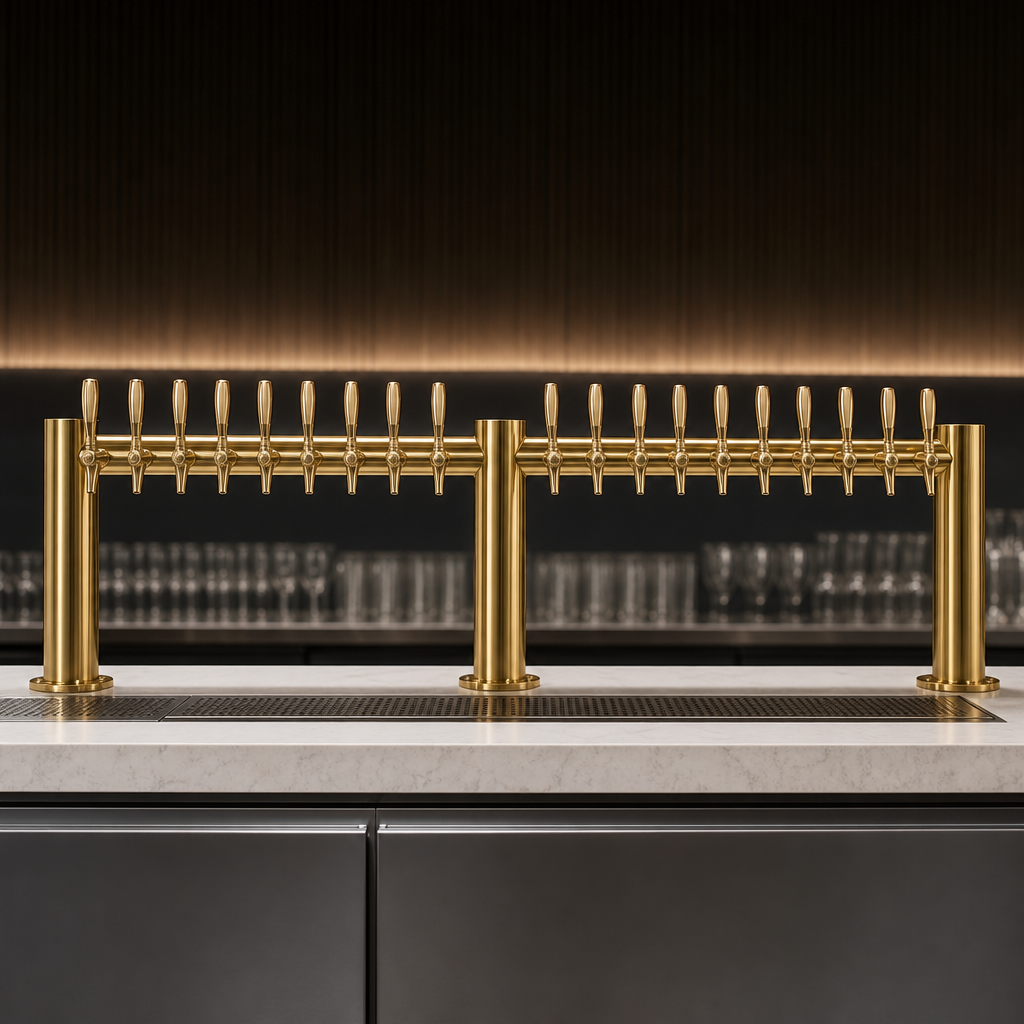

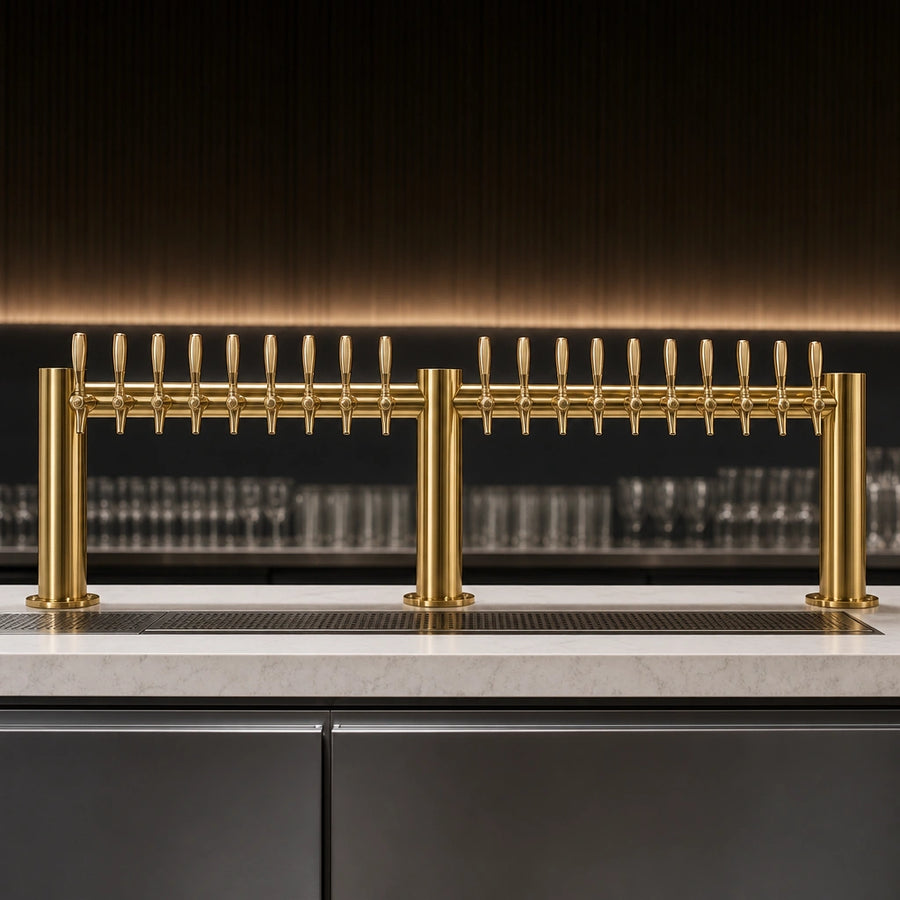

| Columns / bases | 3 × 4" Ø columns with 6" Ø bases |
| Beer lines | ¼" OD 304 stainless steel (pre-assembled) |
| Coolant lines | ⅜" OD copper (pre-assembled) |
| Finish | PVD brass-plated stainless steel |
| Certification | NSF |
| Shipping weight | 90 lb (41 kg) |
| Box dimensions | 80" L × 50" W × 15" H |
Faucet handles/tap knobs shown in images are for demonstration only and are not included.
What’s in the Box?
- Metropolis “M” 20-faucet draft tower with Kool-Rite™ module
- 20 × PVD brass-plated stainless steel faucets
- Pre-assembled cooling block & copper glycol lines
- 304 SS product lines & leak-proof shanks (factory installed)
- Mounting gaskets, bolts & detailed installation guide
Warranty
Backed by Micro Matic’s 1-year limited warranty against defects in materials and workmanship.
