Description
Metropolis “H” 14-Faucet Draft Beer Tower – PVD Brass, Glycol-Cooled
Model METRO-H-14PVDKR • Micro Matic USA • NSF CertifiedTurn your bar into a showpiece with the Metropolis “H” tower. A sweeping 50-inch art-deco profile, gleaming tarnish-free PVD brass, and the proven Kool-Rite™ Plug-N-Pour glycol module deliver flawless pours and head-turning style—shift after shift.
Key Advantages
- Distinctive “H” silhouette with twin 4 inch columns draws guests to the tap line.
- 14 PVD brass-plated stainless steel faucets (3″ on-center) showcase a wide beer selection in one footprint.
- 100 % 304 stainless steel beer contact for uncompromised flavor and easy sanitation.

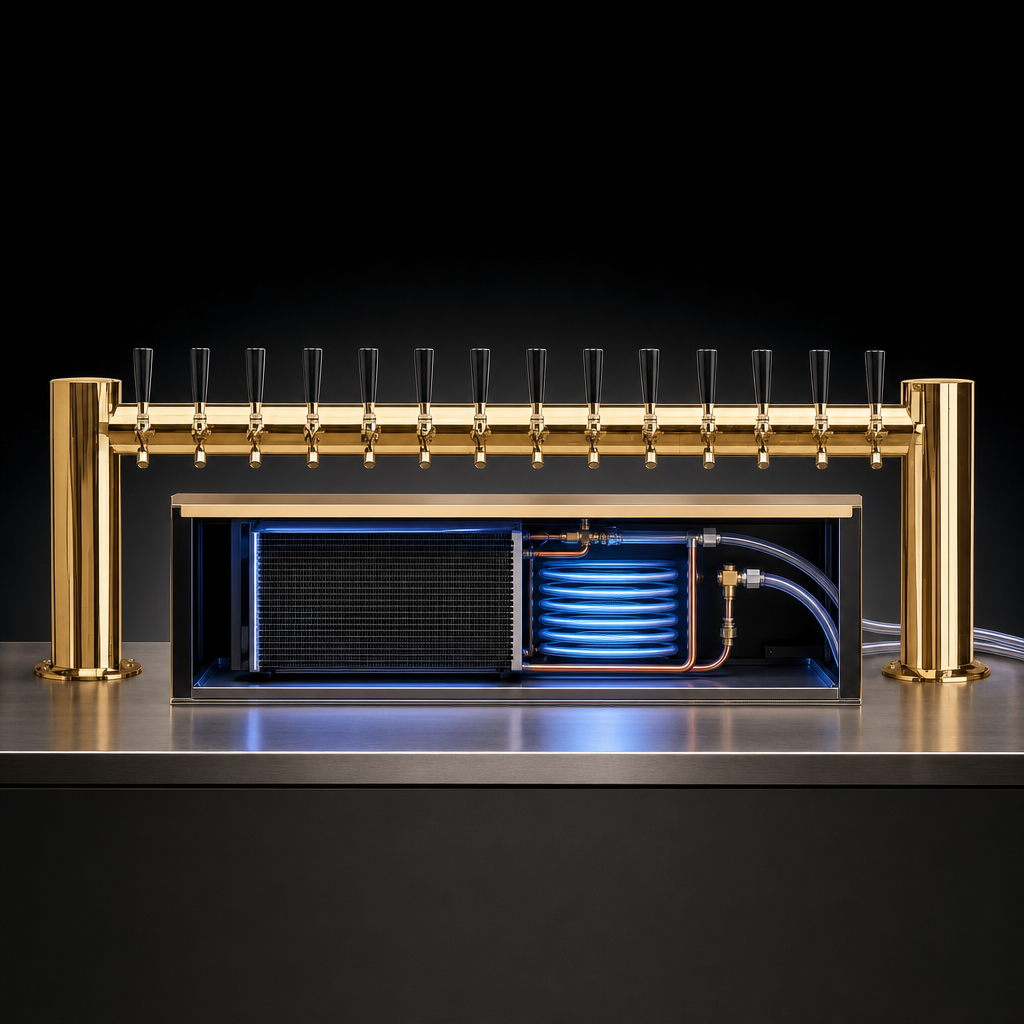

- Integrated Kool-Rite™ module chills beer at the point of dispense, minimizing foam and waste.
- Factory-installed copper glycol lines and aluminum cooling block—just connect and pour.
- Leak-proof stainless shanks and rugged PVD coating provide years of reliable service.
- NSF listed for commercial food-service compliance.
Specification Snapshot

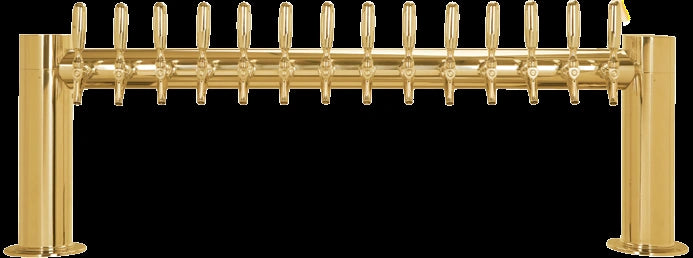

| Part Number | METRO-H-14PVDKR |
|---|---|
| Total Faucets | 14 (handles not included) |

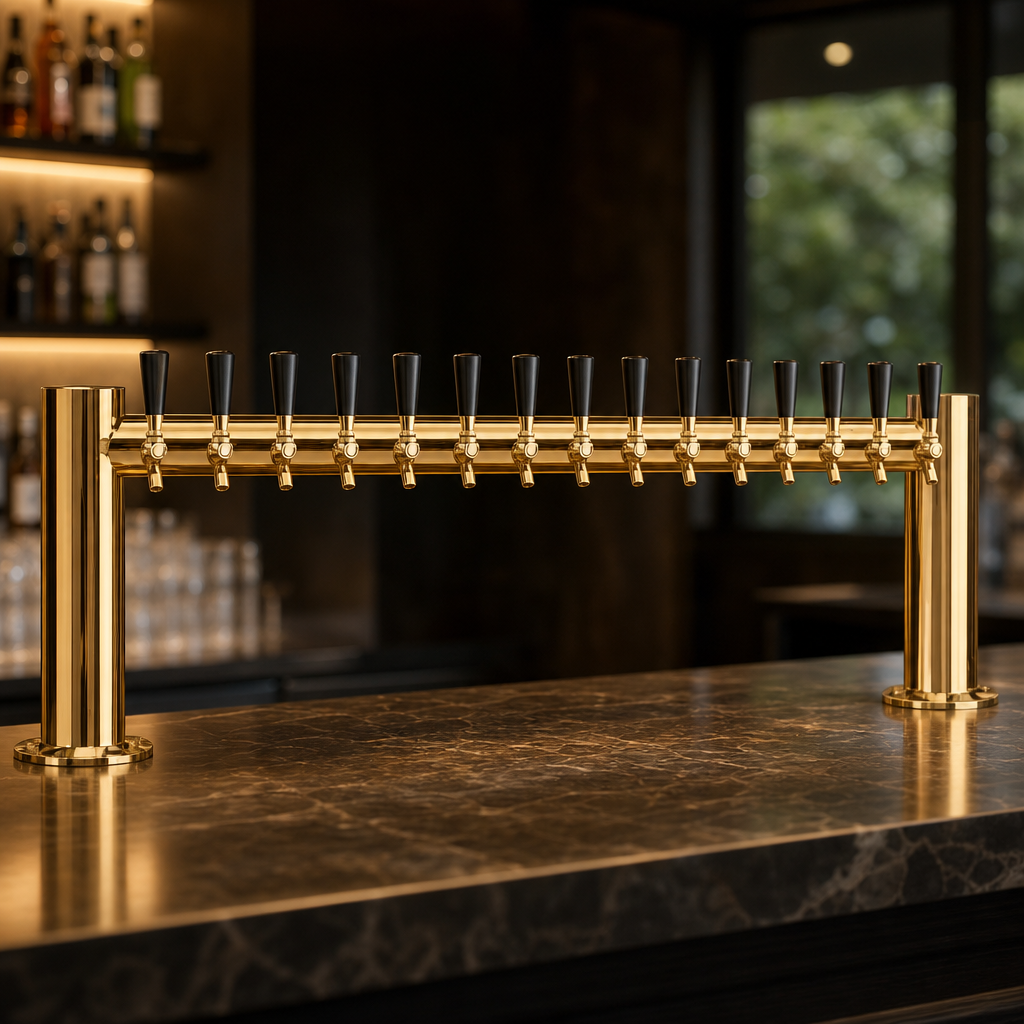

| Finish | PVD Brass (tarnish-free) |
| Cooling Method | Kool-Rite™ glycol (Plug-N-Pour integrated module) |
| Overall Width | 50″ (1270 mm) |
| Overall Height | 16″ (406 mm) |
| Faucet Clearance | 12″ (304 mm) above bar top |
| Faucet Spacing | 3″ on center |
| Columns / Bases | 2 × 4″ Ø columns with 6″ Ø bases |
| Beer Lines | 1/4″ O.D. 304 SS tubes • 5/16″–3/8″ barbs |
| Glycol Lines | 3/8″ O.D. copper • 3/8″ barbs |
| Shipping Weight | 67 lb (31 kg) |
| Box Size | 63″ L × 49″ W × 16″ H |
| Certifications | NSF |
| Warranty | 1-year limited parts & labor |
| What’s Included | Pre-installed cooling block & lines, leak-proof shanks, mounting gaskets & hardware |
Fast, Hassle-Free Installation
- Arrives pressure-tested—no on-site tower assembly required.
- Four 4″ bolt pattern per base plus supplied gaskets create a sanitary seal.
- Compatible with any standard remote glycol chiller using 3/8″ supply/return lines.
Need drip trays, tap handles, or a glycol chiller? Our draft experts can bundle everything you need—just ask!
