Micro Matic USA METRO-H-12PVDKR Metropolis Draft Beer & Wine Dispensers
Micro Matic USA METRO-H-12PVDKR Metropolis Draft Beer & Wine Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Micro Matic USA METRO-H-12PVDKR Metropolis Draft Beer & Wine Di...
Description

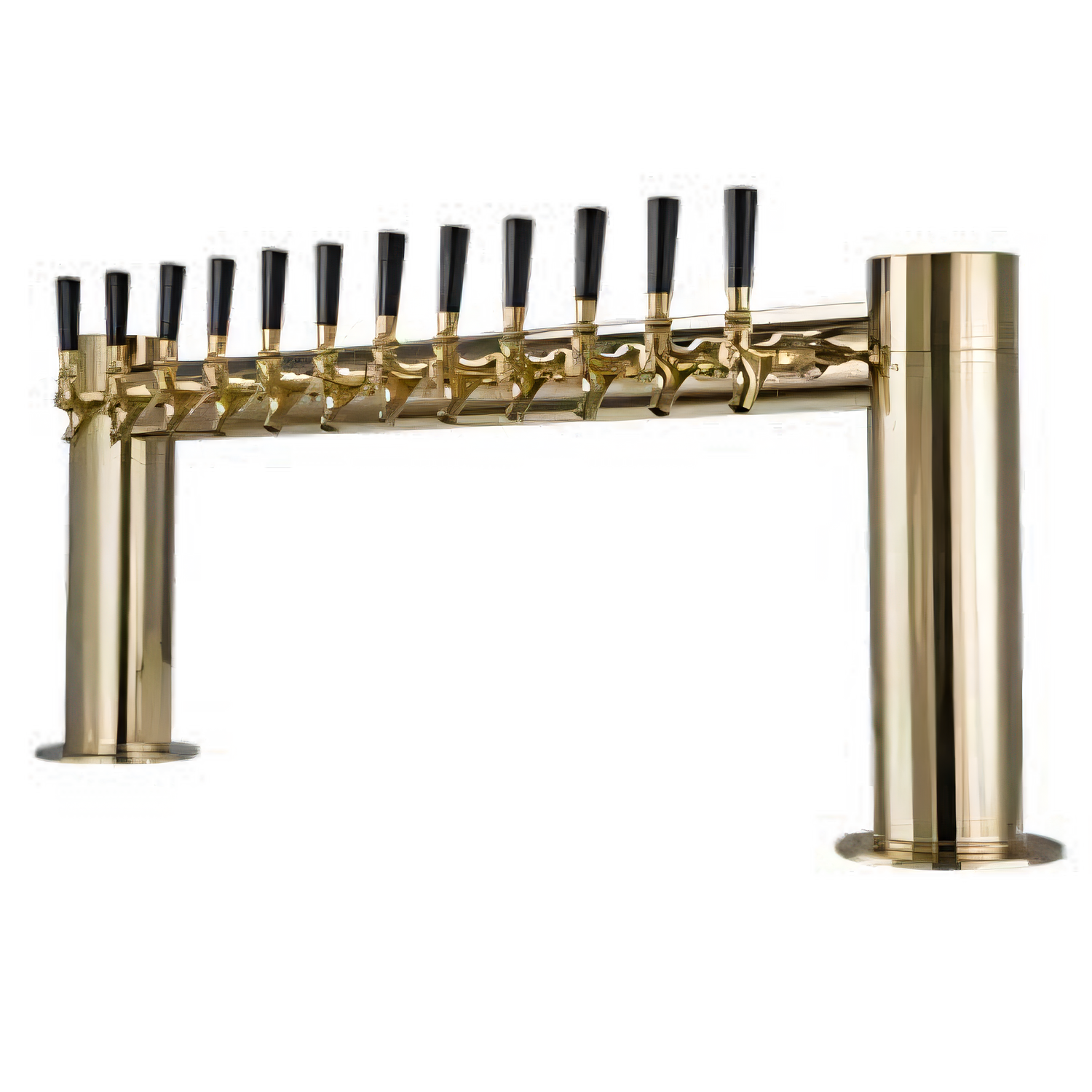

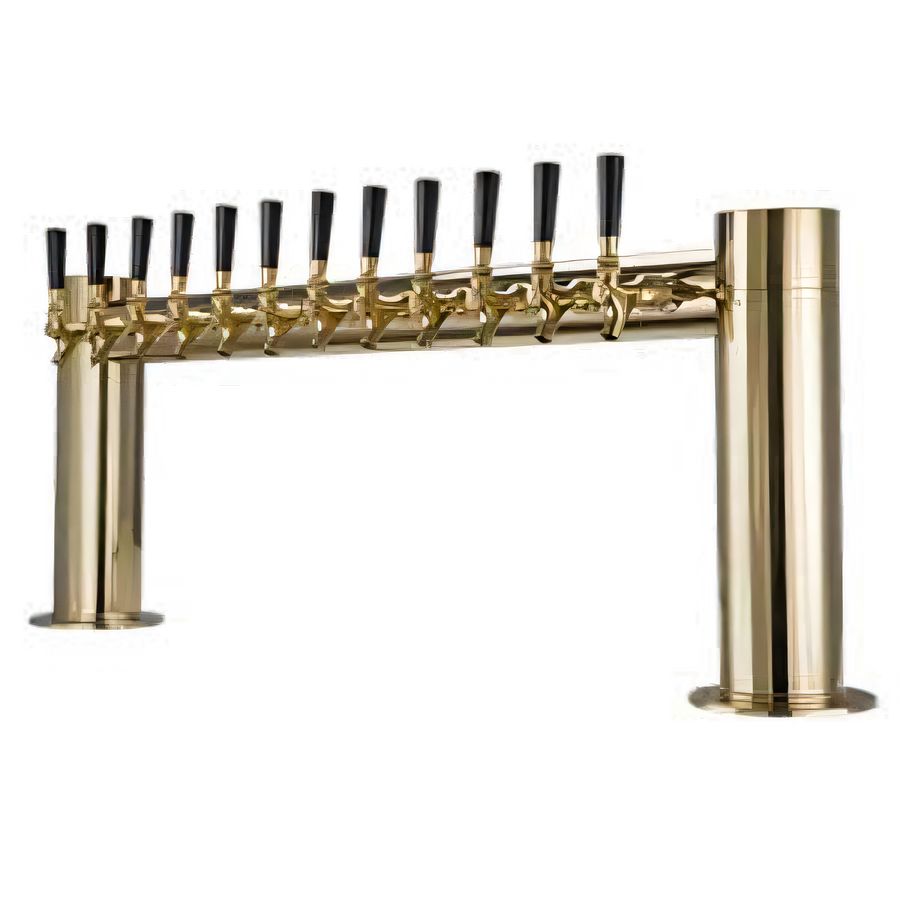

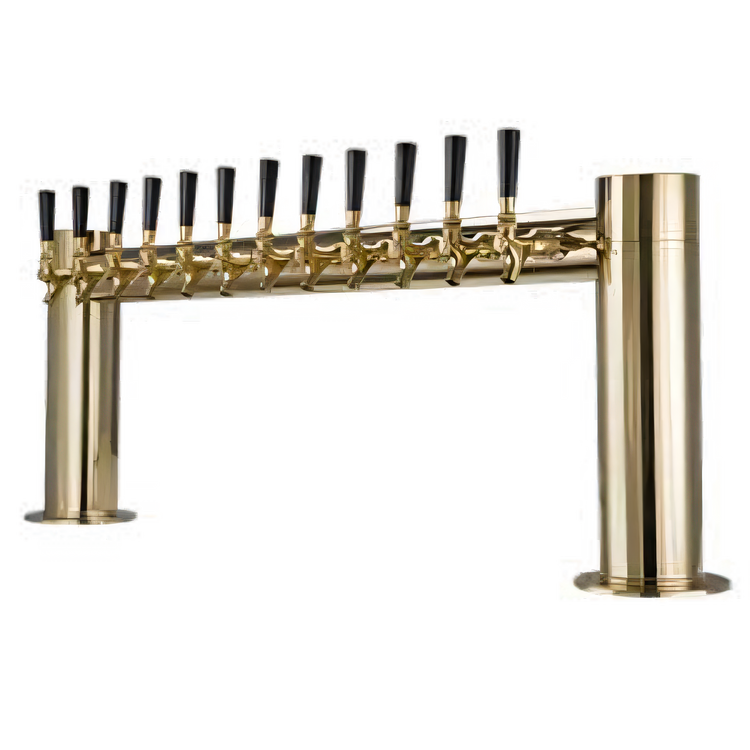

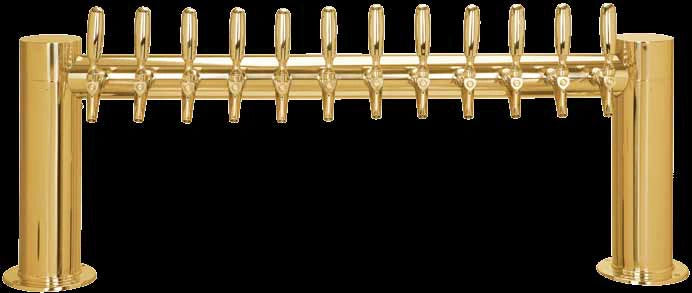

Metropolis “H” 12-Faucet Draft Beer Tower
PVD Brass • Kool-Rite™ Glycol-Cooled • Model METRO-H-12PVDKRMake every pour a show-stopper. Inspired by classic Art-Deco architecture, the Micro Matic Metropolis “H” tower pairs eye-catching style with the proven performance of our Kool-Rite™ plug-and-pour glycol system. With twelve PVD brass-plated stainless steel faucets across a sweeping 44-inch bridge, this NSF-certified centerpiece keeps high-volume service ice-cold and flawless.
Why You’ll Love It
- Striking art-deco profile turns your bar top into a marketing statement.
- PVD brass finish delivers the look of polished brass — without tarnish or constant polishing.

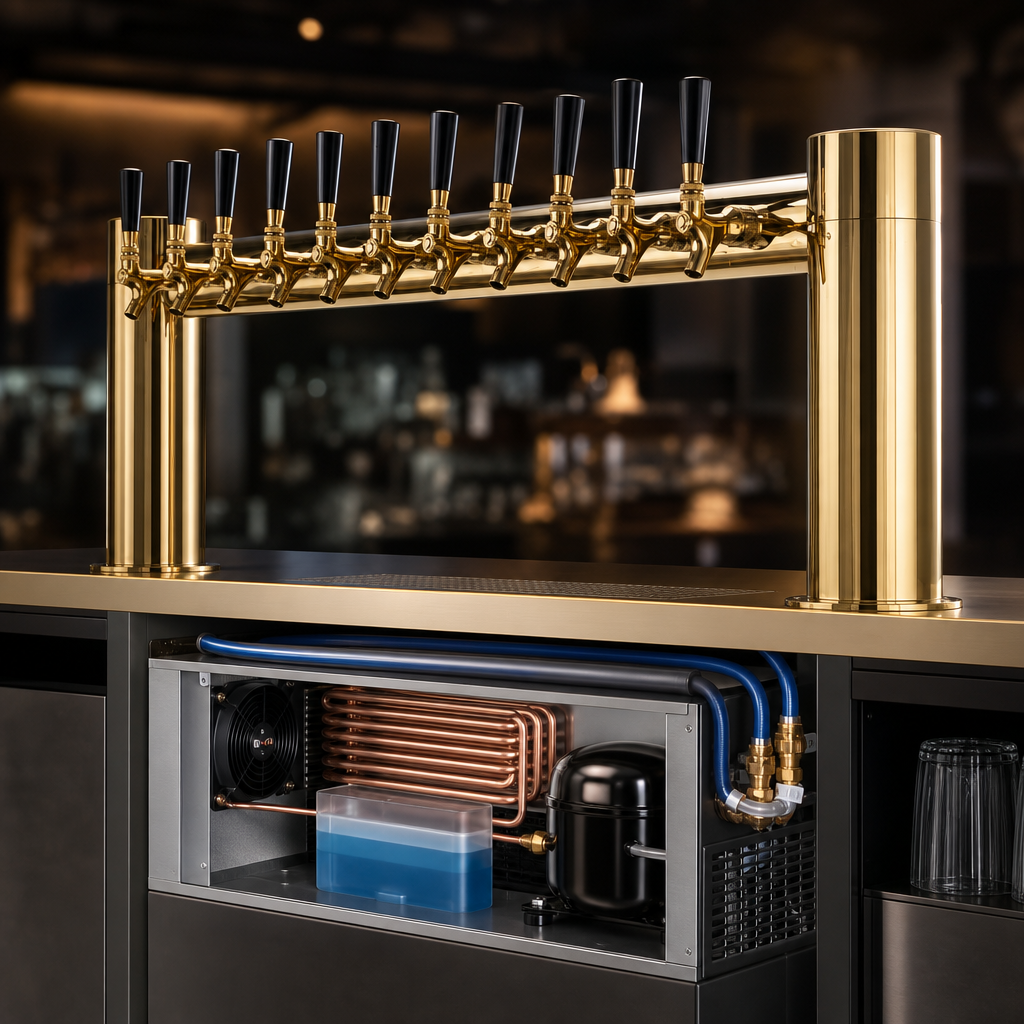

- Kool-Rite™ integrated module circulates glycol right up to each shank for consistent, ice cold pours.
- All 304 stainless steel beverage contact for uncompromised draft purity.

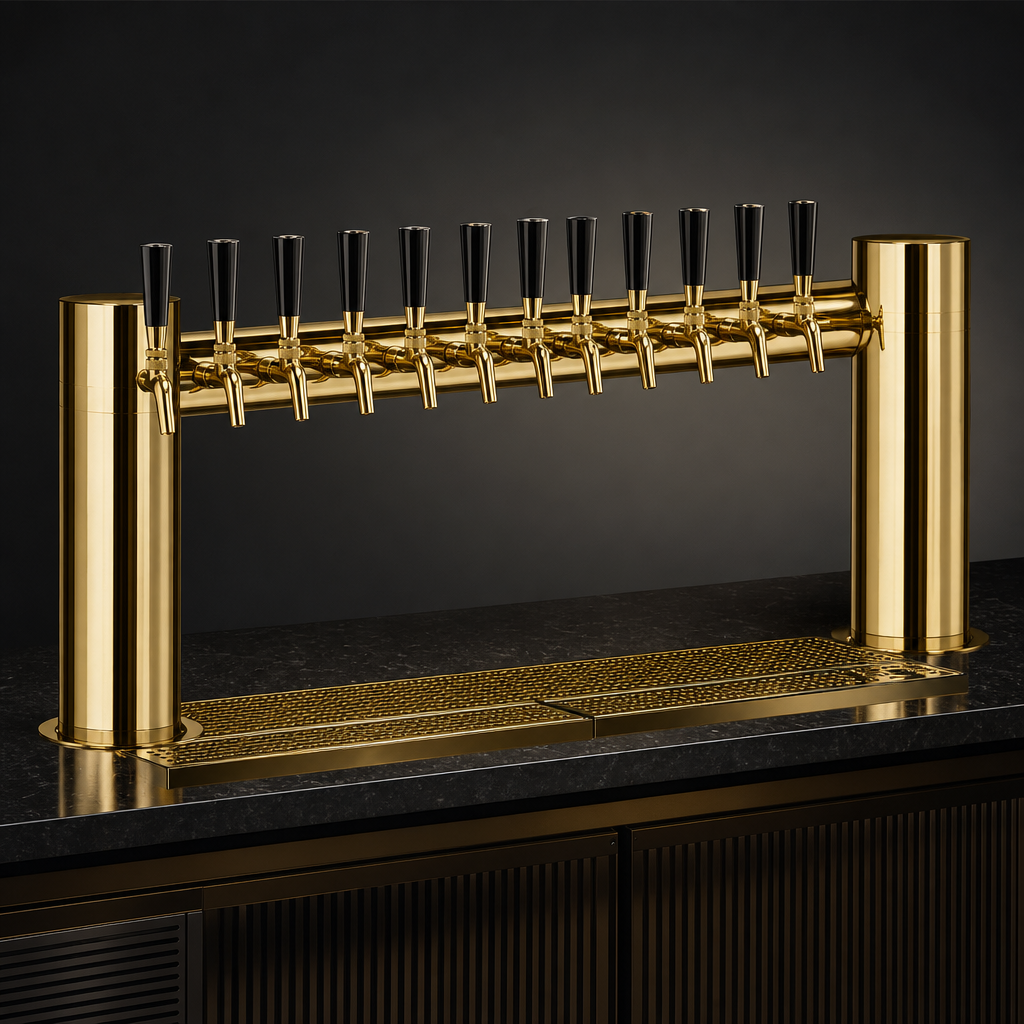

- 12 faucets on 3" centers with a generous 12" glass clearance keep lines moving during peak service.
- Quick “Plug-N-Pour” installation: cooling block, beer & coolant lines, mounting gasket and hardware are factory-installed.
- NSF certified and backed by Micro Matic’s 1-year limited warranty.
Technical Specifications
| Part Number | METRO-H-12PVDKR |
|---|---|
| Finish | PVD Brass (tarnish-free) |
| Dispense System | Kool-Rite™ glycol-cooled, integrated module |
| Faucets | 12 × PVD brass-plated stainless steel — 3" on-center |
| Faucet Clearance | 12" (304 mm) |
| Tower Width × Height | 44" W × 16" H (1118 mm × 406 mm) |
| Columns / Bases | 2 × 4" Ø columns with 6" Ø bases |
| Beer Lines | 1/4" OD 304 SS with 5/16"–3/8" barbs (factory installed) |
| Coolant Lines | 3/8" OD copper with 3/8" barbs (factory installed) |
| Shipping Weight | 51 lb (23 kg) |
| Shipping Box | 50" L × 40" W × 15" H |
| Certification | NSF |
What’s in the Box
- Metropolis “H” tower with integrated Kool-Rite™ module
- 12 PVD brass-plated stainless steel faucets (handles sold separately)
- Factory-installed 304 SS beer lines & copper coolant lines
- Cooling block
- EPDM mounting gasket
- Mounting hardware kit
- Installation & care guide
Installation Notes
- Designed for glycol-ready long-draw systems (3/8" coolant line connections).
- Requires remote glycol chiller (sold separately).
- Handles, tap markers, drip tray and hookup kit are optional accessories.
- Mounts through (2) 4" holes on 6" bolt circles — gasket and bolts included.
Need help planning your draft system? Call Micro Matic at 1-866-327-4159 or chat with our draft pros for free design assistance.
