Micro Matic USA  |  Pro-Line  |  SKU: MDD94-E

Micro Matic USA MDD94-E Pro-Line Back Bar Coolers

$5,580.04
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Owner's manual Warranty sheet
Related Searches
Commercial Beer Dispensers Commercial Refrigeration Commercial Refrigerators Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

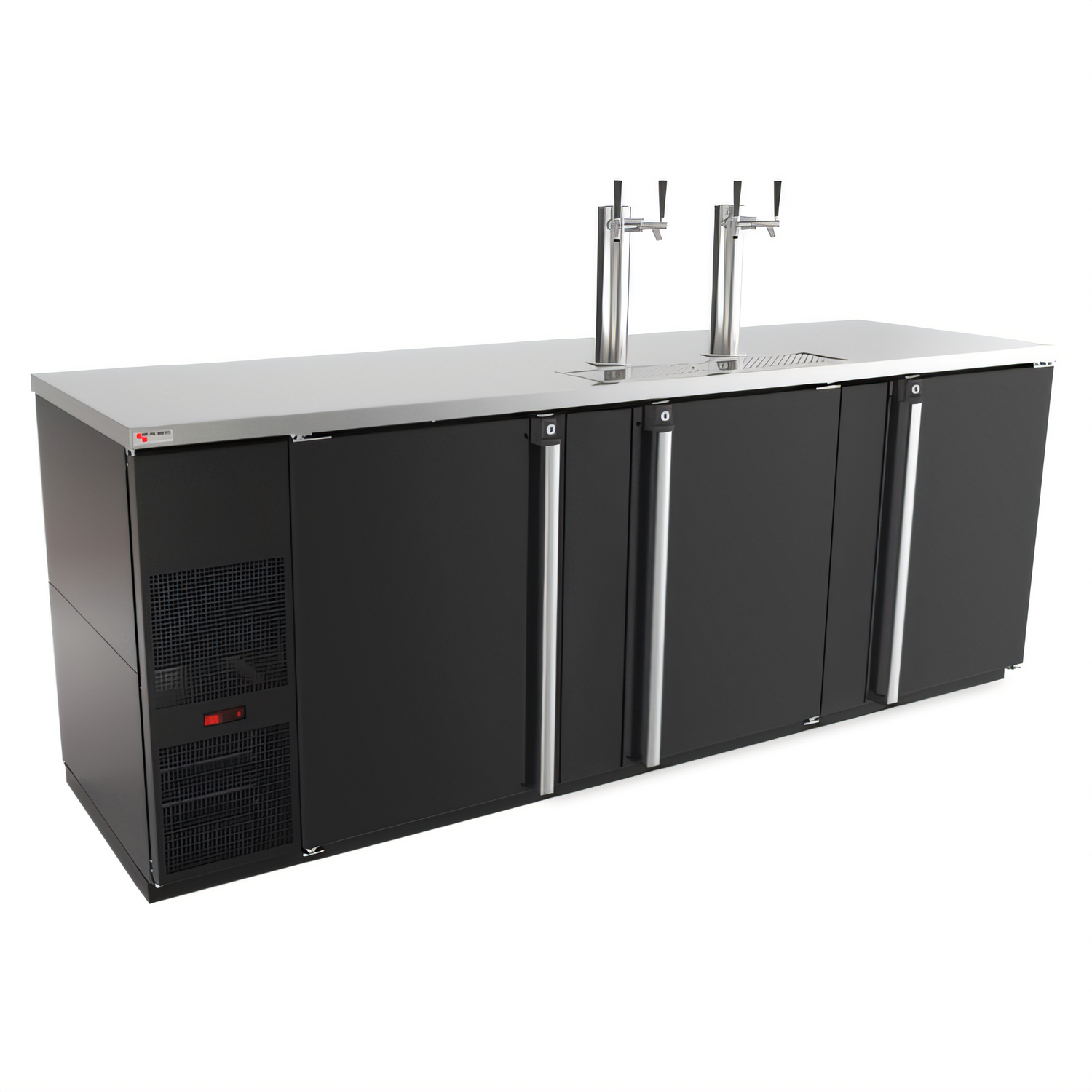

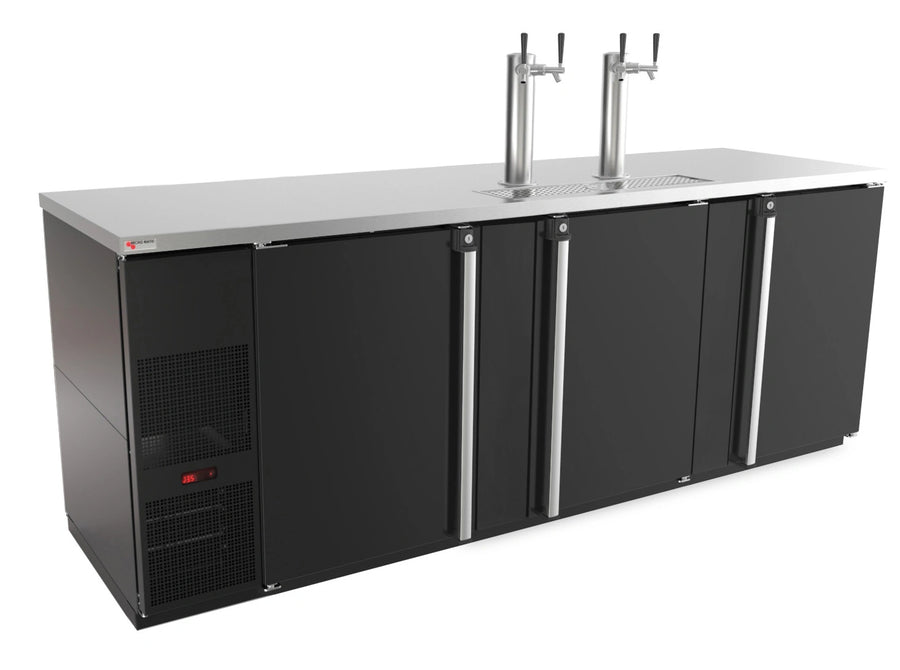

Micro Matic Pro-Line™ E-Series™ Draft Beer Cooler – 95-1/2" Wide, 3 Door, 4 Faucet

Model MDD94-E  |  5 × ½-Barrel Keg Capacity

Built for busy bars that demand reliability and speed, the Pro-Line E-Series 95" direct-draw dispenser lets you tap four perfectly chilled beers at once, rinse glassware on the fly, and keep up to five full kegs cold—all in a single, self-contained cabinet that slides neatly under the back bar.

Performance & Convenience

  • Front-breathing, self-contained refrigeration—no side or rear clearance required.
  • Exterior-mounted digital thermostat for fast, precise temperature control.

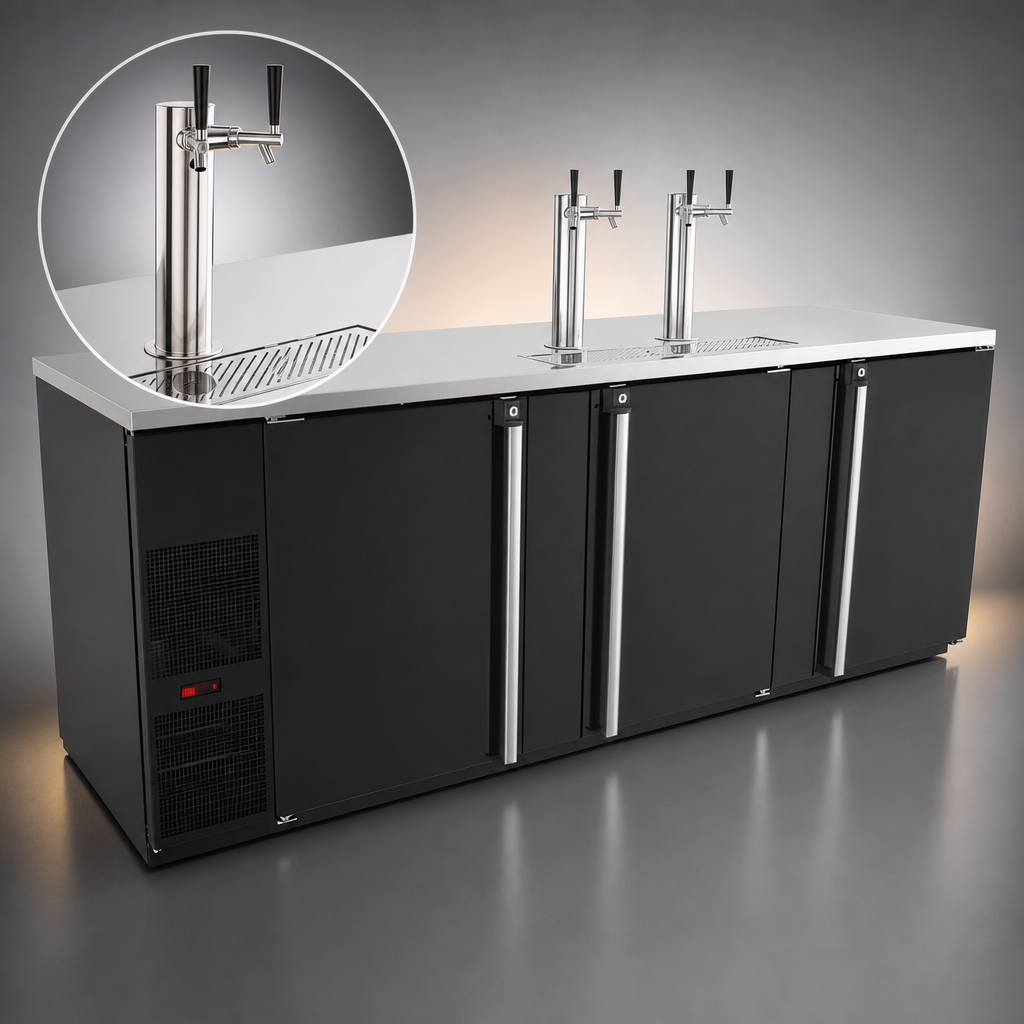

  • (2) 3" Ø polished stainless steel towers pre-assembled with 4 NSF-approved faucets.
  • Full-size drip tray with integral glass rinser conditions glassware for a perfect pour (15–20 psi water line).
  • Automatic condensate evaporator—no floor drain necessary.
  • Three solid, locking doors protect your inventory during off-hours.
  • Foamed-in-place, CFC-free 2" insulation keeps product cold and energy costs low.
  • Durable build: stainless steel top & interior with black vinyl-clad steel exterior.
  • Ships ready to plug in—8' cord with NEMA 5-15P.

Technical Specifications

Exterior Dimensions (W × D × H) 95-1/2" × 29-1/2" × 36-7/8" (2427 × 750 × 938 mm)
Internal Volume 39.2 cu. ft. (1112 L)

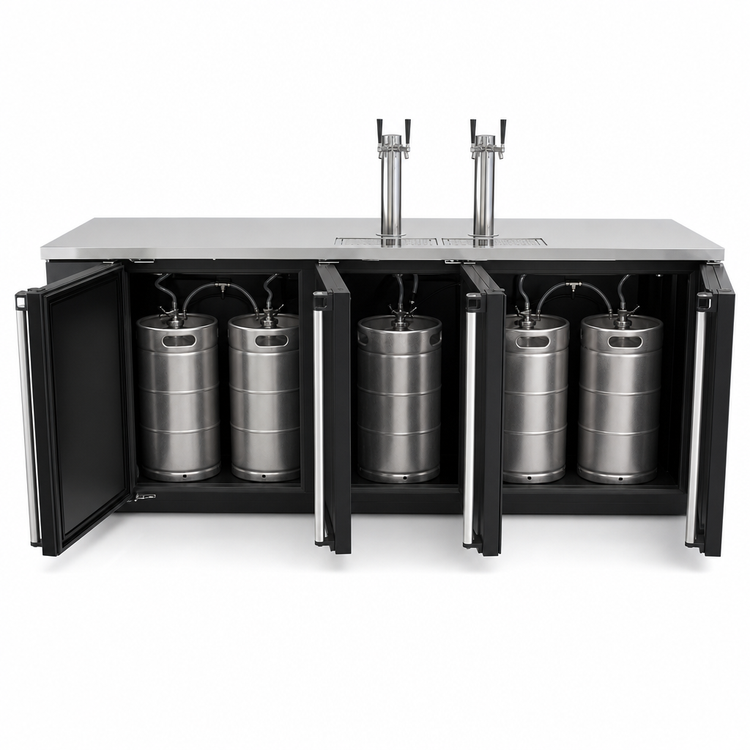

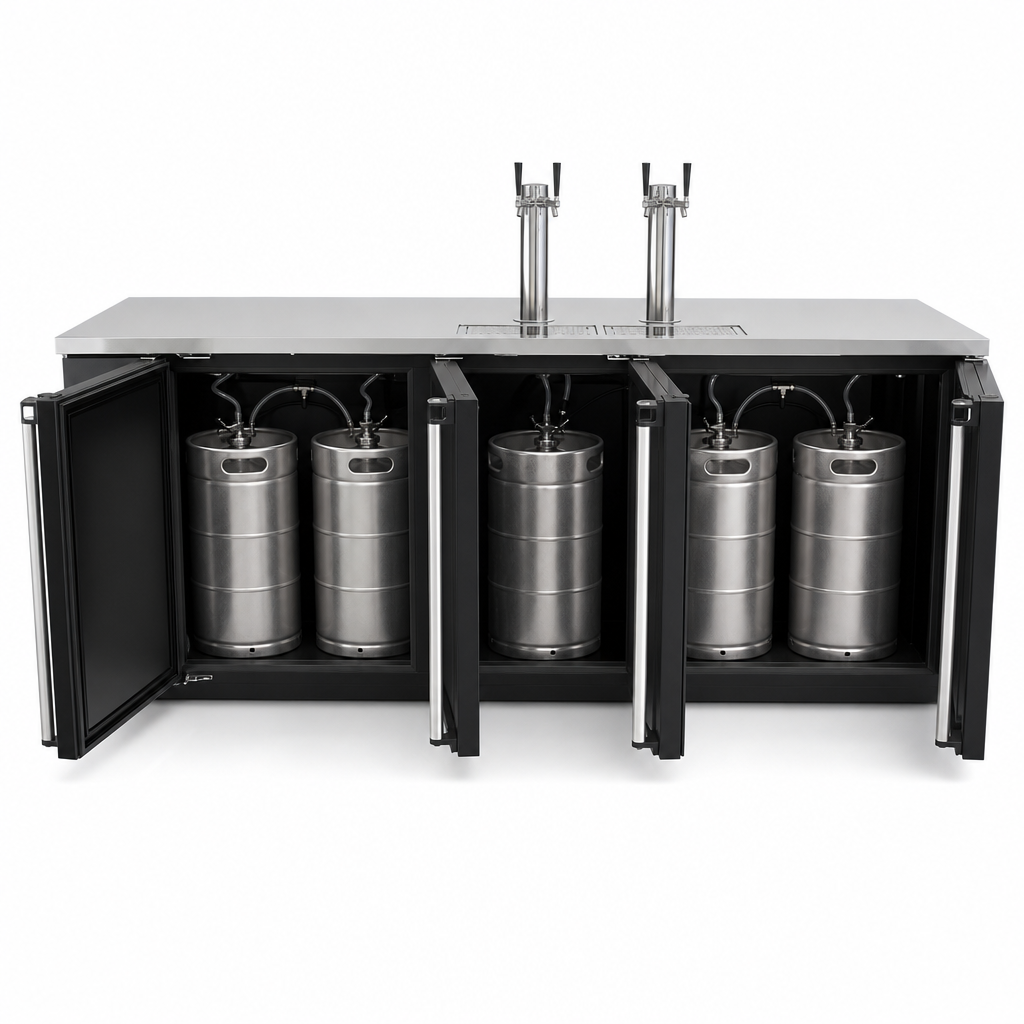

Keg Capacity 5 × ½-barrel (15.5 gal) kegs
Draft Towers / Faucets 2 towers / 4 faucets (faucet knobs sold separately)
Temperature Range 33 °F – 41 °F (0.5 °C – 5 °C) adjustable
Refrigeration 1/3 HP compressor, R134a refrigerant, front-breathing
Electrical 115 V / 60 Hz / 1-ph, 6.5 A, NEMA 5-15P
Door Style 3 solid hinged doors with locks
Construction Stainless steel top & interior, black vinyl-over-steel front/sides/doors
Included Accessories Removable drip-tray grill, built-in glass rinser
Certifications cETLus, ETL-Sanitation (NSF 7 & NSF 18)
Shipping Weight 406 lb (184 kg)

Perfect For

  • High-volume sports bars and pubs
  • Catering & mobile event service
  • Brewery taprooms needing overflow capacity
  • Banquet halls and hotel lounges
Please Note: Tapping hardware (couplers, gas system, beer & gas lines) and faucet knobs are sold separately. A 15–20 psi cold-water connection is required for the glass rinser.

Have questions about building your draft system? Our Micro Matic draft experts are ready to help!

Features & Specs

Manufacturer

Micro Matic USA

Brand_name

Pro-Line

Certifications

cETLus, ETL-Sanitation

Height

37.25in

Width

95.5in

Depth

28.25in

Shipping Weight

406.0lbs

Top Style

flat top

Width

73" (and up)

Exterior Finish

all black exterior

Faucet Qty

2 faucets per column

Column Qty

2 columns / towers

Specifications

Pro-Line™ E-Series™ Draft Beer Cooler, three-section, 95-1/2"W, self-contained refrigeration, digital thermostat, 39.2 cu. ft. capacity, integral glass rinser, (2) 3" diameter polished stainless steel draft towers (4 faucets, NSF-approved, faucet knobs not included), (3) solid hinged doors with lock, drip tray with integrated glass rinser & removable grill, automatic condensate evaporator, stainless steel top & interior, black vinyl over steel exterior, R290, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)
