Micro Matic USA  |  Pro-Line  |  SKU: MDD78S-E

Micro Matic USA MDD78S-E Pro-Line Back Bar Coolers

$6,390.25
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Owner's manual Warranty sheet
Related Searches
Commercial Beer Dispensers Commercial Refrigeration Commercial Refrigerators Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

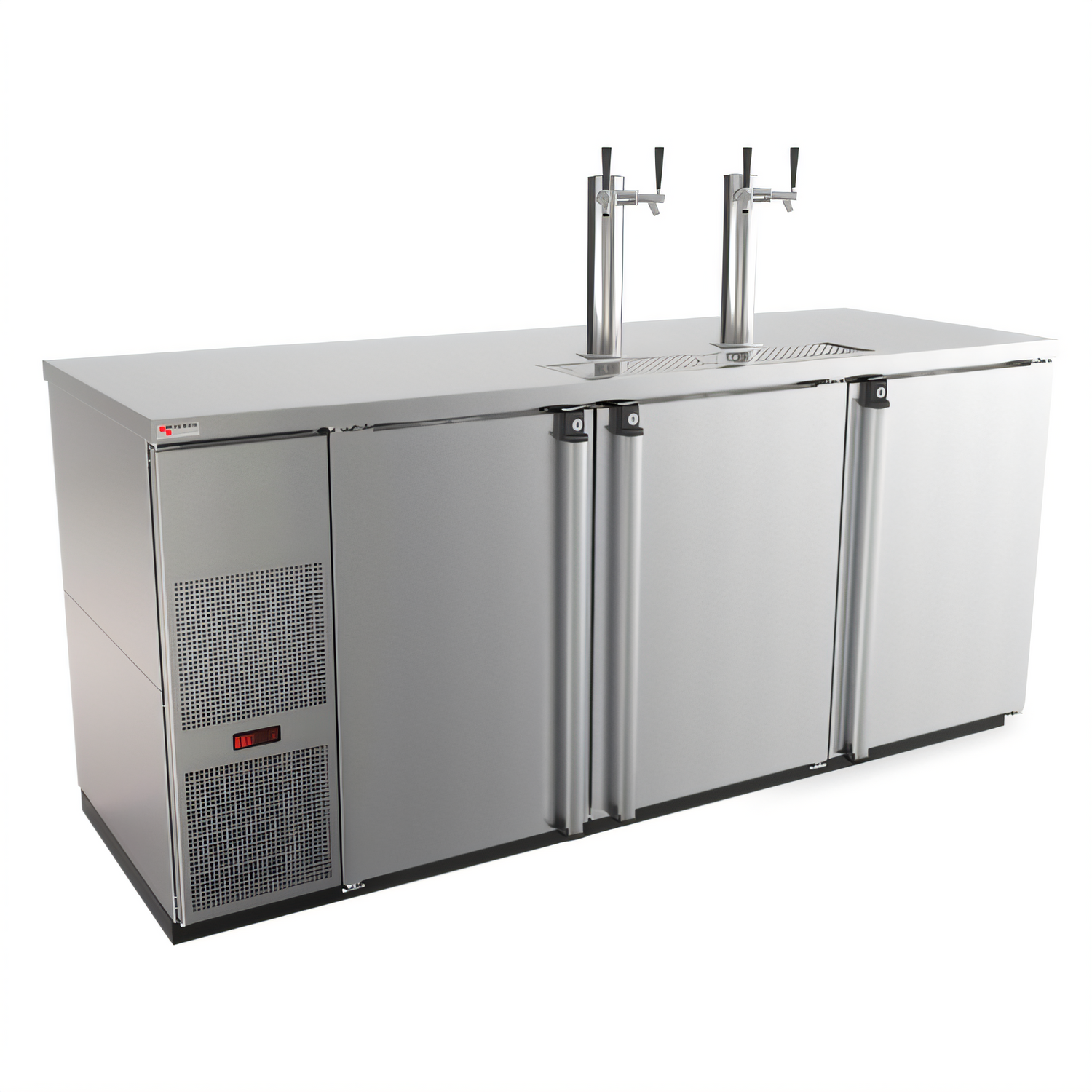

Pro-Line™ E-Series™ 80" Direct Draw Beer Cooler

Model MDD78S-E • 4-Keg • Stainless Steel

Built by Micro Matic USA for busy bars that demand professional performance and rock-solid reliability, the Pro-Line E-Series 80" cooler keeps up to four half-barrel kegs at the perfect serving temperature while its integrated glass rinser elevates every pour. Just plug, stock, and start serving.

Why you’ll love it
  • Ready to pour: (2) polished 3" Ø stainless towers with 4 NSF-approved faucets (knobs sold separately).

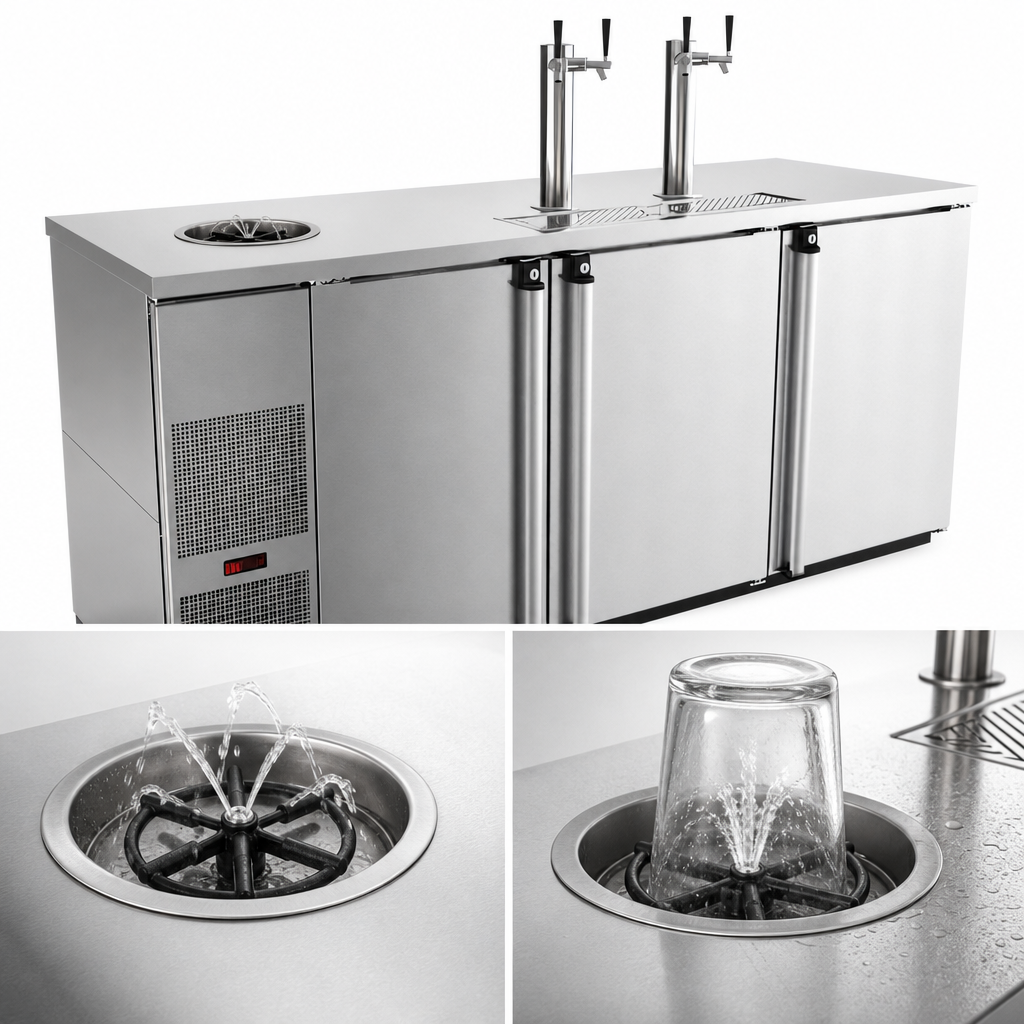

  • Glass-rinse like a pro: built-in rinser conditions glassware on demand for the perfect head & aroma.
  • True commercial build: all-stainless top, interior, exterior plus solid, locking doors for durability & security.

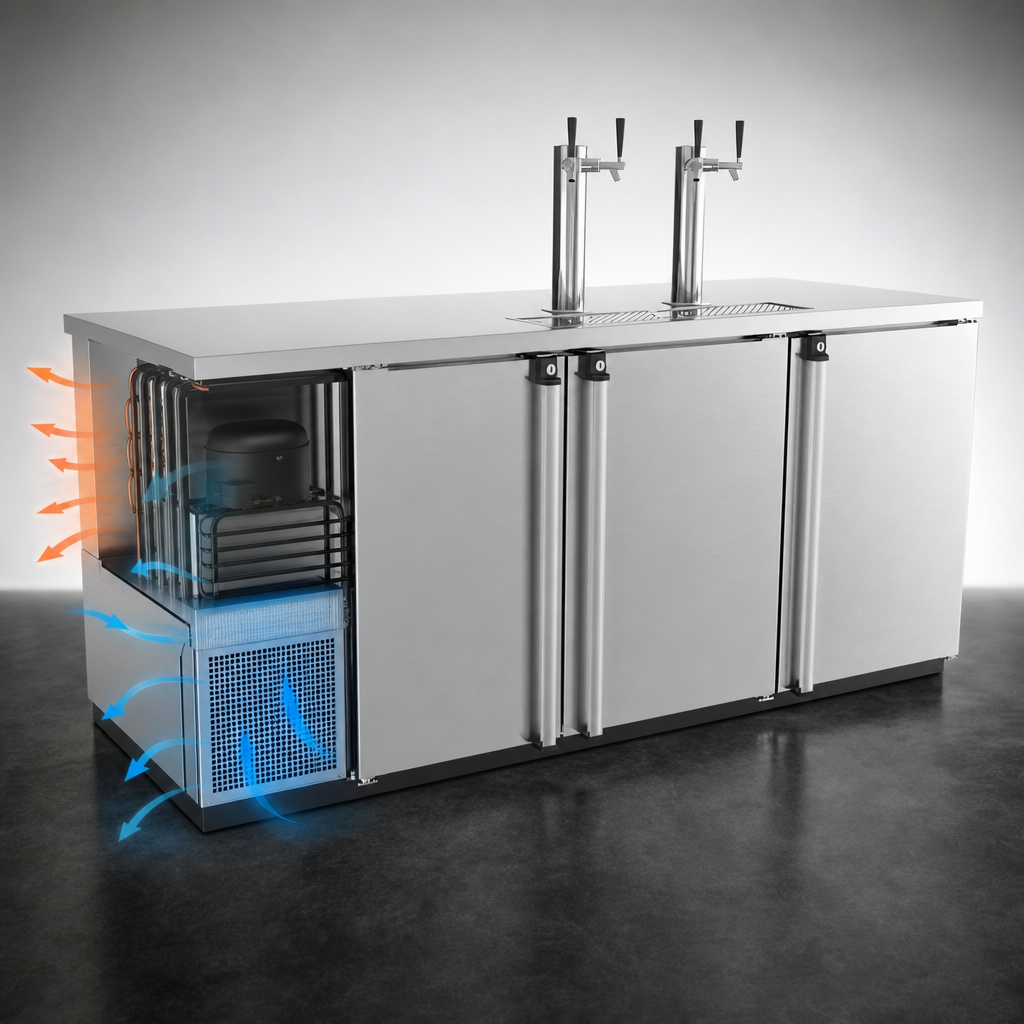

  • Front-breathing refrigeration: install flush under counters or against walls—no side clearance needed.
  • Precise control: exterior digital thermostat lets you dial-in exact temperatures at a glance.
  • Hygiene focused: full-size drip tray with removable grill and automatic condensate evaporator—no floor drain required.
  • Energy smart: high-density CFC-free polyurethane insulation and efficient 1/3 HP compressor.

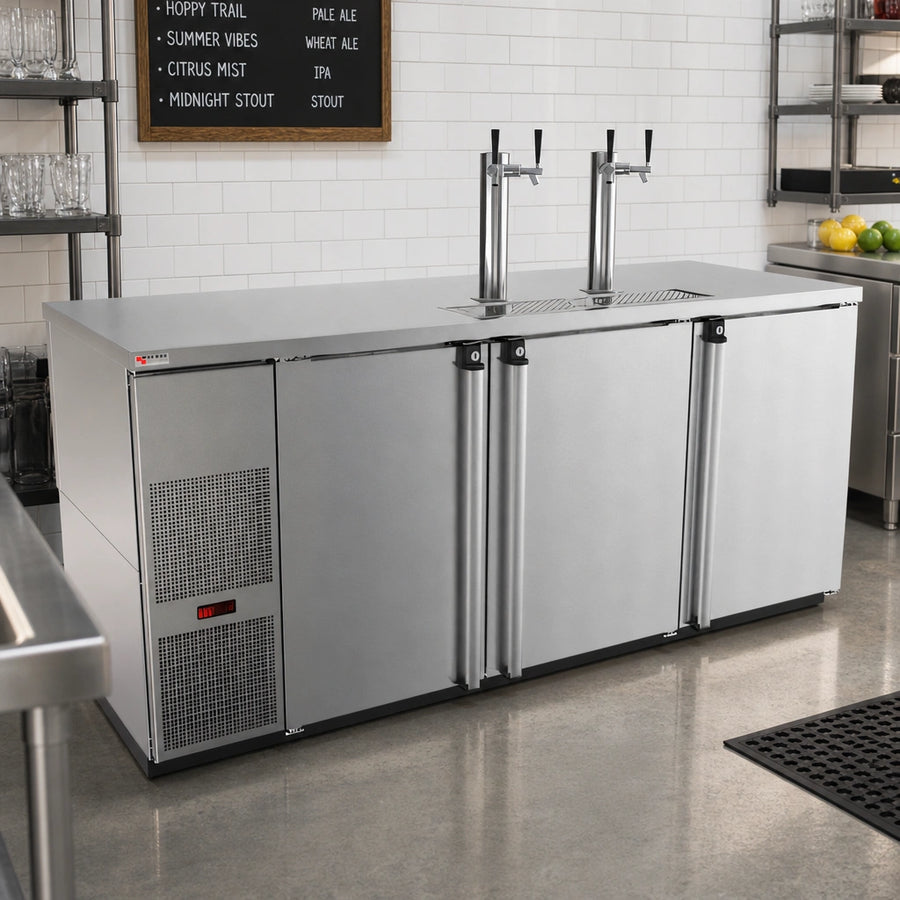

Ideal applications
  • Bars & pubs
  • Craft-brew taprooms
  • Stadium & arena suites
  • Hotel banquets and catering halls
Technical specifications
Capacity 30.8 cu ft (872 L) / 4 × ½-barrel kegs
Overall dimensions (W × D × H) 80" × 29.5" × 39.88" (2032 × 749 × 1013 mm)
Doors (3) solid hinged, lockable
Draft towers (2) 3" Ø polished stainless, air-cooled
Faucets 4 × stainless steel, NSF 7 & NSF 18 approved
Thermostat Exterior-mounted digital control & display
Refrigeration Self-contained, 1/3 HP, R134a
Electrical 115 V / 60 Hz / 1-ph, 6.5 A, NEMA 5-15P (8 ft cord)
Construction 18 ga (top), 22 ga (doors) & 24 ga (sides/back) 201-grade stainless steel
Insulation 2" foamed-in-place CFC-free polyurethane
Ventilation Front breathing for both intake & exhaust
Shipping weight 377 lb / 171 kg
Listings cETLus, ETL-Sanitation
What’s included
  • Pro-Line E-Series 80" direct draw beer cooler
  • (2) stainless draft towers pre-installed
  • (4) stainless faucets
  • Full-length drip tray with removable grill & integrated rinser
  • 8 ft power cord (NEMA 5-15P)
  • User & installation manual
You may also need
  • Tapping kits (couplers, gas regulators, gas cylinders & lines)
  • Faucet knobs/handles
  • Caster kit or 6" legs (if mobility or additional height is required)
  • Inline shut-off valve & water pressure regulator for the glass rinser
Installation notes:
  • Glass rinser must be connected to a potable water supply delivering 15–20 PSI through an inline shut-off and regulator.
  • Tap & gas equipment are sold separately.
  • Unit ships on a pallet – professional handling and lift-gate service may be required at delivery.

Backed by Micro Matic’s limited 1-year parts & labor warranty. See micromatic.com for full terms.

Features & Specs

Manufacturer

Micro Matic USA

Brand_name

Pro-Line

Certifications

cETLus, ETL-Sanitation

Height

37.25in

Width

80.0in

Depth

28.25in

Shipping Weight

377.0lbs

Exterior Finish

all stainless steel exterior

Top Style

flat top

Faucet Qty

2 faucets per column

Column Qty

2 columns / towers

Width

73" (and up)

Specifications

Pro-Line™ E-Series™ Draft Beer Cooler, three-section, 80"W, self-contained refrigeration, digital thermostat, 30.8 cu. ft. capacity, integral glass rinser, (2) 3" diameter polished stainless steel draft towers (4 faucets, NSF-approved, faucet knobs not included), (3) solid hinged doors with locks, drip tray with integrated glass rinser & removable grill, automatic condensate evaporator, stainless steel top, interior, & exterior, R290, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)
