Micro Matic USA MDD78S-E-LT Pro-Line Back Bar Coolers
$5,906.74
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Micro Matic USA MDD78S-E-LT Pro-Line Back Bar Coolers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Micro Matic USA MDD78S-E-LT Pro-Line Back Bar Coolers
$5,906.74
Unit price
/
Unavailable
Description

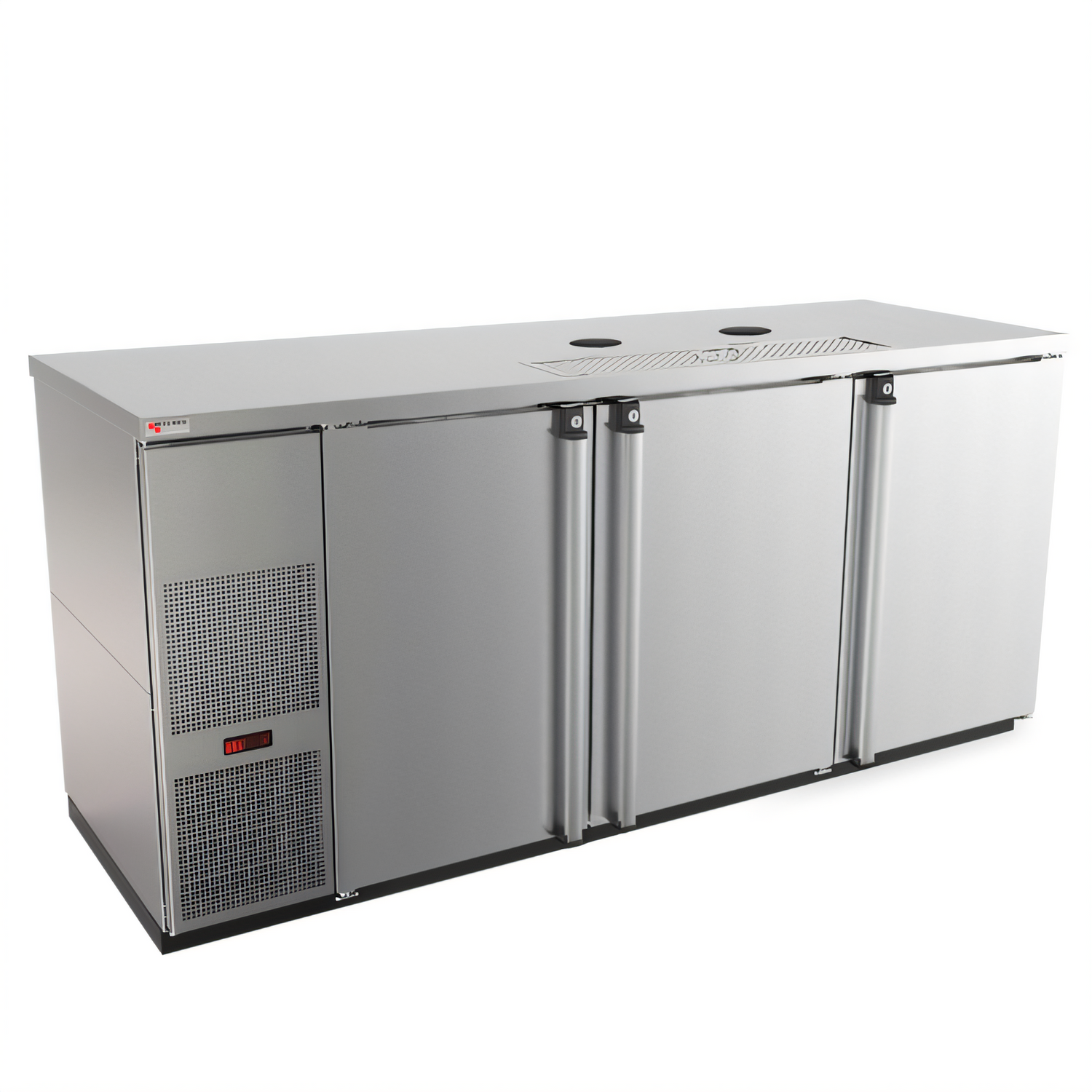

Micro Matic Pro-Line™ E-Series™ 80" Draft Beer Cooler – Three-Section (Less Towers)
Model MDD78S-E-LT | 30.8 cu. ft. | 4 Half-Barrel CapacityBuilt for busy bars that demand stainless-steel strength and consistent pours, the Pro-Line E-Series pairs industry-leading refrigeration with a full-size drain tray and integrated glass rinser—everything you need to keep beer flowing and glasses sparkling.
Key Features

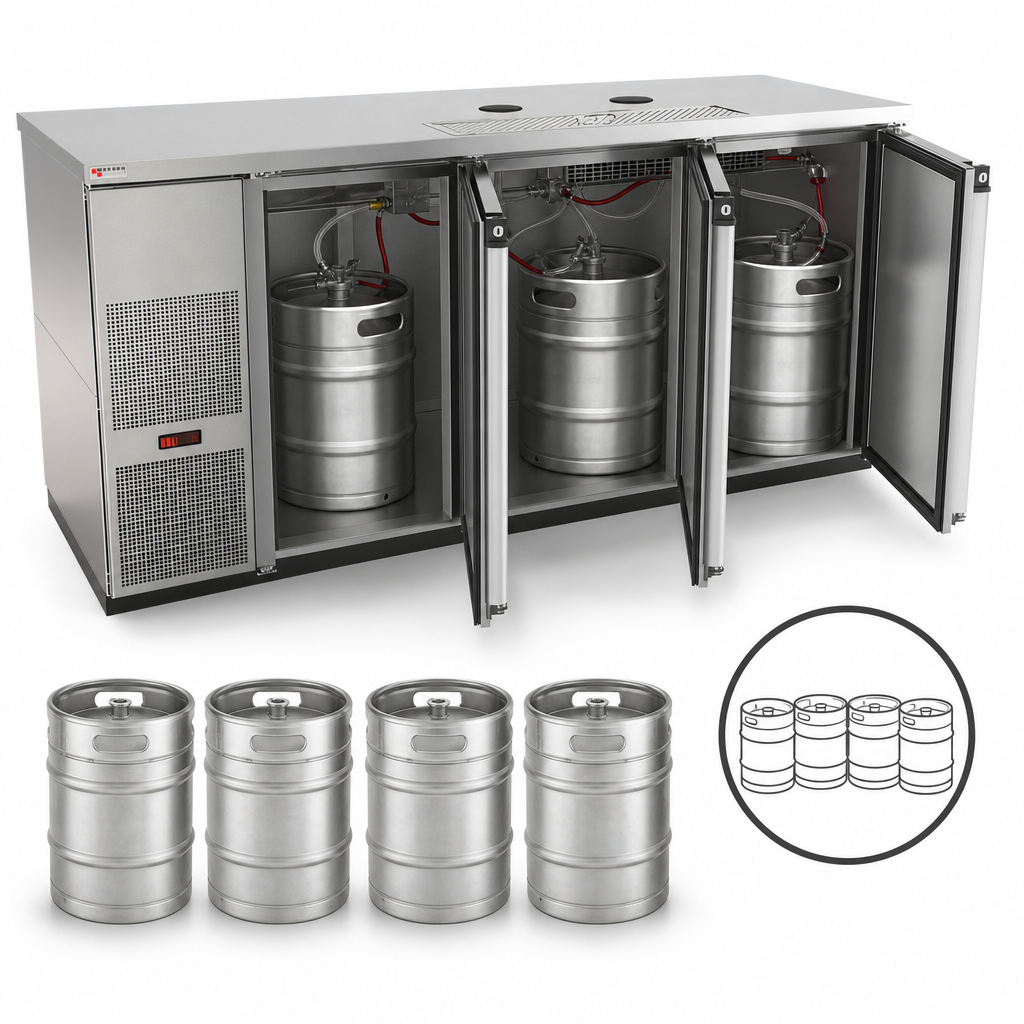

- 80" wide, three-section cabinet holds up to four ½-barrel kegs.
- Front-breathing self-contained refrigeration—no side or rear clearance required.
- Full-length stainless drain tray with removable grill for easier cleanup.
- Built-in glass rinser pre-cools and rinses pint glasses on demand.
- Exterior digital thermostat offers precise, easy-read temperature control.

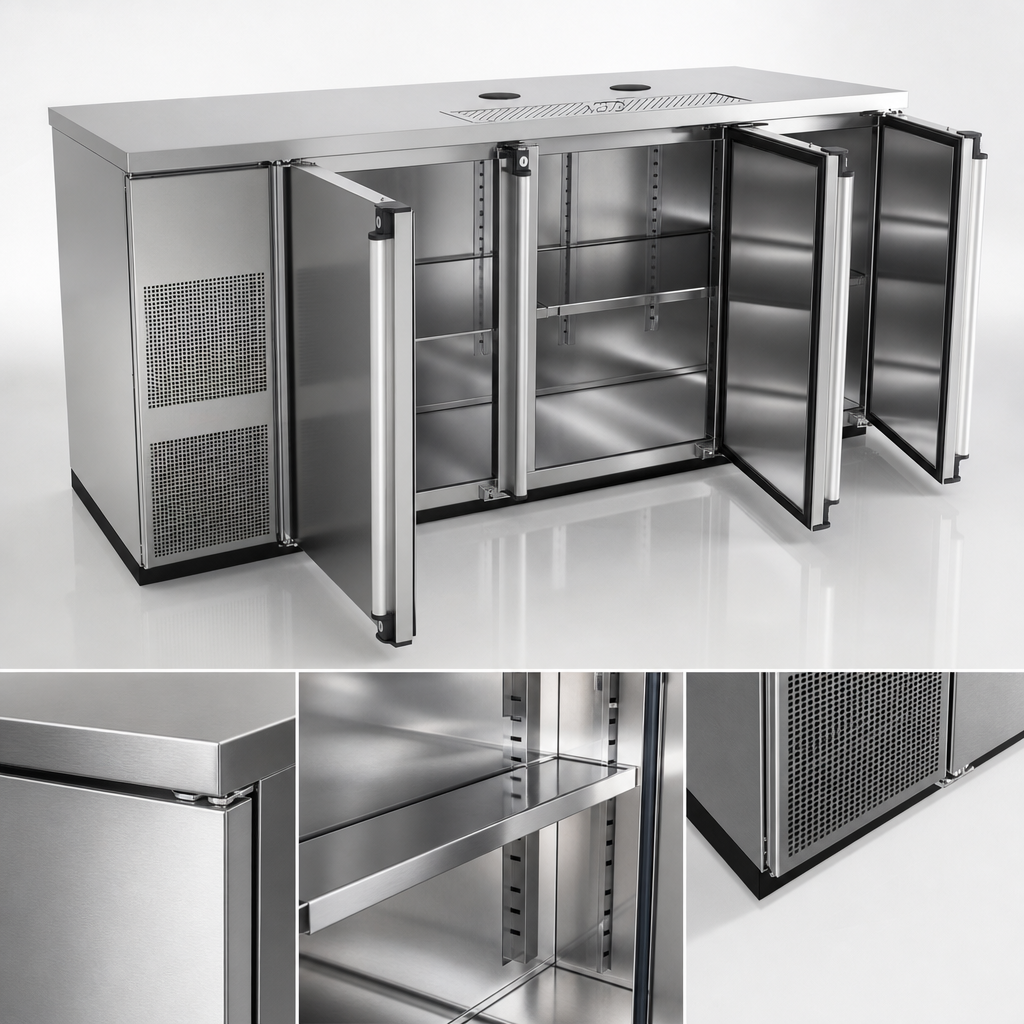

- All-stainless top, interior, and exterior for maximum durability and hygiene.
- Three solid, lockable doors protect inventory during off-hours.
- Eco-friendly R290 hydrocarbon refrigerant and high-density foam insulation.
- Ships plug-and-play with 8' cord and standard NEMA 5-15P plug.
Specifications
| Model | MDD78S-E-LT (less towers) |
|---|---|
| Sections / Doors | 3 sections / 3 solid hinged doors with locks |
| Usable Capacity | 30.8 cu. ft. (872 L) – 4 × ½-barrel kegs |
| Refrigeration | 1⁄3 HP compressor, front-breathing, automatic condensate evaporator |
| Refrigerant | R290 (4.9 oz charge) |
| Temperature Control | Exterior-mounted digital thermostat |
| Electrical | 115 V / 60 Hz / 1-Ph, 3.0 A, 8' cord, NEMA 5-15P |
| Cabinet Dimensions (W × D × H) | 80" × 29.5" × 36.9" (2032 × 750 × 937 mm) |
| Construction | 201-grade stainless top; stainless front, sides, back, floor, and walls |
| Approvals | cETLus, ETL-Sanitation (UL & NSF compliant) |
| Included | Full-size drain tray, removable grill, integrated glass rinser |
Perfect For
- High-volume sports bars and brewpubs
- Upscale restaurants requiring a durable under-bar solution
- Event venues and taprooms expanding draft offerings
Optional Add-Ons (Sold Separately)
- 3" or 4" insulated draft towers (single to multi-faucet)
- Keg couplers, regulators, and other tapping hardware
- Casters or 6" adjustable legs
Installation Notes
- Draft tower(s) and tapping equipment are not included.
- Connect the glass rinser to a 15-20 psi cold-water line using an in-line shut-off and pressure regulator. Professional installation is recommended.
- No floor drain required—condensate is automatically evaporated inside the compressor housing.
Backed by Micro Matic’s limited 1-year parts & labor warranty. See full warranty statement for details.
Features & Specs
Features & Specs
Manufacturer
Micro Matic USA
Brand_name
Pro-Line
Certifications
cETLus, ETL-Sanitation
Height
37.25in
Width
80.0in
Depth
28.25in
Shipping Weight
377.0lbs
Exterior Finish
all stainless steel exterior
Top Style
flat top
Column Qty
columns not included
Faucet Qty
faucets not included
Width
73" (and up)
Barrel Style
various sizes
Specifications
Pro-Line™ E-Series™ Draft Beer Cooler less draft towers, three-section, 80"W, self-contained refrigeration, digital thermostat, 30.8 cu. ft. capacity, (3) solid hinged doors with locks, drip tray with integrated glass rinser & removable grill, automatic condensate evaporator, stainless steel top, interior, & exterior, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 3.0 amps, 8' cord, NEMA 5-15P, cETLus, ETL-Sanitation (draft tower(s) and tapping equipment sold separately)
