Micro Matic USA MDD78-E Pro-Line Back Bar Coolers
Description

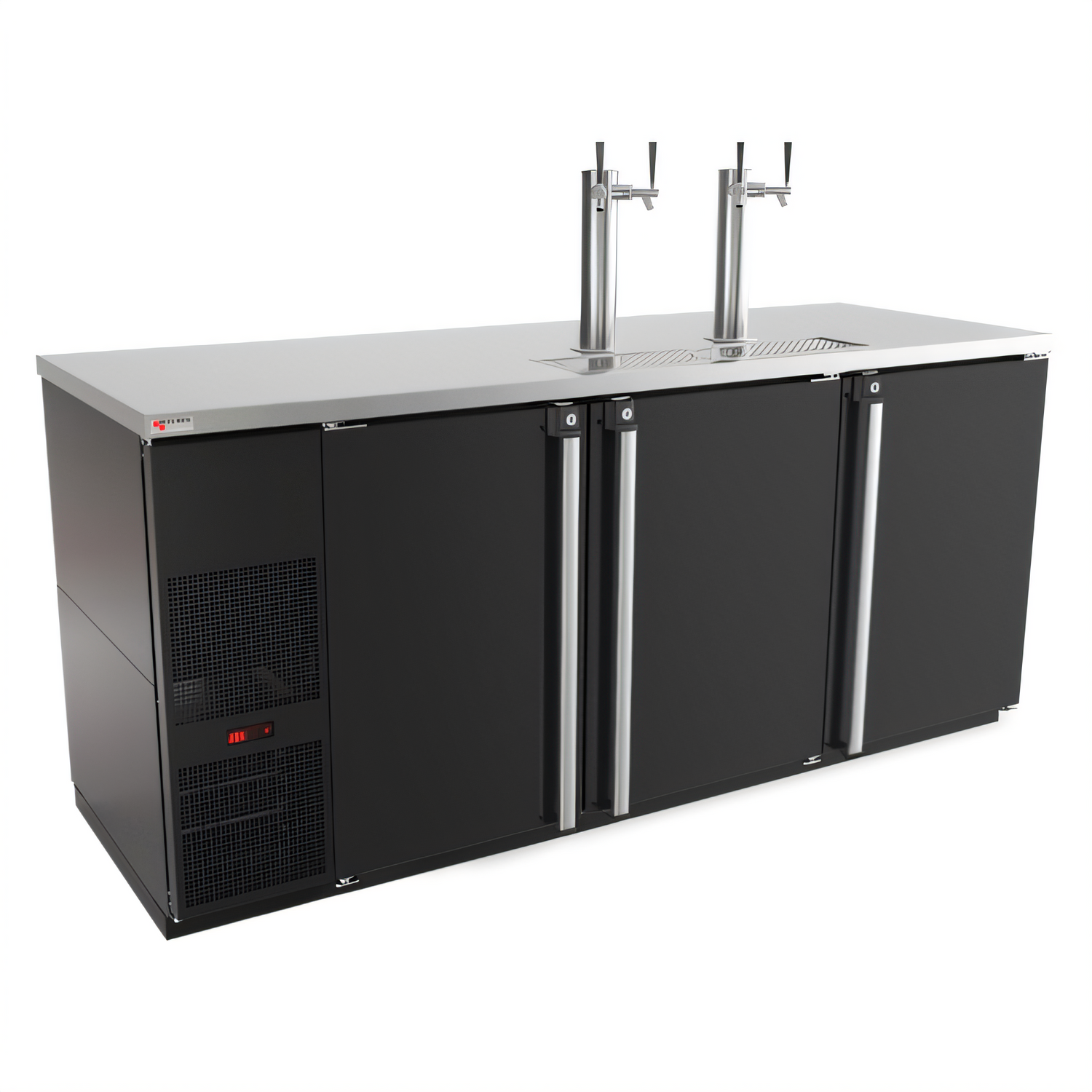

Pro-Line™ E-Series™ Draft Beer Cooler

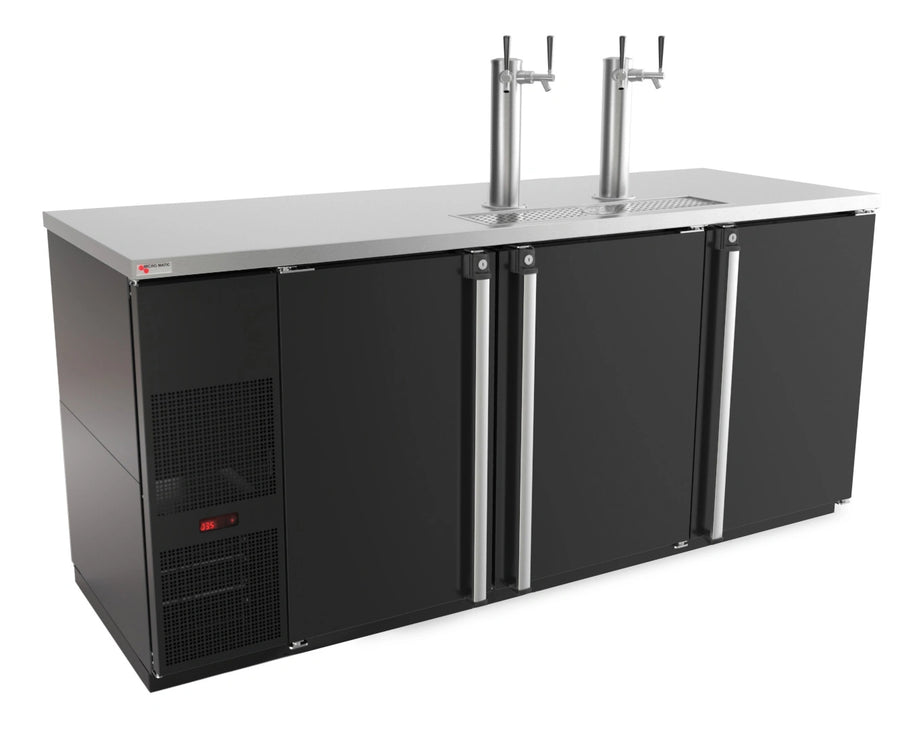

Model MDD78-E · 80" Wide · 3 Doors · 4 FaucetsDesigned by Micro Matic’s draft-beer engineers, the Pro-Line E-Series puts rock-solid performance and real-world operator convenience into a value-driven direct-draw dispenser. Front-breathing, self-contained refrigeration and an integral glass rinser make this 80 inch, three-section cooler an easy fit for today’s busiest bars, taprooms, and event venues.
Key Features

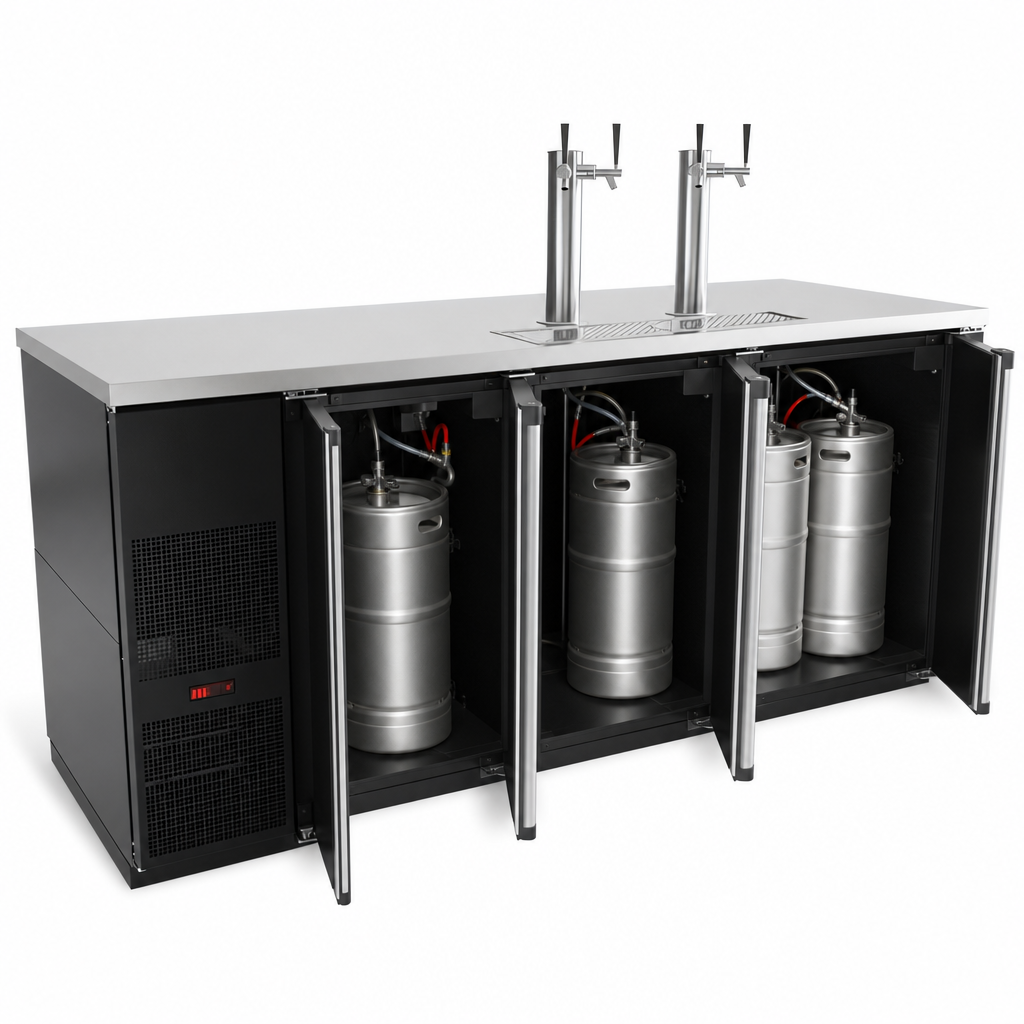

- 30.8 cu. ft. interior holds up to 4 full-size (½ bbl) kegs

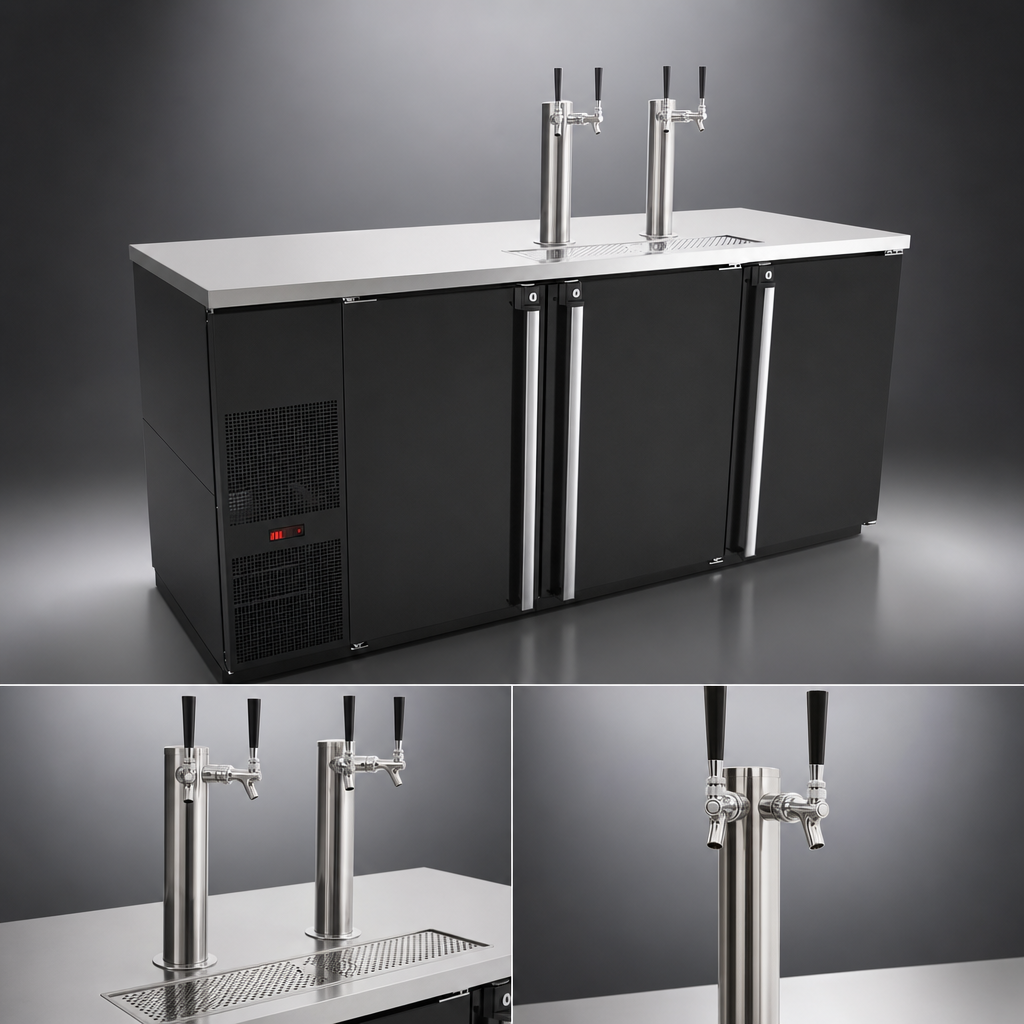

- (2) 3" polished stainless-steel draft towers with 4 NSF-approved faucets
- Full-length drip tray with integrated water glass rinser & removable stainless grate
- Exterior-mounted digital thermostat & LED temperature display
- Front-breathing self-contained 1/3 HP refrigeration – no additional clearance required
- Automatic condensate evaporator – no floor drain hookup
- 18 ga stainless worktop & 20 ga stainless interior; black vinyl-clad steel exterior
- (3) lockable solid doors with heavy-duty hinges & magnetic gaskets
- 2" high-density, CFC-free foamed-in-place insulation
- Factory wired with 8' cord & NEMA 5-15P plug
- cETLus & ETL-Sanitation listed; NSF/ANSI 7 & 18 compliant
Specifications
| Exterior Dimensions (W × D × H) | 80" × 29.5" × 36.9" |
|---|---|
| Internal Capacity | 30.8 cu. ft. | 4 × ½ bbl kegs |
| Doors | 3 solid, hinged, lockable |
| Draft Towers / Faucets | 2 towers / 4 faucets (knobs not included) |
| Refrigeration | 1/3 HP, R134a, front-breathing |
| Electrical | 115 V / 60 Hz / 1-ph, 6.5 A, NEMA 5-15P |
| Temperature Control | Exterior digital thermostat (factory preset 36–38 °F) |
| Construction | Stainless steel top & interior, black vinyl-clad steel exterior |
| Insulation | 2" foamed-in-place, CFC-free polyurethane |
| Glass Rinser Water Req. | 15–20 PSI cold water (inline shut-off & regulator recommended) |
| Certifications | cETLus, ETL-Sanitation, NSF/ANSI 7 & 18 |
| Warranty | 1-year parts & labor (factory-authorized service) |
What’s Included
- Pro-Line E-Series three-section cooler (fully assembled)
- (2) 3" stainless steel towers with 4 × NSF faucets
- Full-length drip tray with removable grate
- Integral glass rinser (water connection required)
- 8' power cord with NEMA 5-15P plug
• Faucet knobs and keg tapping equipment (couplers, regulators, gas lines, etc.) are sold separately.
• Connect the glass rinser to a cold-water line supplying 15–20 PSI through an inline shut-off valve and pressure regulator.
Looking for extra mobility? Optional casters or 6" fixed legs are available from Micro Matic.
