Micro Matic USA MDD68-E-LT Pro-Line Back Bar Coolers
Description

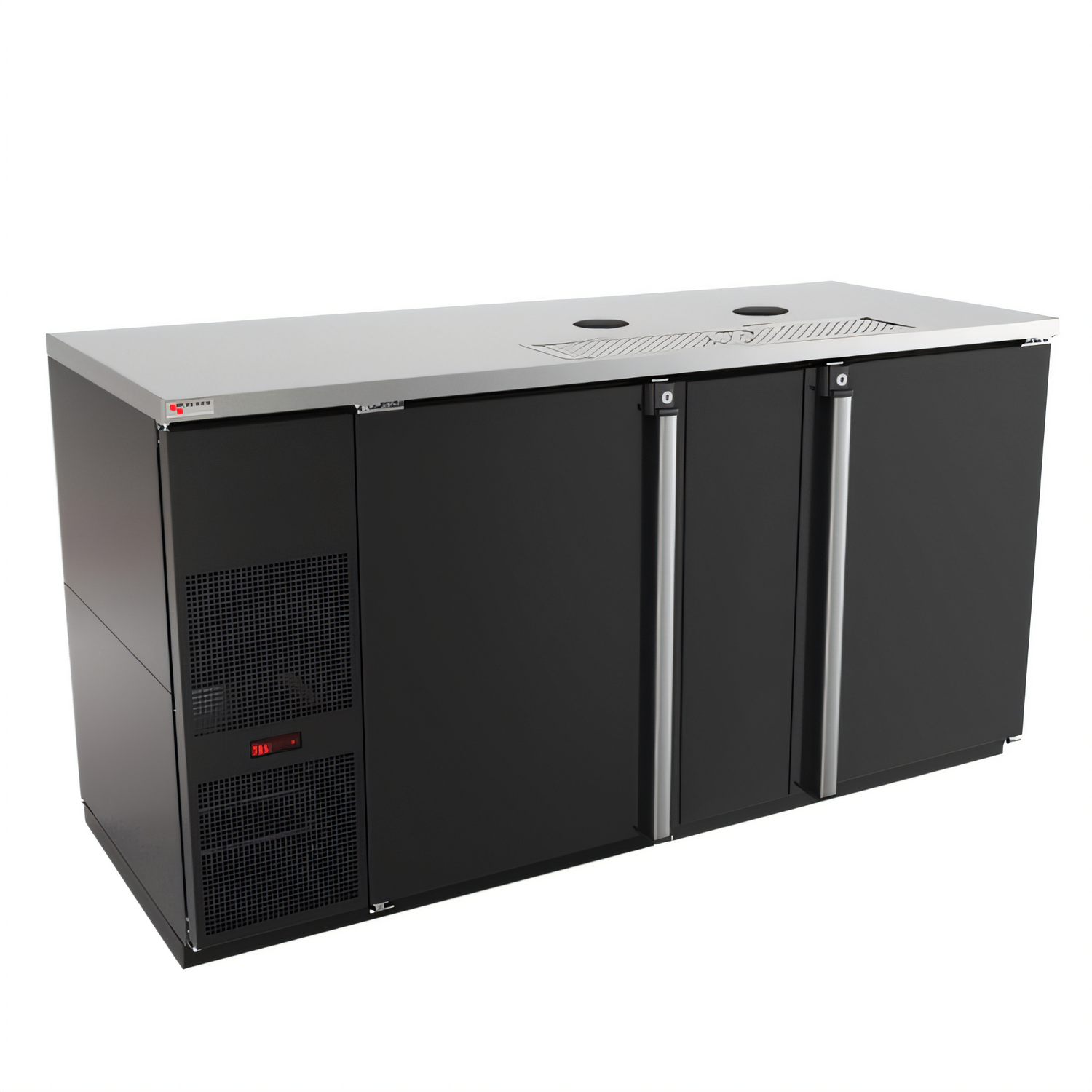

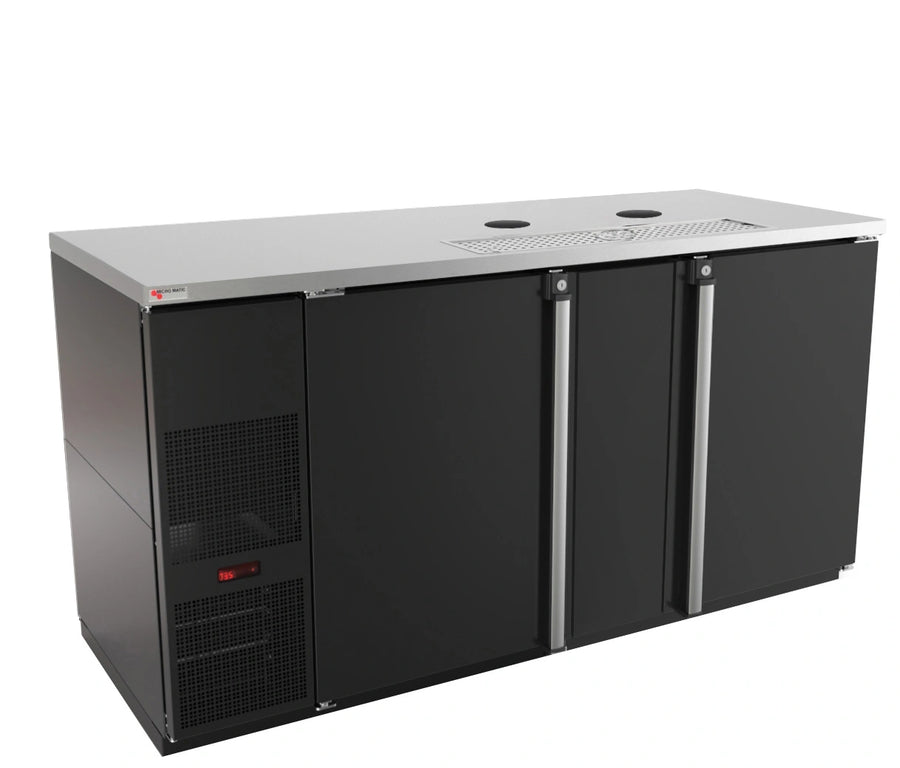

Pro-Line™ E-Series 69" Draft Beer Cooler — 2-Door / 3-Keg (Less Towers)
Model MDD68-E-LT | Micro Matic USAEngineered by the draft-beer experts at Micro Matic, the Pro-Line™ E-Series cooler combines rock-solid refrigeration with service-friendly features in a space-saving 69.5" footprint. From sports bars and taprooms to event venues, this self-contained unit keeps three full-size ½-barrel kegs at the perfect serving temperature and puts an integrated glass rinser, full-length drip tray, and locking doors right at your bartenders’ fingertips.
Why You’ll Love It
- 3-Keg Capacity (28 cu ft): Stores three ½-barrel kegs in a compact, two-section cabinet.
- Front-Breathing Design: Zero-clearance ventilation lets you build the unit into casework or place it flush against walls.
- Integrated Glass Rinser: Pre-chill and rinse glassware instantly for a picture-perfect pour every time.

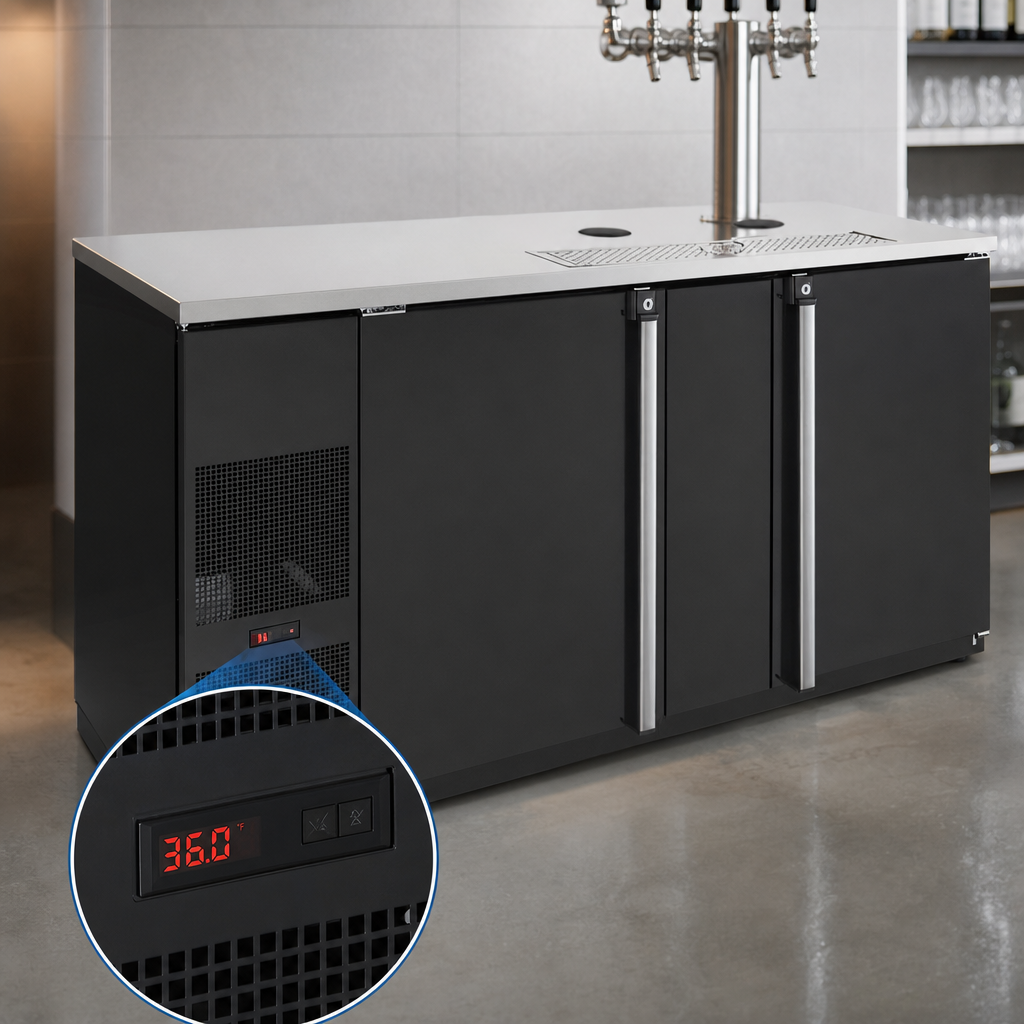

- Digital Thermostat (Exterior-Mounted): Easy-to-read LED display with precise temperature control.
- Full-Length Drip Tray: Removable stainless steel grate simplifies cleanup and improves hygiene.
- R290 Hydrocarbon Refrigerant: Eco-friendly, energy-efficient cooling with a reliable 1/3 HP compressor.
- Locking, Self-Closing Doors: Safeguard your inventory during peak hours or overnight.
- Built to Last: 201-grade stainless steel top & interior with black vinyl-clad steel exterior panels.
- No Floor Drain Needed: Automatic condensate evaporator eliminates extra plumbing.
- Safety & Compliance: cETLus and ETL-Sanitation listed to UL 471 & NSF/ANSI 7 standards.
Technical Specifications
| Exterior Width | 69.5" (1766 mm) |
|---|---|
| Sections / Doors | 2 solid hinged doors with locks |
| Internal Capacity | 28 cu ft / 3 full-size ½-barrel kegs |

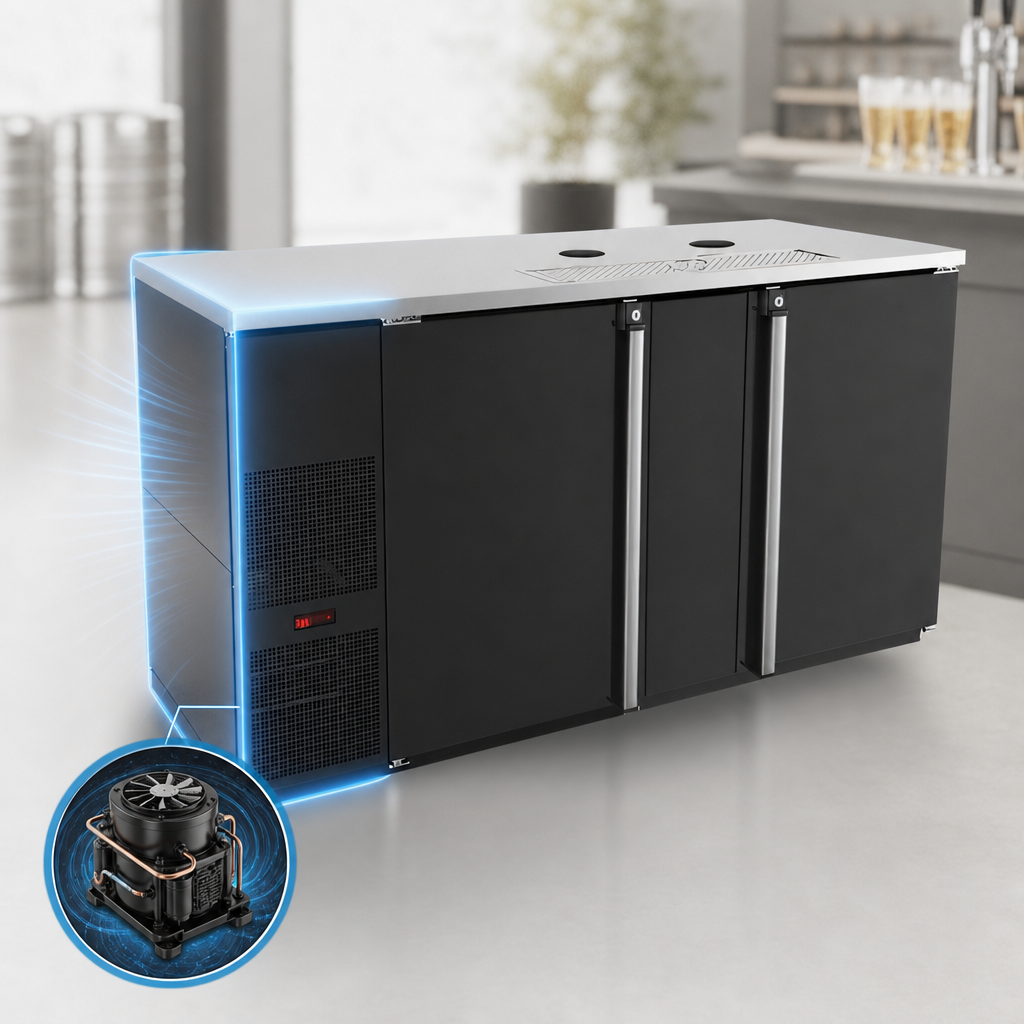

| Refrigeration | Self-contained, 1/3 HP compressor, R290 refrigerant |
| Temperature Control | Exterior digital thermostat & LED display |
| Electrical | 115 V / 60 Hz / 1-ph, 3.0 A, 8' cord with NEMA 5-15P plug |
| Drain / Condensate | Automatic evaporator (no floor drain required) |
| Glass Rinser Water | 15–20 psi cold water connection (3/8" OD recommended) |
| Construction | Stainless steel top & interior; black vinyl-clad steel exterior |
| Insulation | 2" foamed-in-place, CFC-free polyurethane |
| Approvals | cETLus, ETL-Sanitation (UL 471 / NSF 7) |
| Shipping Weight | 359 lb (163 kg) |
| Warranty | 1-year parts & labor (see warranty statement for details) |
Ideal Applications
- Sports bars & pubs
- Craft-beer taprooms
- Hotel & casino beverage stations
- Event centers and banquet halls
- Outdoor bars (in covered, temperature-controlled environments)
What’s Included
- Pro-Line™ E-Series 69" draft beer cooler (less towers)
- Full-length drip tray with removable stainless grate
- Factory-installed integrated glass rinser
- 8' power cord with plug
- User manual & warranty documentation
Always install an in-line water-pressure regulator and shut-off when connecting the glass rinser. For built-in applications, maintain front-vent clearance to ensure proper airflow.
