Micro Matic USA MDD58WLT-E Pro-Line Draft Beer & Wine Dispensers
Description

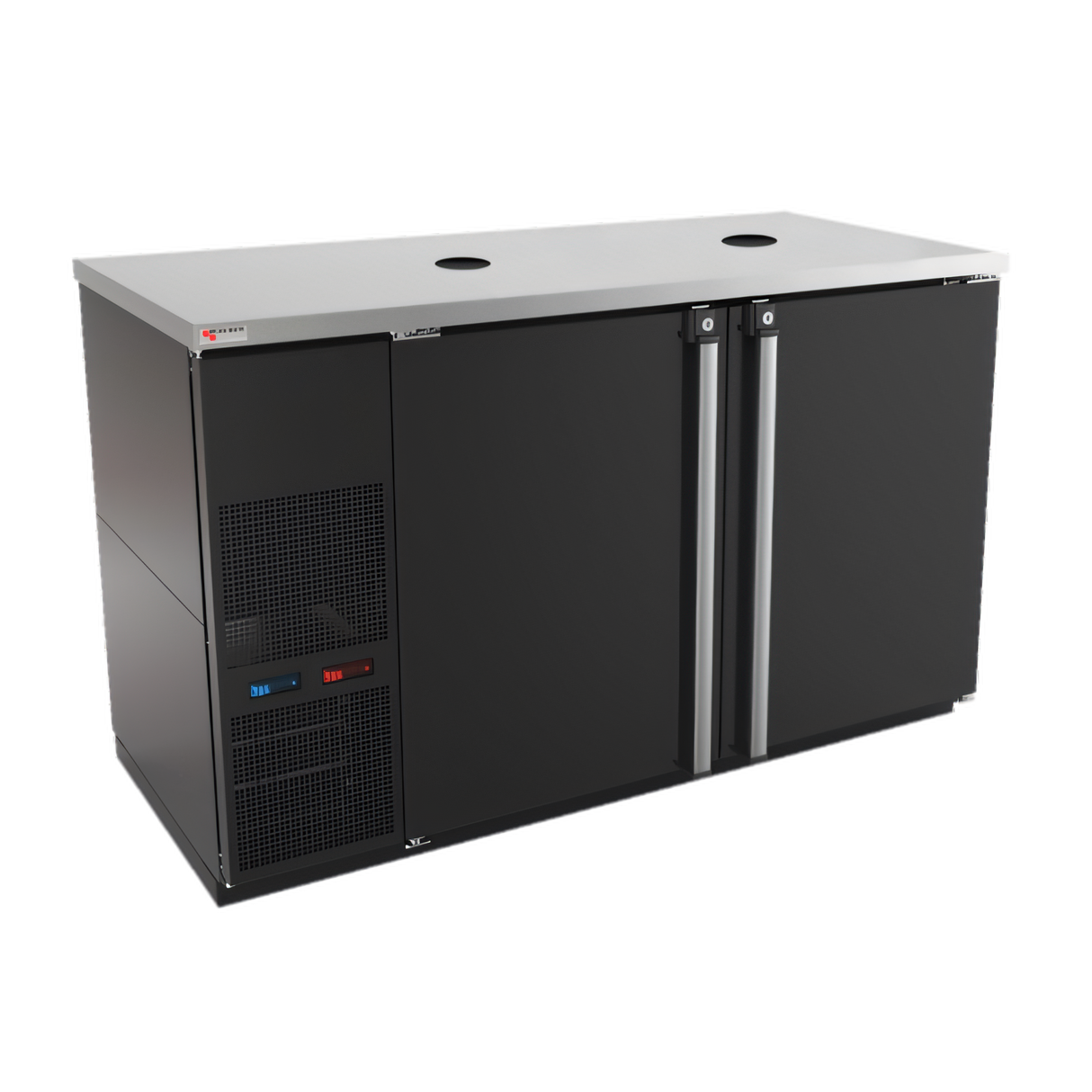

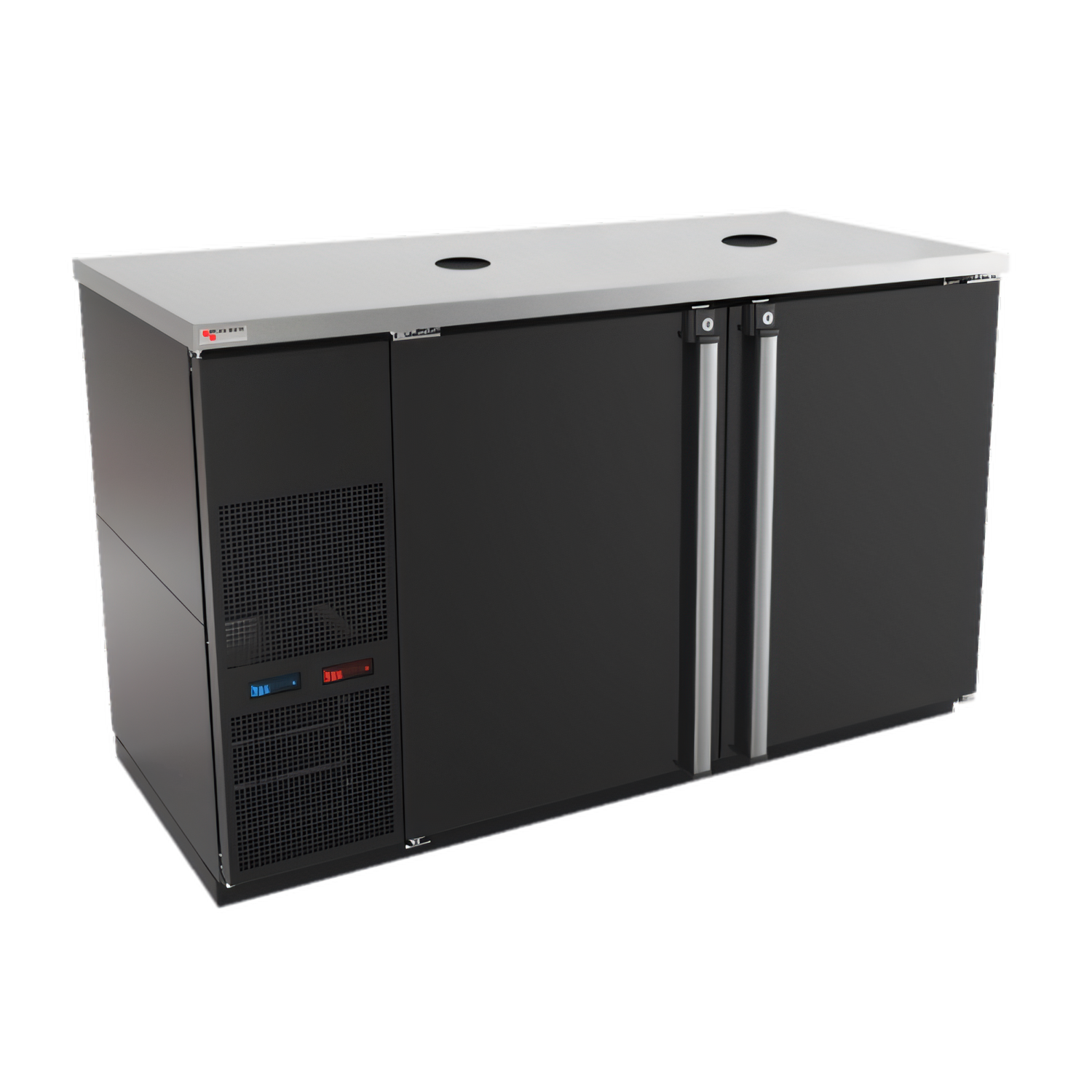

Pro-Line™ E-Series™ Dual-Temperature Wine Cooler Dispenser – 59 in / 8-Keg

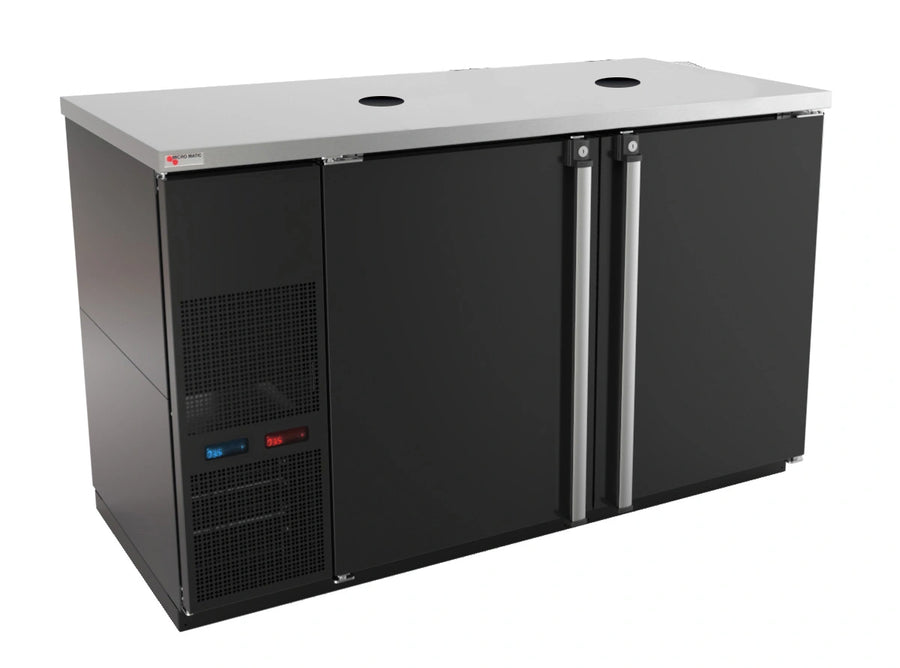

Micro Matic Models MDD58WLT-E (Black) | MDD58SW-E (Stainless)Serve both reds and whites at their perfect pour temperature from a single, compact cabinet. Engineered by wine-industry experts, the Pro-Line™ E-Series™ dispenser combines dual-zone precision, rugged commercial construction and plug-and-pour convenience—ideal for restaurants, tasting rooms, hotels and catered events.
Key Features

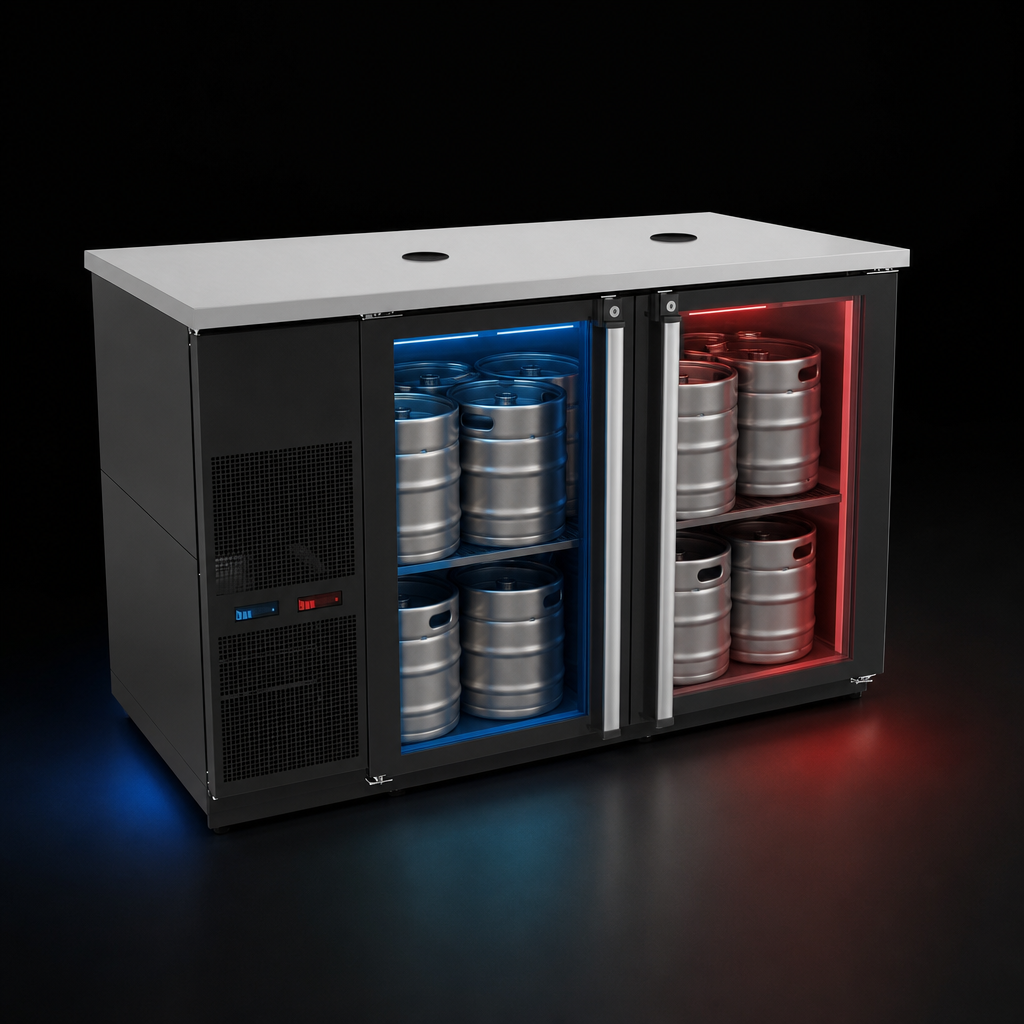

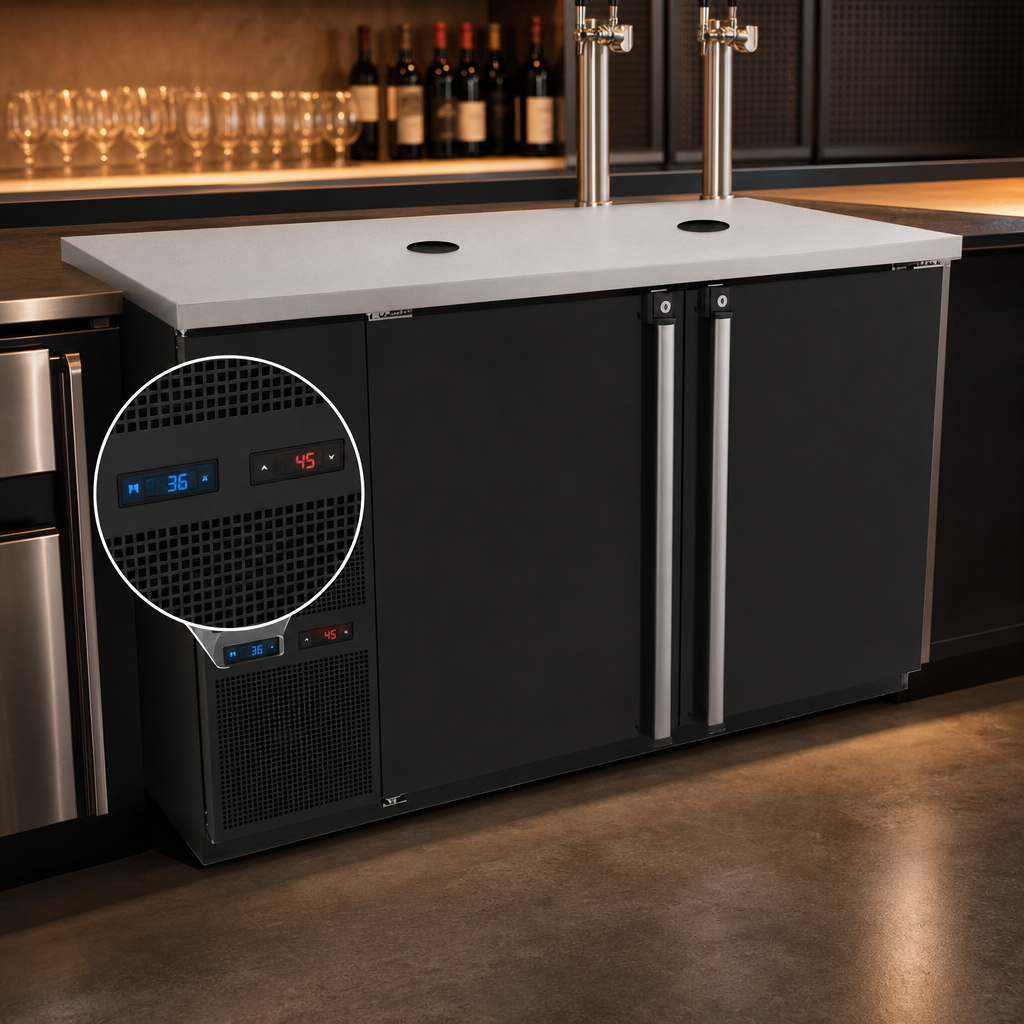

- Two independent temperature zones with color-coded digital controls
• Blue LED = whites 42 – 48 °F (5.5 – 8.8 °C)
• Red LED = reds 55 – 65 °F (12.7 – 18.3 °C) - Capacity: up to 8 × 20 L wine kegs (4 per zone)
- (2) factory-drilled 3" tower openings—choose any wine column or self-service tap (sold separately)
- Self-contained 1/3 HP refrigeration with eco-friendly R290; front-vent design requires zero side clearance
- Automatic condensate evaporator—no floor drain or plumbing hookup needed
- (2) solid, locking doors protect your premium inventory
- Heavy-duty 18 ga. stainless top & 20 ga. stainless interior built for years of commercial service
- Rear knock-outs simplify connection of nitrogen/argon gas lines
- 8 ft cord with NEMA 5-15P plug—just uncrate, roll in and pour
At-a-Glance Specifications
| Capacity | 8 × 20 L kegs (4 per zone) |
|---|---|
| Temperature Range | Whites 42–48 °F / 5.5–8.8 °C • Reds 55–65 °F / 12.7–18.3 °C |
| Exterior Finish | Black vinyl over steel (MDD58WLT-E) or Stainless front & sides (MDD58SW-E) |
| Interior | Stainless steel walls & floor |
| Doors | (2) solid hinged, locking |
| Compressor | 1/3 HP, self-contained |
| Running Amps | 3.0 A |
| Refrigerant | R290 (4.9 oz charge) |
| Electrical | 115 V / 60 Hz / 1-ph • 8 ft cord • NEMA 5-15P |
| Dimensions (W × D × H) | 59.5" × 23.75" × 38.13" (1512 × 603 × 969 mm) |
| Shipping Weight | 318 lb (145 kg) |
| Certifications | cETLus • ETL Sanitation (conforms to UL & NSF standards) |
What’s Included
- Pro-Line™ E-Series™ dual-zone cabinet
- (2) rear gas-line knock-out plugs
- (2) factory-drilled 3" tower holes with caps
- Keys for door locks
- Installation & operation manual
Wine towers, drip trays, regulators and keg-tapping hardware are sold separately so you can build the perfect dispense system for your program.
Easy, Flexible Installation

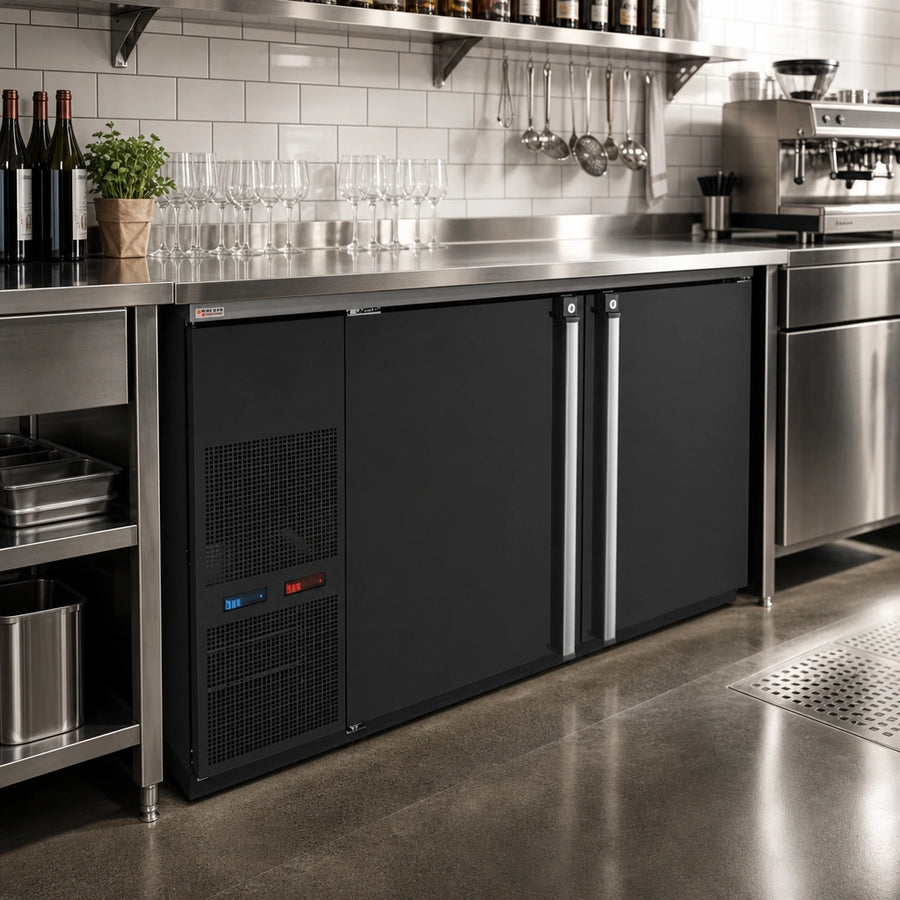

- Front-vented refrigeration – slide into millwork or under bar tops without side or rear clearance
- No plumbing: self-evaporating condensate pan keeps floors dry
- Optional 6" legs or heavy-duty casters available for fixed or mobile setups
Peace-of-Mind Warranty
Covered by Micro Matic’s one-year limited parts & labor warranty. Extended protection plans are also available—ask our team for details.
Need help specifying towers or gas equipment? Our beverage specialists are ready to assist—call 866-327-4159 or chat with us online.
