Micro Matic USA  |  Pro-Line  |  SKU: MDD58W-E-E

Micro Matic USA MDD58W-E-E Pro-Line Draft Beer & Wine Dispensers

$7,984.55
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Warranty sheet
Related Searches
Automatic Liquor Dispensers Beverage Equipment Beverage Equipment Drink Dispensers Ice Machines & Beverage Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

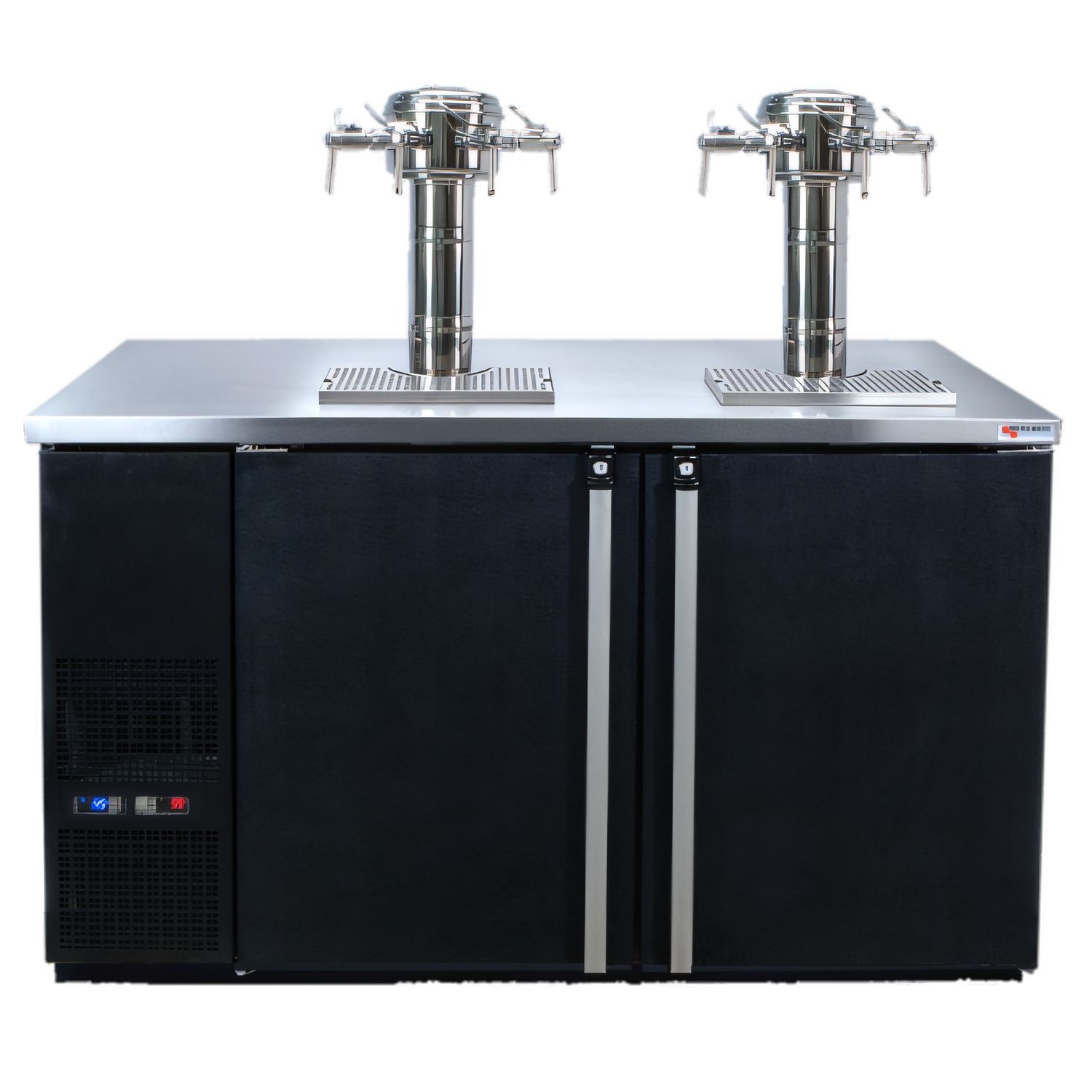

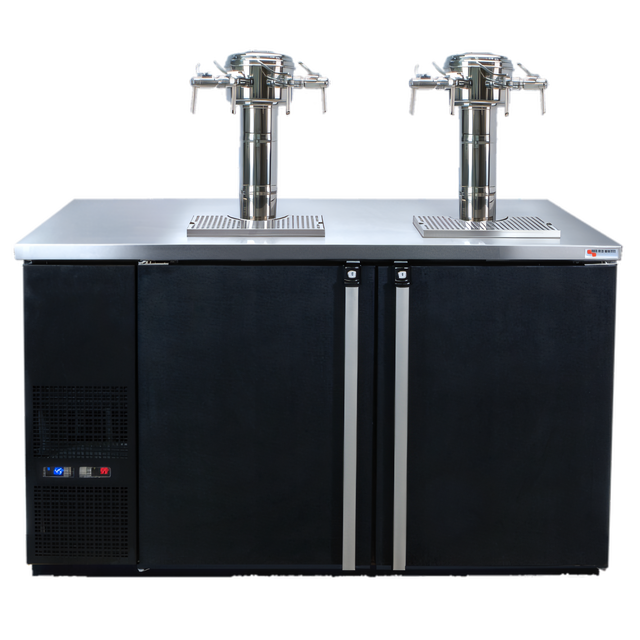

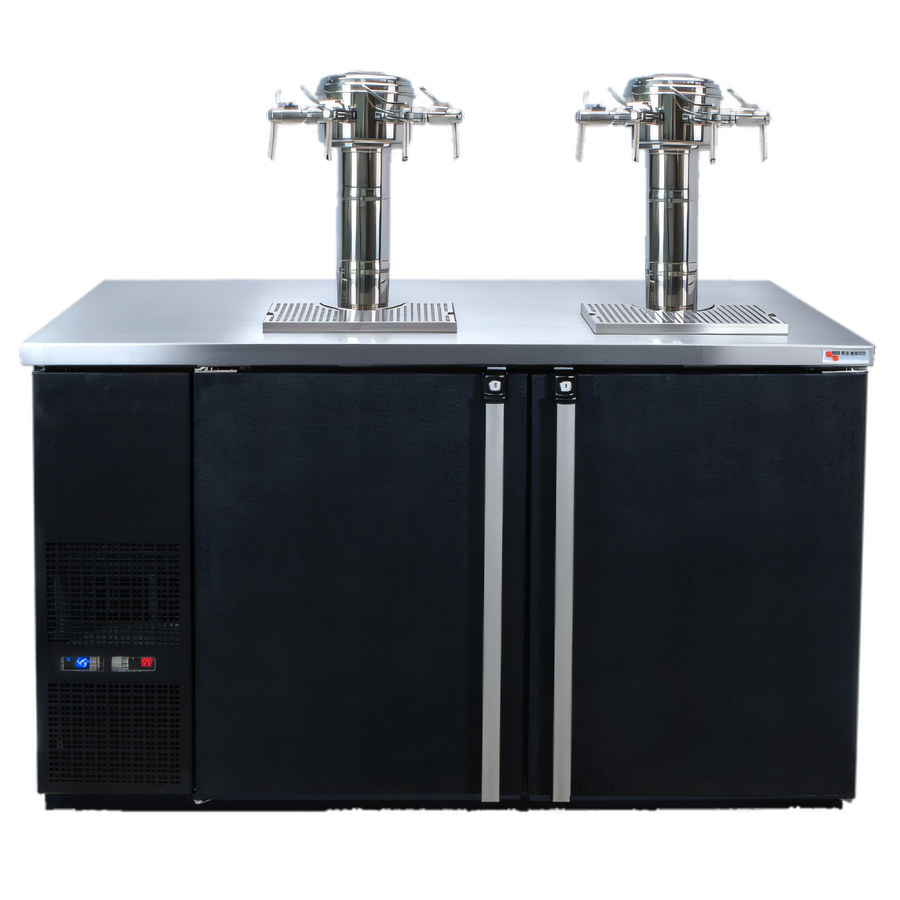

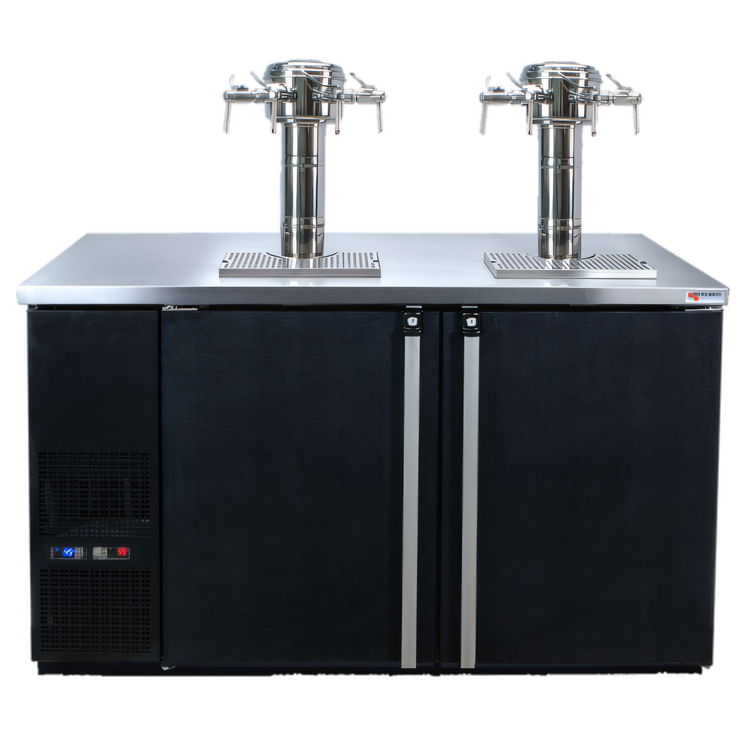

Pro-Line™ E-Series Dual-Temperature Wine Cooler Dispenser

59-1/2" W • 2 Sections • Holds 8 × 1/6 bbl Kegs

Created by the beverage-dispensing experts at Micro Matic USA, this self-contained wine cooler/dispenser delivers two independent temperature zones in a single, service-ready platform. Perfect for bars, taprooms, and high-volume restaurants that want to pour perfectly chilled whites, bold reds, cocktails, or craft beer — all from one sleek 59-1/2" footprint.

Key Features & Benefits

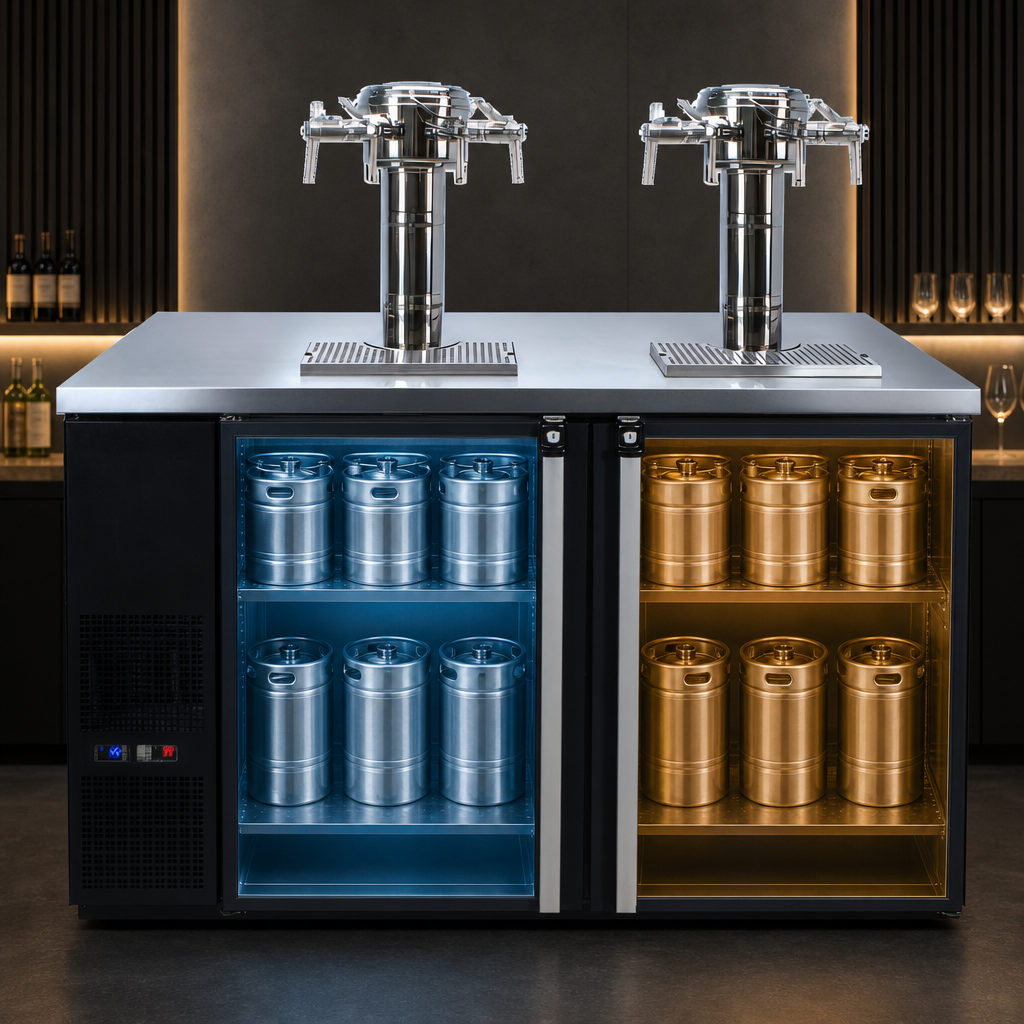

  • Dual temperature zones with independent LED displays: 42-48 °F for whites / 55-65 °F for reds

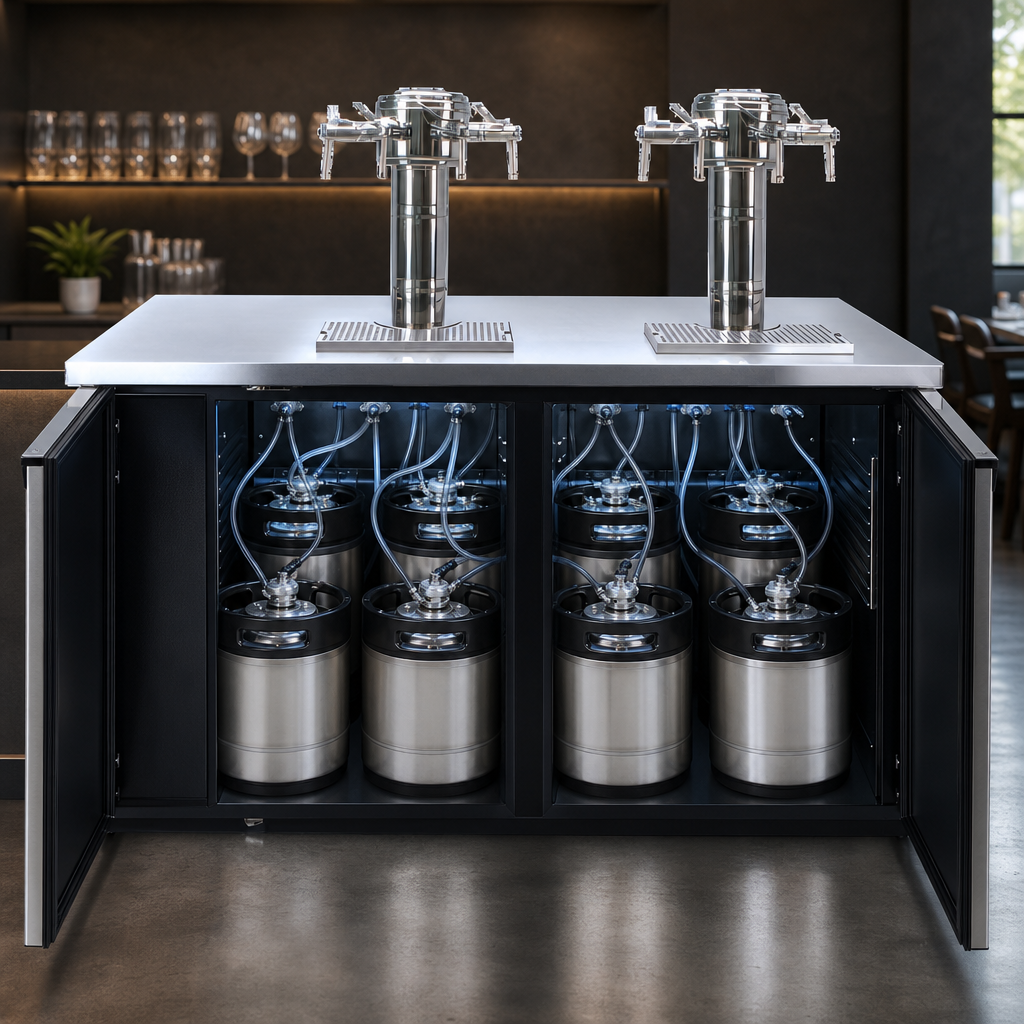

  • Accommodates 8 standard 1/6 barrel (≈20 L) kegs — ideal for a balanced wine & beer lineup
  • (2) Sommelier wine fonts, each with 4 NSF-approved side-pull faucets for gentle, low-agitation pours
  • (2) Solid, locking doors keep product secure during and after service
  • Front-breathing refrigeration — no side or rear clearance required
  • Automatic condensate evaporator eliminates the need for a floor drain
  • Stainless steel top, drip tray & interior floor for lasting durability and easy sanitation
  • (2) Four-way gas distributor manifolds + rear knock-outs simplify gas line routing
  • Energy-efficient 1/3 HP compressor charged with eco-friendly R134a
  • Certified to cETLus & ETL-Sanitation standards

Technical Specifications

Model Pro-Line™ E-Series Dual Temp Wine Cooler
Capacity 8 × 1/6 bbl kegs (two zones)
Overall Width 59-1/2" (151 cm)
Doors 2 solid hinged, keyed locks
Dispense System 2 wine fonts • 4 side-pull faucets each (8 total)
Digital Thermostats 2 color-coded LED (blue-cold / red-cool)
Refrigerant R134a
Compressor 1/3 HP self-contained
Electrical 115 V / 60 Hz / 1-ph • 6.5 A • NEMA 5-15P plug (8' cord)
Construction Stainless steel top & interior floor • black vinyl-clad steel exterior
Ventilation Front intake & exhaust
Certifications cETLus, ETL-Sanitation (NSF/ANSI 7)
Warranty 1-year parts & labor (see Micro Matic limited warranty for details)
Important: Tap handles/knobs, keg couplers, gas cylinders, regulators, and beverage lines are not included and are sold separately.

Looking for a turnkey package or custom tower configuration? Contact our beverage solutions team and we’ll build the perfect system for your bar.

Features & Specs

Manufacturer

Micro Matic USA

Brand_name

Pro-Line

Certifications

cETLus, ETL-Sanitation

Height

37.25in

Width

59.5in

Depth

28.25in

Shipping Weight

318.0lbs

Width (side - side) OA

59"

Refrigeration Type

self-contained refrigeration

Towers/Taps

(2) dual faucet columns

Exterior Finish

all black exterior

Top

flat top, stainless steel

Specifications

Pro-Line™ E-Series™ Dual Temperature Wine Cooler Dispenser, two-section, 59-1/2"W, self-contained refrigeration, accommodates (8) 1/6 barrel kegs, (2) solid hinged doors with locks, (2) sommelier wine fonts with (4) side pull faucets each (NSF-approved faucet knobs not included), stainless steel drip tray, (2) LED digital temperature displays, (2) 4-way gas distributor manifolds, front ventilated, automatic condensate evaporator, includes (2) rear knock-out plugs for gas lines, stainless steel interior floor, stainless steel top, black vinyl over steel exterior, R134a, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)
