Micro Matic USA MDD58W-E-D Pro-Line Draft Beer & Wine Dispensers
Description

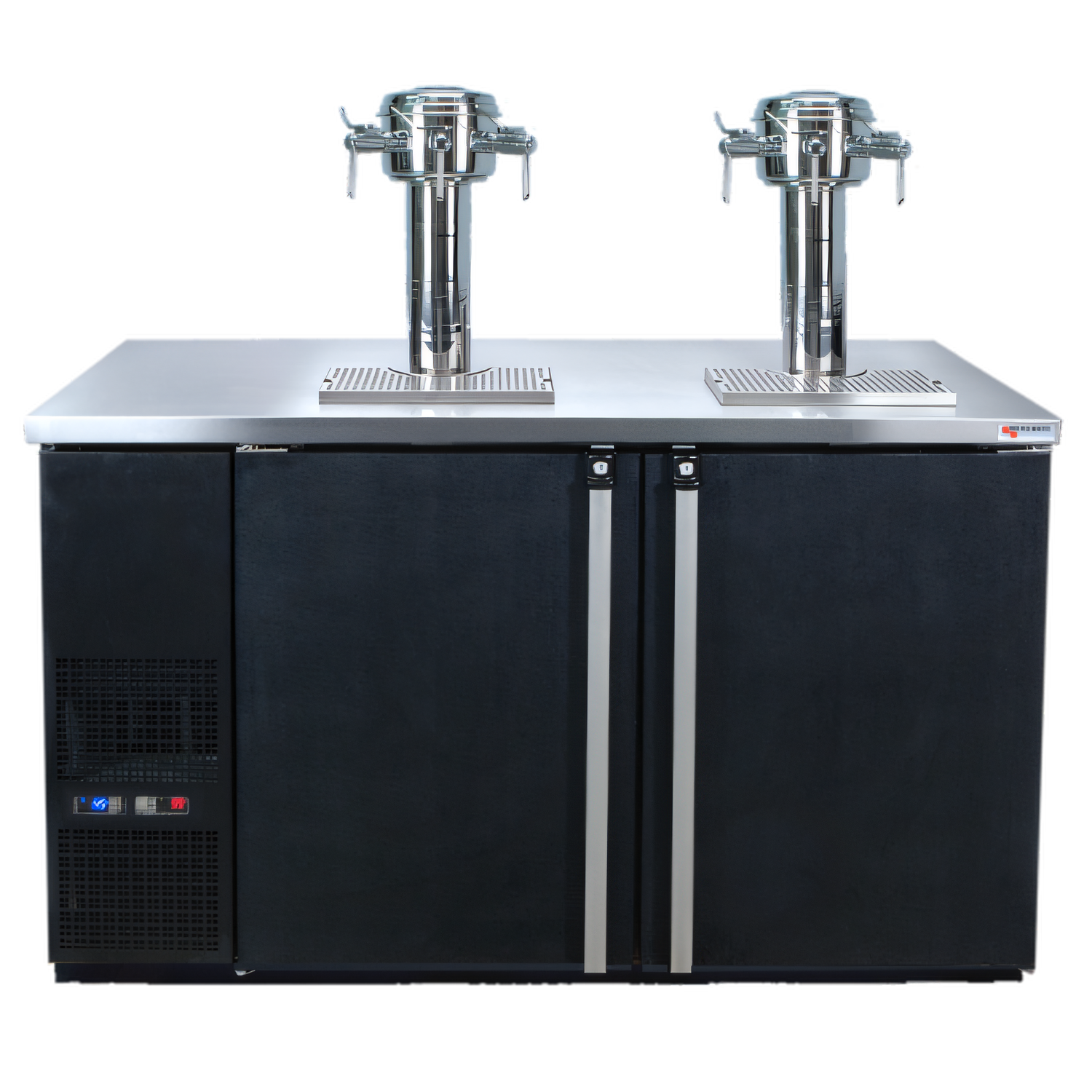

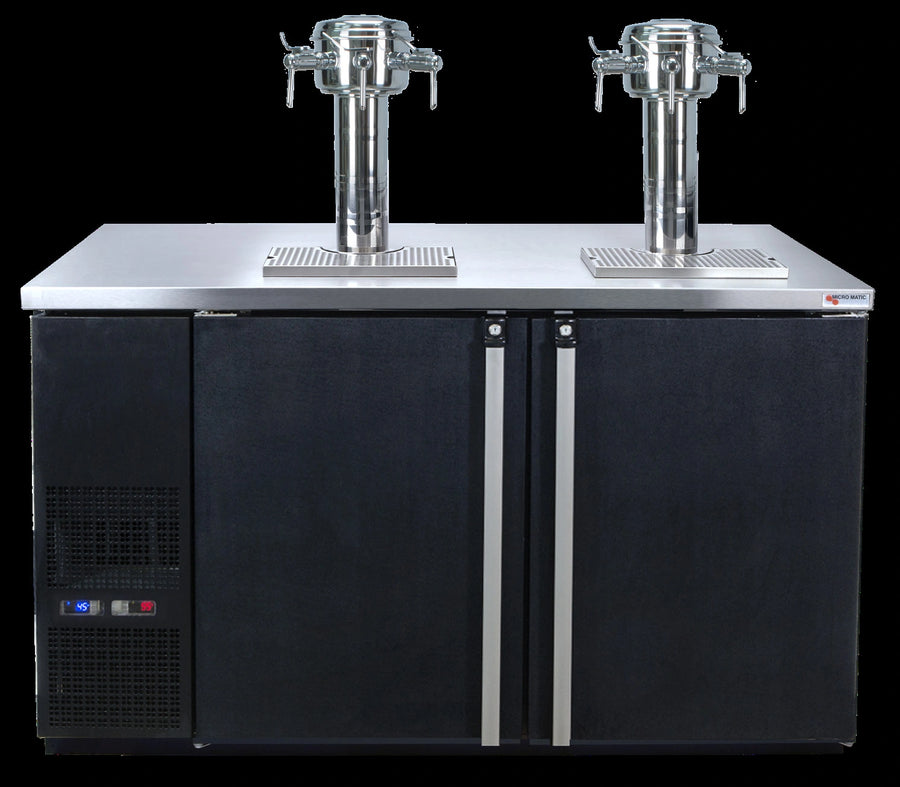

Pro-Line™ E-Series Dual-Temperature Wine Cooler Dispenser – 59" (MDD58W-E-D)
Serve reds & whites at their ideal temperatures from one sleek, commercial-grade unitEngineered by Micro Matic’s wine-on-tap specialists, the Pro-Line E-Series lets you pour up to six wines with perfect consistency while freeing valuable cooler and bottle storage space. Two independently controlled zones keep whites crisp and reds velvety, so every glass tastes exactly as the winemaker intended.
Key benefits

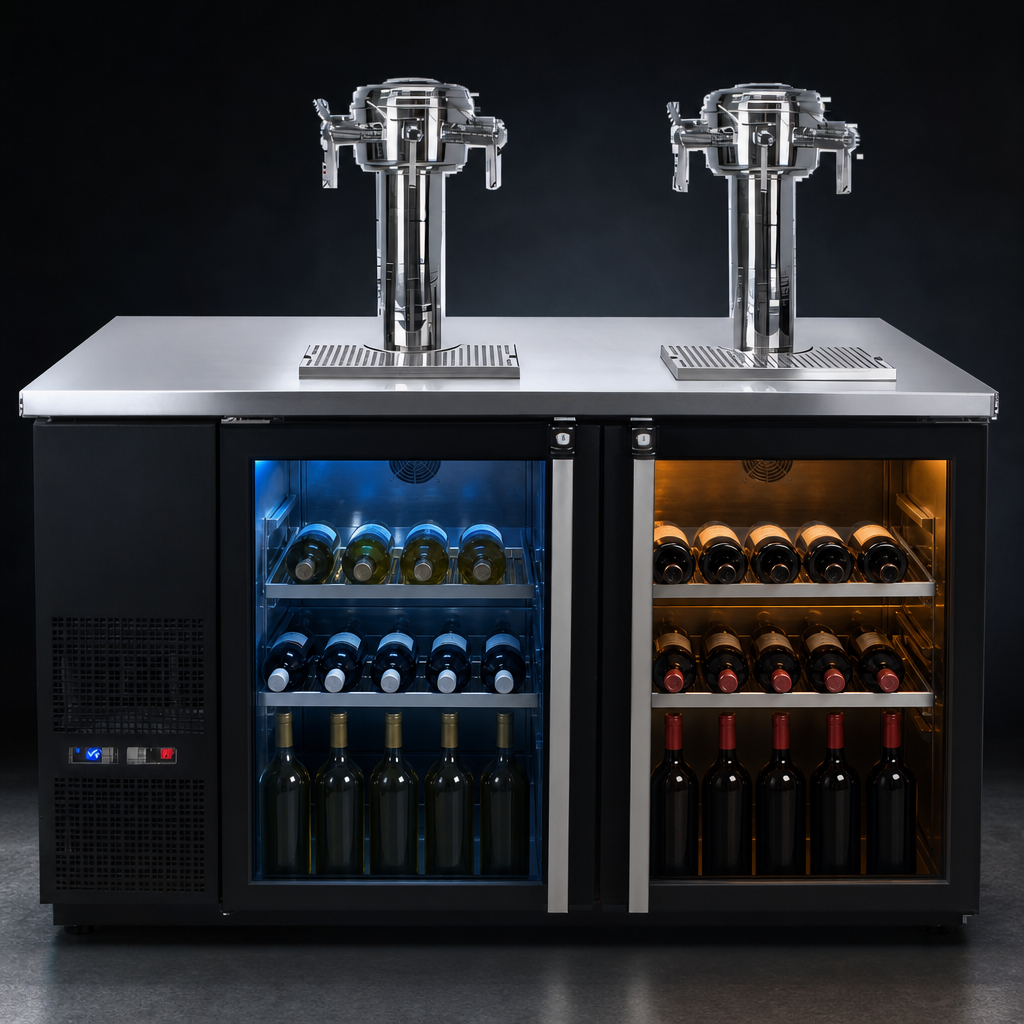

- Dual zones with color-coded digital thermostats – blue LED for whites (42-48 °F) and red LED for reds (55-65 °F).
- Two Sommelier wine fonts, each with three side-pull faucets, deliver a steady, low-turbulence pour.
- Accommodates eight 20 L (1/6-barrel) kegs—four per zone—to minimize change-outs during peak service.

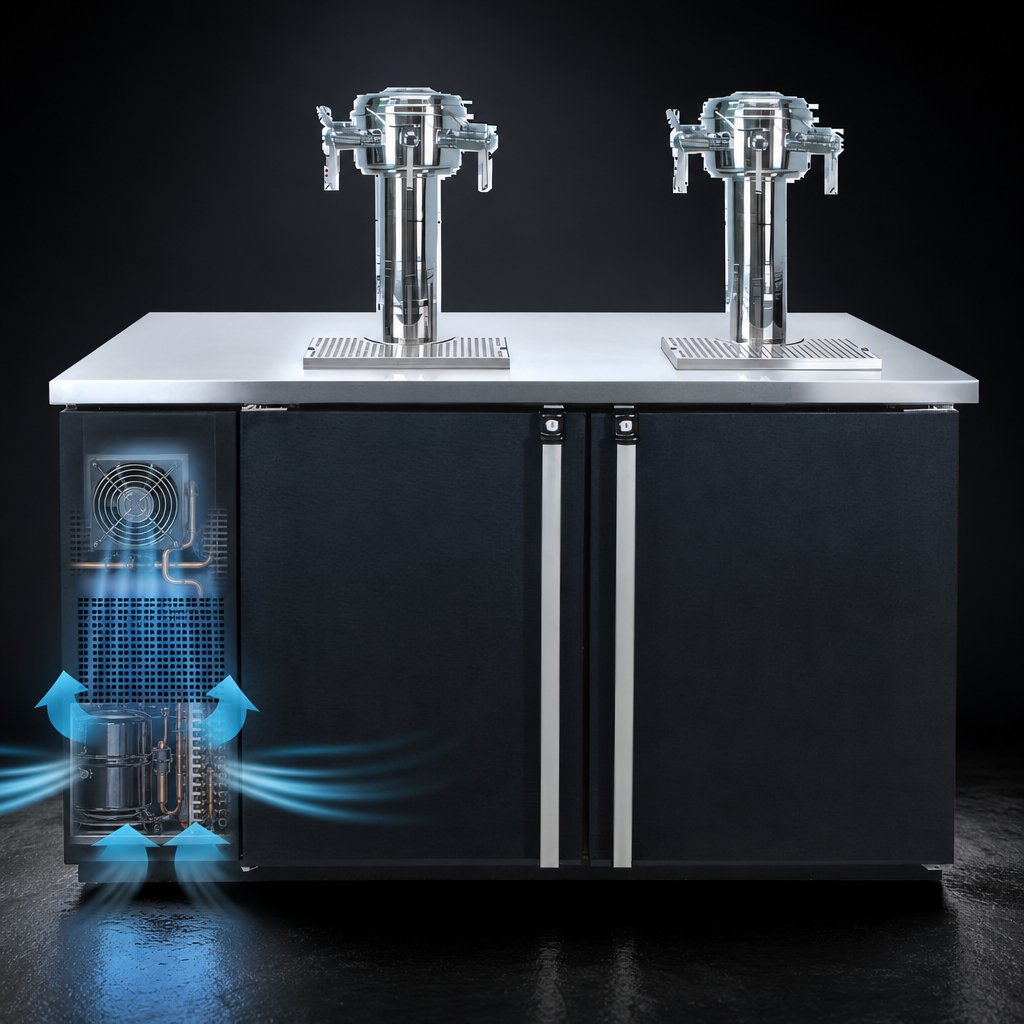

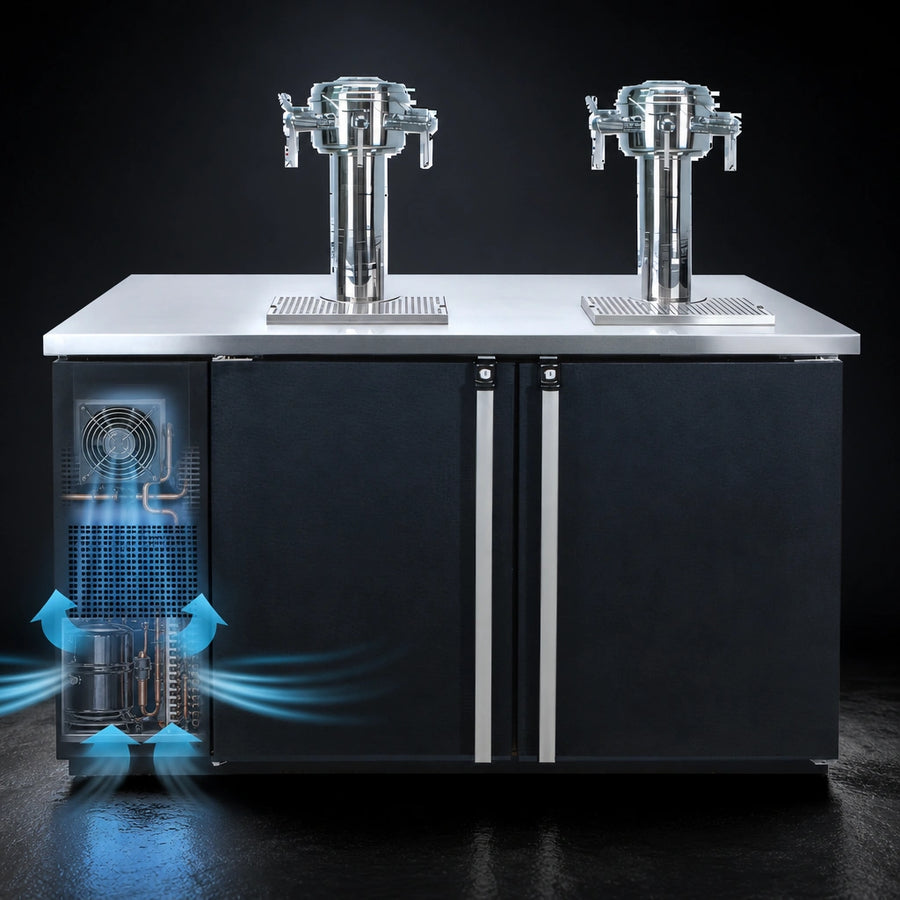

- Front-ventilated, self-contained refrigeration allows built-in installation with no remote condenser or floor drain.
- Durable construction: 18-ga stainless top, 22-ga locking doors, and a 20-ga stainless interior with 2″ CFC-free insulation.
- Eco-friendly R290 refrigerant, 1/3 HP compressor and automatic condensate evaporation for efficient, low-maintenance operation.
- Comes ready for gas: (2) 4-way distributor manifolds plus rear knock-outs for CO₂/N₂ supply lines.
- cETLus & ETL-Sanitation listed—meets UL and NSF standards for commercial food-service venues.
Specifications
| Model | MDD58W-E-D |
|---|---|
| Overall Capacity | 8 × 20 L (1/6-bbl) wine kegs |
| Faucets / Fonts | 6 side-pull faucets / 2 Sommelier fonts |
| Temperature Range | 42-48 °F whites • 55-65 °F reds |
| Compressor | 1/3 HP, self-contained |
| Refrigerant | R290 (4.9 oz charge) |
| Running Amps | 3.0 A |
| Electrical | 115 V / 60 Hz / 1-ph • NEMA 5-15P • 8′ cord |
| Doors | (2) solid hinged doors with locks |
| Ventilation | Front-breathing—no side/back clearance required |
| Exterior / Top | Black vinyl-clad steel / 18-ga stainless steel |
| Interior | 20-ga stainless floor & walls |
| Dimensions (W × D × H) | 59.5″ × 29.5″ × 36.9″ (1512 × 750 × 937 mm) |
| Shipping Weight | 318 lb / 145 kg |
| Certifications | cETLus, ETL-Sanitation |
Tap handles, keg couplers, gas tanks, regulators and other tapping hardware are sold separately.
