Description

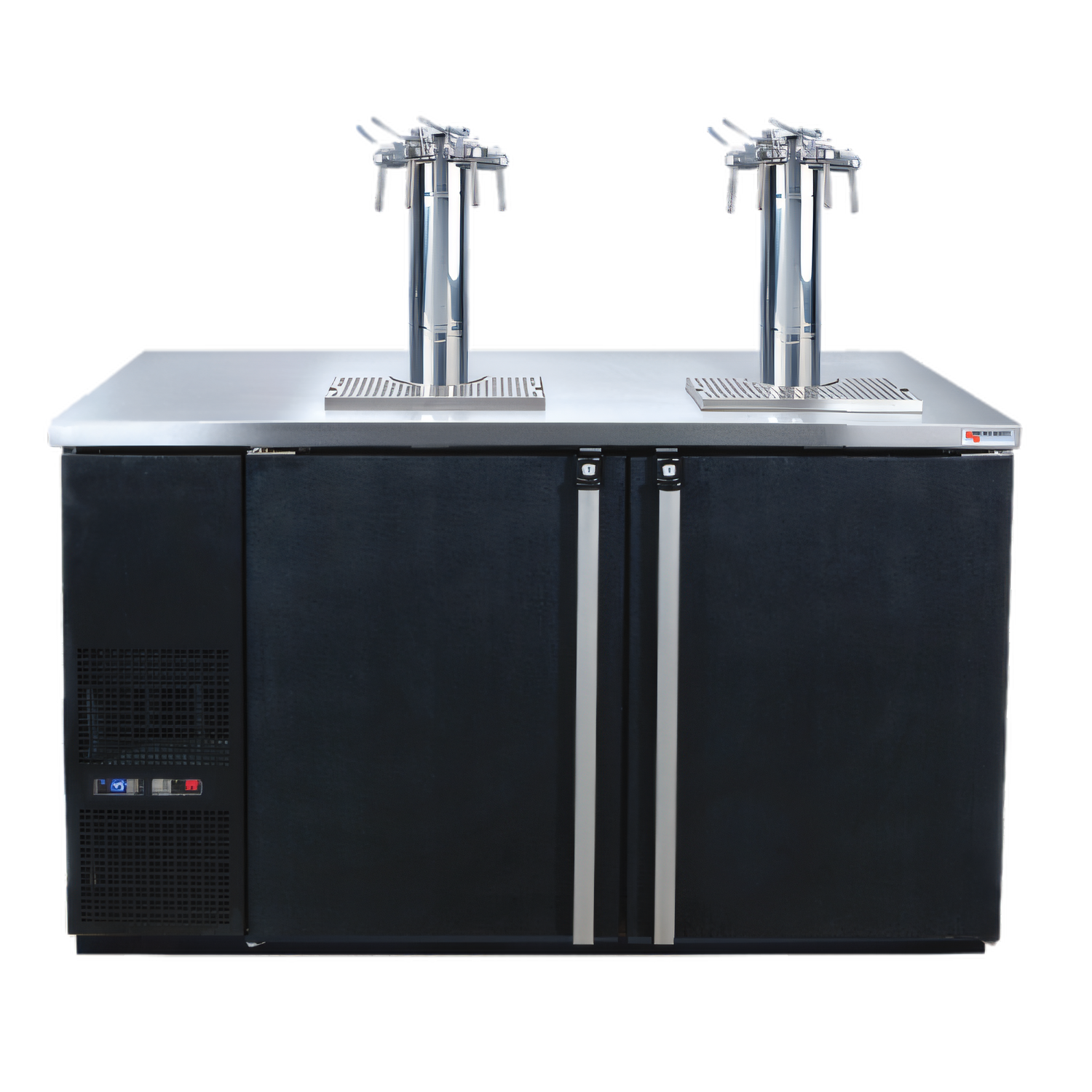

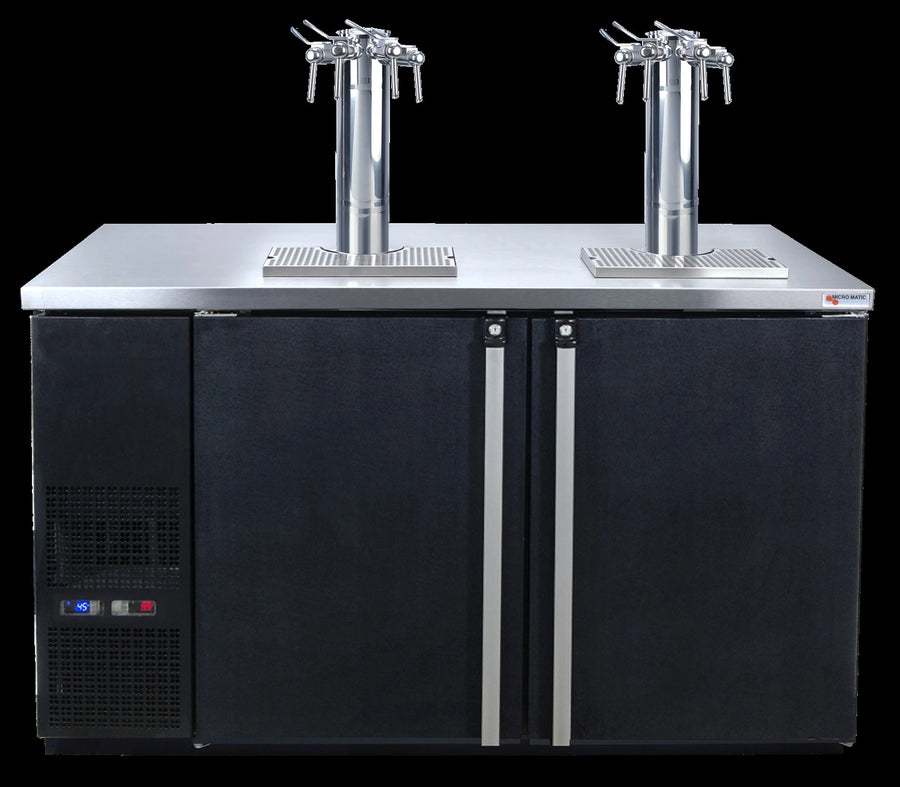

Pro-Line™ E-Series Dual-Temperature Wine Cooler Dispenser

Model MDD58W-E-C | 59-1/2" Wide | 8 Keg / 8 Faucet

Crafted by Micro Matic’s wine-industry engineers, the Pro-Line™ E-Series lets you pour perfectly chilled whites and cellar-temperature reds side-by-side—straight from the keg. Two independent refrigeration zones and eight stainless steel side-pull faucets turn any bar, tasting room, or lounge into a profitable wine-on-tap station.

Why you’ll love it

  • Dual zones, dual displays – color-coded LED controllers maintain 42-48 °F for whites and 55-65 °F for reds.
  • High volume capacity – holds eight 1/6-barrel (20 L) wine kegs, four per zone.
  • Eight 304 SS faucets – two Finesse wine fonts with four side-pull faucets each (medallion holders not included).
  • Self-contained, front-ventilated 1/3 HP refrigeration system installs flush under bars or back-of-house counters.
  • Commercial build – 18-gauge stainless worktop, stainless interior floor/walls, foamed-in-place insulation.
  • Service-friendly details – automatic condensate evaporator (no drain line), 4-way gas manifolds, rear knockout plugs, and removable stainless drip tray.
  • Security ready – two solid hinged doors with factory-installed locks keep your premium wines protected.
  • Certified safe: cETLus & ETL-Sanitation listed; conforms to UL & NSF standards.

Technical specifications

Model / Part No. MDD58W-E-C
Capacity 8 × 1/6 barrel (20 L) kegs – 4 per zone
Dispensing 2 × Finesse wine towers / 8 side-pull faucets total
Temperature range Whites 42-48 °F (5.5-8.8 °C) | Reds 55-65 °F (12.7-18.3 °C)
Refrigeration Self-contained, front-ventilated, 1/3 HP, R134a
Electrical 115 V / 60 Hz / 1-ph, 6.5 A, NEMA 5-15P, 8 ft cord
Exterior construction Stainless steel top; black vinyl-clad steel front, sides & back
Interior construction Stainless steel floor & walls, foamed-in-place polyurethane insulation
Doors 2 solid hinged with locks
Gas distribution 2 × 4-way manifolds, rear knockout plugs included
Dimensions (W × D × H) 59.5″ × 23.8″ × 36.9″ (1512 × 604 × 937 mm)
Shipping weight 318 lb (145 kg)
Certifications cETLus, ETL-Sanitation
Warranty 1-year limited parts & labor (see warranty statement)

What’s included

  • (1) Pro-Line™ E-Series dual-zone cabinet with integrated refrigeration
  • (2) Finesse wine fonts with 4 stainless faucets each
  • (2) Stainless steel drip trays
  • (2) Color-coded LED temperature controllers
  • (2) 4-way gas manifolds & rear knockout plugs

Tap handles, medallion holders, kegs, gas cylinders, and tapping hardware are sold separately.

Important: Always use an approved wine gas blend (typically 75 % N2 / 25 % CO2) and Micro Matic certified lines and fittings to prevent spoilage and ensure compliance with local health regulations.

Features & Specs

Manufacturer

Micro Matic USA

Brand_name

Pro-Line

Certifications

cETLus, ETL-Sanitation

Height

37.25in

Width

59.5in

Depth

28.25in

Shipping Weight

318.0lbs

Refrigeration Type

self-contained refrigeration

Width (side - side) OA

59"

Exterior Finish

all black exterior

Top

flat top, stainless steel

Towers/Taps

(2) quadruple faucet columns

Specifications

Pro-Line™ E-Series™ Dual Temperature Wine Cooler Dispenser, two-section, 59-1/2"W, self-contained refrigeration, accommodates (8) 1/6 barrel kegs, (2) solid hinged doors with locks, (2) Finesse wine fonts with (4) 304 stainless steel side pull faucets each (medallion holders not included), stainless steel drip tray, (2) LED digital temperature displays, (2) 4-way gas distributor manifolds, front ventilated, automatic condensate evaporator, includes (2) rear knock-out plugs for gas lines, stainless steel interior floor, stainless steel top, black vinyl over steel exterior, R134a, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately
