Micro Matic USA  |  Pro-Line  |  SKU: MDD58W-E-B

Micro Matic USA MDD58W-E-B Pro-Line Draft Beer & Wine Dispensers

$6,743.09
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Warranty sheet
Related Searches
Automatic Liquor Dispensers Beverage Equipment Beverage Equipment Drink Dispensers Ice Machines & Beverage Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

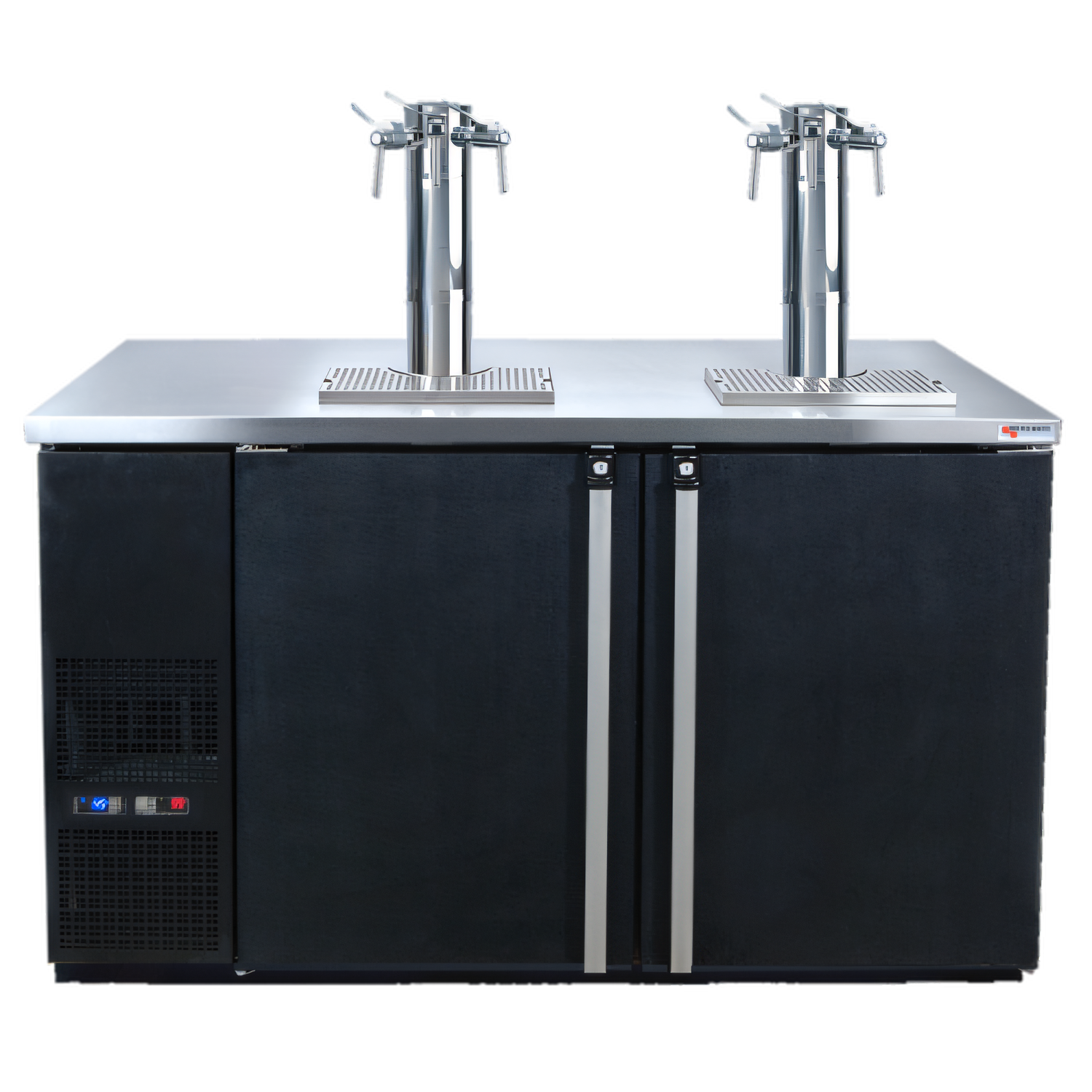

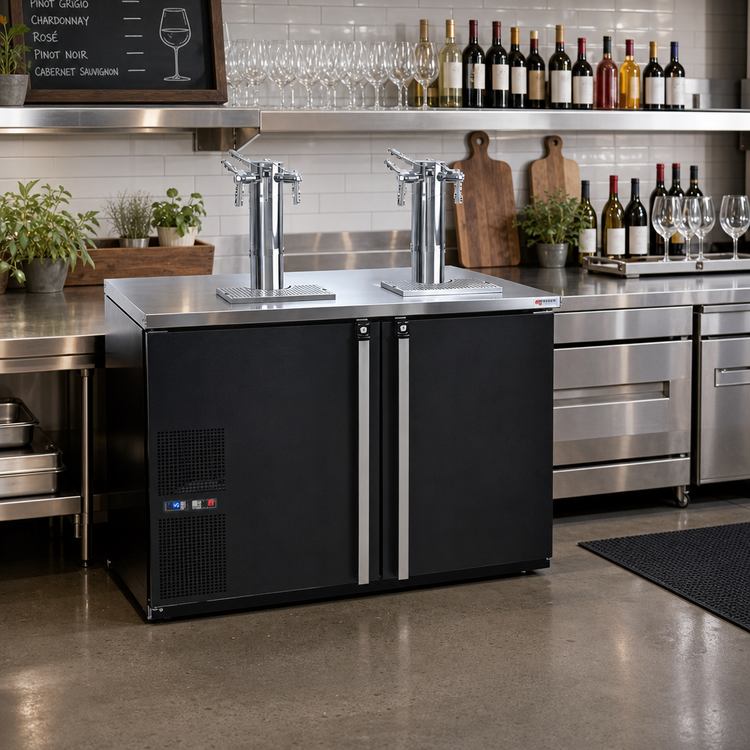

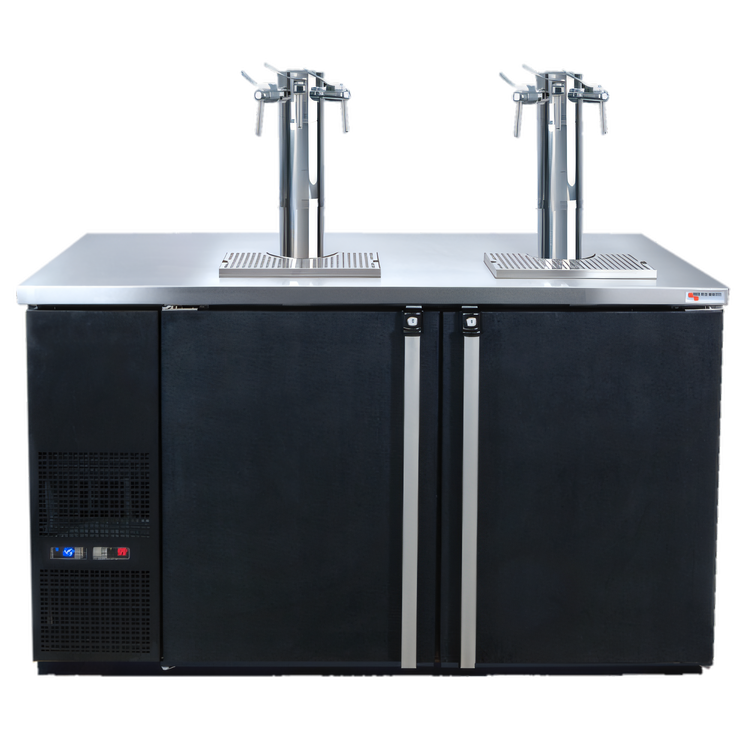

Pro-Line™ E-Series Dual-Temperature Wine Cooler Dispenser

Model MDD58W-E-B • 59-1/2" W • 8 Keg / 6 Faucet

Serve perfectly chilled whites and cellar-temperature reds from the very same cabinet. Engineered by the wine-dispensing experts at Micro Matic, the Pro-Line E-Series delivers commercial-grade reliability, intuitive controls, and a sleek under-bar footprint that keeps every pour profitable and protected.

Why You’ll Love It

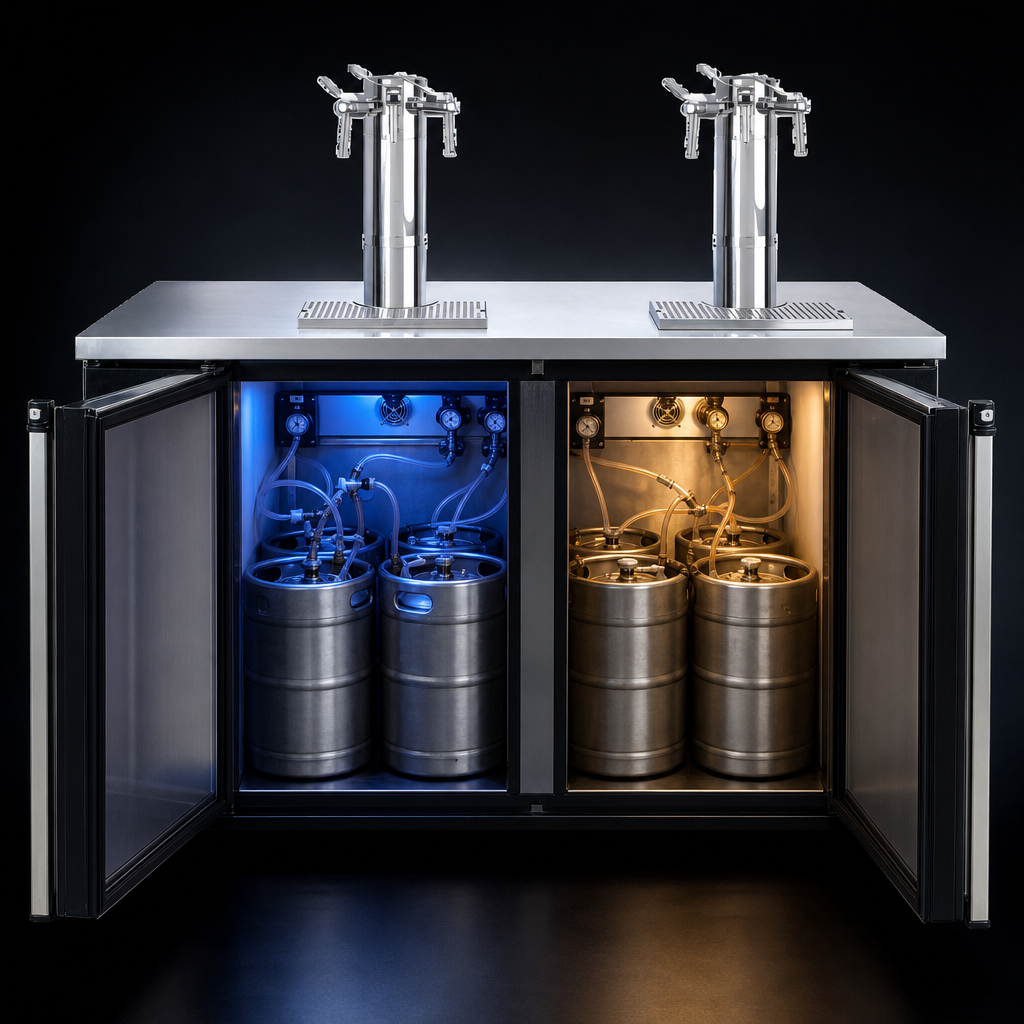

  • Dual zones, dual displays — independent thermostats with color-coded LED readouts (blue for whites, red for reds).

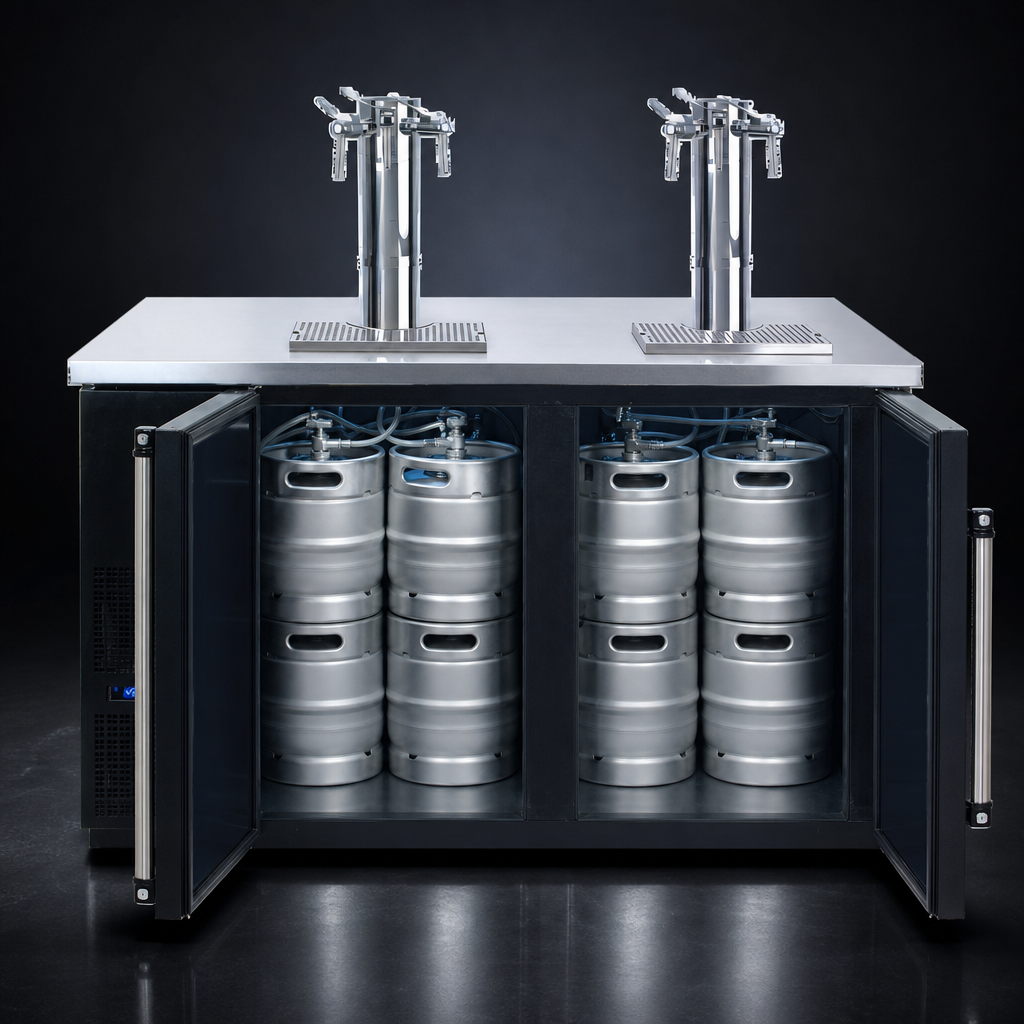

  • Eight 1/6-barrel capacity — holds four kegs per zone for a total of 160 L of wine on tap.
  • Six side-pull wine faucets — (2) Finesse fonts with three 304 SS faucets each for smooth, low-turbulence pours.
  • Locking, solid doors — 22 ga steel with keyed locks safeguard premium inventory.
  • Front-ventilated compressor — zero-clearance installation under bars or counters.
  • Automatic condensate evaporation — no floor drain needed.
  • Gas-ready out of the box — (2) rear knockout plugs and (2) 4-way gas manifolds included.
  • Built to last — stainless-steel top, walls, and floor; foamed-in-place 2" CFC-free insulation.

Perfect For

  • Wine bars & tasting rooms
  • Restaurants looking to expand by-the-glass programs
  • Hotel lounges & event venues
  • Stadium & arena premium suites

Technical Specifications

Temperature Zones 2 (independent)
Capacity 8 × 1/6 bbl (20 L) kegs — 4 per zone
Dispensing Hardware (2) Finesse wine towers, (6) 304 SS side-pull faucets, stainless drip trays
Temperature Range Whites 42–48 °F (5.5–8.8 °C) • Reds 55–65 °F (12.7–18.3 °C)
Digital Thermostats (2) LED (blue & red), external
Compressor 1/3 HP, front-ventilated
Refrigerant R290 (eco-friendly)
Electrical 115 V / 60 Hz / 1-ph, 3.0 A, 8' cord, NEMA 5-15P
Exterior Black vinyl-clad steel with 18 ga stainless top
Interior 20 ga stainless walls & floor
Doors (2) solid hinged, locking
Overall Dimensions W 59-1/2" × D 29-1/2" × H 36-7/8" (to countertop)
Certifications cETLus, ETL-Sanitation (ANSI/NSF-7)
Warranty 1-year parts & labor

Included with the Cabinet

  • (2) 4-way gas distributor manifolds
  • (2) rear knockout plugs for incoming gas lines
  • Stainless steel drip trays & drain inserts
  • Door locks with keys

Casters, legs, regulators, hoses, tap handles, and medallion holders are available separately.

Heads-up: Tapping equipment and gas components are sold separately so you can configure the system to match your specific still or sparkling wine program.

Features & Specs

Manufacturer

Micro Matic USA

Brand_name

Pro-Line

Certifications

cETLus, ETL-Sanitation

Height

37.25in

Width

59.5in

Depth

28.25in

Shipping Weight

318.0lbs

Exterior Finish

all black exterior

Towers/Taps

(2) triple faucet columns

Refrigeration Type

self-contained refrigeration

Width (side - side) OA

59"

Top

flat top, stainless steel

Specifications

Pro-Line™ E-Series™ Dual Temperature Wine Cooler Dispenser, two-section, 59-1/2"W, self-contained refrigeration, accommodates (8) 1/6 barrel kegs, (2) solid hinged doors with locks, (2) Finesse wine fonts with (3) 304 stainless steel side pull faucets each (medallion holders not included), stainless steel drip tray, (2) LED digital temperature displays, (2) 4-way gas distributor manifolds, front ventilated, automatic condensate evaporator, includes (2) rear knock-out plugs for gas lines, stainless steel interior floor, stainless steel top, black vinyl over steel exterior, R134a, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)
