Micro Matic USA MDD58SW-E Pro-Line Draft Beer & Wine Dispensers
Description

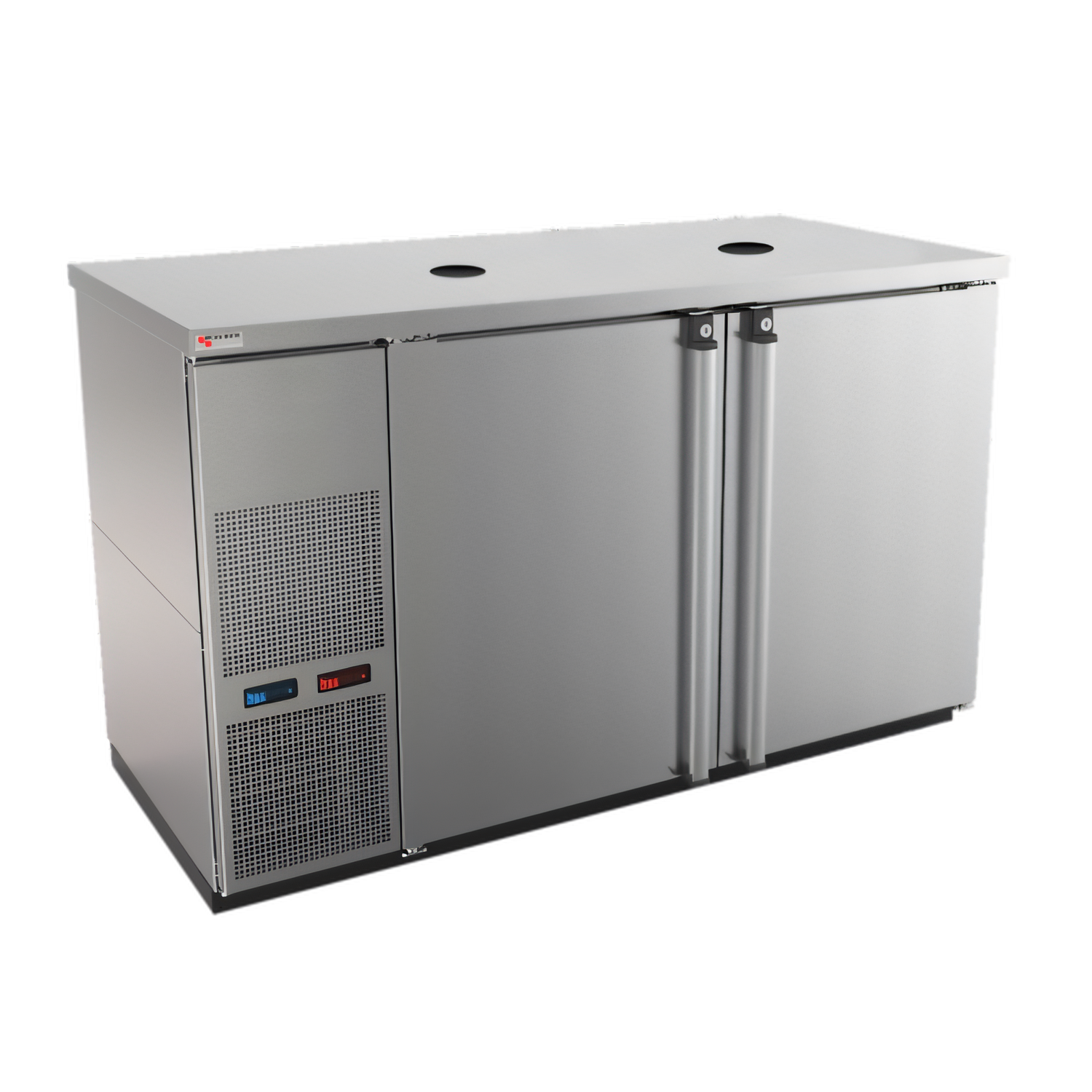

Pro-Line™ E-Series Dual-Temperature Wine Cooler Dispenser – 59.5" Wide
Models MDD58SW-E (Stainless) & MDD58WLT-E (Black)Engineered by Micro Matic’s wine-industry experts, the Pro-Line E-Series keeps reds and whites at their ideal serving temperatures in one sleek, commercial cabinet. Two independently controlled zones, stainless-steel construction, and front ventilation make it the professional choice for bars, tasting rooms, hotels, and event venues.
Key Features

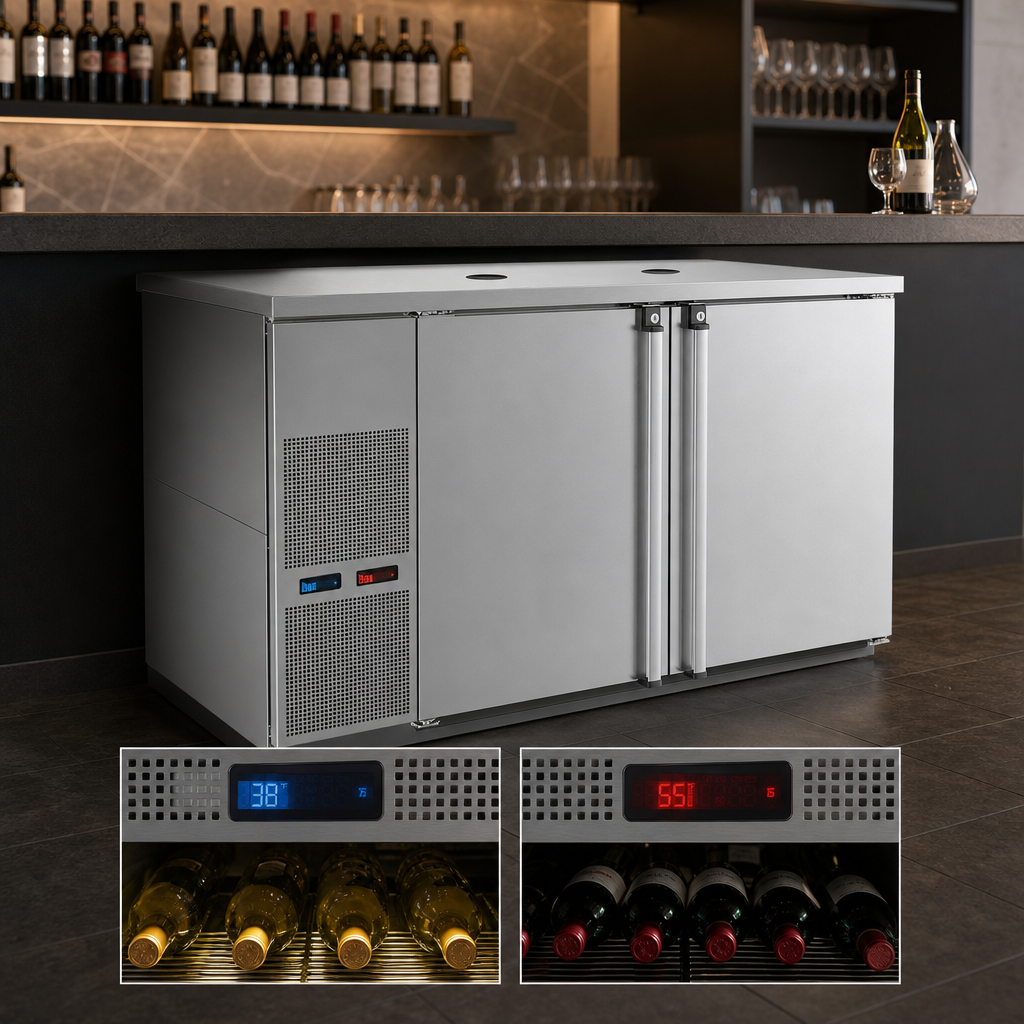

- Dual refrigeration zones with independent, color-coded LED temperature displays (blue = whites, red = reds).
- Holds up to 8 x 20 L kegs—4 per side—for high-volume service.
- (2) factory-drilled 3" tower ports let you choose the wine font that fits your program.

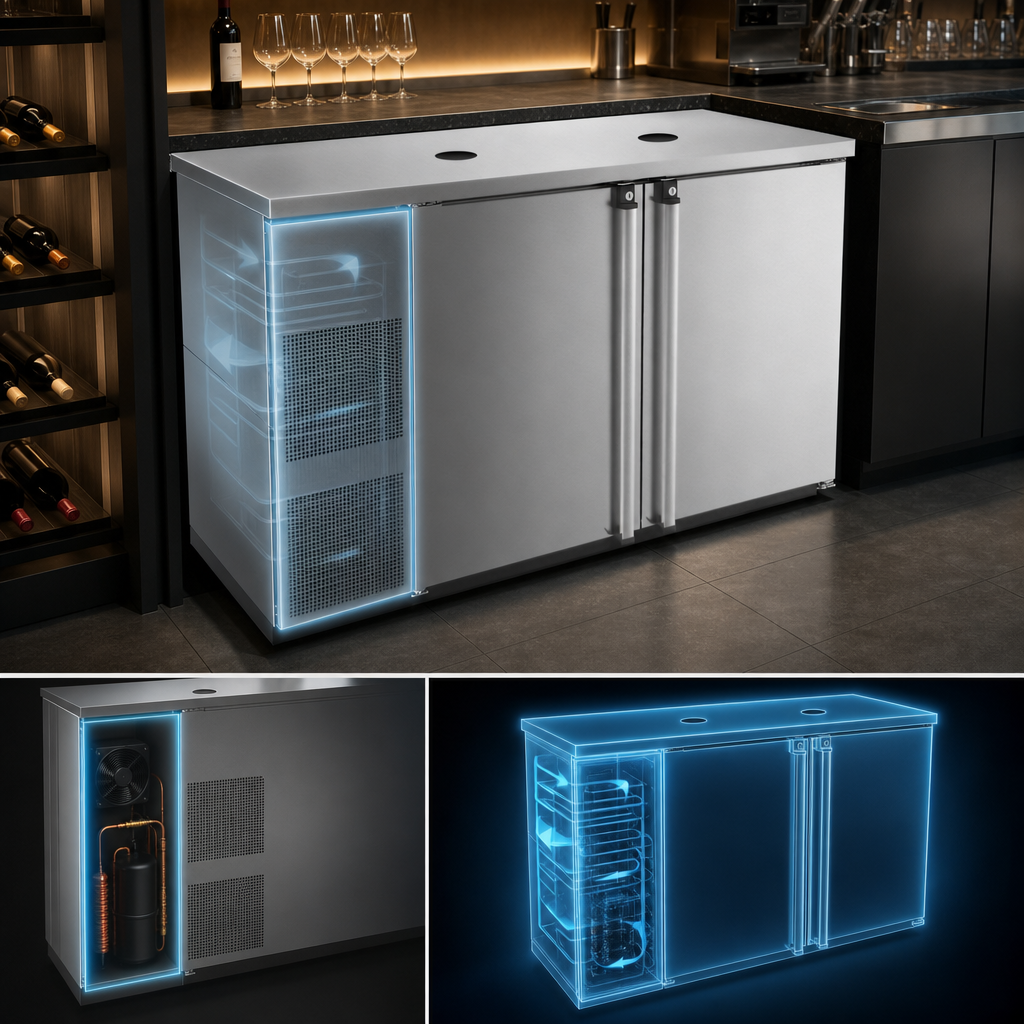

- Self-contained 1/3 HP system with eco-friendly R290 refrigerant; no remote compressor required.

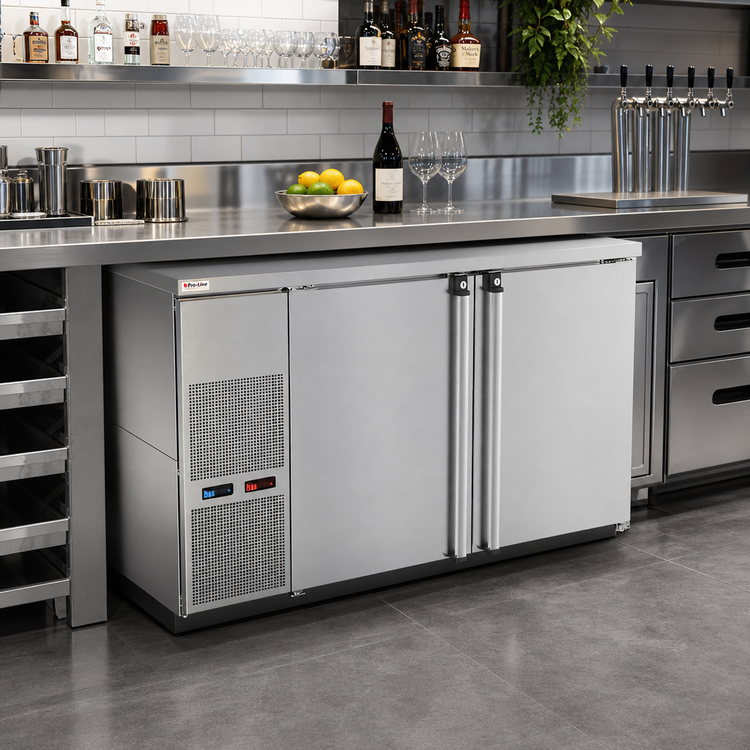

- Front-ventilated design installs flush under counters or in tight bar layouts.
- All-stainless top, interior, and exterior for maximum durability and effortless cleaning.
- (2) locking solid doors protect premium inventory after hours.
- Automatic condensate evaporator—no floor drain or plumbing needed.
- Rear knock-outs for gas lines keep your set-up neat and accessible.
- cETLus & ETL-Sanitation listed to NSF/UL standards for commercial safety and hygiene.
Technical Specifications
| Exterior width | 59.5" (1512 mm) |
|---|---|
| Exterior depth | 23.75" (603 mm) |
| Exterior height | 38.13" (969 mm) with feet |
| Capacity | 8 × 20 L kegs (4 per zone) |
| Temp. range – Whites | 42–48 °F (5.5–8.8 °C) |
| Temp. range – Reds | 55–65 °F (12.7–18.3 °C) |
| Compressor | 1/3 HP, R290 refrigerant |
| Running amps | 3.0 A |
| Electrical | 115 V / 60 Hz / 1-phase – NEMA 5-15P (8 ft cord) |
| Pre-drilled tower ports | 2 × 3" Ø |
| Doors | 2 solid, hinged, locking |
| Insulation | 2" CFC-free polyurethane foam |
| Ventilation | Front |
| Shipping weight | 318 lb (145 kg) |
| Approvals | cETLus, ETL-Sanitation (NSF/UL) |
Popular Add-Ons (sold separately)
- Stainless wine tower fonts (2–4 taps)
- Surface-mount drip trays (e.g., DP-1020)
- Casters or 6" adjustable legs
- Gas regulators, tubing, and keg couplers
Includes a one-year limited parts & labor warranty. Full terms available at MicroMatic.com.
