Micro Matic USA MDD36W-E Pro-Line Draft Beer & Wine Dispensers
Description
Pro-Line™ E-Series™ Dual-Temperature Wine Cooler Dispenser
Model MDD36W-E • 36-3/4" Wide • 4-Keg CapacityServe reds and whites at their ideal temperatures from one compact, commercial-grade cabinet. Engineered by Micro Matic’s wine-industry experts, the Pro-Line E-Series keeps four 1/6-barrel (20 L) kegs perfectly chilled and ready to pour—making it the smart choice for wine bars, tasting rooms, and hospitality venues.
Key Features
- Dual zones with independent digital thermostats (blue LED for whites, red LED for reds).
- Temperature ranges: 42 – 48 °F for whites and 55 – 65 °F for reds.
- Holds four 1/6-barrel wine kegs—two per zone—behind a single lockable door.

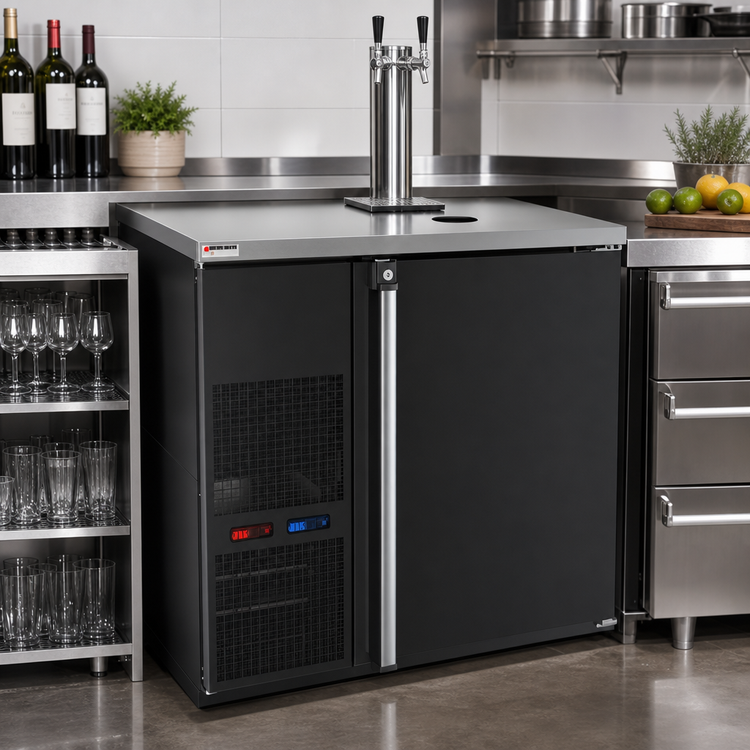

- Pre-drilled 3" opening accepts the draft tower of your choice (tower sold separately).

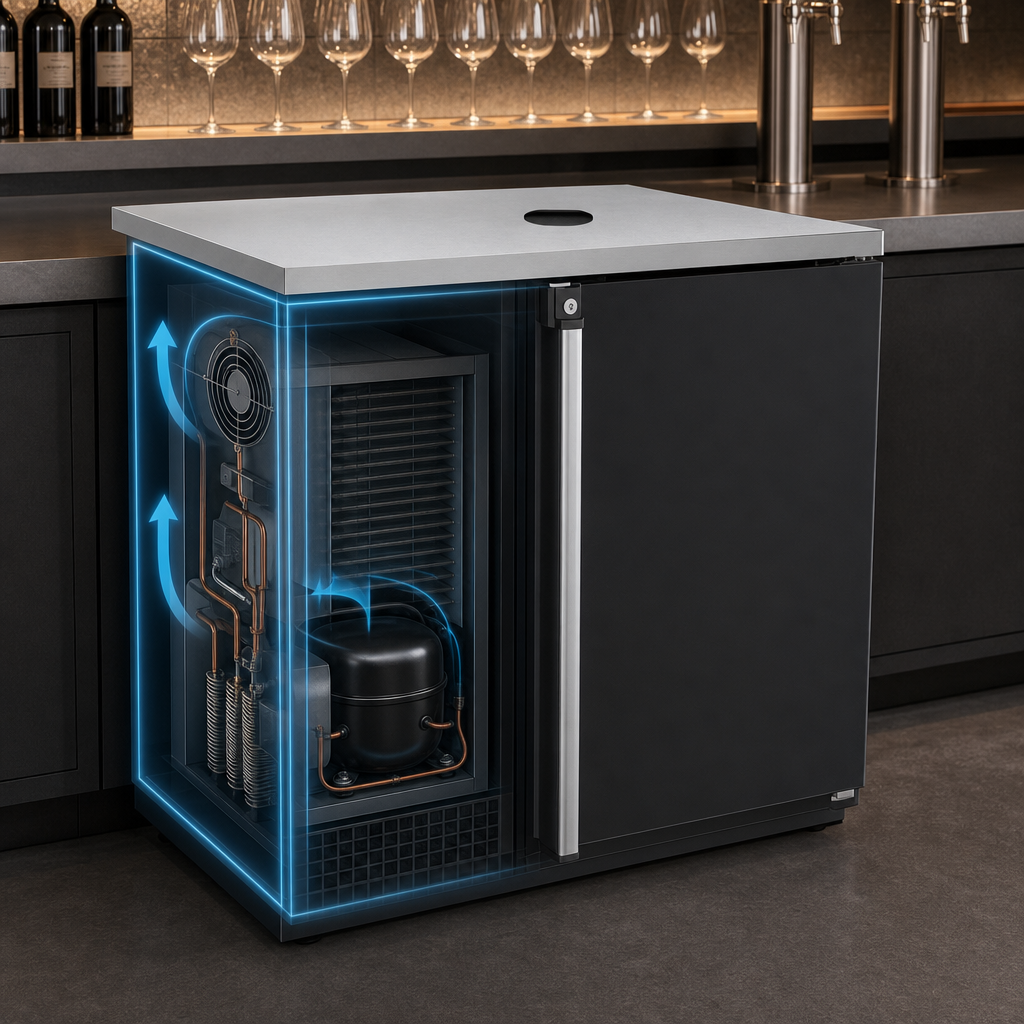

- Front-vented, self-contained refrigeration for built-in or freestanding installation.
- Stainless steel top plus all-stainless interior for superior sanitation and easy cleaning.
- Durable black vinyl-clad steel exterior resists dents and scratches.
- Automatic condensate evaporator—no floor drain required.
- (2) rear knock-out plugs simplify CO₂/N₂ gas line routing.
- Energy-efficient 1/6 HP compressor using R134a refrigerant.
- cETLus & ETL Sanitation listed for commercial food-service environments.
Specifications
| Capacity | (4) 1/6-barrel / 20 L kegs (2 per zone) |
|---|---|
| Temperature Ranges | Whites 42 – 48 °F • Reds 55 – 65 °F |
| Exterior Dimensions (W × D × H) | 36.75" × 29.5" × 36.88" |
| Refrigeration System | Self-contained, front-vented, R134a |
| Compressor | 1/6 HP |
| Electrical | 115 V / 60 Hz / 1-Ph, 3.6 A, NEMA 5-15P (8' cord) |
| Door | 1 solid hinged door with lock |
| Interior Material | 20-gauge stainless steel floor & walls |
| Top | 18-gauge stainless steel with 3" tower cut-out |
| Included | (2) color-coded LED thermostats • (2) gas line knock-outs |
| Shipping Weight | 172 lb (78 kg) |
| Certifications | cETLus, ETL Sanitation (NSF/ANSI 7) |
Draft tower, faucets, and tapping equipment are sold separately—pair with any Micro Matic wine tower for a complete dispensing solution.
Micro Matic Advantage
- Backed by a 1-year parts & labor warranty and a nationwide service network.
- Foamed-in-place, CFC-free polyurethane insulation maximizes energy efficiency.
- Over 60 years of beverage dispense innovation and expertise.
Upgrade your wine-by-the-glass program with perfect temperature control, zero waste, and an eye-catching presentation—order the Pro-Line E-Series dual-temperature dispenser today.
