Micro Matic USA MDD36SW-E Pro-Line Draft Beer & Wine Dispensers
Description

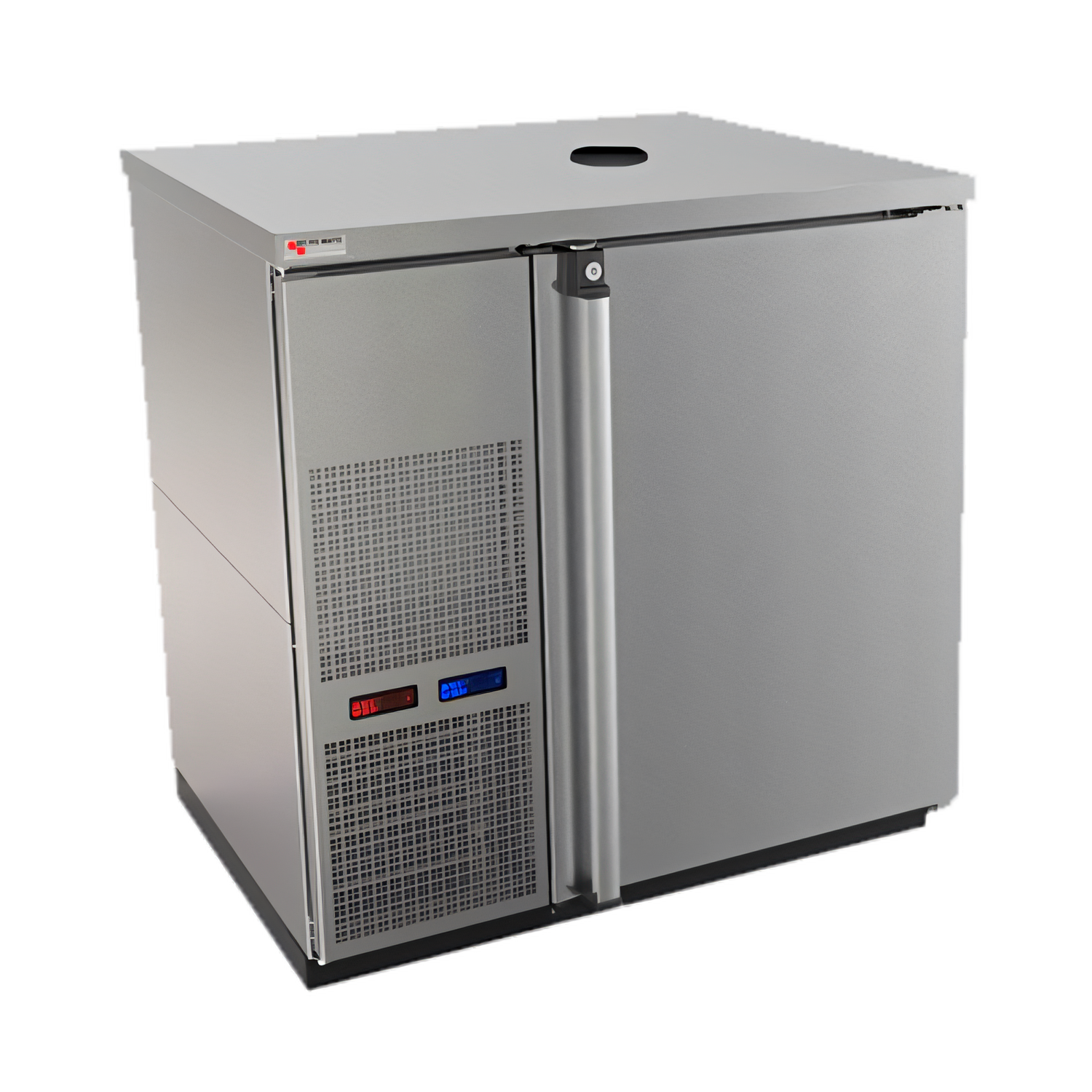

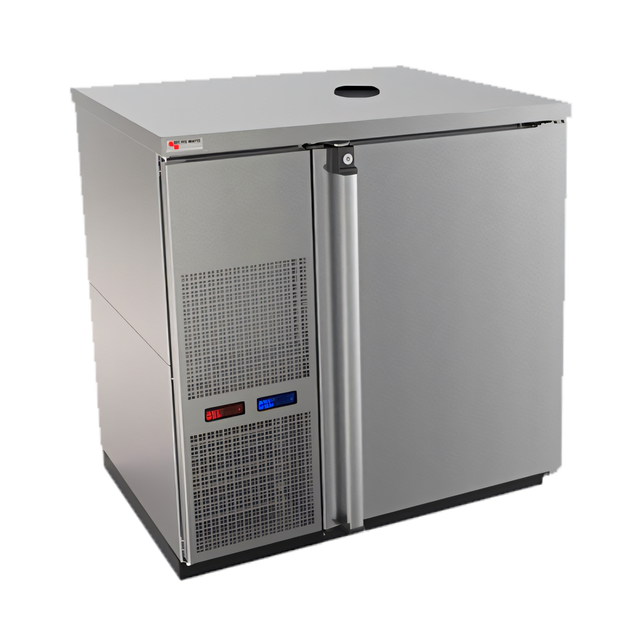

Pro-Line™ E-Series Dual-Temperature Wine Cooler / Dispenser – 36″, 4-Keg
Model MDD36SW-E • Stainless Steel FinishServe red and white wines at their perfect pour temperature from a single, compact cabinet. Designed by Micro Matic’s wine-industry experts, the Pro-Line™ E-Series delivers commercial durability, easy installation, and the flexibility every bar, tasting room, or hotel lounge demands.
Why You’ll Love It
- Two independent zones – digital thermostats keep whites at 42-48 °F and reds at 55-65 °F.
- Holds four 1/6-barrel (20 L) kegs – 2 per zone for maximum variety in minimal space.

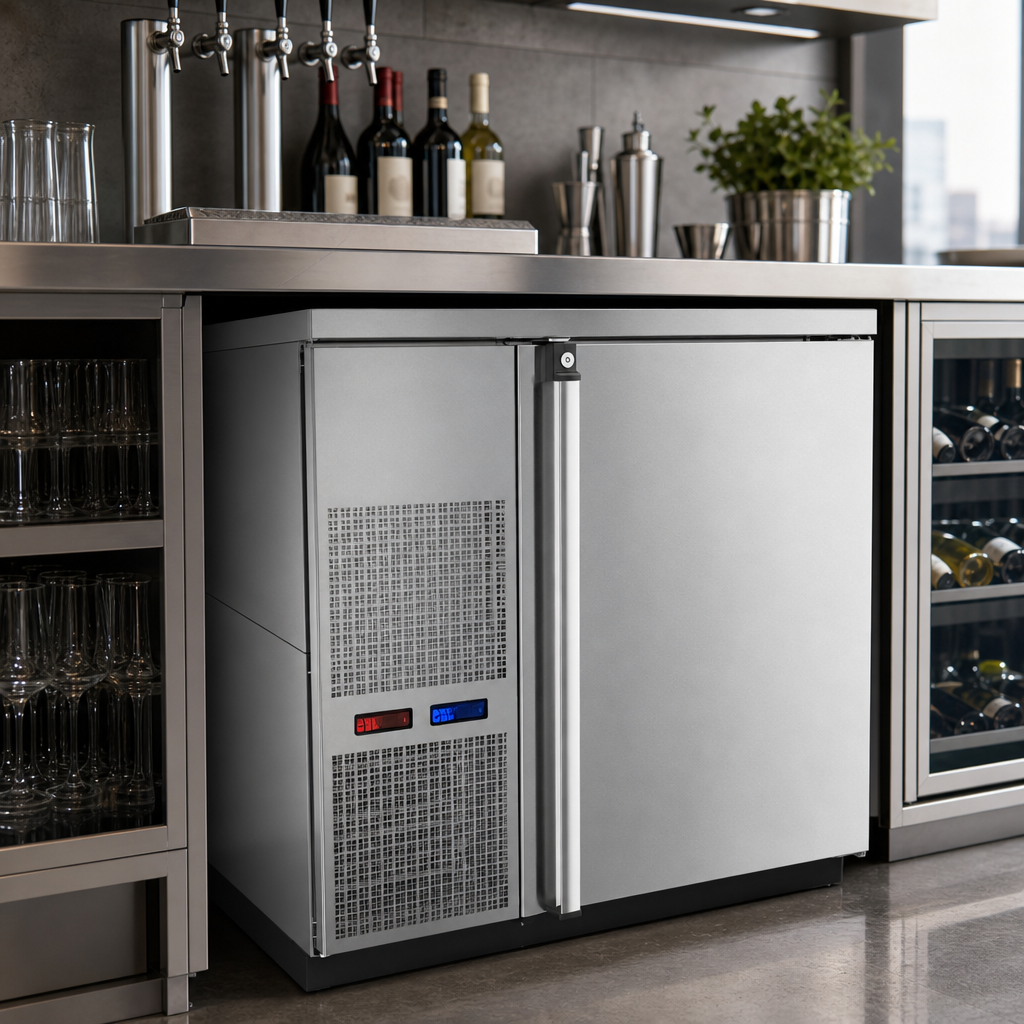

- Front-ventilated, self-contained refrigeration – ideal for flush built-in or freestanding use.

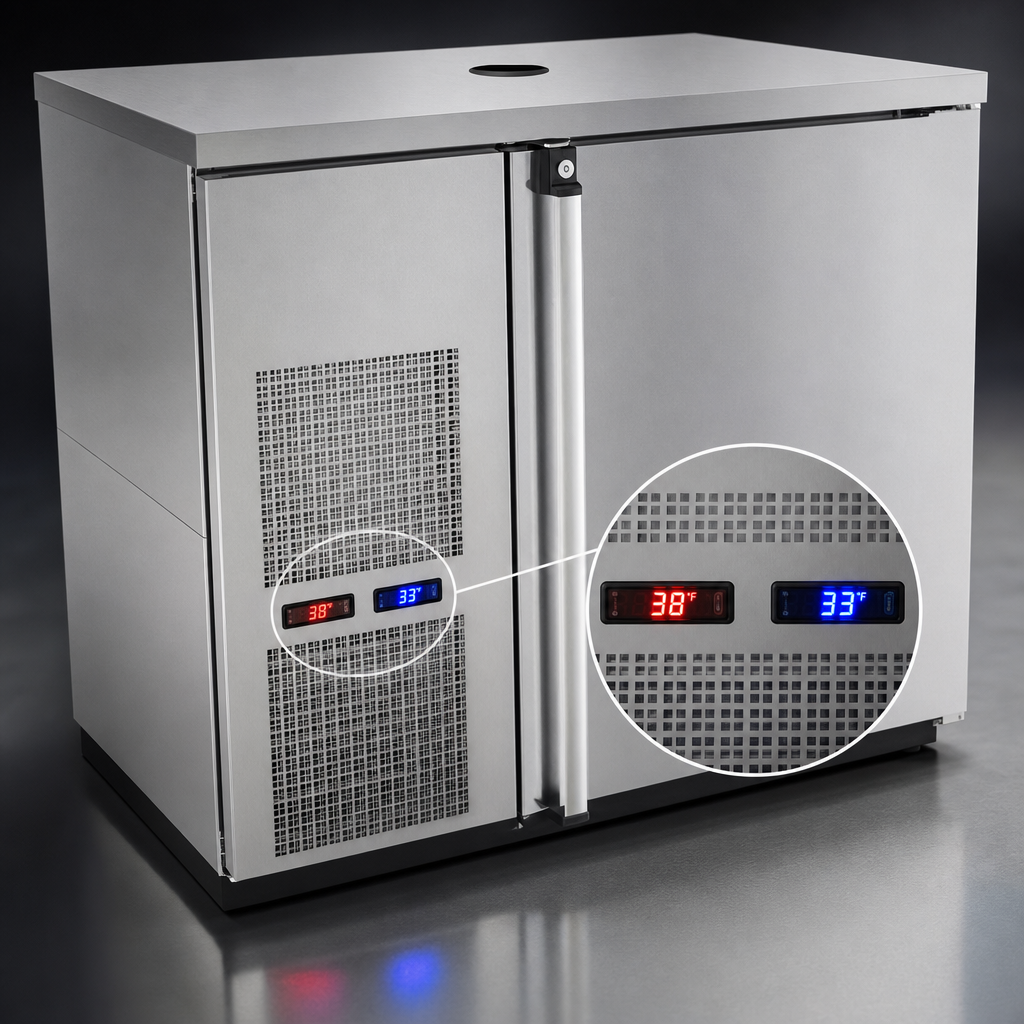

- Door-mounted Blue & Red LED displays provide at-a-glance temperatures.
- Stainless interior, top, and exterior for a hygienic, easy-to-clean surface that stands up to busy service.
- 3" pre-drilled tower hole plus two rear gas-line knock-outs – choose the draft font that fits your menu.
- Automatic condensate evaporator – no floor drain required.
- Locking, solid door safeguards premium inventory after hours.
- cETLus & ETL-Sanitation listed for worry-free code compliance.
Ideal Applications
- Wine bars & tasting rooms
- Hotel executive lounges & concierge floors
- Upscale restaurants and steak houses
- Event venues & country clubs
- Corporate breakrooms wanting a premium beverage program
Technical Specs
| Capacity | 4 × 1/6 BBL (20 L) kegs – two per zone |
|---|---|
| Exterior Width | 36 3⁄4″ (932 mm) |
| Depth (overall) | 29 1⁄2″ (750 mm) |
| Height (including top) | 38 1⁄8″ (969 mm) |
| Door | 1 solid hinged door with lock |
| Temperature Range | Whites 42-48 °F • Reds 55-65 °F |
| Compressor | 1/6 HP, self-contained |
| Refrigerant | R134a (eco-friendly charge) |
| Electrical | 115 V / 60 Hz / 1-ph, 3.6 A, NEMA 5-15P, 8′ cord |
| Running Amps | 3.6 A |
| Construction | Stainless top, interior, front, sides, & back; foamed-in-place CFC-free insulation |
| Ventilation | Front (no side or rear clearance required) |
| Included Accessories | Glass guard rail (front & sides), 2 rear knock-outs for gas, 8′ power cord |
| Shipping Weight | 172 lb (78 kg) |
| Certifications | cETLus, ETL-Sanitation (NSF/ANSI Std 7 compliant) |
Need a black exterior or caster kit? Contact us – additional factory options are available. Specifications subject to change without notice.
