Micro Matic USA MDD36S-E-LT Pro-Line Back Bar Coolers
Description

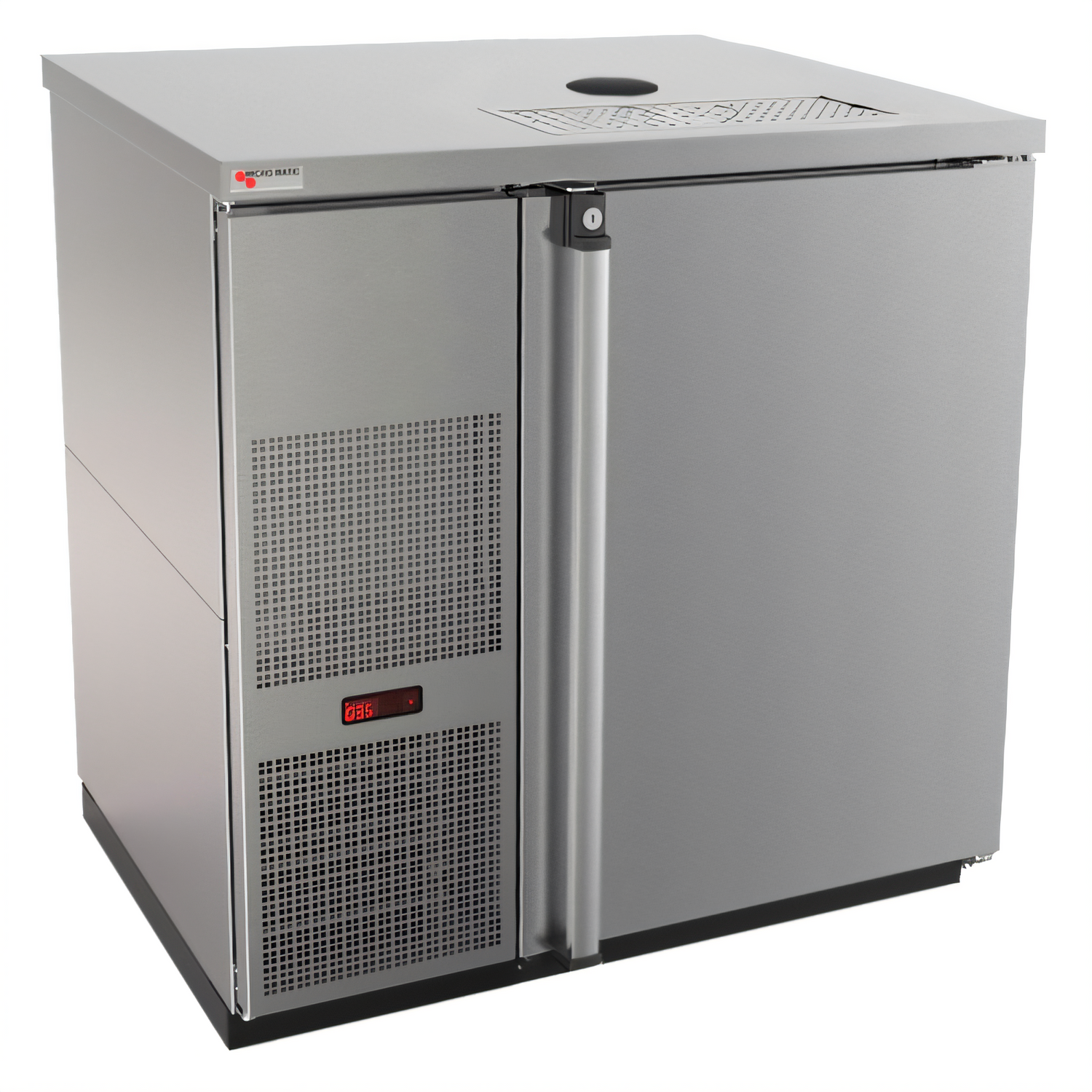

Pro-Line™ E-Series™ 36" Draft Beer Cooler – 1 Keg (Less Tower)
Models MDD36-E-LT (black) & MDD36S-E-LT (stainless)Engineered by Micro Matic’s beer-industry experts, this self-contained direct-draw dispenser keeps a single ½-barrel keg at perfect serving temperature while maximising hygiene, workflow and energy efficiency in any bar, taproom or event space.
Why You’ll Love It
- Front-breathing refrigeration – build in under counters or against walls with zero side clearance.
- Exterior-mounted digital thermostat for precise, easy temperature control.
- Full-size stainless drip tray with removable grill for fast clean-ups.

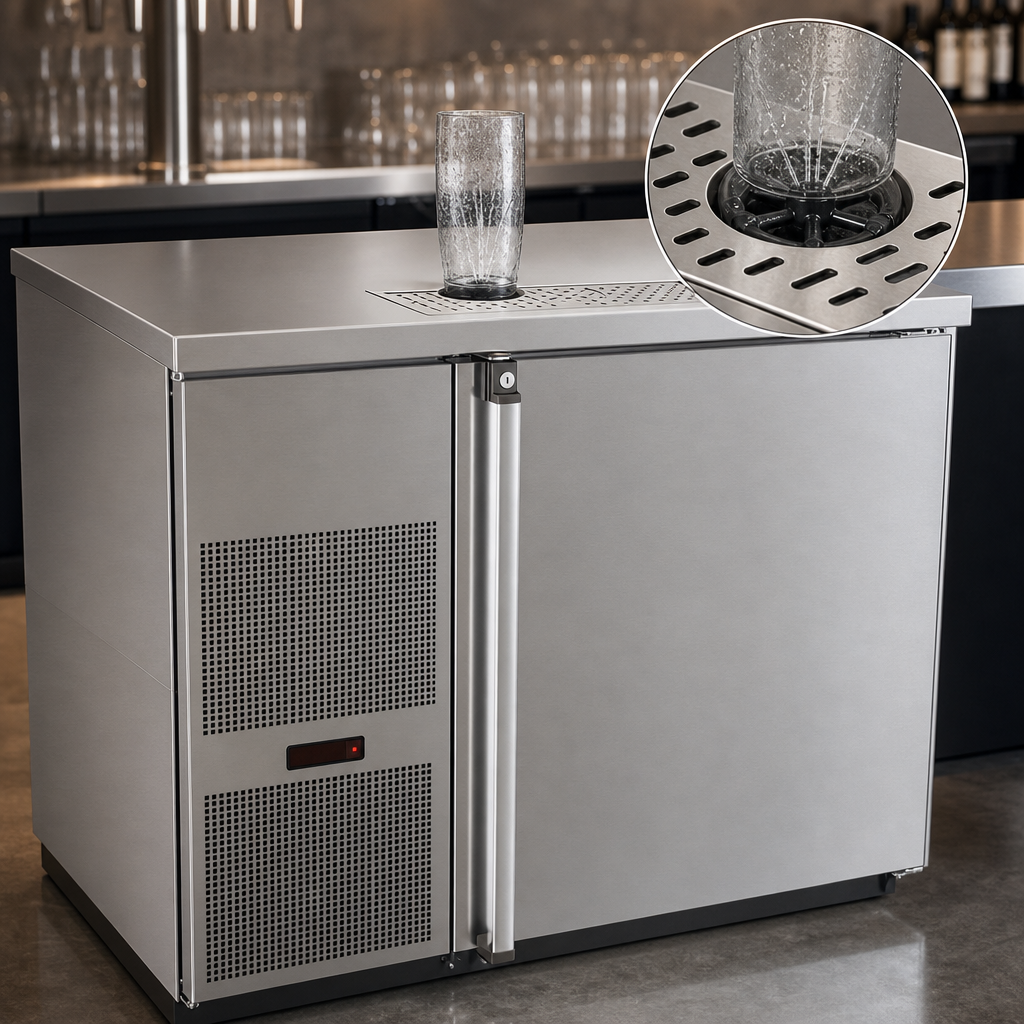

- Integrated glass rinser conditions each glass seconds before the pour (15-20 psi water line).

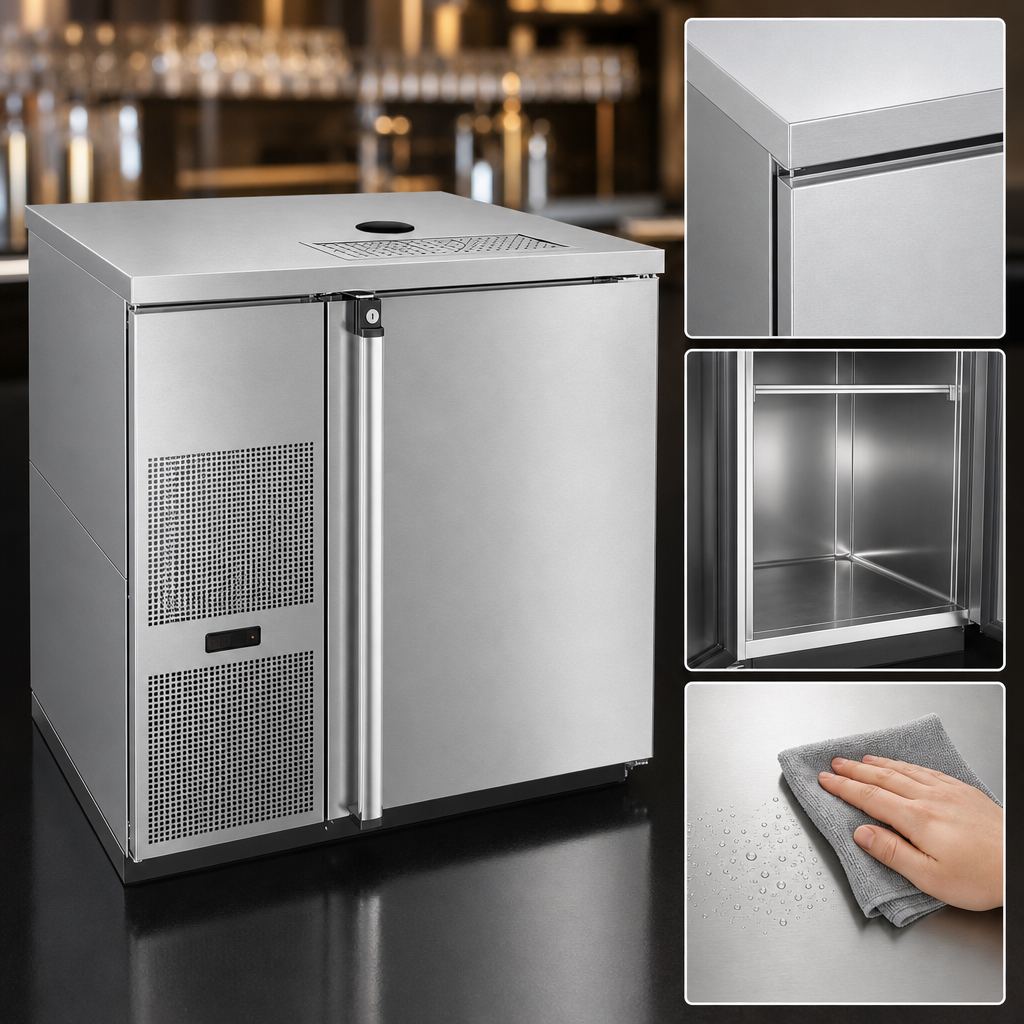

- Solid, locking door and heavy-duty stainless interior resist dents, rust and odours.
- Eco-friendly R290 hydrocarbon refrigerant and low 1.5 A running draw save energy.
- ETL & ETL-Sanitation listed – conforms to UL & NSF standards.
Technical Specifications
| Keg Capacity | 1 × ½-barrel (7.8 cu ft / 220 L) |
|---|---|
| Exterior Finish | Black vinyl over steel or all stainless steel |
| Cabinet Dimensions (W×D×H) | 36 3⁄4" × 24 7⁄8" × 36 7⁄8" (933 × 630 × 937 mm) |
| Refrigeration | Self-contained, 1⁄10 HP compressor, front breathing |
| Refrigerant | R290 (3.5 oz charge) |
| Electrical | 115 V / 60 Hz / 1-phase, 1.5 A, 8' cord with NEMA 5-15P |
| Insulation | 2" foamed-in-place, CFC-free polyurethane |
| Door | 1 × solid, self-closing, locking |
| Approvals | cETLus, ETL-Sanitation |
| Shipping Weight | 318 lb (144 kg) |
Utility Requirements
- Electrical: dedicated 115 V / 15 A circuit.
- Water: 15–20 psi cold water line for glass rinser (install shut-off valve & regulator).
- No floor drain needed – automatic condensate evaporator built in.
What’s in the Box
- Pro-Line E-Series 36" cooler cabinet
- Stainless drip tray with removable grill & built-in rinser spray head
- Door lock & two keys
- 8' power cord (pre-wired)
Sold Separately
- Draft tower & tapping equipment
- Casters or 6" stationary legs
- Water pressure regulator & shut-off valve for rinser line
One-year limited parts & labor warranty. Micro Matic is not liable for incidental or consequential losses such as beer, gas or sales revenue.
