Micro Matic USA MDD23W-E-E Pro-Line Draft Beer & Wine Dispensers
$4,743.68
Unit price
/
Unavailable
Description

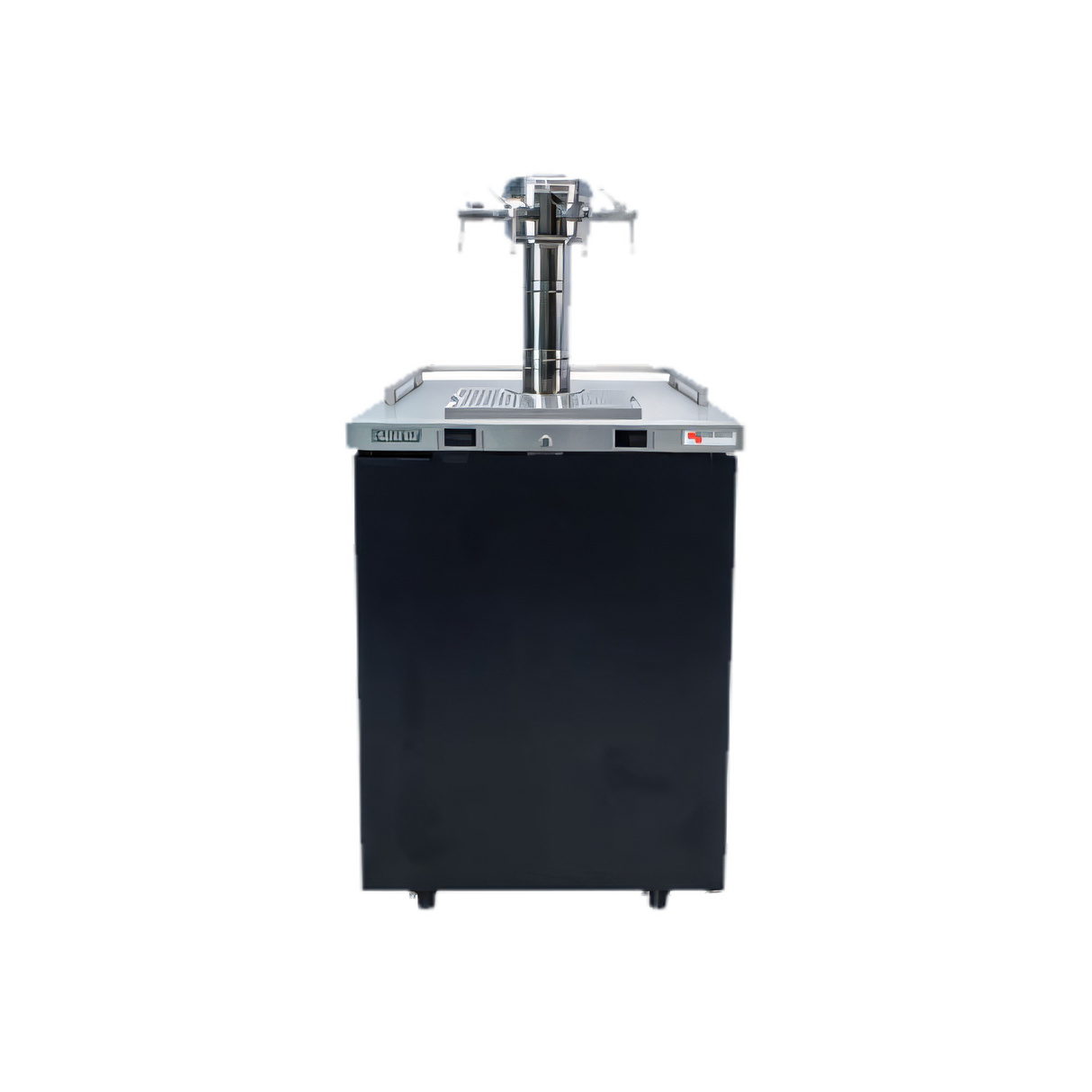

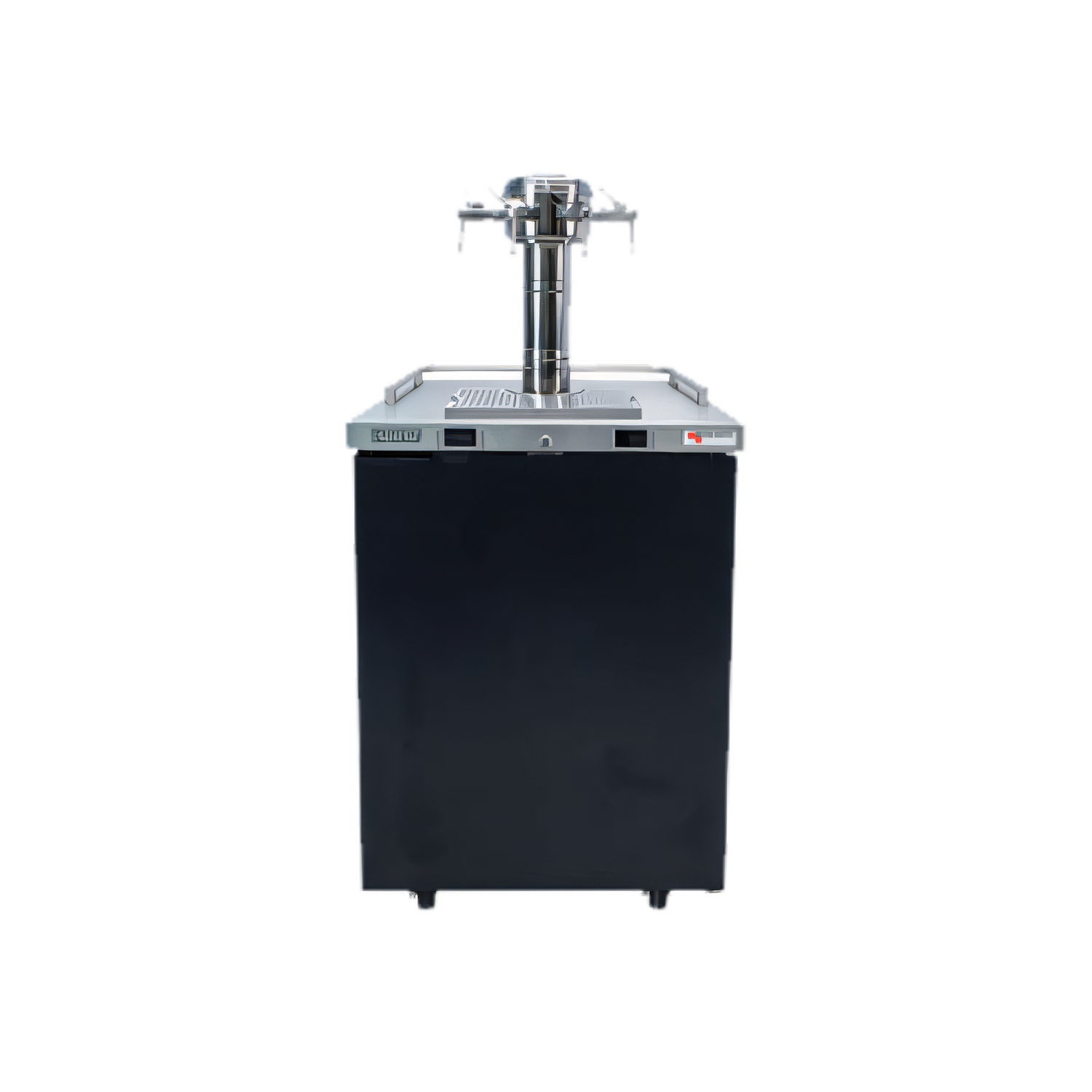

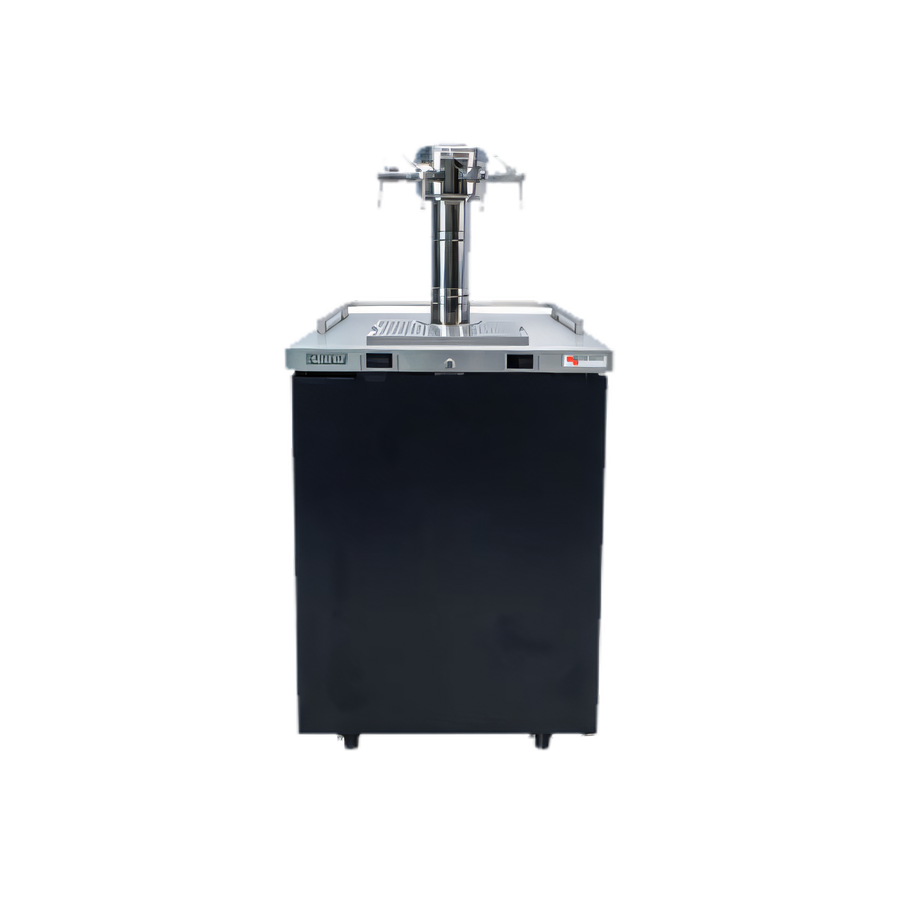

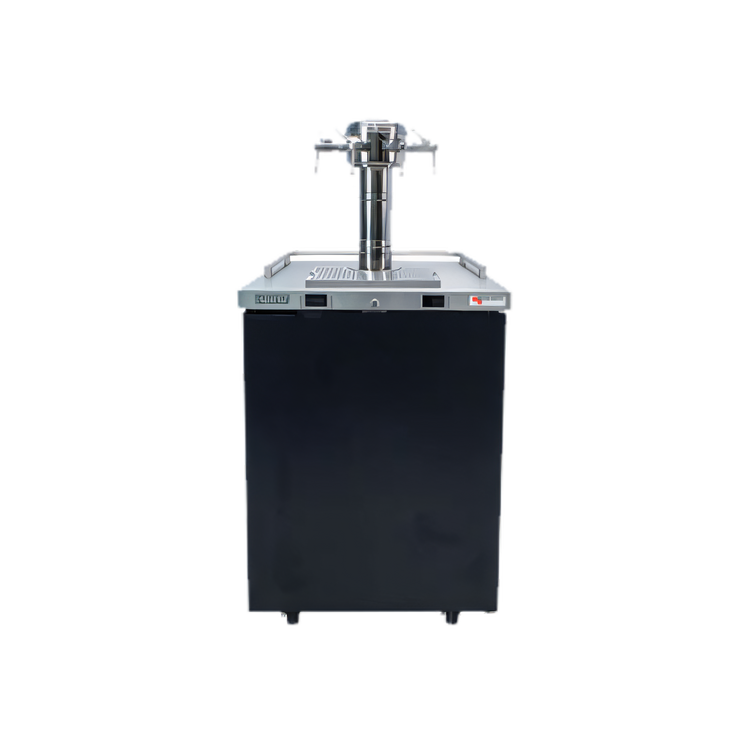

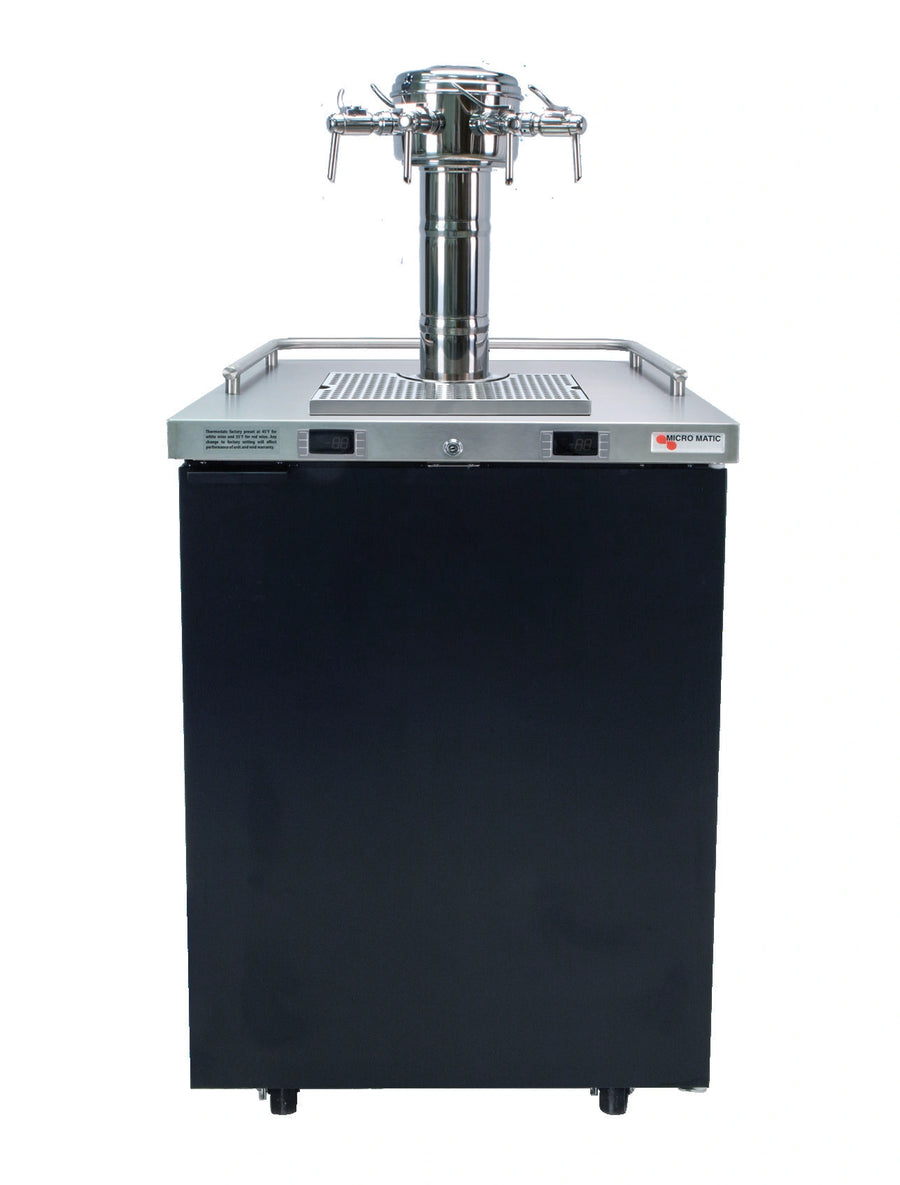

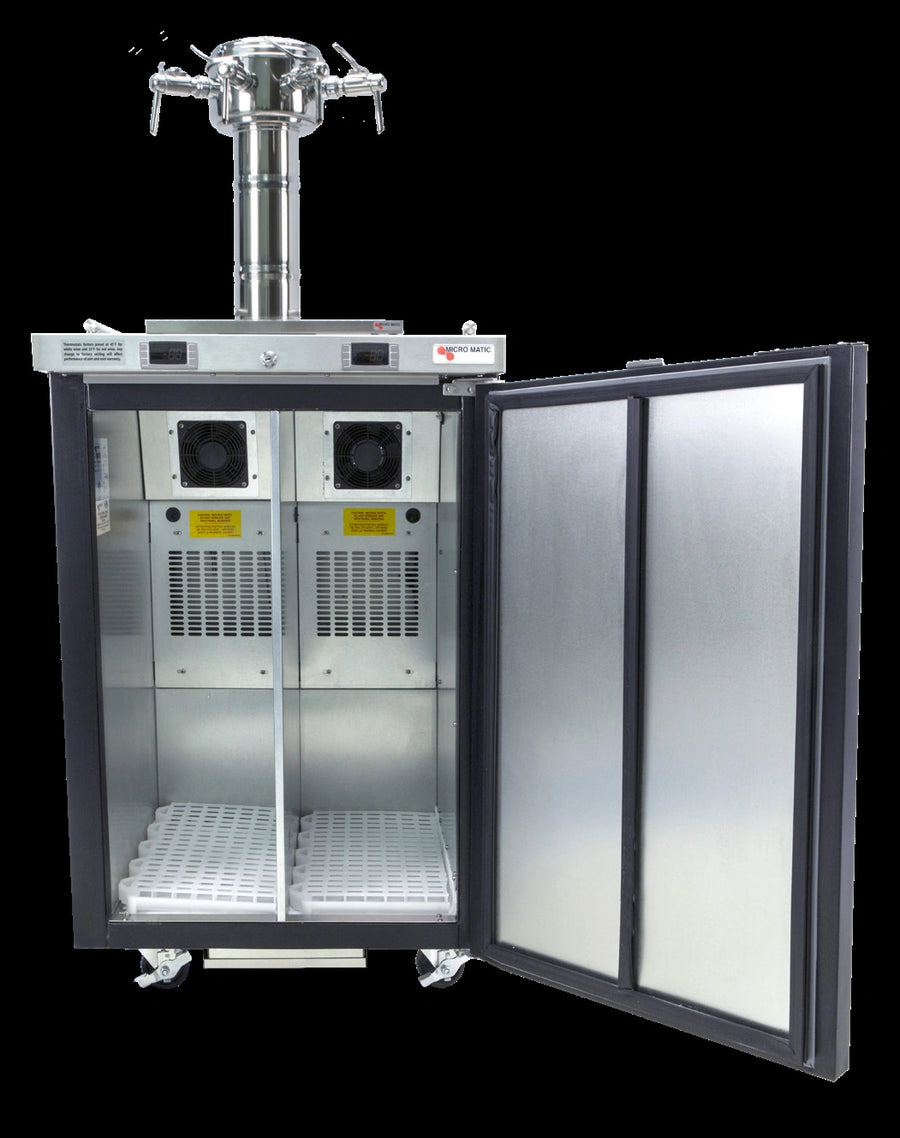

Pro-Line™ E-Series Dual-Temperature Wine Dispenser – 25", 4 Keg / 4 Faucet (MDD23W-E-E)
Serve whites at crisp fridge temps and reds at cellar-perfect warmth—all from one sleek unit.Purpose-built by Micro Matic’s wine experts, the Pro-Line™ E-Series gives bars, tasting rooms, and restaurants a compact, commercial-grade platform for premium wine-on-tap service. Independent zones ensure every pour is as the winemaker intended.
Key Features

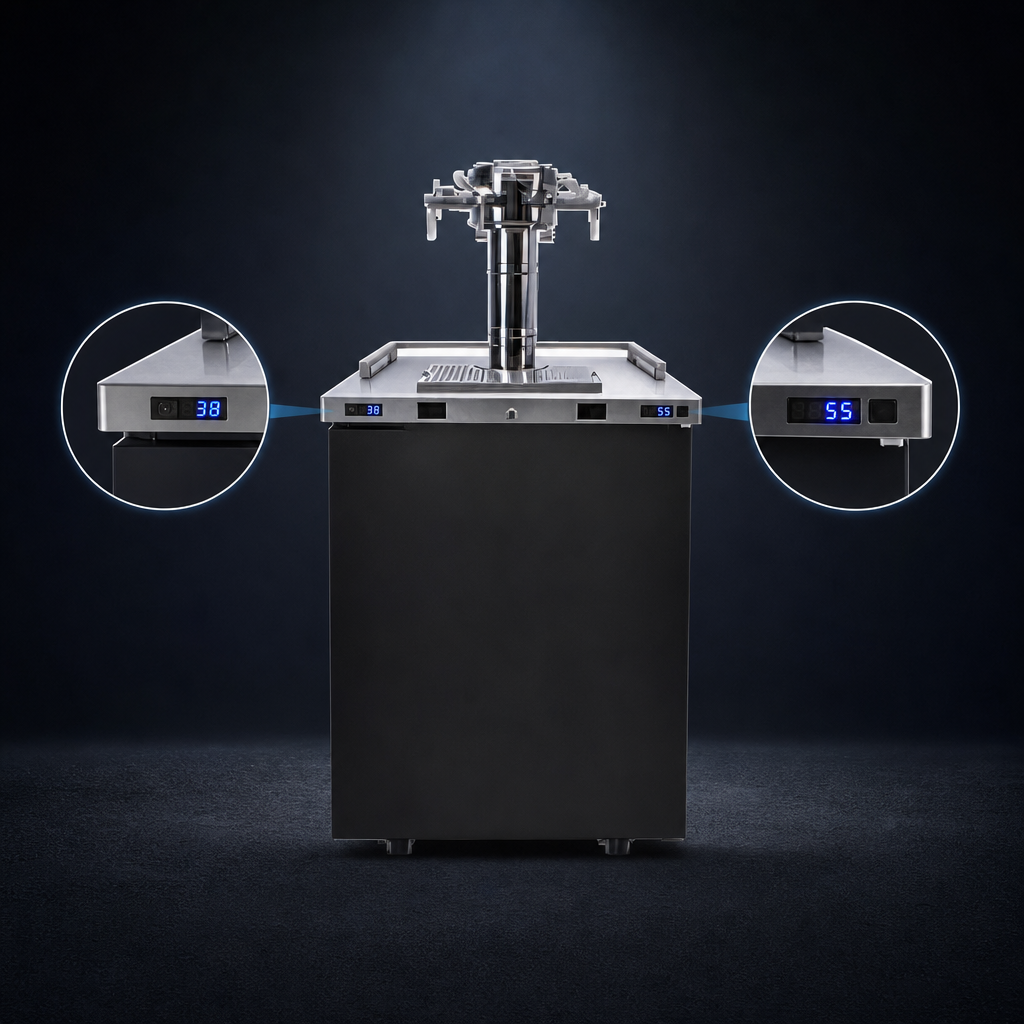

- Dual temperature zones with independent, color-coded digital thermostats (Blue LED for whites, Red LED for reds).

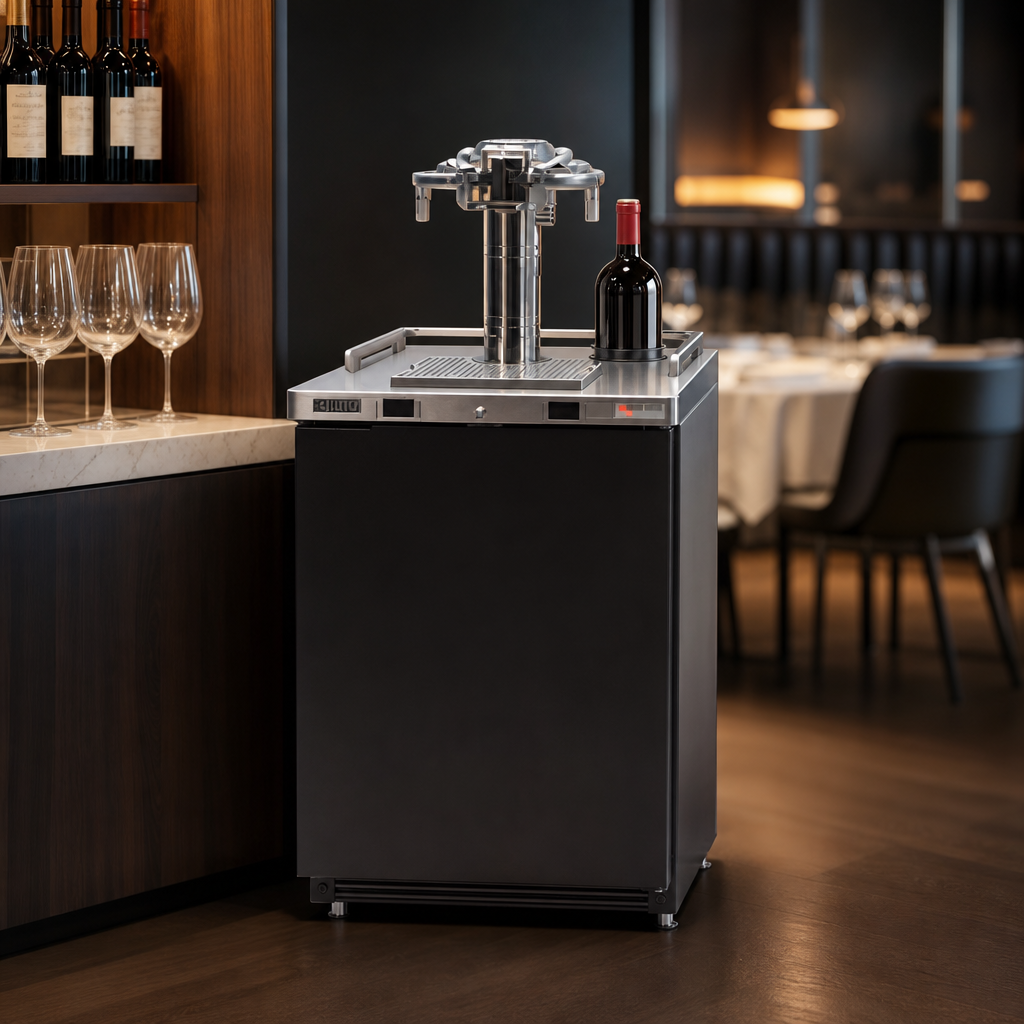

- Sommelier wine font with four stainless side-pull faucets for a gentle, low-oxygen pour.
- Holds four 20 L wine kegs—two per zone—in only 25" of bar space (8.4 cu. ft. interior).
- Self-contained 1/10 HP R290 refrigeration with automatic condensate evaporator—no floor drain needed.
- Commercial construction: 20 ga stainless interior, 18 ga stainless top with glass guard rail, black vinyl-clad steel exterior.
- Lockable solid door and removable stainless drip tray with hose & drain bottle keep product secure and counters clean.
- Heavy-duty, non-removable casters for effortless mobility and easy cleaning.
- cETLus & ETL-Sanitation listed for full commercial compliance.
Specifications
| Model | MDD23W-E-E |
|---|---|
| Capacity | 4 × 20 L wine kegs (8.4 cu. ft.) |
| Faucets | 4 side-pull (tap handles ordered separately) |
| Temperature Zones | Whites 42-48 °F (5.5-8.8 °C) | Reds 55-65 °F (12.7-18.3 °C) |
| Digital Controls | 2 LED displays (blue & red) |
| Compressor | 1/10 HP, back-ventilated |
| Refrigerant | R290 (2.8 oz) |
| Electrical | 115 V / 60 Hz / 1-ph, 1.5 A, NEMA 5-15P, 8' cord |
| Dimensions (W × D × H) | 25" × 31.5" × 40.5" (to top of tower) |
| Door | 1 solid, hinged, lockable |
| Mobility | Casters (standard, non-removable) |
| Certifications | cETLus, ETL-Sanitation |
Backed by a 1-year limited parts & labor warranty. Consult Micro Matic for complete terms.
Important: Kegs, gas equipment, couplers, and tap handles are sold separately so you can customize the perfect system for your program.
Features & Specs
Features & Specs
Manufacturer
Micro Matic USA
Brand_name
Pro-Line
Certifications
cETLus, ETL-Sanitation
Height
40.5in
Width
25.0in
Depth
28.0in
Shipping Weight
172.0lbs
Exterior Finish
all black exterior
Width (side - side) OA
25"
Towers/Taps
(1) quadruple faucet column
Top
flat top, stainless steel
Refrigeration Type
self-contained refrigeration
Specifications
Pro-Line™ E-Series™ Dual Temperature Wine Cooler Dispenser, one-section, 25"W, self-contained refrigeration, 8.4 cu. ft. capacity, (1) Sommelier wine font with tap handle holder, with (4) side pull faucet, order one per faucet, stainless steel drip tray with removable grill includes hose & drain bottle, (1) hinged door with lock, (2) LED digital temperature displays, automatic condensate evaporator, stainless steel interior, stainless steel top with glass guard rail on front & sides, black vinyl over steel exterior, casters, R134a, 1/6 HP, 115v/60/1-ph, 2.7 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)
