Micro Matic USA MDD23W-E-C Pro-Line Draft Beer & Wine Dispensers
Description

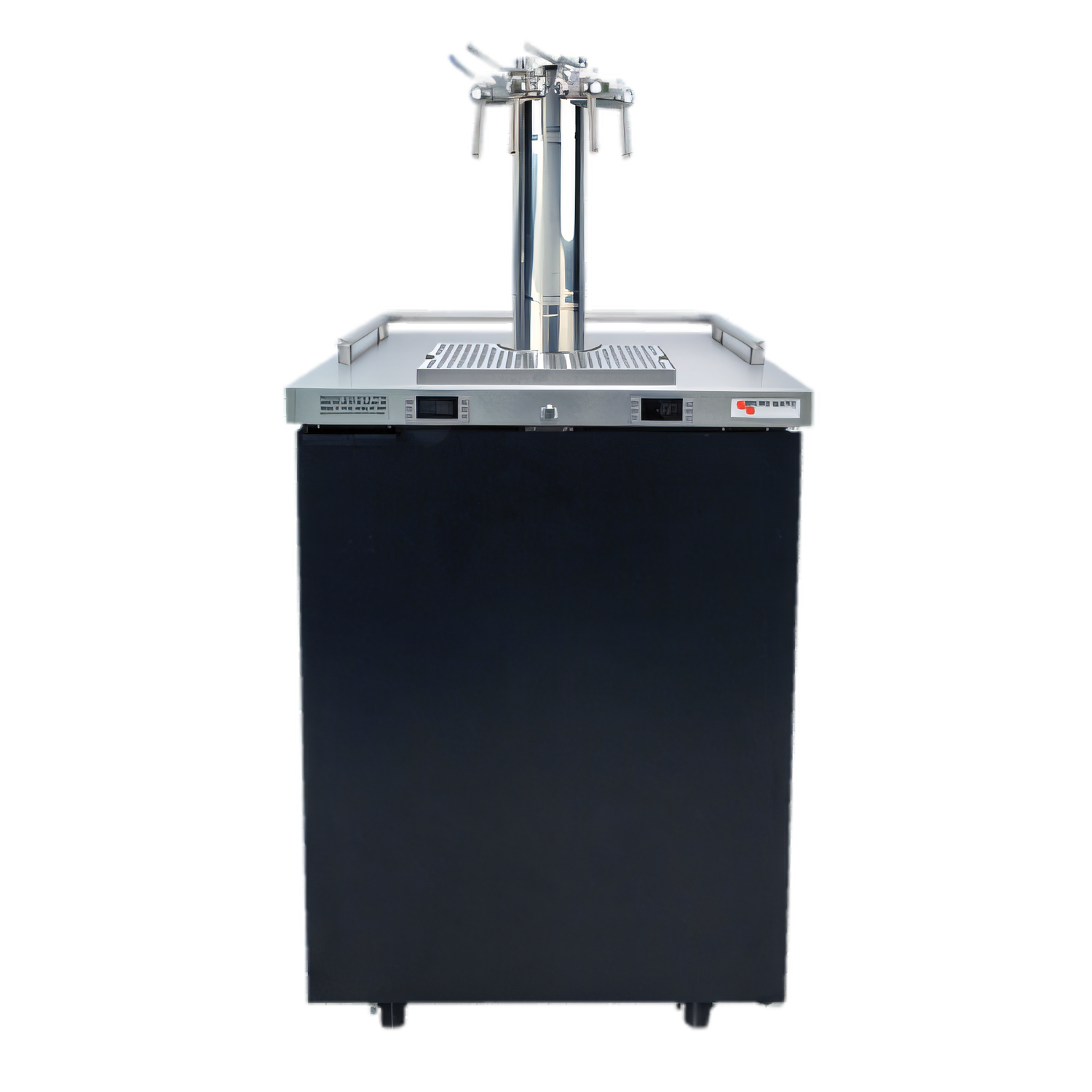

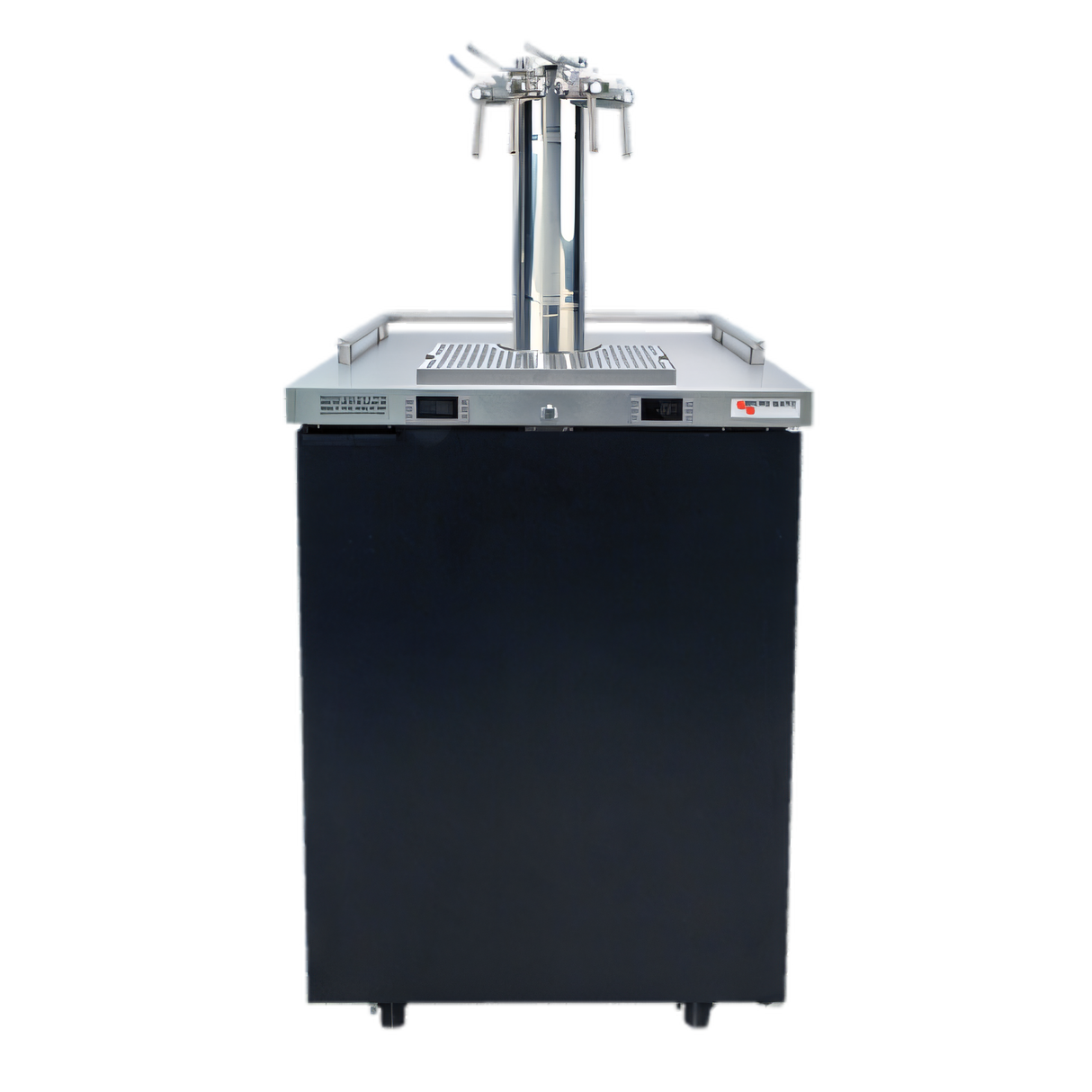

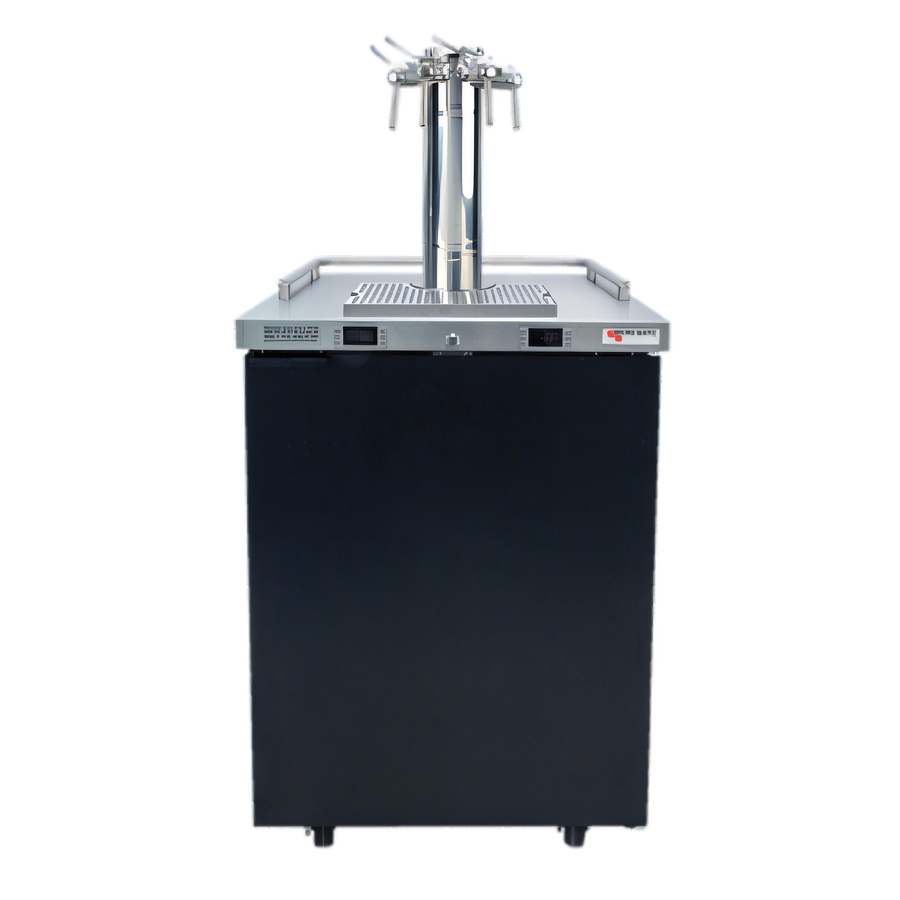

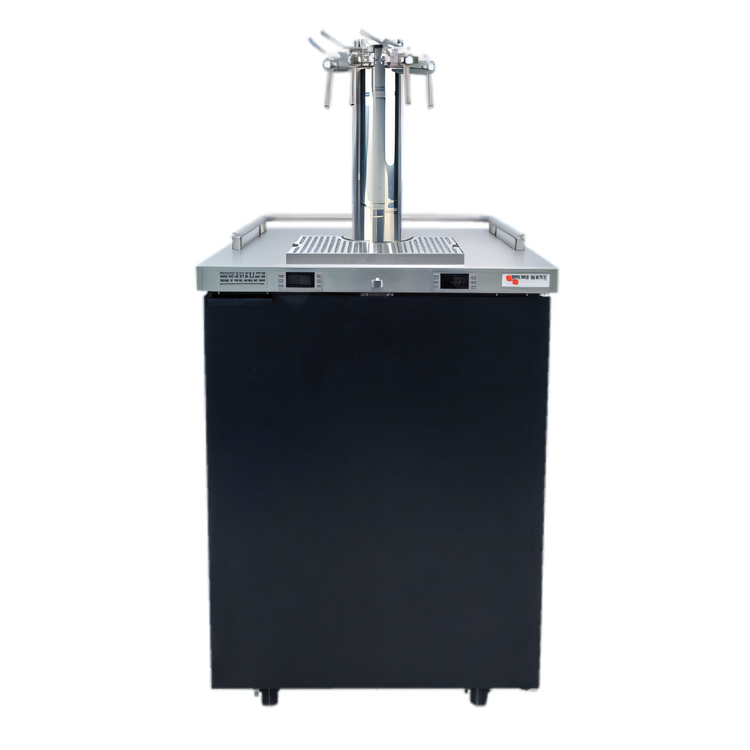

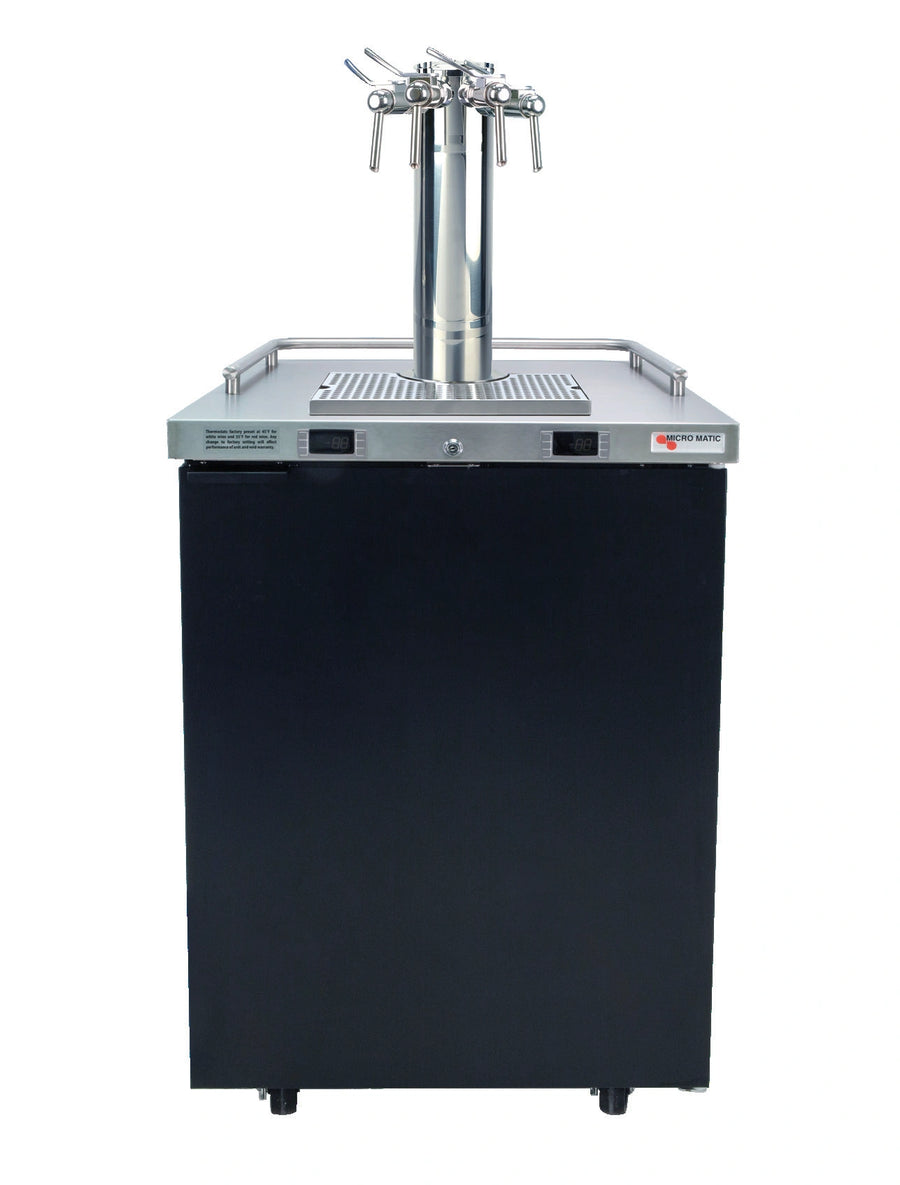

Micro Matic Pro-Line™ E-Series™ Dual-Temperature Wine Dispenser
Model MDD23W-E-C • 25" Cabinet • 4-Faucet Finesse FontPour perfectly chilled whites and cellar-ready reds from a single, compact unit. The Pro-Line E-Series puts two independently controlled temperature zones, a premium four-faucet Finesse wine font and rugged commercial construction on a mobile 25-inch footprint—ideal for bars, taprooms, restaurants and event venues that want to elevate their wine-by-the-glass program.
Key benefits

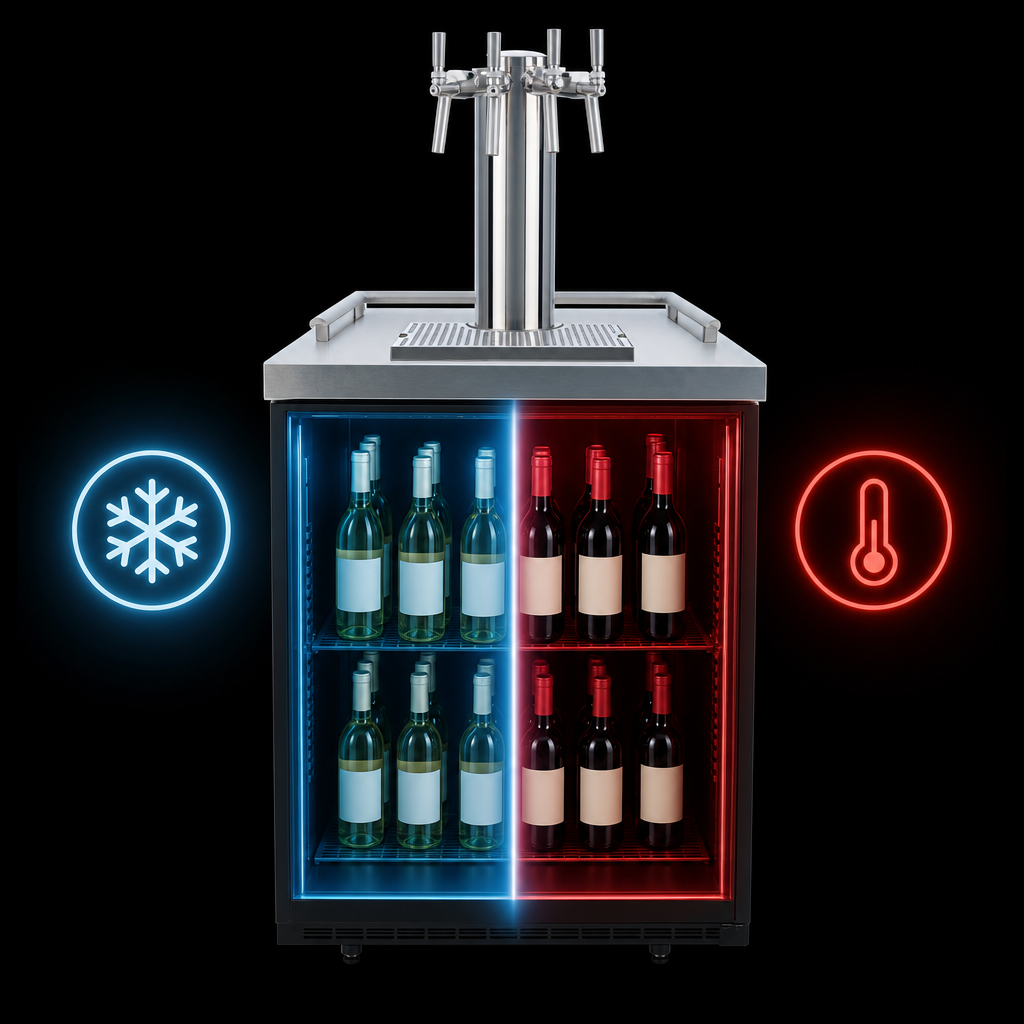

- Dual-zone refrigeration with color-coded LED thermostats (blue for whites, red for reds).

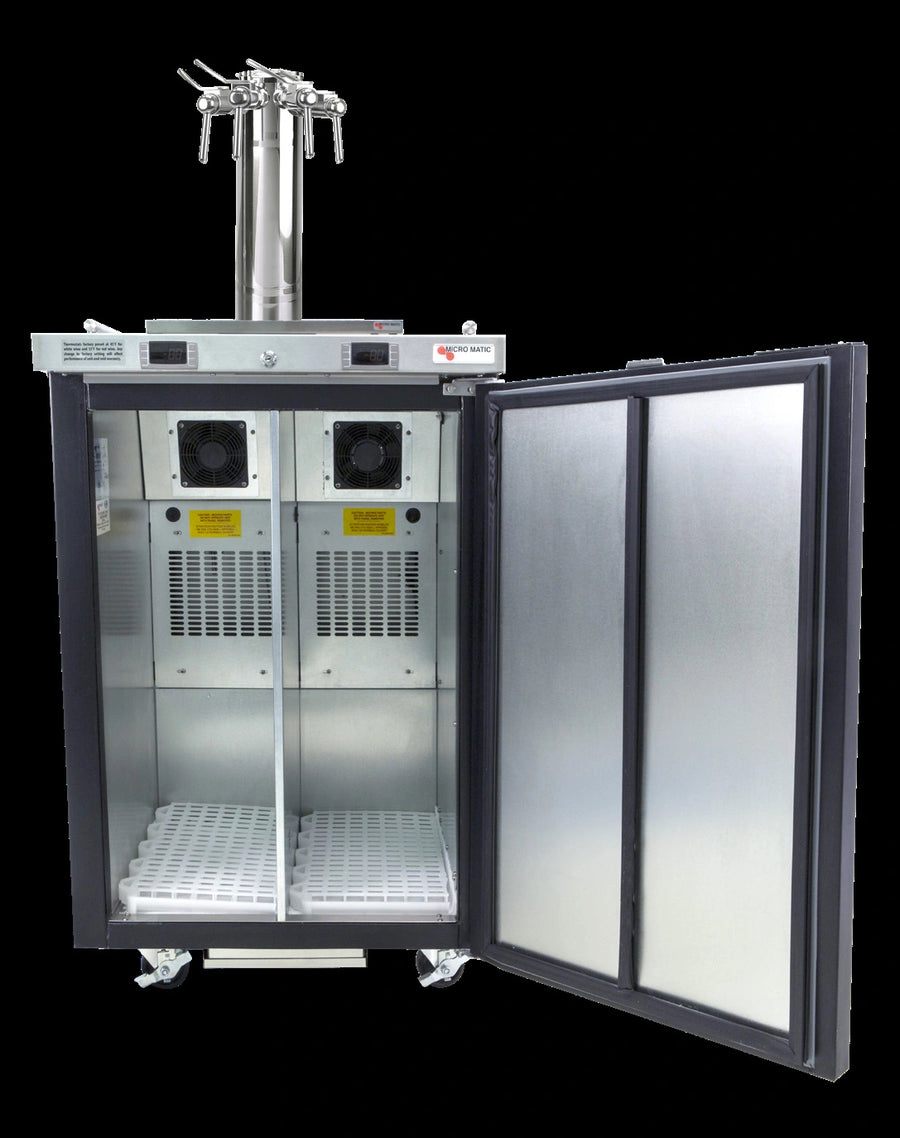

- Holds 4 × 20 L wine kegs—two per zone—for up to 160 five-ounce pours.

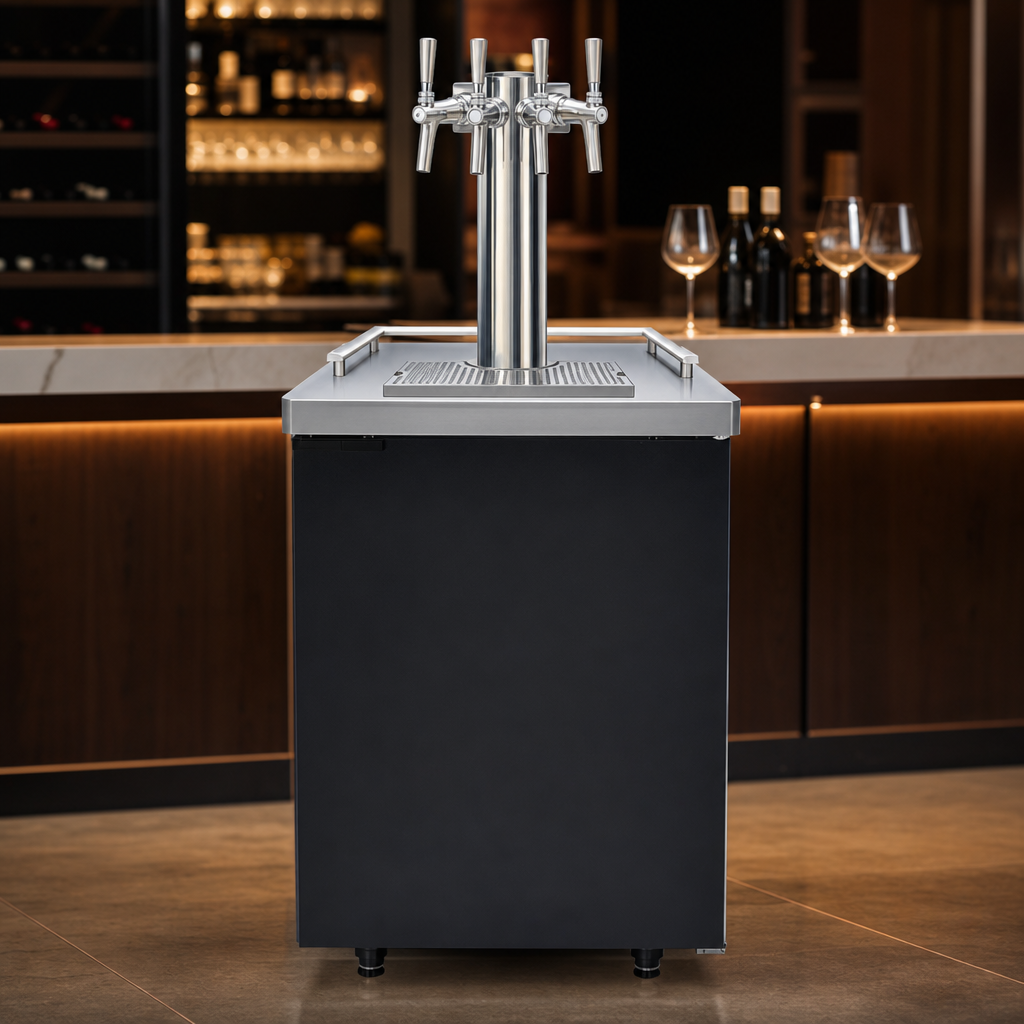

- 4 side-pull faucets on a polished 4" Finesse font ensure gentle, low-oxidation pours.
- Stainless steel drip tray with removable grill, hose & drain bottle keeps the bar dry.
- Locking solid door safeguards premium inventory after hours.
- Foamed-in-place CFC-free insulation and high-efficiency R290 refrigerant reduce energy costs.
- Factory-installed casters make repositioning and cleaning fast and easy.
- Automatic condensate evaporator—no floor drain required.
Specifications
| Capacity | 8.4 cu ft (4 × 20 L kegs) |
|---|---|
| Temperature Zones | 2 • Whites 42-48 °F (5.5-8.8 °C) • Reds 55-65 °F (12.7-18.3 °C) |
| Controls | 2 digital LED thermostats (color-coded) |
| Faucets / Tower | 4 side-pull faucets on 4" Finesse wine font |
| Door | 1 hinged, self-closing, locking |
| Exterior Finish | Black vinyl-clad steel with 18 ga stainless top & glass guard rail |
| Interior | Galvanized walls, reinforced 20 ga stainless floor |
| Refrigerant | R290, 2.8 oz charge |
| Compressor | 1/10 HP, back-ventilated |
| Electrical | 115 V / 60 Hz / 1-ph, 1.5 A, NEMA 5-15P, 8' cord |
| Dimensions (W × D × H) | 25" × 30" × 39" cabinet • 53.6" to top of tower |
| Mobility | Non-removable casters (standard) |
| Certifications | cETLus & ETL-Sanitation (NSF/ANSI-7) |
| Ship Weight | 172 lb (78 kg) |
Perfect for
- Wine bars and tasting rooms
- Restaurants expanding by-the-glass offerings
- Hotel lounges & hospitality suites
- Catering, event and banquet operations
Need a complete dispense package? Our draft specialists can help—contact us at micromatic.com/contact.
