Micro Matic USA  |  Pro-Line  |  SKU: MDD23W-E-B

Micro Matic USA MDD23W-E-B Pro-Line Draft Beer & Wine Dispensers

$4,142.56
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Warranty sheet
Related Searches
Automatic Liquor Dispensers Beverage Equipment Beverage Equipment Drink Dispensers Ice Machines & Beverage Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

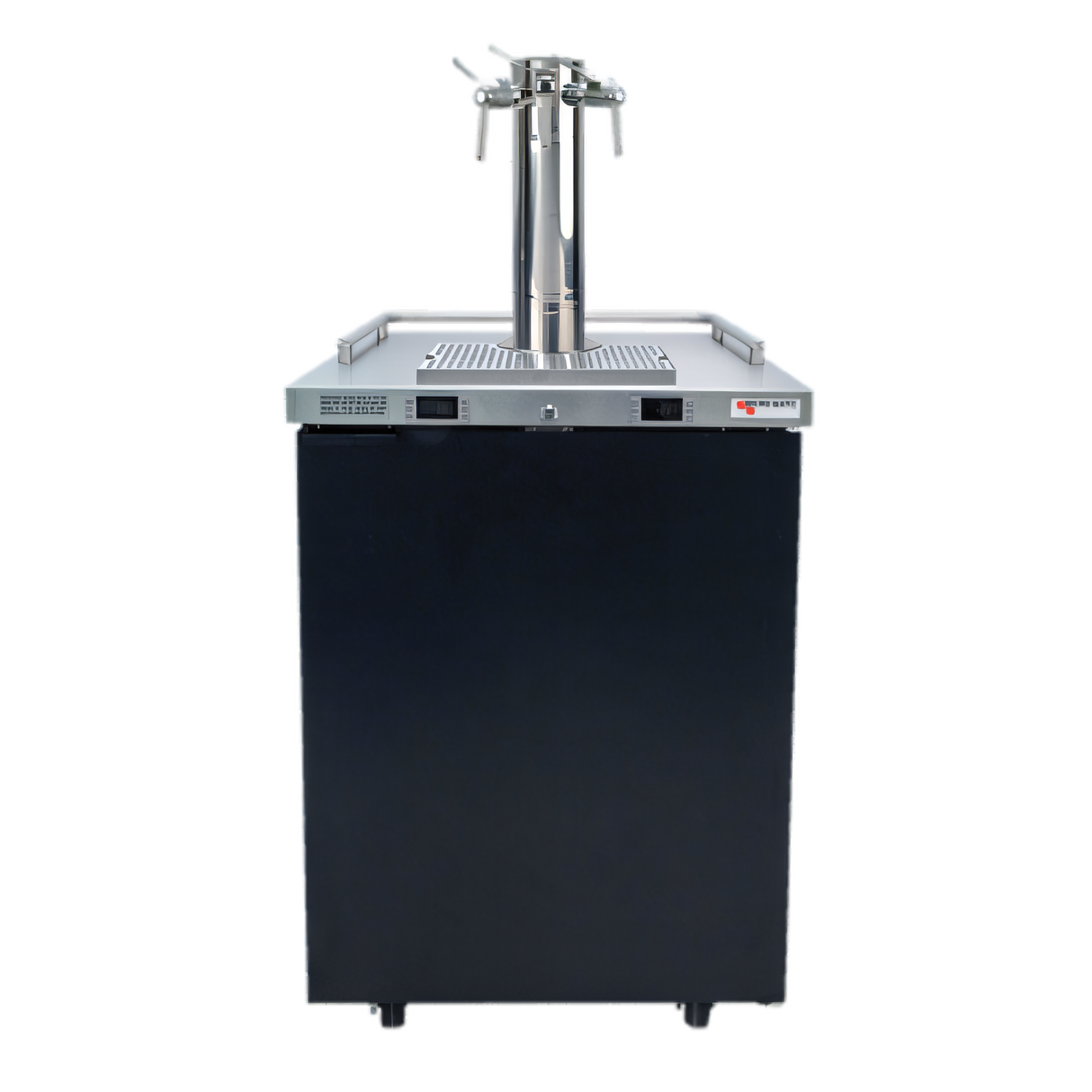

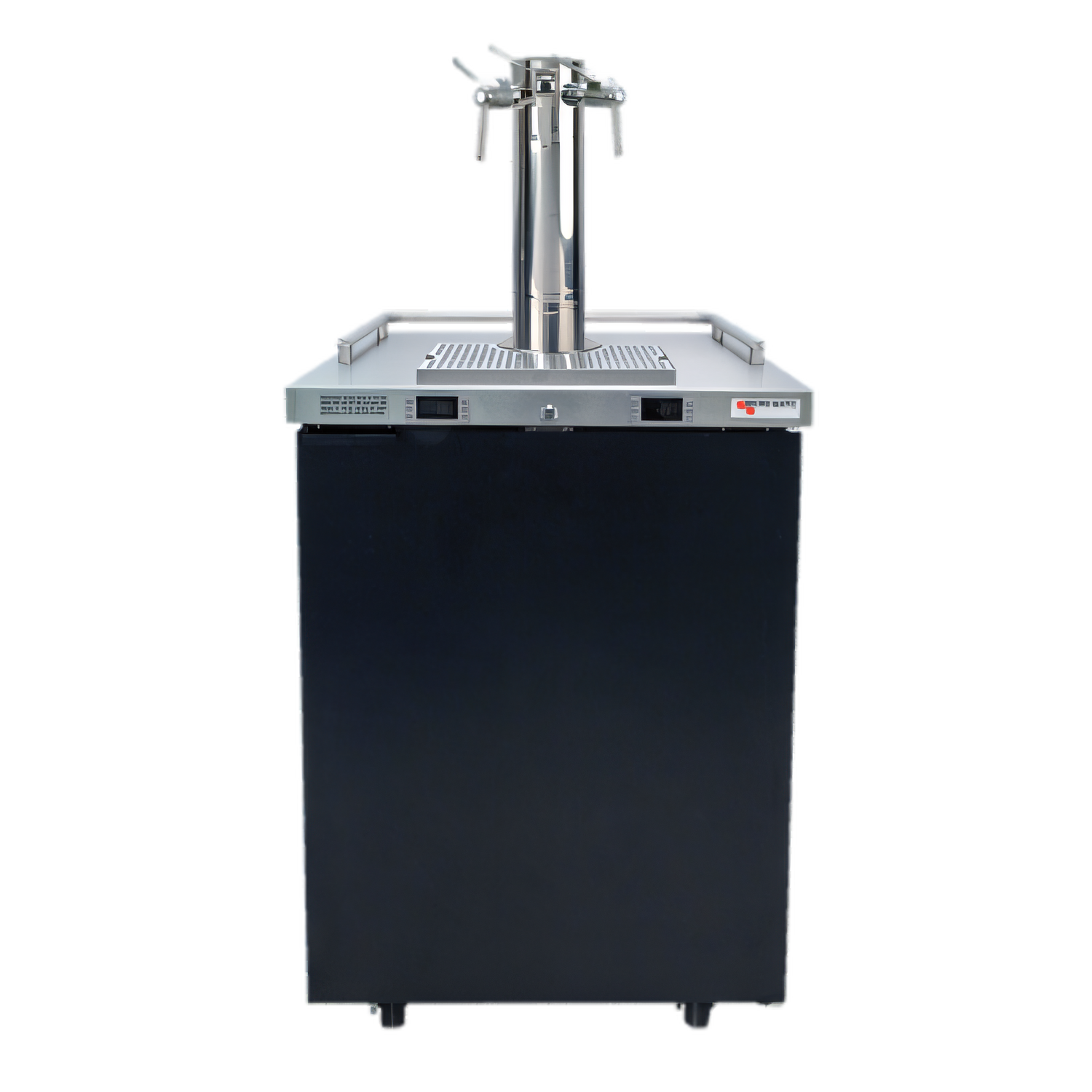

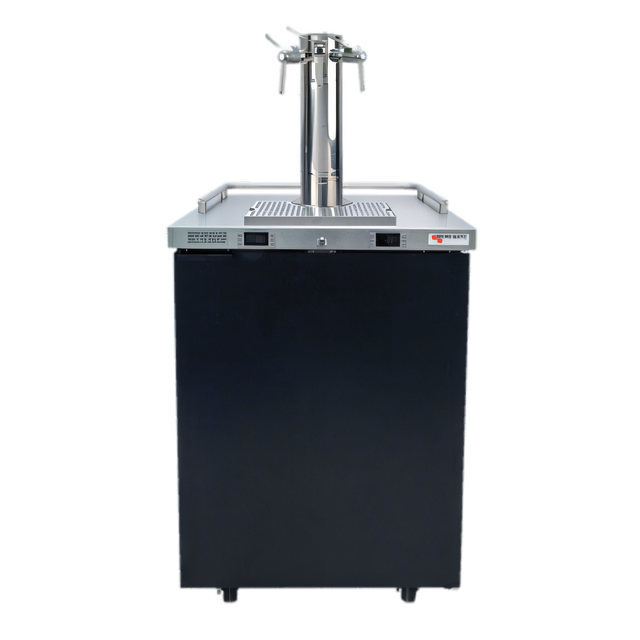

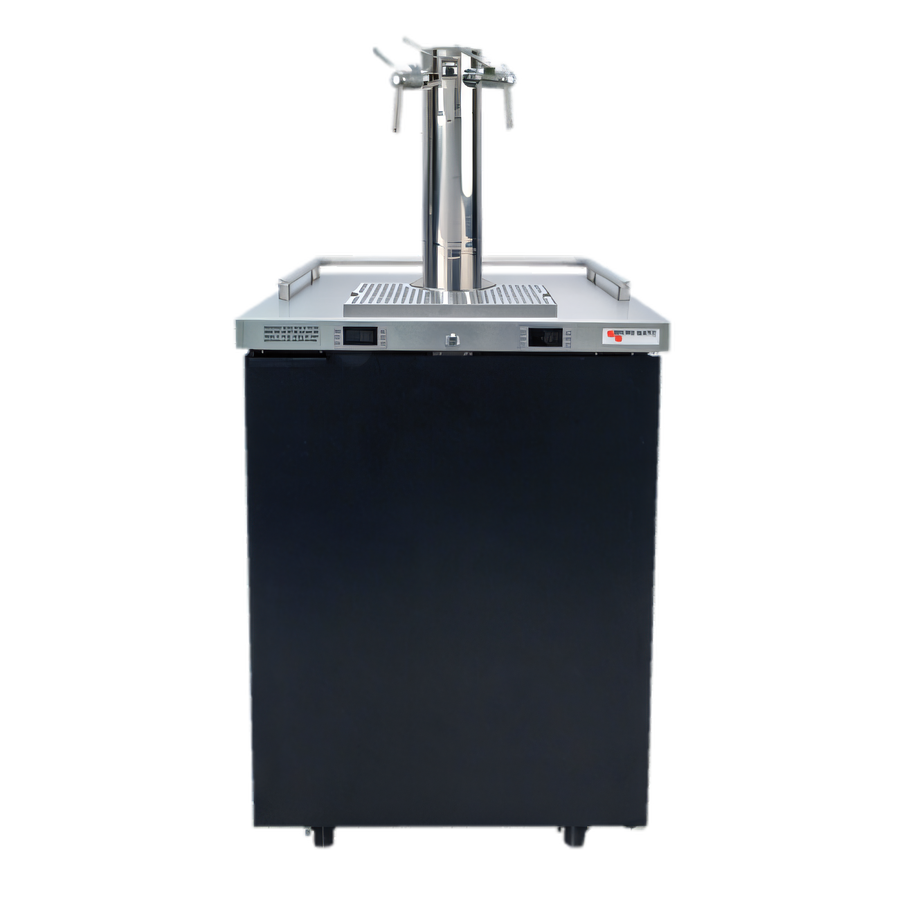

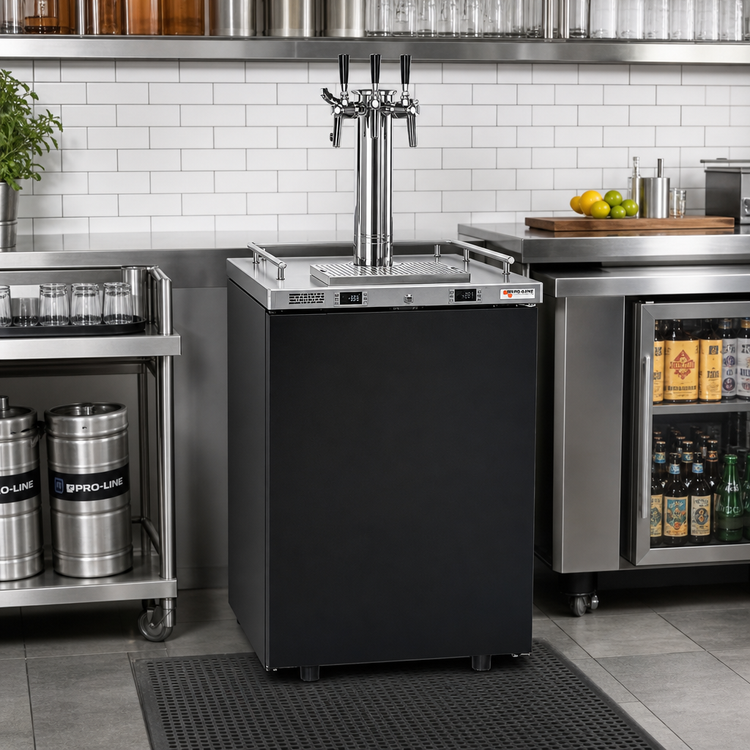

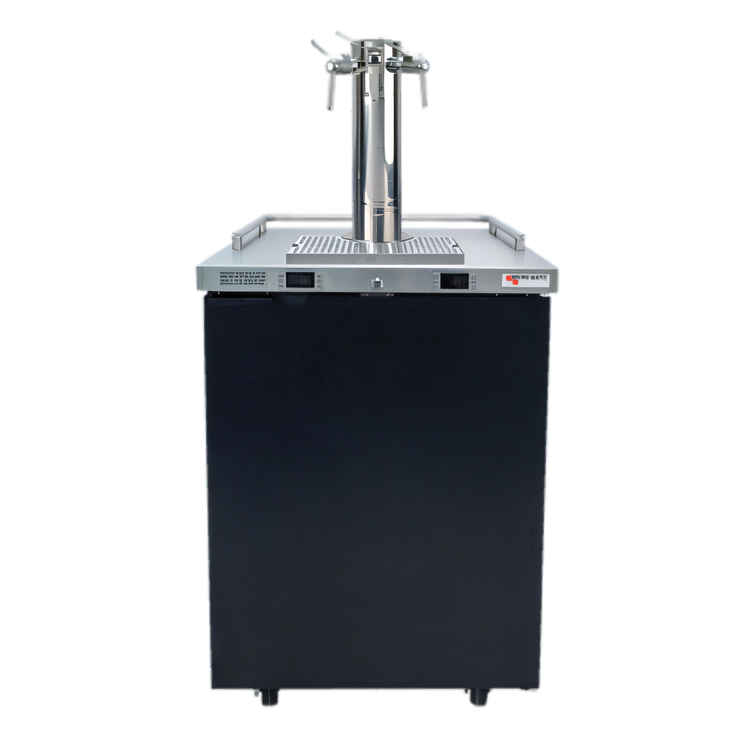

Pro-Line™ E-Series™ Dual-Temperature Wine Cooler Dispenser

Model MDD23W-E-B  •  25" • 4 Keg • 3 Faucet

Serve reds and whites at their ideal temperatures from one sleek cabinet. Engineered by Micro Matic’s wine-industry experts, the Pro-Line™ E-Series™ pairs precision digital control with rock-solid, commercial-grade construction—perfect for bars, tasting rooms and restaurants that refuse to compromise on flavor or reliability.

Key Advantages

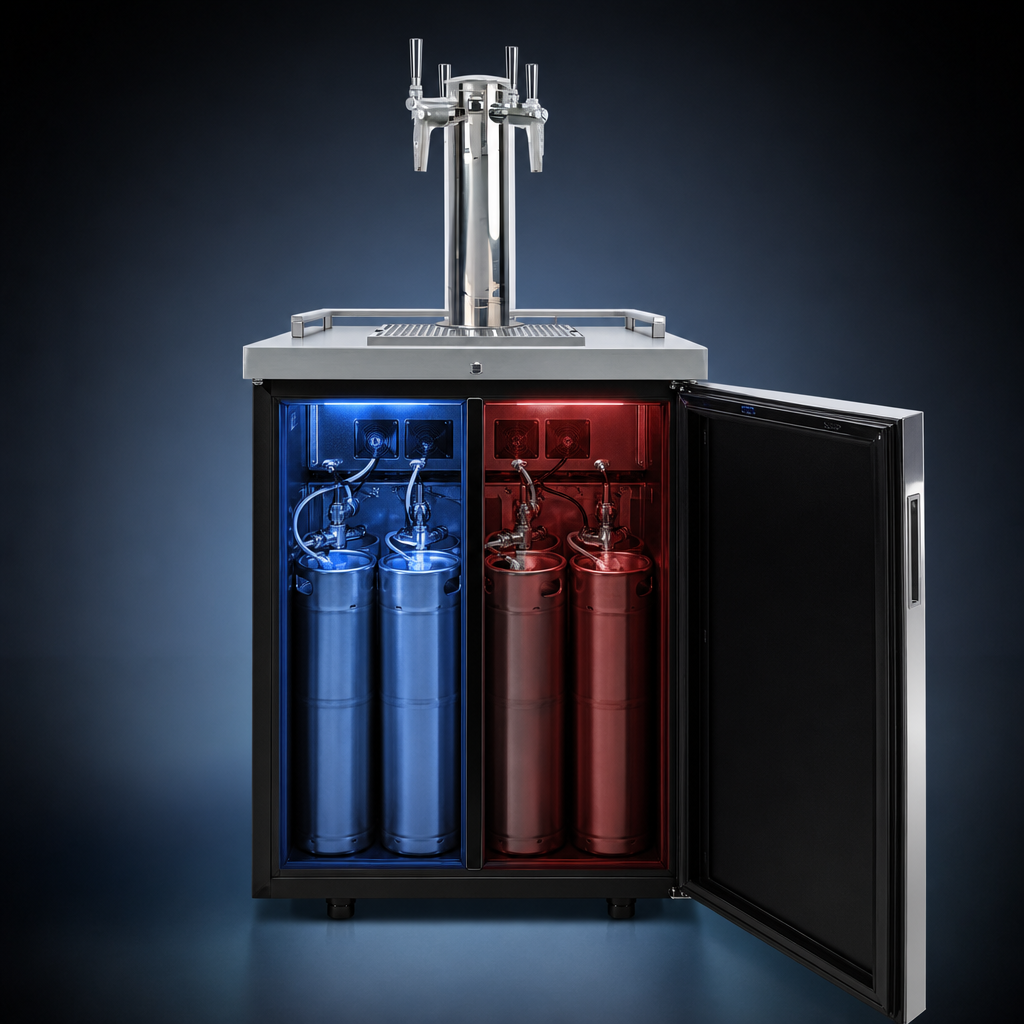

  • Two independent temperature zones (42-48 °F  |  55-65 °F) with color-coded LED digital thermostats.

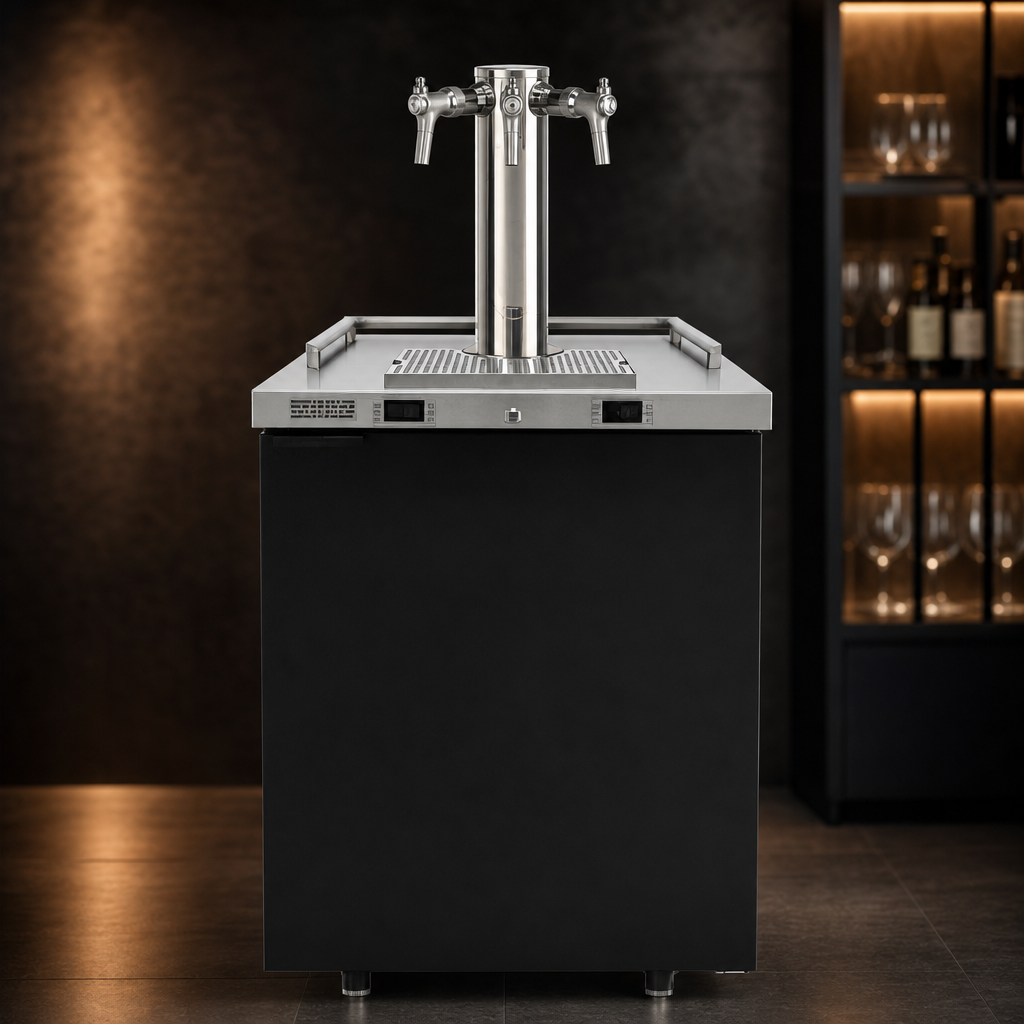

  • Finesse wine font equipped with three side-pull faucets for smooth, oxidation-free pours.
  • 8.4 cu ft interior holds up to 4 x 20-L wine kegs – two per zone.
  • Stainless steel drip tray with removable grill, drain hose, and bottle keeps countertops spotless.
  • Lockable, self-closing door and glass guard-rail protect product and promote safe service.
  • Black vinyl-clad steel exterior, galvanized interior walls, and stainless steel floor for long-term durability.
  • Automatic condensate evaporator—no floor drain required.
  • Factory-installed casters (non-removable) make cleaning and repositioning effortless.

Technical Specifications

Capacity 4 × 20 L (5.2 gal) kegs  •  2 per temperature zone
Interior Volume 8.4 cu ft
Temperature Range Whites 42-48 °F  •  Reds 55-65 °F
Controls Dual LED digital thermostats – blue (whites) & red (reds)
Dispensing Hardware (1) Finesse column tower with 3 side-pull faucets (medallion holders & tap handles not included)
Door 1 hinged door with lock
Exterior Black vinyl over steel with 18-gauge stainless steel top & glass guard rail
Interior Galvanized walls, 20-gauge stainless steel floor, foamed-in-place insulation
Refrigeration Self-contained 1/6 HP compressor, R-134a, automatic condensate evaporator
Electrical 115 V / 60 Hz / 1-ph  •  2.5 A  •  NEMA 5-15P  •  8 ft cord
Overall Dimensions (W × D × H) 25" × 30" × 39" (cabinet)  |  53.6" H to top of tower
Mobility Non-removable casters
Shipping Weight 172 lb (78 kg)
Certifications cETLus, ETL-Sanitation, Wine Certified, conforms to UL & NSF standards
Warranty 1-year limited parts & labor
Important: Tapping equipment and tap handles are sold separately.

Questions about gas blends, installation, or accessories? Call our draft experts at 1-866-327-4159 or visit micromatic.com.

Features & Specs

Manufacturer

Micro Matic USA

Brand_name

Pro-Line

Certifications

cETLus, ETL-Sanitation

Height

40.5in

Width

25.0in

Depth

28.0in

Shipping Weight

172.0lbs

Exterior Finish

all black exterior

Width (side - side) OA

25"

Refrigeration Type

self-contained refrigeration

Towers/Taps

(1) triple faucet column

Top

flat top, stainless steel

Specifications

Pro-Line™ E-Series™ Dual Temperature Wine Cooler Dispenser, one-section, 25"W, self-contained refrigeration, 8.4 cu. ft. capacity, (1) Finesse wine font with (3) side pull faucets (medallion holders not included), (2) LED digital temperature displays, stainless steel drip tray with removable grill includes hose & drain bottle, (1) hinged door with lock, automatic condensate evaporator, stainless steel top with glass guard rail on front & sides, galvanized interior with stainless steel floor, black vinyl over steel exterior, casters, R134a, 1/6 HP, 115v/60/1-ph, 2.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)
