Micro Matic USA | Pro-Line | SKU: MDD23W-E-A

Micro Matic USA MDD23W-E-A Pro-Line Draft Beer & Wine Dispensers

Name: Micro Matic USA MDD23W-E-A Pro-Line Draft Beer & Wine Dispensers
Brand: Micro Matic USA
SKU: MDD23W-E-A
Price: 3881.20 USD
Availability: InStock

$3,881.20

Expected delivery date of , to your door

if ordered within hours and minutes

Not Shipping to ?

More Delivery Options

Documents

Cutsheet Owner's manual Warranty sheet

Description

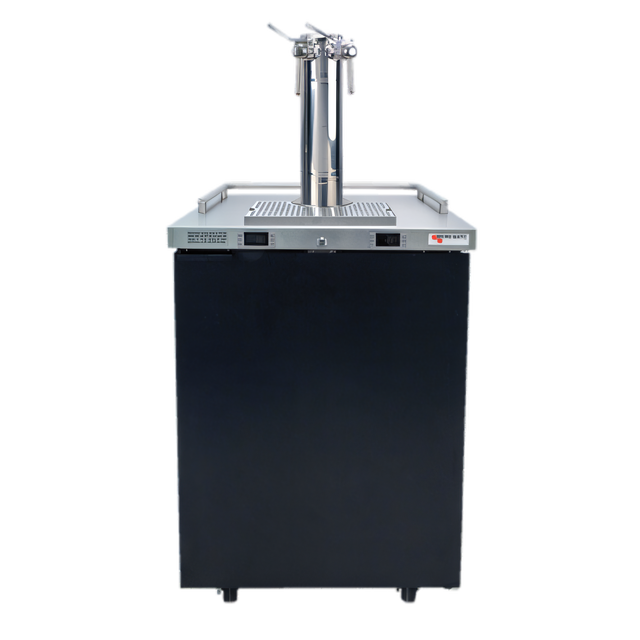

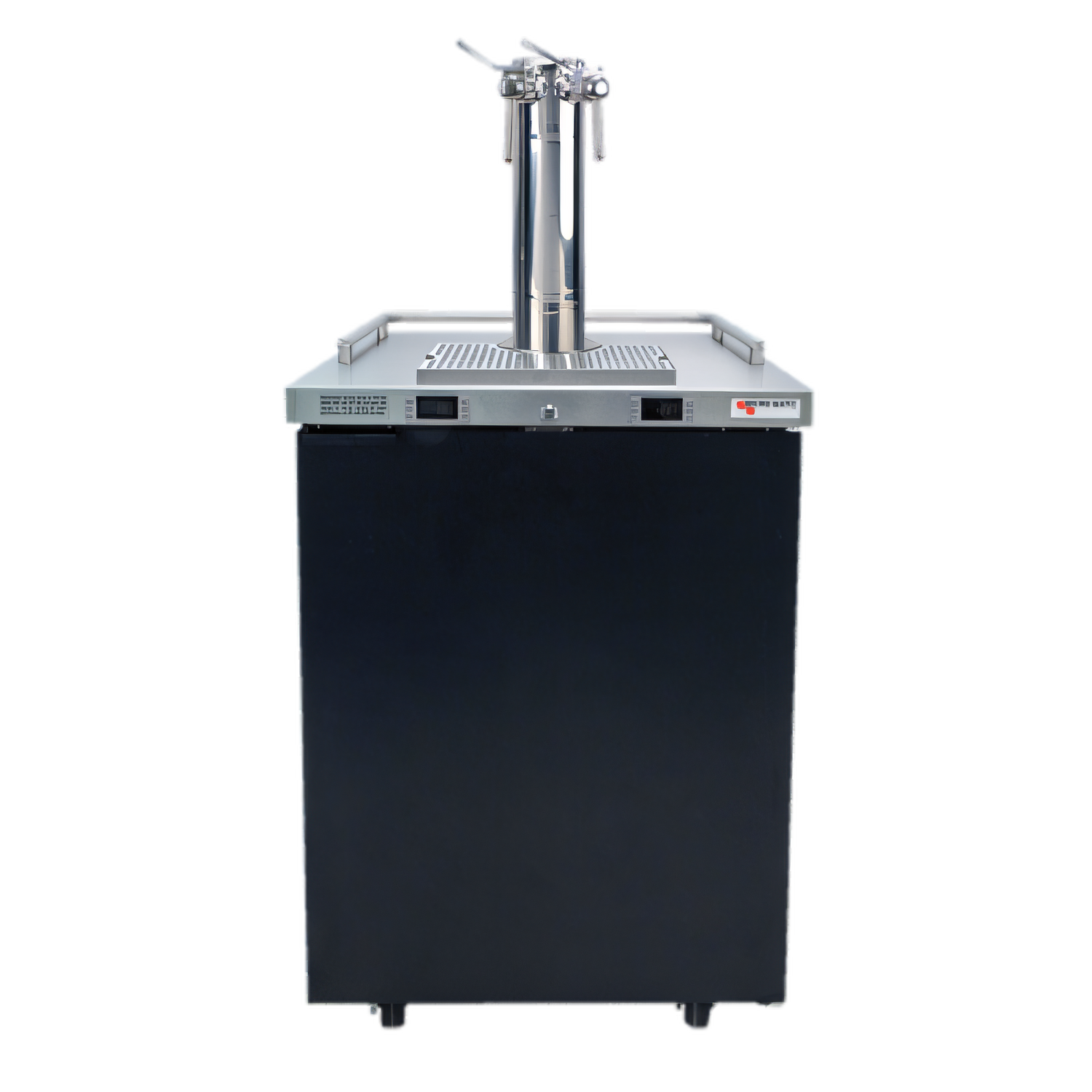

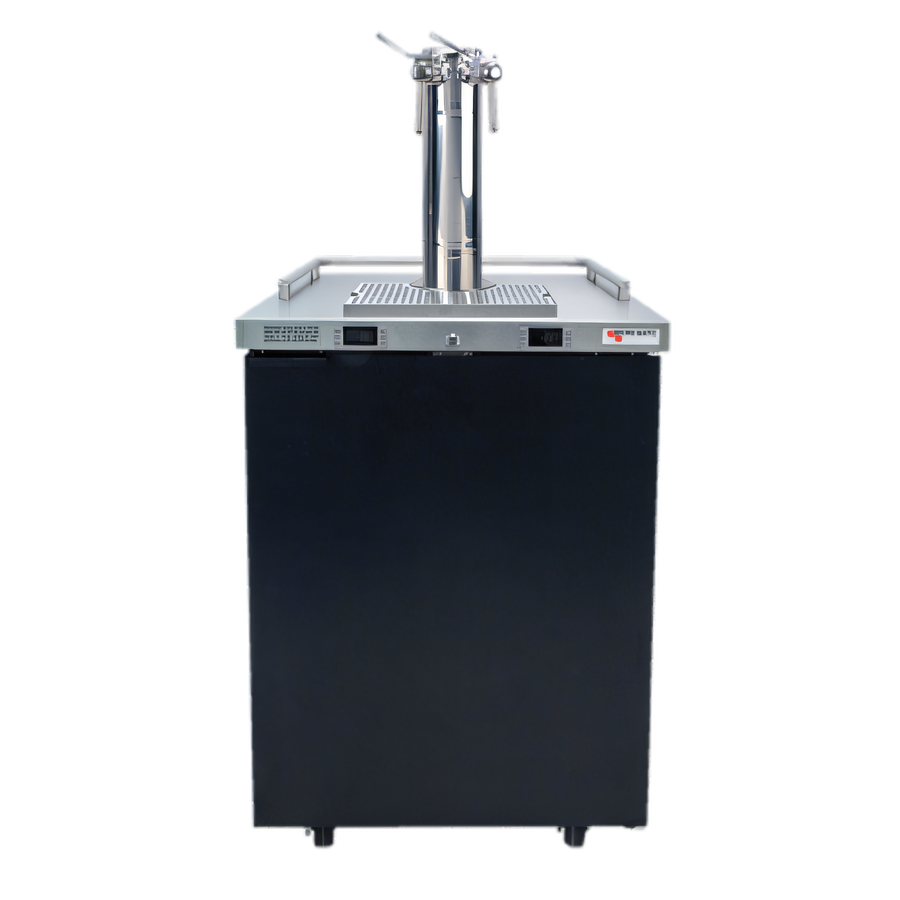

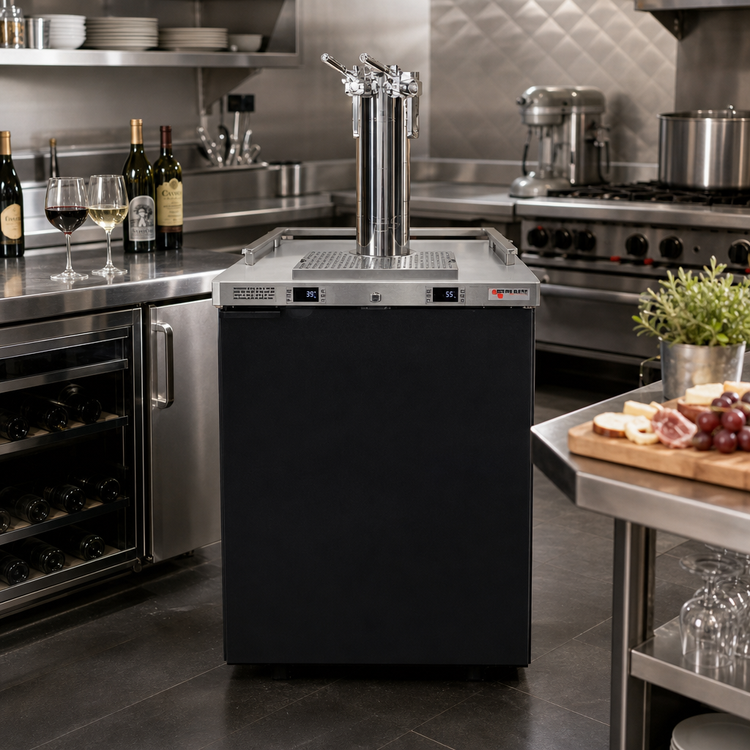

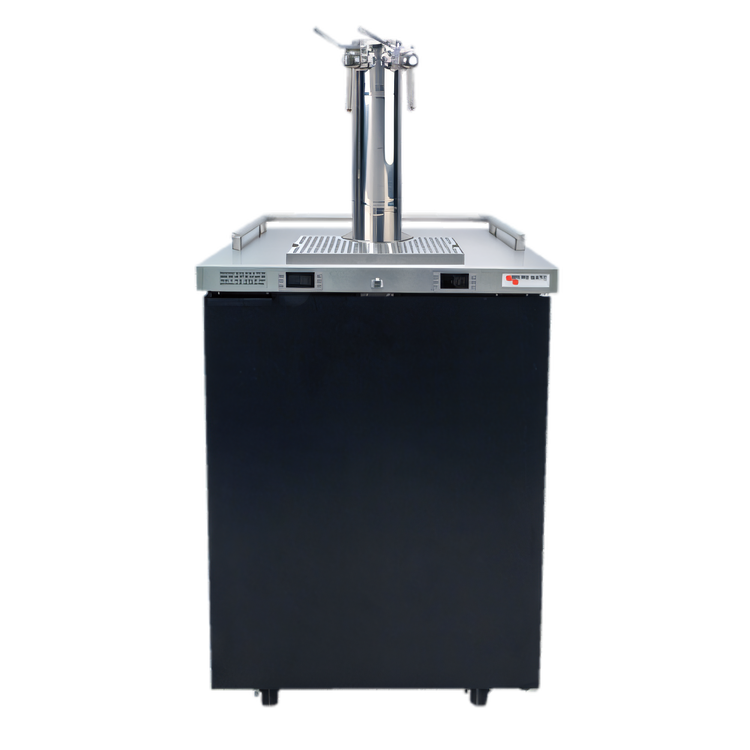

Pro-Line™ E-Series Dual-Temperature Wine Dispenser – 25" / 2 Faucets

Model MDD23W-E-A • 4 × 20 L Keg Capacity • Black Finish

Pour reds and whites side-by-side—each at its perfect serving temperature. Engineered by the wine-dispensing experts at Micro Matic, the Pro-Line™ E-Series delivers commercial durability, intuitive controls, and a compact 25-inch footprint that slips effortlessly behind any bar or tasting counter.

Why You’ll Love It

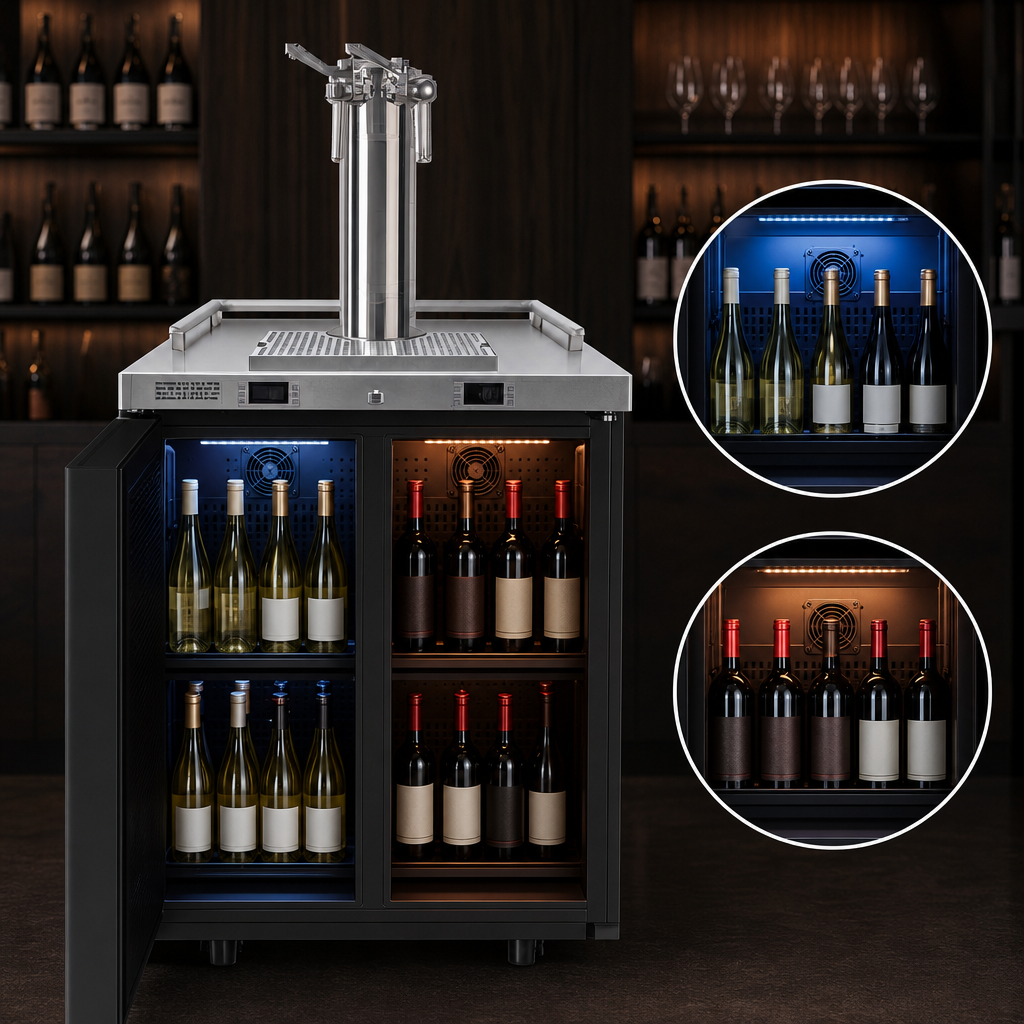

Dual-zone cabinet keeps whites at 42-48 °F and reds at 55-65 °F.

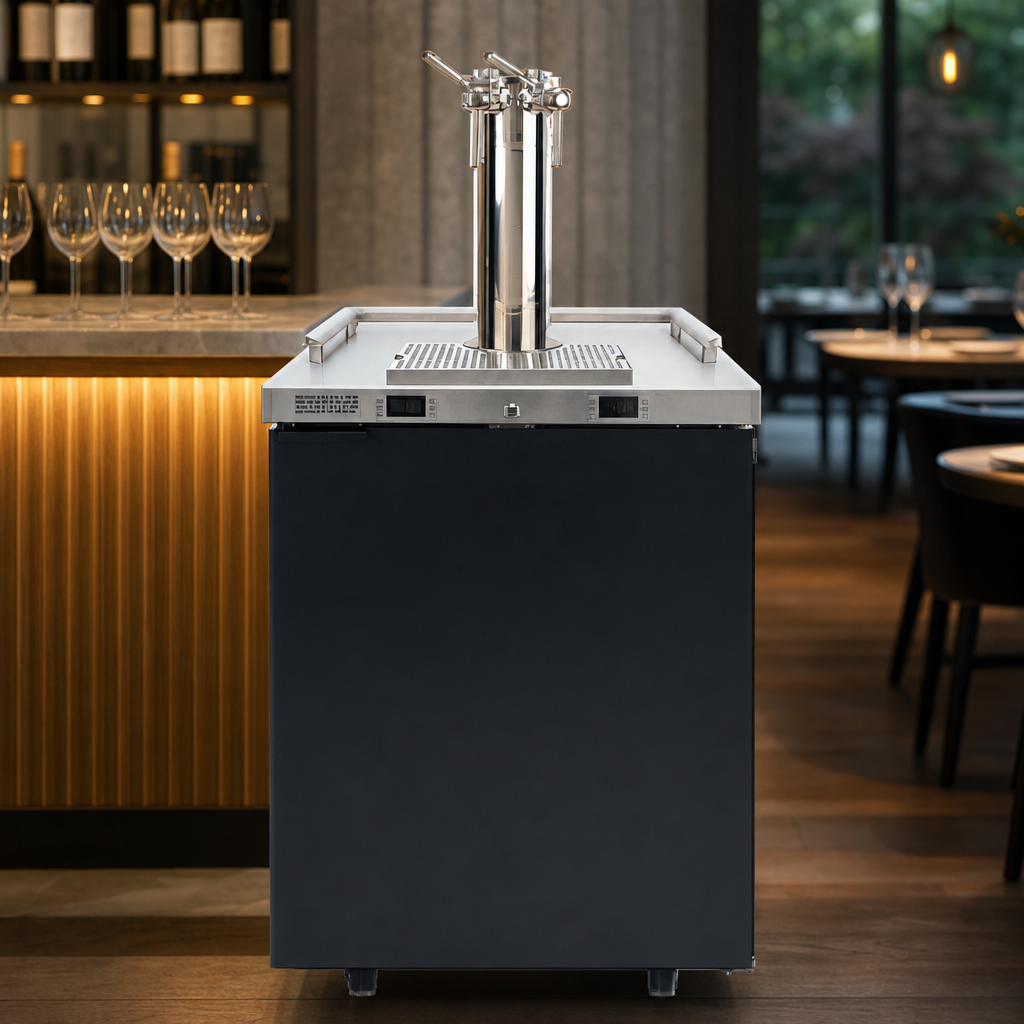

Finesse wine font with two stainless side-pull faucets for smooth, oxygen-free pours.
Color-coded LED thermostats (blue = whites, red = reds) for at-a-glance monitoring.
Holds up to four 20 L wine kegs—two in each zone.
Eco-friendly R290 refrigeration with energy-efficient 1/10 HP compressor.
Removable stainless drip tray with drain hose & bottle keeps bar tops pristine.
Locking solid door safeguards inventory during off-hours.
Automatic condensate evaporator—no floor drain required.
18-gauge stainless worktop with 3-sided tempered-glass guard rail.
Heavy-duty casters (non-removable) for effortless mobility.

Built for Busy Bars

Exterior: black vinyl-clad steel resists dents, scratches & fingerprints.
Interior: reinforced galvanized walls with stainless steel floor for keg-to-keg abuse.
1.5" foamed-in-place CFC-free polyurethane insulation locks in cold.
Back-ventilated design for hassle-free installation.
cETLus & ETL-Sanitation listed—meets UL & NSF standards.

Technical Specifications

Capacity	8.4 cu ft (4 × 20 L kegs)
Temperature Range	Whites: 42-48 °F (5.5-8.8 °C) Reds: 55-65 °F (12.7-18.3 °C)
Refrigeration	Self-contained, 1/10 HP compressor, R290 refrigerant
Electrical	115 V / 60 Hz / 1-ph • 1.5 running A • NEMA 5-15P plug • 8' cord
Overall Dimensions (W×D×H)	25" × 30" × 40.5"
Faucets	2 side-pull wine faucets (medallion holders & tap handles not included)
Door	1 solid hinged door with lock
Mobility	Pre-installed, non-removable casters
Shipping Weight	172 lb (78 kg)
Certifications	cETLus • ETL-Sanitation

Perfect For

Wine bars & tasting rooms
Upscale restaurants & steakhouses
Hotel lounges & banquet spaces
Country clubs & golf courses
Premium home cellars

Important: Tapping hardware (gas regulators, keg couplers, and tap handles) is sold separately.

Micro Matic Part No. MDD23W-E-A | Pro-Line™ E-Series Dual-Zone Wine Dispenser

Features & Specs

Manufacturer

Micro Matic USA

Brand_name

Pro-Line

Certifications

cETLus, ETL-Sanitation

Height

40.5in

Width

25.0in

Depth

28.0in

Shipping Weight

172.0lbs

Towers/Taps

(1) dual faucet column

Exterior Finish

all black exterior

Width (side - side) OA

25"

Refrigeration Type

self-contained refrigeration

Top

flat top, stainless steel

Specifications

Pro-Line™ E-Series™ Dual Temperature Wine Cooler Dispenser, one-section, 25"W, self-contained refrigeration, 8.4 cu. ft. capacity, (1) Finesse wine font with (2) side pull faucets (medallion holders not included), (2) LED digital temperature displays, stainless steel drip tray with removable grill includes hose & drain bottle, (1) hinged door with lock, automatic condensate evaporator, stainless steel top with glass guard rail on front & sides, galvanized interior with stainless steel floor, black vinyl over steel exterior, casters, R134a, 1/6 HP, 115v/60/1-ph, 2.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)
