Micro Matic USA  |  Pro-Line  |  SKU: MDD23S-E-LT

Micro Matic USA MDD23S-E-LT Pro-Line Back Bar Coolers

$2,992.57
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

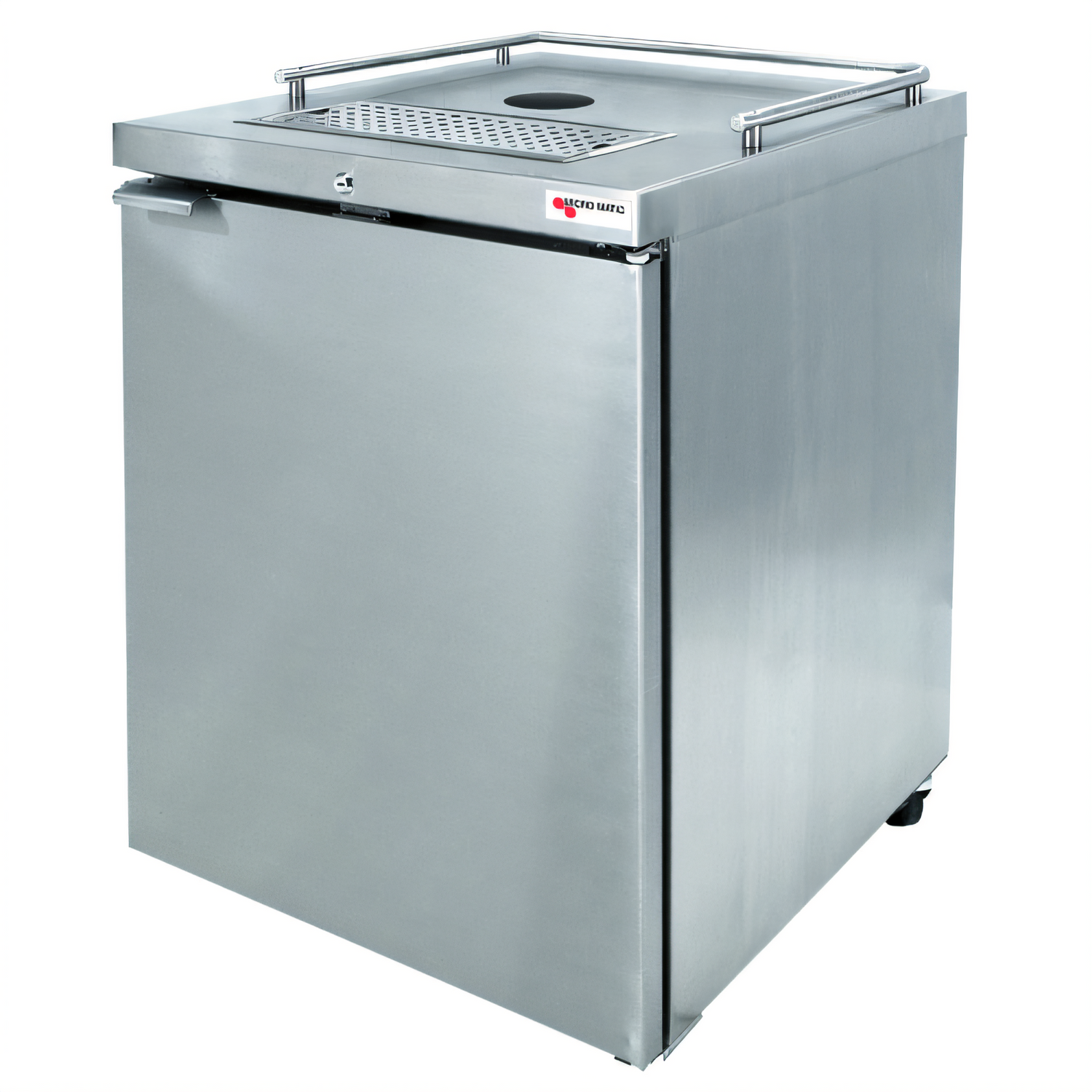

Micro Matic Pro-Line™ E-Series Draft Beer Cooler – 25"

Model MDD23S-E-LT · 1-Keg · Less Tower

Purpose-built by the draft-beer experts at Micro Matic, the Pro-Line™ E-Series puts ice-cold, perfectly carbonated pours at your fingertips in a compact 25-inch footprint. Rugged construction, easy mobility and a precision digital thermostat make this single-section cooler a ready-to-work solution for bars, taprooms, catered events and tasting rooms.

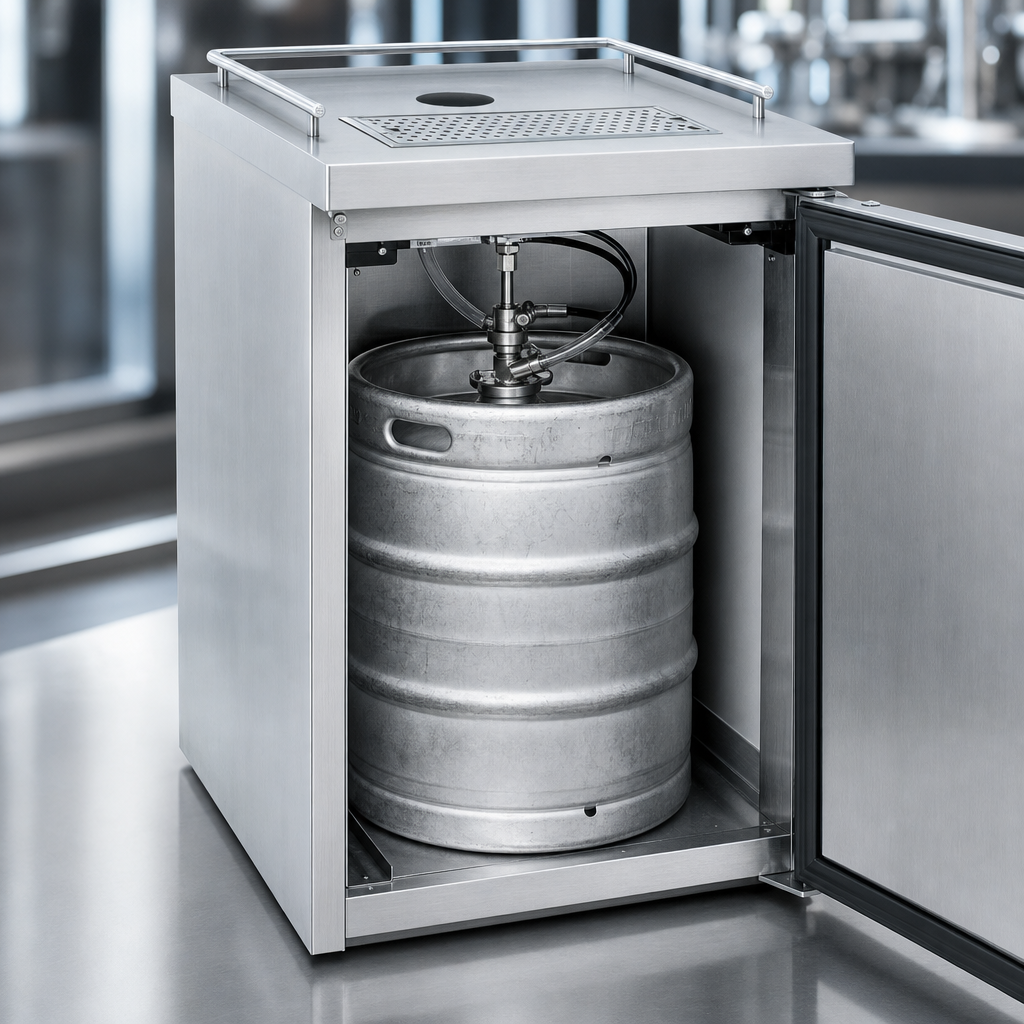

  • Holds one full-size ½-barrel (or multiple slim) kegs – 8.4 cu. ft. interior
  • 18-gauge stainless steel top with full-width drain tray, removable grill, hose & drain bottle
  • Digital thermostat for fast, accurate 33–41 °F temperature control
  • Rugged stainless keg slide protects the floor and speeds keg changes
  • Self-contained R290 refrigeration with automatic condensate evaporator – no floor drain needed
  • Locking solid door safeguards inventory after hours
  • Factory-installed casters (front locking) for effortless cleaning and repositioning
  • cETLus & ETL-Sanitation listed for commercial foodservice use

Technical Specifications

Capacity 8.4 cu. ft. / (1) ½-barrel keg
Dimensions (W × D × H) 25" × 29.5" × 40.5" (to guard rail)
Exterior Stainless steel front, sides & top
Interior Stainless floor, galvanized walls, foamed-in-place insulation
Compressor 1/10 HP, rear-mounted, back-ventilated
Refrigerant Eco-friendly R290
Thermostat Digital, user-settable
Electrical 115 V / 60 Hz / 1-phase · 1.5 A · NEMA 5-15P plug (8' cord)
Shipping Weight 172 lb.
Certifications cETLus · ETL-Sanitation (NSF-7)

Engineered for the Perfect Pour

From the oversized drain tray that keeps your bar top spotless to the energy-saving polyurethane insulation that locks in chill, every detail of the Pro-Line™ E-Series is optimized for reliable, profitable draft service.

  • 2" high-density insulation reduces compressor cycling & energy use
  • Automatic defrost and condensate evaporation for low-maintenance operation
  • Glass guard rail on three sides offers a built-in glass staging area
  • Heavy-duty door gasket and magnetic seal prevent temperature loss

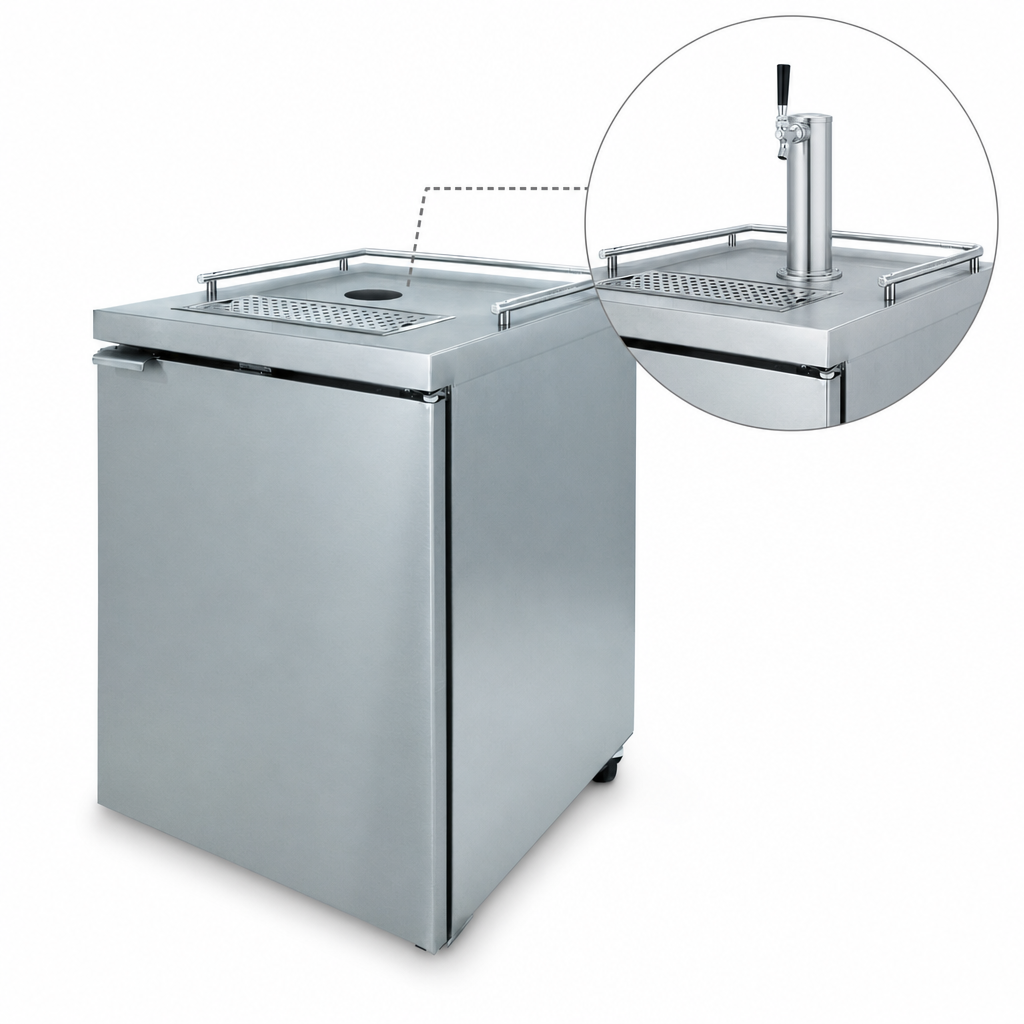

Draft tower & tapping equipment sold separately.
Pair this cooler with any Micro Matic tower, faucet and gas system to build a complete dispense solution tailored to your menu and pour volume.

Questions? Call Micro Matic’s draft-system specialists at 1-866-327-4159 for layout assistance and tower recommendations.

Features & Specs

Manufacturer

Micro Matic USA

Brand_name

Pro-Line

Certifications

cETLus, ETL-Sanitation

Height

40.5in

Width

25.0in

Depth

28.0in

Shipping Weight

172.0lbs

Faucet Qty

faucets not included

Exterior Finish

all stainless steel exterior

Width

20" - 36"

Column Qty

columns not included

Keg Capacity

1 - 2 kegs

Barrel Style

1/2 barrel (full keg)

Top Style

flat top

Specifications

Pro-Line™ E-Series™ Draft Beer Cooler less draft tower, one-section, 25"W, self-contained refrigeration, analog dial thermostat, 8.4 cu. ft. capacity, stainless steel drip tray with removable grill includes hose & drain bottle, (1) solid hinged door with lock, automatic condensate evaporator, stainless steel interior floor with keg slide, stainless steel top with glass guard rail on front & sides, stainless steel exterior, casters, R134a, 1/6 HP, 115v/60/1-ph, 2.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (draft tower and tapping equipment sold separately)
